PPI HumiTherm Plus Recording Plus Printer Interface

OPERATOR PAGE PARAMETERS

OPERATOR PAGE PARAMETERS
Parameters	Settings (Default Value)
Select Prnt Option>>	None Print (New) Re-Print (Old) Print Info Page (Default : None)
Temp. Set Value >>	SP Low Limit to SP High Limit (Default : 25.0)
%RH Set Value >>	SP Low Limit to SP High Limit (Default : 60.0)
Temp. Lo Deviation >>	0.2 to 99.9 (Default : 2.0)
Temp. Hi Deviation >>	0.2 to 99.9 (Default : 2.0)
%RH Lo Deviation >>	0.2 to 99.9 (Default : 2.0)
%RH Hi Deviation >>	0.2 to 99.9 (Default : 2.0)
Change Password >>	1 to 100 (Default : 0)

SUPERVISORY

SUPERVISORY > SENSOR INPUT
Parameters	Settings (Default Value)
Temp. Zero Offset >>	-50.0 to 50.0 (Default : 0.0)
%RH Zero Offset >>	-50.0 to 50.0 (Default : 0.0)

SUPERVISORY > RECORDING
Parameters	Settings (Default Value)
Recording Interval (min) >>	0 to 250 Min (Default : 5 Min)
Alarm Toggle Records >>	Enable Disable (Default : Enable)
Delete PC Records >>	Yes No (Default : No)
RTC Time >>	0 to 23 for Hour 0 to 59 for Min (Default : NA)
RTC Date >>	1 to 31 (Default : NA)
RTC Month >>	1 to 12 (Default : NA)
RTC Year >>	2000 to 2099 (Default : NA)

SUPERVISORY > PRINTER SETTING
Parameters	Settings (Default Value)
Line Per Page >>	25 to 100 (Default : 65)
Top Margine >>	1 to 5 (Default : 2)
Bottom Margine >>	1 to 5 (Default : 2)
Header & Footer >>	No On First Page Every Page (Default : No)
Enable >>	Yes No (Default : No)

SUPERVISORY > PRINT EVENT
Parameters	Settings (Default Value)
Alarm Toggle >>
RTC Modify >> Interval Modify >> Power Up >> Door Open >> Mains Fail >> Setpoint Modify >>	Yes No (Default : Yes)

SUPERVISORY > PASSWORD
Parameters	Settings (Default Value)
Change Password >>	1000 to 1999 (Default : 123)

SUPERVISORY > EXIT
Parameters	Settings (Default Value)
Exit Setup Mode >>	Yes No (Default : No)

FACTORY

FACTORY > TEMPERATURE > ALARM FACTORY > HUMIDITY (%RH) > ALARM
Parameters	Settings (Default Value)
Hysteresis >>	0.1 to 99.9 (Default : 0.2)
Inhibit >>	Yes No (Default : Yes)

FACTORY > TEMPERATURE > CONTROL FACTORY > HUMIDITY (%RH) > CONTROL
Parameters	Settings (Default Value)
Tune >>	Yes No (Default : No)
Setpoint LO Limit >>	-99.9 to SETPOINT HI LIMIT (Default : 10.0)
Setpoint HI Limit >>	For RTD: Setpoint Lo Limit to 600.0 For mA/V: Setpoint Lo Limit to 999.9 (Default : 60.0)

FACTORY > TEMPERATURE > CONTROL FACTORY > HUMIDITY (%RH) > CONTROL
CONTROL ZONES : DUAL
Parameters	Settings (Default Value)
CZ Prop Band >>	0.1 to 999.9 (Default : 50.0)
CZ Integral Time >>	0 to 3600 Sec (Default : 100 Sec)
CZ Derivative Time >>	0 to 600 Sec (Default : 16 Sec)
HZ Prop Band >>	0.1 to 999.9 (Default : 50.0)
HZ Integral Time >>	0 to 3600 Sec (Default : 100 Sec)
HZ Derivative Time >>	0 to 600 Sec (Default : 16 Sec)
Cycle Time >>	0.5 to 100.0 Sec (Default : 10.0 Sec)
CONTROL ZONES : SINGLE
Parameters	Settings (Default Value)
Proportional Band >>	0.1 to 999.9 (Default : 50.0)
Integral Time >>	0 to 3600 Sec (Default : 100 Sec)
Derivative Time >>	0 to 600 Sec (Default : 16 Sec)
Cycle Time >>	0.5 to 100.0 Sec (Default : 10.0 Sec)

FACTORY > TEMPERATURE > SENSOR INPUT

FACTORY > HUMIDITY (%RH) > SENSOR INPUT

Parameters

Settings (Default Value)

Input Type >>

* RTD Pt100 0-20mA

4-20mA

0-5V

0-10V

1-5V

(Default :

For Temp. Input : RTD Pt100 For %RH Input : 0-5V)

*Available for Temp. Input only

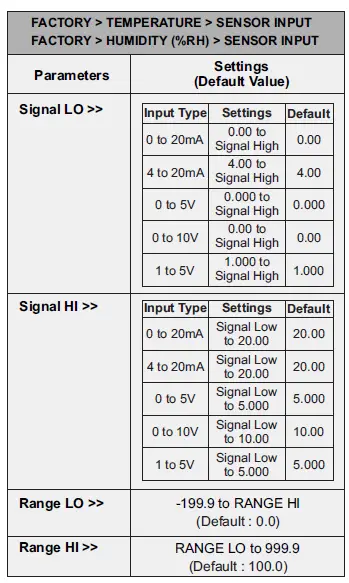

FACTORY > COMPRESSOR
Control Strategy : Heat + Cool
COMPRESSOR STRATEGY >>		CONT. OFF CONT. ON SP BASED PV BASED (Default : CONT. ON)
CONT. ON	SP BASED	PV BASED
Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)	Boundary Set Value >> 0.0 to 100.0 (Default : 45.0)	Compressor SP >> 0.0 to 100.0 (Default : 45.0)
	Control Zones >> SINGLE DUAL (Default : SINGLE)	Hysteresis >> 0.1 to 99.9 (Default : 2.0)
	Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)	Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)

FACTORY > COMPRESSOR
Control Strategy : Heat + Cool
COMPRESSOR STRATEGY >>		CONT. OFF CONT. ON SP BASED PV BASED (Default : CONT. ON)
CONT. ON	SP BASED	PV BASED
Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)	Boundary Set Value >> 0.0 to 100.0 (Default : 45.0)	Compressor SP >> 0.0 to 100.0 (Default : 45.0)
	Control Zones >> SINGLE DUAL (Default : SINGLE)	Hysteresis >> 0.1 to 99.9 (Default : 2.0)
	Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)	Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)

FACTORY > BOILER WATER LEVEL
Parameters	Settings (Default Value)
Enable >>	Yes No (Default : No)
Water Level Startegy >>	Single Switch Dual Switch Lo-hi Dual Switch Lo-vlo (Default : Single Switch)
Switch-1 Logic >>	Close : Water Lo Open : Water Lo (Default : Close : Water Lo)
Switch-2 Logic >>	Close : Water HI Open : Water HI (Default : Close : Water HI) OR Close : Water VLO Open : Water VLO (Default : Close : Water VLO)

FACTORY > DOOR OPEN
Parameters	Settings (Default Value)
Enable >>	Yes No (Default : No)
Switch Logic >>	Close : Door Open Open : Door Open (Default : Close : Door Open)
Door Alrm Dly (sec) >>	0 to 1000 Sec (Default : 60 Sec)

FACTORY > MAINS FAILURE
Parameters	Settings (Default Value)
Enable >>	Yes No (Default : No)
Switch Logic >>	Close : Mains Fail Open : Mains Fail (Default : Close : Mains Fail)

FACTORY > FACTORY DEFAULT
Parameters	Settings (Default Value)
Set To Default >>	Yes No (Default : No)

FACTORY > PASSWORD
Parameters	Settings (Default Value)
Change Password >>	2000 to 2999 (Default : 321)

FACTORY > EXIT
Parameters	Settings (Default Value)
Exit Setup Mode >>	Yes No (Default : No)

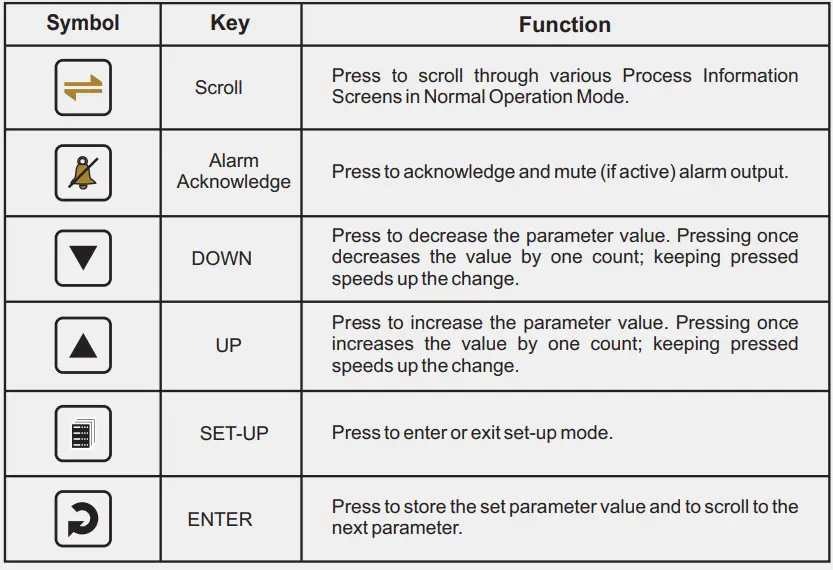

FRONT PANEL KEYS

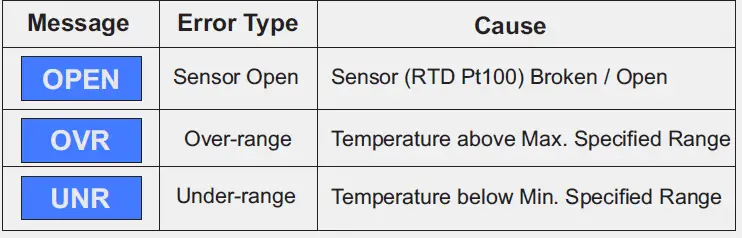

PV ERROR INDICATIONS

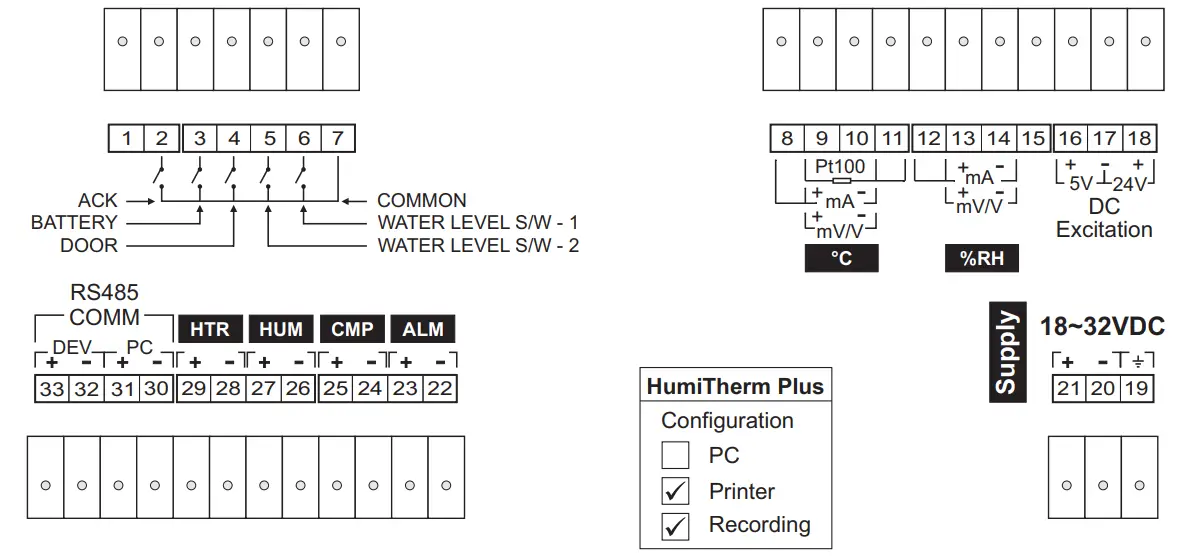

ELECTRICAL CONNECTIONS

This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application; please log on to www.ppiindia.net
