HumiTherm Plus Recording + PC Software

This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application; please log on to www.ppiindia.net

OPERATOR PARAMETERS
Parameters	Settings (Default Value)
Temp. Set Value >>	SP Low Limit to SP High Limit (Default: 25.0)
%RH Set Value >>	SP Low Limit to SP High Limit (Default: 60.0)
Temp. Lo Deviation >>	0.2 to 99.9 (Default: 2.0)
Temp. Hi Deviation >>	0.2 to 99.9 (Default: 2.0)
%RH Lo Deviation >>	0.2 to 99.9 (Default: 2.0)
%RH Hi Deviation >>	0.2 to 99.9 (Default: 2.0)
Change Password >>	1 to 100 (Default: 0)

RECORDING PARAMETERS
Parameters	Settings (Default Value)
Recording Interval (min) >>	0 to 250 Min (Default: 5 Min)
Alarm Toggle Records >>	Enable Disable (Default: Enable)
Delete PC Records >>	Yes No (Default: No)
Temp. Zero Offset >>	-50.0 to 50.0 (Default: 0.0)
%RH Zero Offset >>	-50.0 to 50.0 (Default: 0.0)
GSM Machine ID >> (refer note)	1 to 128 (Default: 1)
RTC Time >>	0 to 23 for Hour 0 to 59 for Min (Default: NA)
RTC Date >>	1 to 31 (Default: NA)
RTC Month >>	1 to 12 (Default: NA)
RTC Year >>	2000 to 2099 (Default: NA)
Device Id >>	1 to 127 (Default: 1)
Change Password >>	1000 to 1999 (Default: 123)

FACTORY > TEMPERATURE > ALARM FACTORY > HUMIDITY (%RH) > ALARM
Parameters	Settings (Default Value)
Hysteresis >>	0.1 to 99.9 (Default: 0.2)
Inhibit >>	Yes No (Default: Yes)

FACTORY > TEMPERATURE > CONTROL FACTORY > HUMIDITY (%RH) > CONTROL
Parameters	Settings (Default Value)
Tune >>	Yes No (Default: No)
Setpoint LO Limit >>	-99.9 to SETPOINT HI LIMIT (Default: 10.0)
Setpoint HI Limit >>	For RTD: Setpoint Lo Limit to 600.0 For mA/V: Setpoint Lo Limit to 999.9 (Default: 60.0)

FACTORY > TEMPERATURE > CONTROL FACTORY > HUMIDITY (%RH) > CONTROL
CONTROL ZONES : DUAL
Parameters	Settings (Default Value)
CZ Prop Band >>	0.1 to 999.9 (Default: 50.0)
CZ Integral Time >>	0 to 3600 Sec (Default: 100 Sec)
CZ Derivative Time >>	0 to 600 Sec (Default: 16 Sec)
HZ Prop Band >>	0.1 to 999.9 (Default: 50.0)
HZ Integral Time >>	0 to 3600 Sec (Default: 100 Sec)
HZ Derivative Time >>	0 to 600 Sec (Default: 16 Sec)
Cycle Time >>	0.5 to 100.0 Sec (Default: 10.0 Sec)
CONTROL ZONES : SINGLE
Parameters	Settings (Default Value)
Proportional Band >>	0.1 to 999.9 (Default: 50.0)
Integral Time >>	0 to 3600 Sec (Default: 100 Sec)
Derivative Time >>	0 to 600 Sec (Default: 16 Sec)
Cycle Time >>	0.5 to 100.0 Sec (Default: 10.0 Sec)

FACTORY > TEMPERATURE > SENSOR INPUT FACTORY > HUMIDITY (%RH) > SENSOR INPUT
Parameters	Settings (Default Value)
Input Type >>	* RTD Pt100 0-20mA 4-20mA 0-5V 0-10V 1-5V (Default: For Temp. Input: RTD Pt100 For %RH Input: 0-5V) *Available for Temp. Input only
Signal LO >>
Signal HI >>
Range LO >>	-199.9 to RANGE HI (Default: 0.0)
Range HI >>	RANGE LO to 999.9 (Default: 100.0)

FACTORY > COMPRESSOR
Control Strategy : Heat + Cool
COMPRESSOR STRATEGY >>		CONT. OFF CONT. ON SP BASED PV BASED (Default: CONT. ON)
CONT. ON	SP BASED	PV BASED
Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)	Boundary Set Value >> 0.0 to 100.0 (Default : 45.0)	Compressor SP >> 0.0 to 100.0 (Default: 45.0)
	Control Zones >> SINGLE DUAL (Default : SINGLE)	Hysteresis >> 0.1 to 99.9 (Default: 2.0)
	Time Delay (sec) >> 0 to 1000 Sec (Default : 200 Sec)	Time Delay (sec) >> 0 to 1000 Sec (Default: 200 Sec)

FACTORY > BOILER WATER LEVEL
Parameters	Settings (Default Value)
Enable >>	Yes No (Default: No)
Water Level Startegy >>	Single Switch Dual Switch Lo-hi Dual Switch Lo-vlo (Default: Single Switch)
Switch-1 Logic >>	Close: Water Lo Open: Water Lo (Default: Close: Water Lo)
Switch-2 Logic >>	Close: Water HI Open: Water HI (Default: Close : Water HI) OR Close: Water VLO Open: Water VLO (Default: Close: Water VLO)

FACTORY > DOOR OPEN
Parameters	Settings (Default Value)
Enable >>	Yes No (Default: No)
Switch Logic >>	Close: Door Open Open: Door Open (Default: Close: Door Open)
Door Alrm Dly (sec) >>	0 to 1000 Sec (Default : 60 Sec)

FACTORY > MAINS FAILURE
Parameters	Settings (Default Value)
Enable >>	Yes No (Default: No)
Switch Logic >>	Close: Mains Fail Open: Mains Fail (Default: Close : Mains Fail)

FACTORY > SMS ALERT
Parameters	Settings (Default Value)
Enable >> (refer note)	Yes No (Default: No)
Reset GSM Module >> (refer note)	Yes No (Default: No)

Note: These parameters are available only if the controller supplied with GSM module version.

FACTORY > FACTORY DEFAULT
Parameters	Settings (Default Value)
Set To Default >>	Yes No (Default: No)

FACTORY > PASSWORD
Parameters	Settings (Default Value)
Change Password >>	2000 to 2999 (Default: 321)

FACTORY > EXIT
Parameters	Settings (Default Value)
Exit Setup Mode >>	Yes No (Default: No)

FRONT PANEL KEYS

Symbol	Key	Function
	Scroll	Press to scroll through various Process Information Screens in Normal Operation Mode.
	Alarm Acknowledge	Press to acknowledge and mute (if active) alarm output.
	DOWN	Press to decrease the parameter value. Pressing once decreases the value by one count; keeping pressed speeds up the change.
	UP	Press to increase the parameter value. Pressing once increases the value by one count; keeping pressed speeds up the change.
	SET-UP	Press to enter or exit set-up mode.
	ENTER	Press to store the set parameter value and to scroll to the next parameter.

PV ERROR INDICATIONS

Message	Error Type	Cause
	Sensor Open	Sensor (RTD Pt100) Broken/Open
	Over-range	Temperature above Max. Specified Range
	Under-range	Temperature below Min. Specified Range

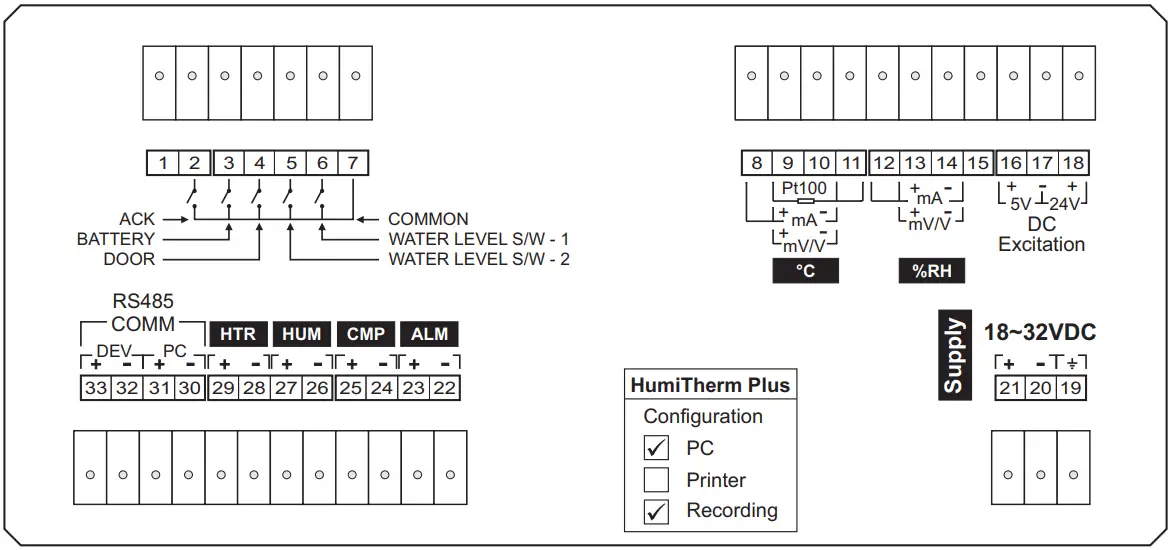

ELECTRICAL CONNECTIONS

101, Diamond Industrial Estate, Navghar,
Vasai Road (E), Dist. Palghar – 401 210.
Sales: 8208199048/8208141446
Support: 07498799226/08767395333
E: [email protected]
[email protected]
Jan 2022
