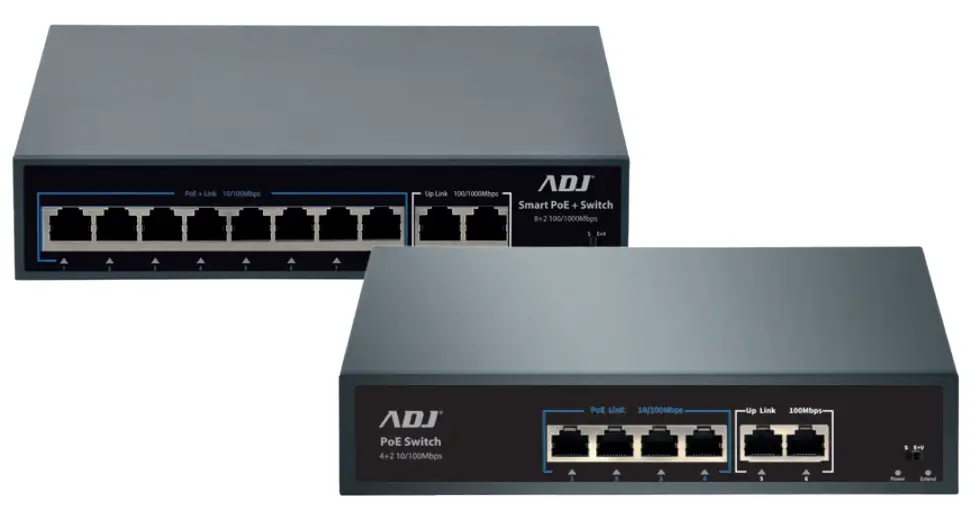

ADJ 710-00091 Switch 4 8 Porte POE 2 Porte Uplink

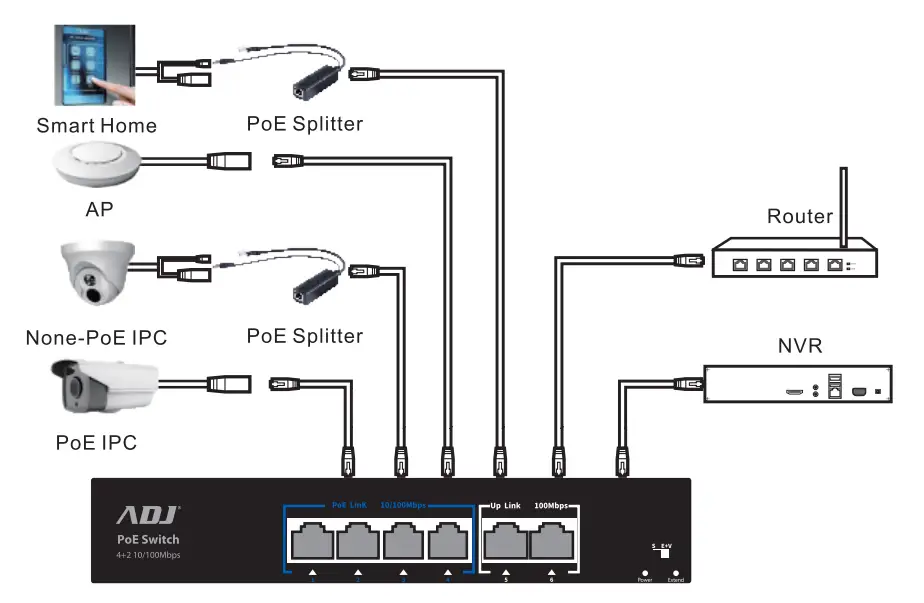

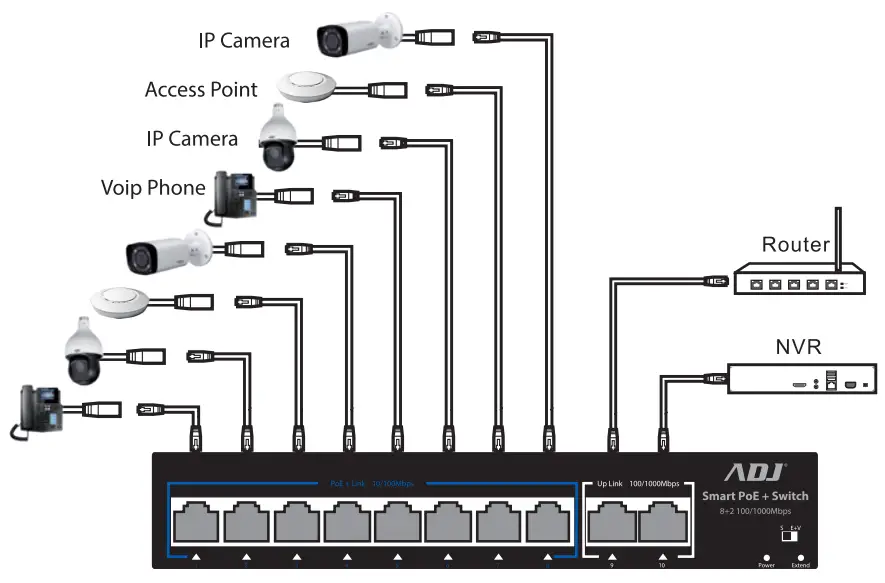

PoE Switch Connection Schematic Diagram
Take the standard 4+2 Ports/ 8+2 Ports PoE switch as in these examples:
Product Features
- Supply power to device which support PoE
- Support IEEE802.3AF/AT Protocol
- Each port Output Max.30W
- Support 250m Transmission Distance
- Support Vian
PoE Front Panel Sticker

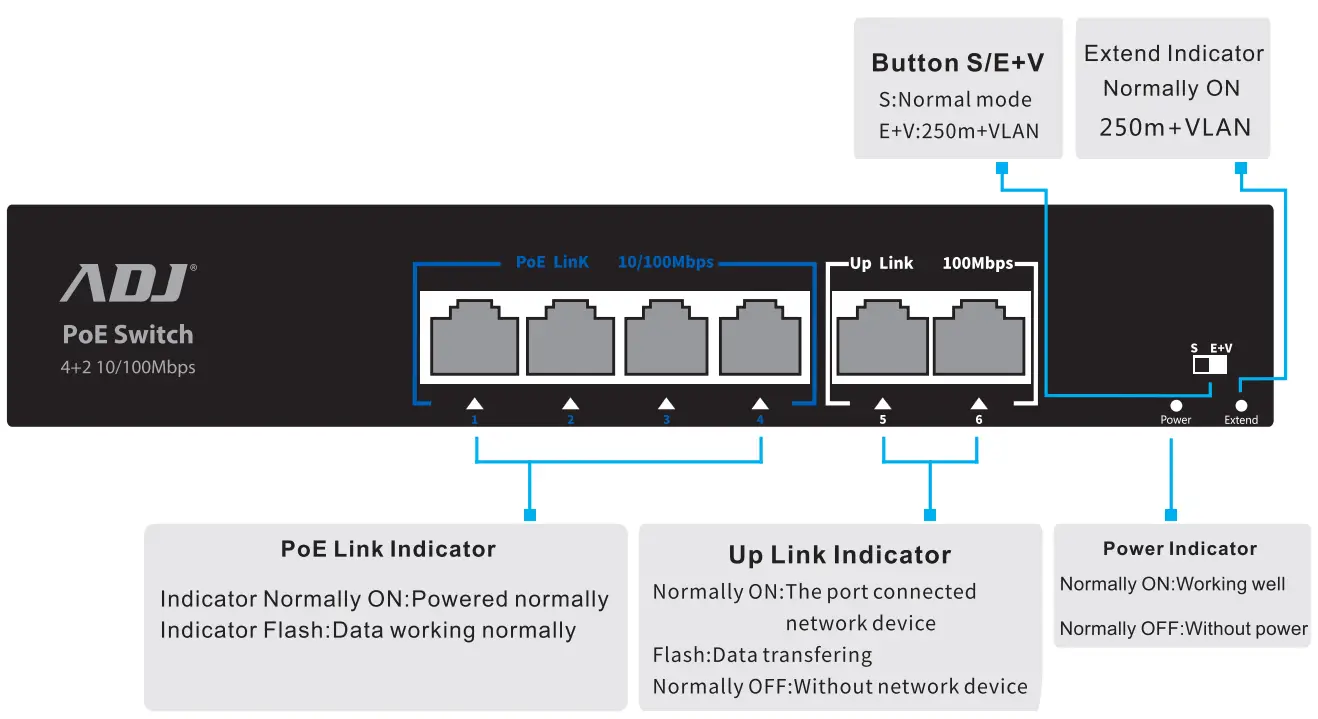

- Switch 4+2 Ports PoE

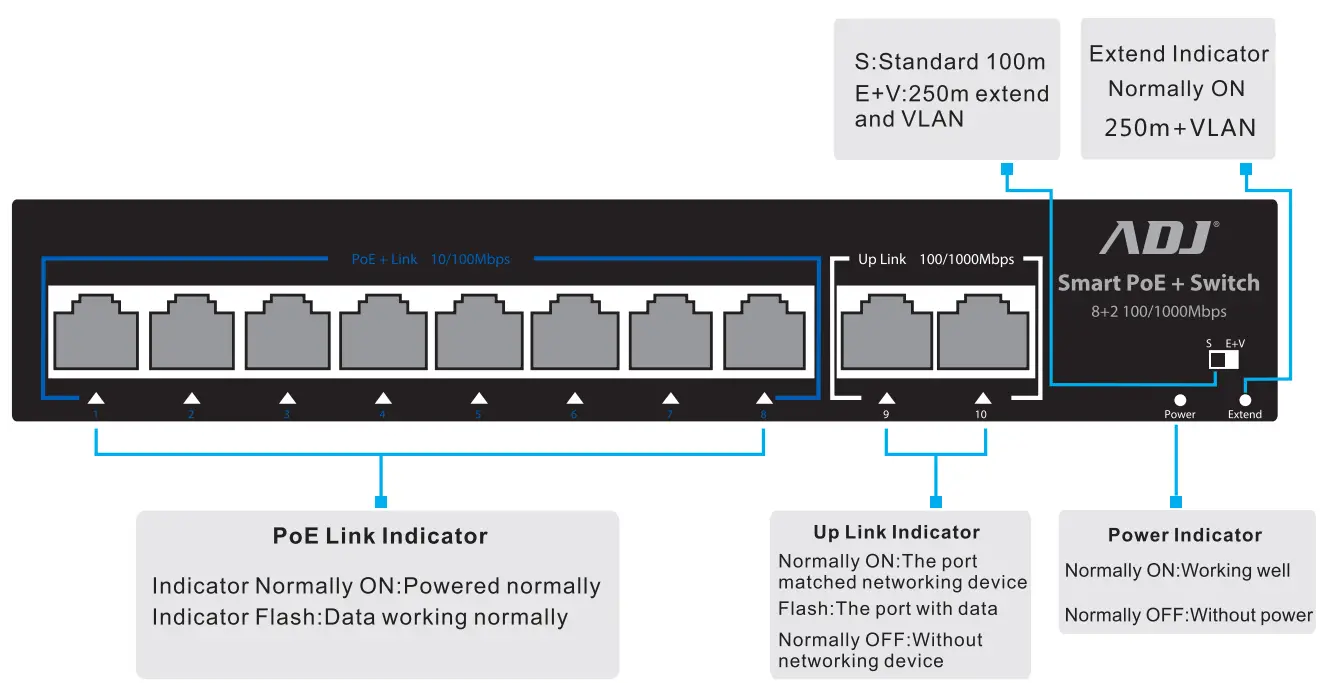

- Switch 8+2 Ports PoE
Note: 1-8 port connect IPC/AP/IP PHONE/Smart Home 9-10 port connect NVR and Router
Specifications
| Product Code | 4 Port POE Switch (Built-in) |
| 710-00092 | |
| POE Port | 1 to 4 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | 1/2+,3/6- |
| Whole Power | <78W (52V 1.SA) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | < 250m |
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at |
| Network Medium | 10/1 00BASE-TX: 5 class and above non shielded twisted pair |
| Data Distance | < 250m |
| Switch Capability | 1.6Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 1 0BASE-T: 14880PPS/port 1 00BASE-tx: 14800pps/ port |
| MAC Address | MAC address table 1 K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back pressure for Half-duplex mode |
| LED Indicator | LINK/ ACT.1 00Mbps; POE Status Indicator; Power indicator; Extender |
| Working Environment | Working temperature: -10° / 55°C |
| Weight | 1kg |
| Size | 200mm*l 20mm*44mm(L *W*H) |
| Product Code | 8+2 Port 250m POE Switch (Built-in) |
| 710-00091 | |
| POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | 1/2+, 3/6- |
| Whole Power | < 120W (52V 2.3A) |
| POE Protocol | IEEE 802.3af /IEEE 802.3at |
| POE Type | End-span |
| Power Distance | < 250m |
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at |
| Network Medium | 10/1 00BASE-TX: 5 class and above non shielded twisted pair |
| Data Distance | < 250m |
| Switch Capability | 12 Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 100Mbps:14880pps 1 000Mbps: 14800pps |
| MAC Address | MAC address table 2 K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back pressure for Half-duplex mode |
| LED Indicator | LINK/ ACT.1 00Mbps; POE Status Indicator; Power indicator; Extender |
| Working Environment | Working temperature: -10° / 55°C |
| Weight | 1.2 kg |
| Size | 270mm*180mm* 44mm (L *W*H) |
