TELTONIKA TSW101 Automotive PoE Switch

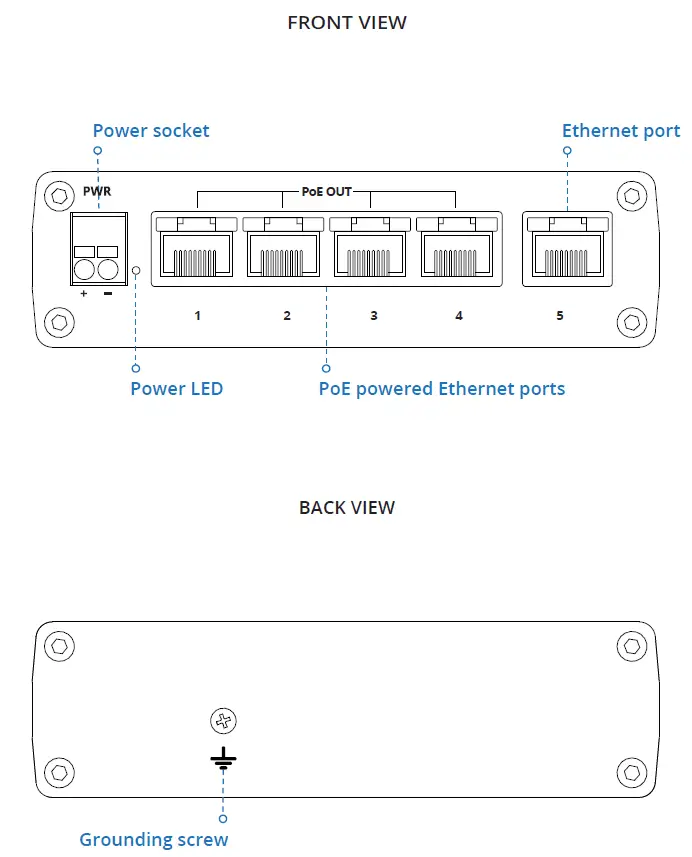

PRODUCT OVERVIEW
TECHNICAL INFORMATION
TECHNICAL INFORMATION| Technical specifications | |
| Input voltage range | 9 – 30 VDC |
| Max power consumption no PoE devices connected | <2.2 W |
| Max PoE power budget at PSE* | 60 W |
| Max Ethernet cable length | 100 m |

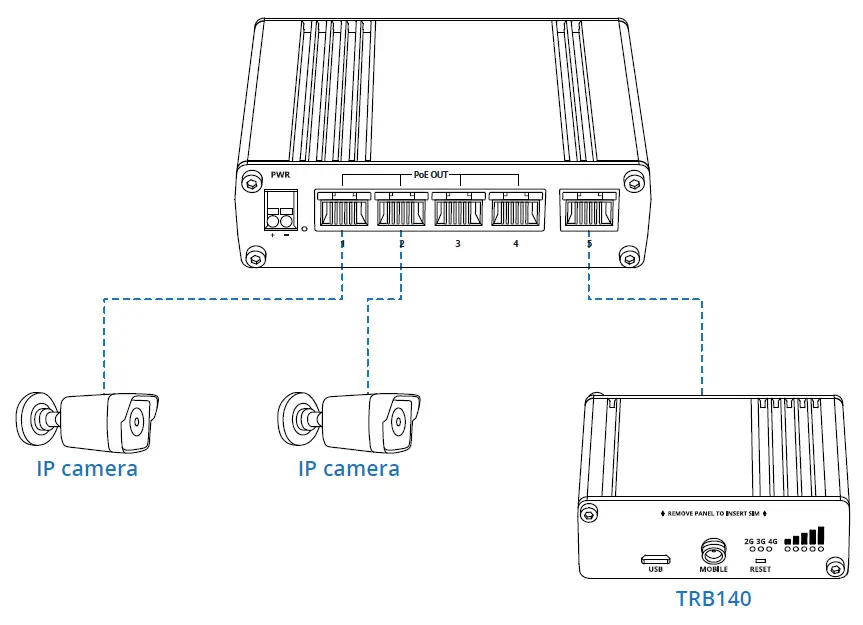

HARDWARE INSTALLATION
- Connect your main internet router/modem to TSW101 LAN port number 5.
- Connect end devices (ex. IP camera) to TSW101 1 to 4 port, which you want to power via Ethernet.

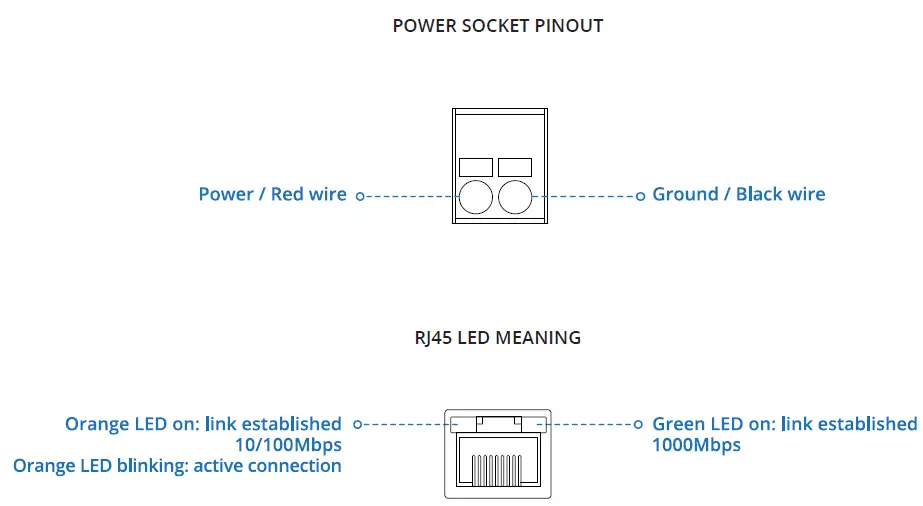

- Connect the 2-pin power plug to TSW101 to power up the switch.
SAFETY INFORMATION
- TSW101 switch must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments
- Hereby, TELTONIKA NETWORKS declares that this TSW101 is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU and 2014/35/EU.
- Instruction Manual: Connect the power adapter to turn on the device. More information on https://wiki.teltonika-networks.com/
DISPOSAL
- This sign means that all used electronic and electric equipment should not be mixed with general household waste.
