Teltonika Tsw100 Unmanaged Poe+ Switch User Guide

TELTONIKA TSW100 Unmanaged PoE+ Switch

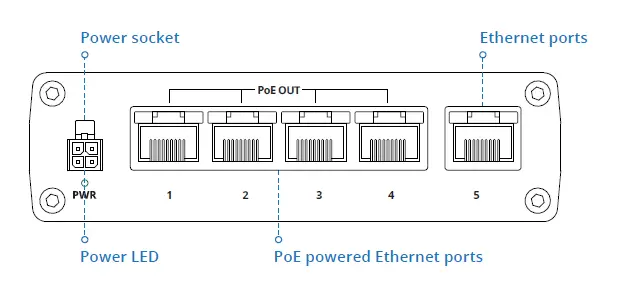

FRONT VIEW

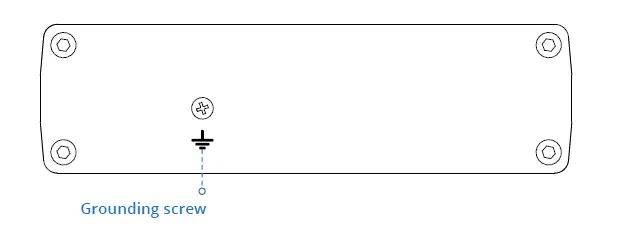

BACK VIEW

POWER SOCKET PINOUT

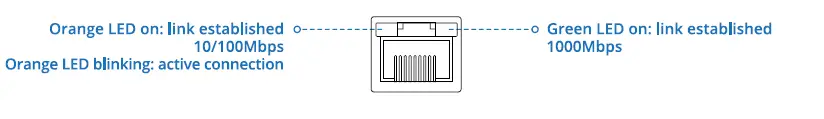

RJ45 LED MEANING

TECHNICAL INFORMATION

1. PoE operates properly only when connected power supply outputs 44 V or higher voltage.
2. Provided power supply only allows 60 W PoE power budget at PSE, to reach maximum 120 W at PSE >130 W power supply must be used
3. Order code dependent

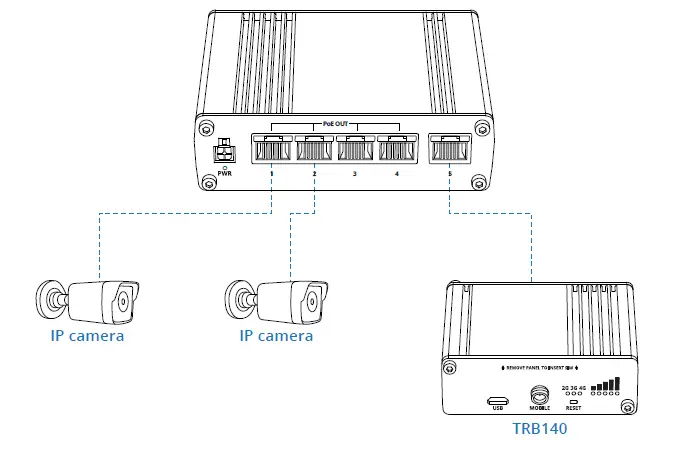

HARDWARE INSTALLATION

1. Connect your main internet router/modem to TSW100 LAN port number 5.
2. Connect end devices (ex. IP camera) to TSW100 1 to 4 port, which you want to power via Ethernet.
3. Connect 4-pin power plug to TSW100 to power up switch

SAFETY INFORMATION

TSW100 switch must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments

• Hereby, TELTONIKA NETWORKS declares that this TSW100 is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU and 2014/35/EU.
• Instruction Manual: Connect the power adapter to turn on the device. More information on https://wiki.teltonika-networks.com/

This sign means that all used electronic and electric equipment should not be mixed with general household waste.
This sign means that the product meets the requirements of the applicable EU directives.
www.teltonika-networks.com
2022 Teltonika Networks
The full text of the EU declaration of conformity is available at the following
Internet address: https://wiki.teltonika-networks.com/view/TSW100_CE
