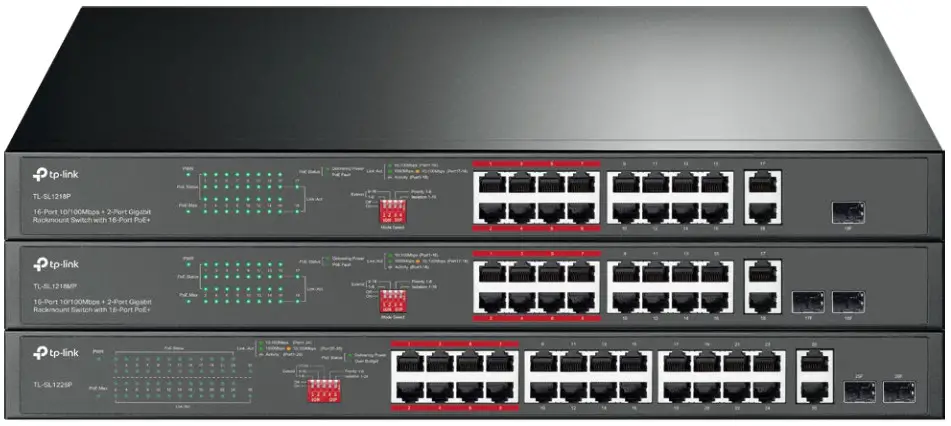

Unmanaged 10/100Mbps PoE+ Switch
MODEL: TL-SL1218MP/ TL-SL1218P/TL-SL1226P
Highlights
- (For TL-SL1218P) 16 PoE+ 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 ports, and 1 combo Gigabit SFP slot
- (For TL-SL1218MP/TL-SL1226P) 16/24 PoE+ 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 ports, and 2 combos Gigabit SFP slots
- High PoE power budget with up to 30 W* for each PoE port, and a total power budget of 150 W* (for TL-SL1218P)/250 W* (for TL-SL1218MP and TL-SL1226P)
- Up to 250 m data and power transmission under Extend Mode** specially designed for surveillance system
- Priority mode for ports 1–8 to guarantee the quality of sensitive applications like a video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Easy to use, with no configuration and installation needed
Overview
TP-Link’s new PoE/PoE+ switches with all 10/100 Mbps RJ45 ports supporting the PoE+ standard provide a simple way to expand the wired network while transferring power over the same ethernet cable at the same time. With up to 30 W* per port, the switch can power more high-powered devices such as Access Points, IP Cameras, IP Phones, and so on. Moreover, with innovative Extend Mode, devices can get a PoE power supply and data transmission from a distance of 250 m**. Priority mode ensures high priority for ports 1–8, which guarantees the quality of sensitive applications. Moreover, the switch supports Isolation Mode that divides traffic for 10/100 Mbps RJ45 ports for higher security and performance.
Power over Ethernet
- (For TL-SL1218P) Features 16 802.3af/at compliant PoE+ ports, with a total PoE power budget of 150 W*
- (For TL-SL1218MP/TL-SL1226P) Features 16/24 802.3af/at compliant PoE+ ports, with a total PoE power budget of 250 W*
- Flexible deployment for PoE supported devices such as wireless access points, IP Phones, and IP Cameras
- Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode**.
- After turning on the Priority Mode, there will be designated high-priority ports for quality-sensitive applications like Surveillance Video.
- Isolation Mode easily divides traffic for 10/100 Mbps RJ45 ports to avoid snooping and tampering, which improves LAN security and performance.
Easy to Use
- Plug & play, no configuration required
- Auto MDI/MDIX eliminates the need for crossover cables
- Auto-negotiation intelligently adjusts for compatibility and optimal performance
Specifications
| Hardware Features & Performance | ||||
| Product Picture |  |  |  | |
| Model | TL-SL1218MP | TL-SL1218P | TL-SL1226P | |
| General | Interfaces | 1610/100 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 2 Combo Gigabit SFP Slots | 1610/100 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 1 Combo Gigabit SFP Slot | 24 10/100 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 2 Combo Gigabit SFP Slots |
| PoE | PoE Standard | 802.3af/at | ||
| PoE Ports | 16, up to 30 W per port | 24. up to 30 W per port | ||
| PoE Power Budget | 250 W | 150 W | 250 W | |
| Performance | Switching Capacity | 7.2 Gbps | 8.8 Gbps | |
| Packet Forwarding Rate | 5.36 Mpps | 6.54 Mpps | ||
| MAC Address Table | B K | |||
| Packet Buffer | 4.1 Mbit | |||
| Jumbo Frame | 10 KB | |||
Advanced Features | Extend Mode (Up to 250 m PoE supply and data transimissk)n) | |||
| Physical & Environment | Power Supply | 100-240 V AC, 50/60 Hz | ||
| Max Power Consumption | 285.8 W (with 250 W PD Connected) 14.97 W (no PD Connected) | 172.8W (with 250W PD Connected) 12.71 W (no PD Connected) | 281 W (with 250 W PD Connected) 17.17 W (no PD Connected) | |
| Max Heat Dissipation | 974.58 BTU/h (with 250 W PD Connected) 51.05 BTU/h (no PD Connected) | 589.25 BTU/h (with 250 W PD Connected) 43.34 BTU/h (no PD Connected) | 958.21 BTU/h (with 250 W PD Connected) 58.55 BTU/h (no PO Connected) | |
| Dimensions (WxDxH) | 17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm) | |||
| Fan Quantity | 2 | |||
| Operating Temperature | 0 °C-50 °C (32’F-122 °F) | |||
| Storage Temperature | -40 °C-70 °C (-40 ‘F-158 °F) | |||
| Operating Humidity | 10%-90%RH non-condensing | |||
| Storage Humidity | 5%-90%RH non-condensing | |||
| Certification | CE. FCC | |||
Note:
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. The actual transmission distance may vary from the quality of the cables.
