Ikea 702.991.48 Vidga Curtain And Panel Hanging System User Guide

IKEA 702.991.48 VIDGA Curtain and Panel Hanging SystemFEATURES

“Twist and click”, no more dozens of screws.
Aluminium – sturdy, durable and light-weight.

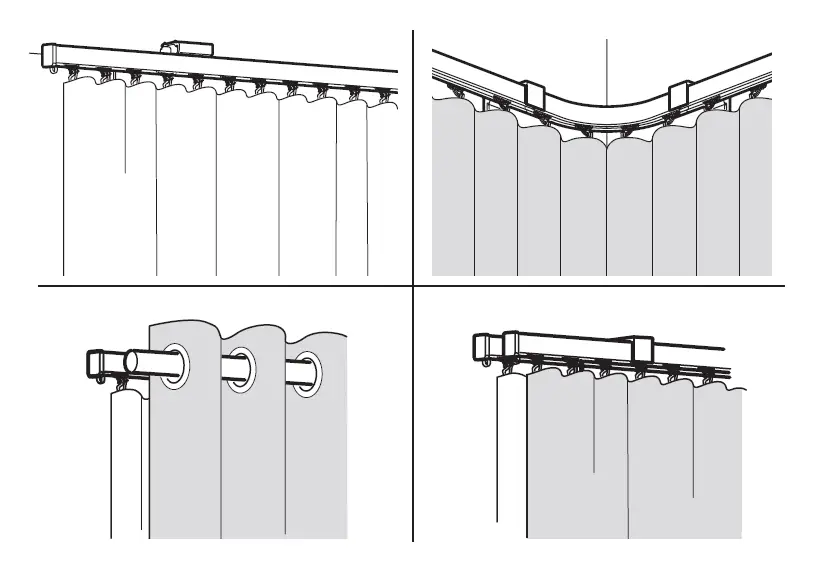

Hangs in every way
VIDGA curtain hanging system gives you lots of possibilities to hang curtains. Hang them in front of windows and niches, or use them as room dividers, sliding doors or around a bed. If you hang curtains in layers you can not only combine colours, patterns and materials in your own personal way, but also dampen sound, adjust light and control temperature in the room more effectively. You can connect several rails together to create one long rail, or shorten them to the desired length with a hacksaw. Mount the rail to walls or ceilings using VIDGA wall or ceiling fittings or use VIDGA corner pieces to mount rails around corners.

COMBINATIONS

With a few components, we create solutions for many people – that’s the idea of VIDGA. On the following pages you will find some examples to inspire you to build your dream window solutions.

DOUBLE-LAYER

Two VIDGA single track rails, 140 cm each, mounted to the long wall fittings in parallel. By using two layers of curtains, you will have privacy day and night – close the sheer curtains in the day and the outer curtains for the night.
Shopping list

If you’d like to double the width of the combination*, follow the shopping list below:

Outside corner. You can switch to wall fittings in 6 cm for

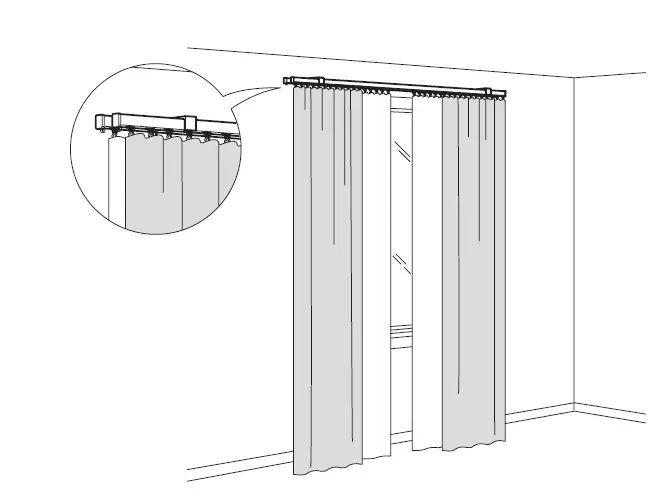

One VIDGA single track rail 140 cm mounted to the wall. With a corner piece on each side you can pull the curtains all the way to the wall to keep the light completely out.

If you’d like to double the width of the combination*, follow the shopping list below:

HOW TO PLAN

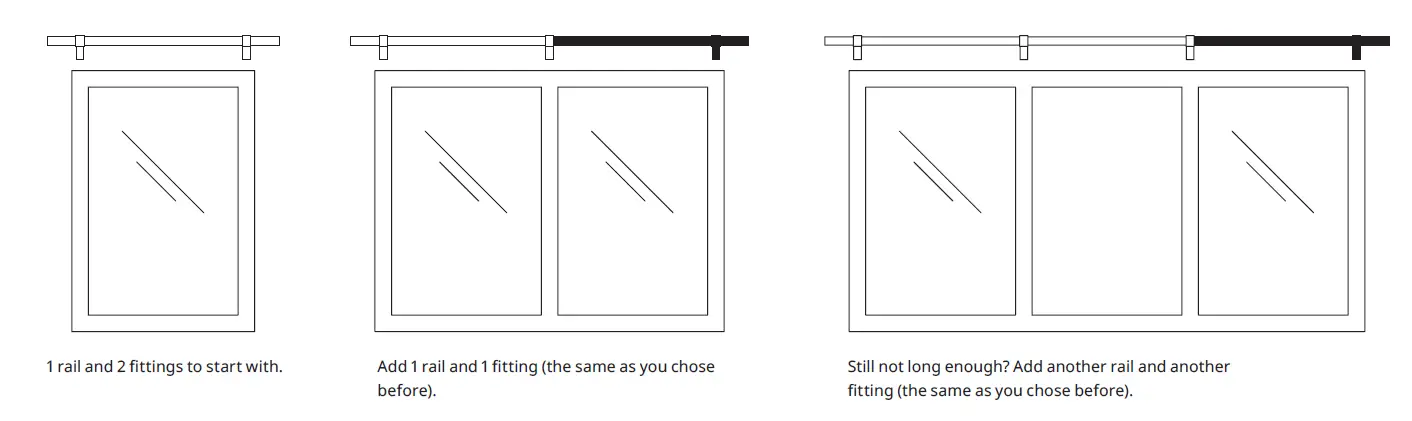

Planning is never easy, but getting to know VIDGA is. You start with 1 rail and 2 fittings.

Single track rail works well with curtains.
Like panel curtains more? Triple track rail will fit your needs.

Got a wider window? We have a solution for you.

You can also cut the rail to your measurements if the width of your window falls in between.

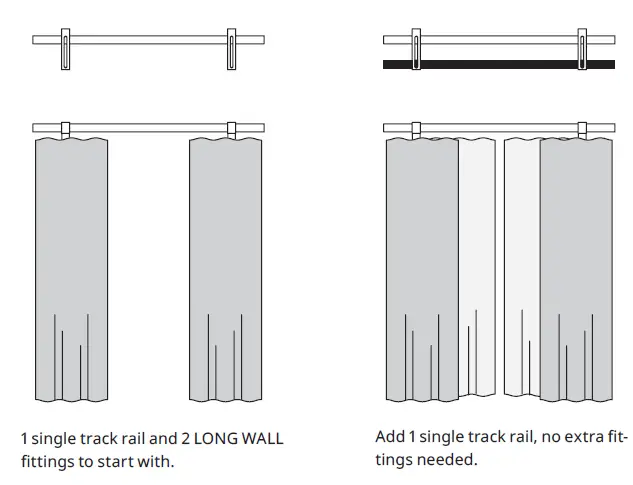

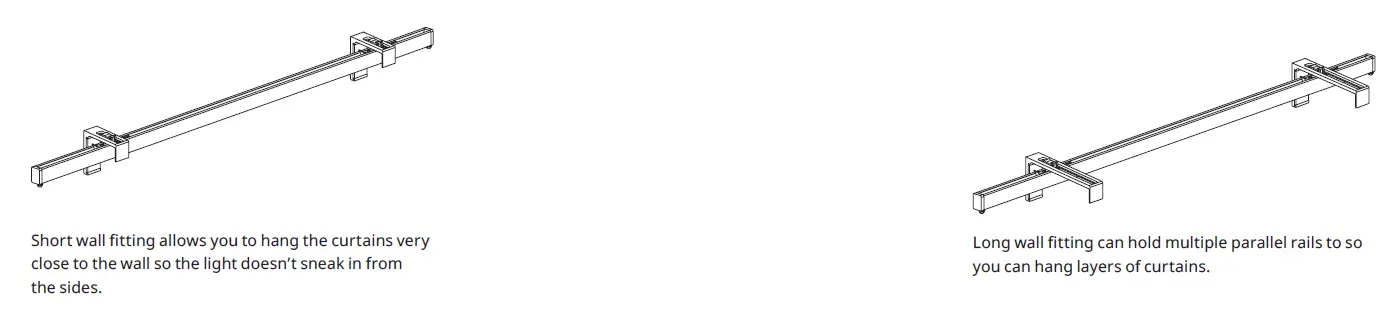

Want a solution to hang two layers of curtains? Or even three? The long wall fitting enables you to do just that.Wider window and double-layer curtains?
Now you know what to do.

Single track rail works well with curtains.
Like panel curtains more? Triple track rail will fiat your needs.

PARTS AND PRICES
VIDGA wall fitting, 12 cm, white.
502.991.49	$6.90
VIDGA wall fitting, 6 cm, white.
902.991.52	$4.90
VIDGA single track rail, 140 cm, white.
502.991.54	$12.90

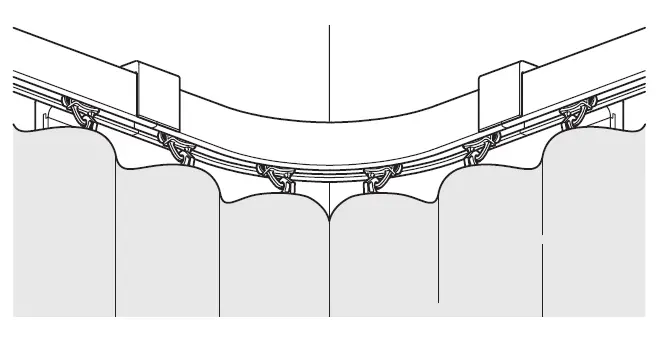

Join the rails at a corner.

PARTS AND PRICES
VIDGA corner piece, single track, white.
202.990.99	$6.90

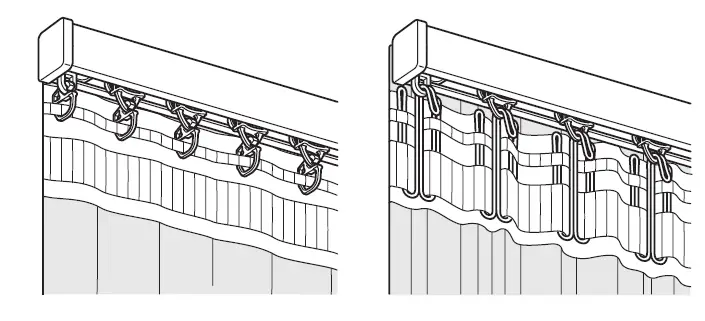

Hang curtains with glider and hook.

PARTS AND PRICES
VIDGA glider and hook, white, 24 pack.
	004.830.03	$5.90
RIKTIG curtain hook.
20 pack	202.122.04	$5.90

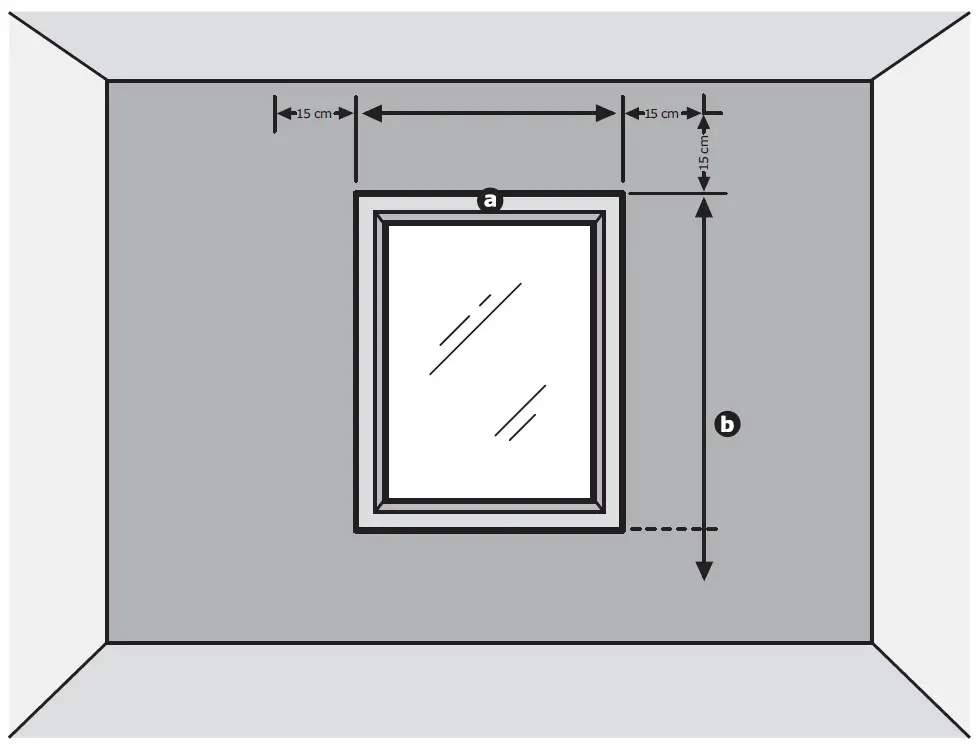

HOW TO MEASURE YOUR WINDOW

Start by taking the measurements of your window.

1. The width.
   This determines the width of your curtain rod or track rail.
   Measure the width of the window.
   Add at least 15 cm on each side to the measurement to allow the curtains to cover the window properly and open completely.
2. The height.
   This determines the length of your curtains or panel curtains.
   Measure from the top of the window frame and stop where you want your curtains or panel curtains to end.
   As a rule of thumb, add 15 cm to the measurement .
   Mount the curtain rod or rack rail 15 cm above the window frame.
   Add a few centimetres to allow any shrinkage of the curtains after washing.

NUMBER OF CURTAINS AND ACCESSORIES

	The length of the track you need
	< 140 cm	140–280 cm	280–420 cm
Hang curtains with single track rail.
Number of products

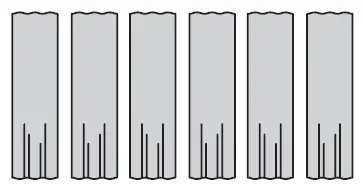

Curtains, 1 pair	1 pk (2 pcs)	2 pks (4 pcs)	3 pks (6 pcs)
Glider and hook	1 pk (24 pcs)	2 pks (48 pcs)	3 pks (72 pcs)
Optional: if you want to pleat the	1 pk (20 pcs)	2 pks (40 pcs)	3 pks (60 pcs)

PICK OUT WHAT YOU NEED

• Wall fitting, 6 cm
• Glider and hook
• Wall fitting, 12 cm
• Corner piece
• Curtain hook

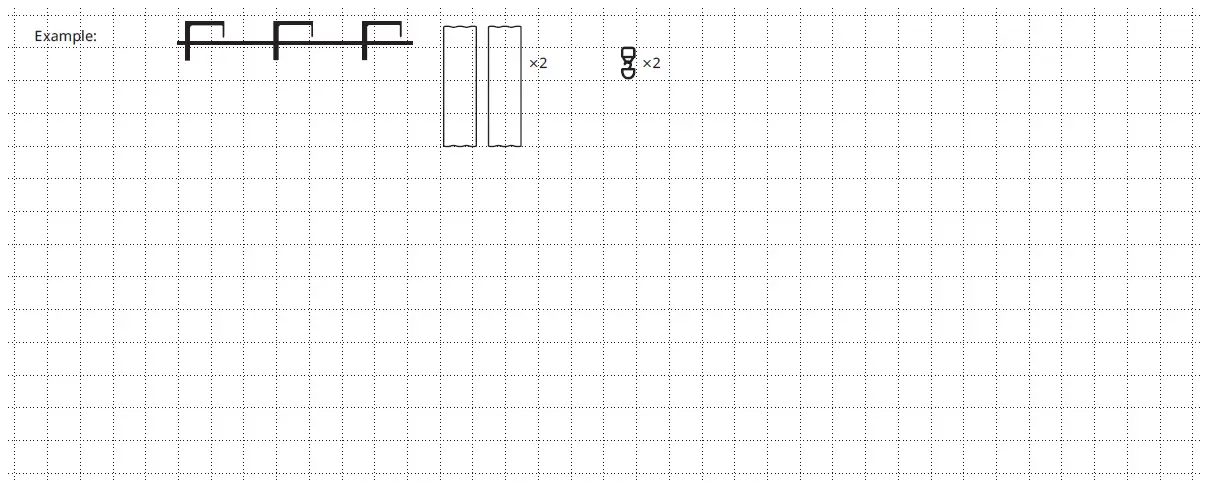

Make a simple drawing.

Fill in the quantities you need.

Some prices may be subject to change.
