Outdoor PoE switch
( 4*10/100/1000M PoE ports +2*10/100/1000M RJ45 ports)
User manual
V 1.0
Overview
Is an outdoor PoE switch. It is integrated of PoE switch, optical fiber tray, air breaker, lightning arrester etc. It has IP55 protection grade, can be for outdoor using.
It can be applied for surveillance monitoring, forest monitoring, etc.
Feature
- AC220V mains power input, 60W DC52V power module inside.
- With 4.10/100/1000M PoE downlink ports and 2*10/100/1000M uplink ports;
- 6KV surge protection, 6KV contact / 8KV air ESD protection.
- The box adopts waterproof (protection level Ip55), anti-rust treatment, suitable for long time outdoor use.
Application

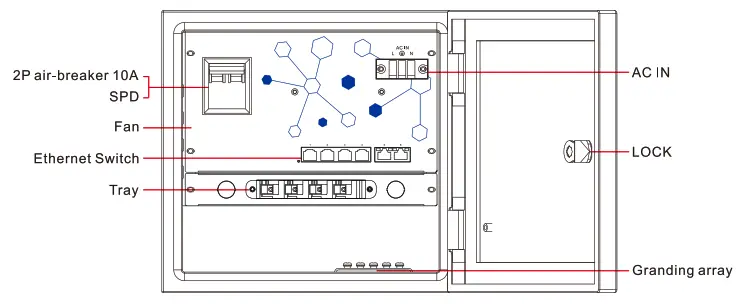

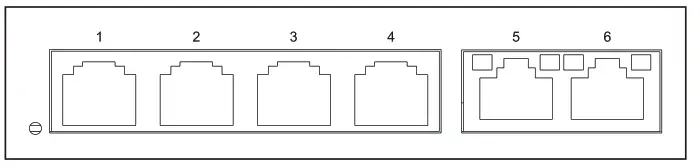

Panel diagram

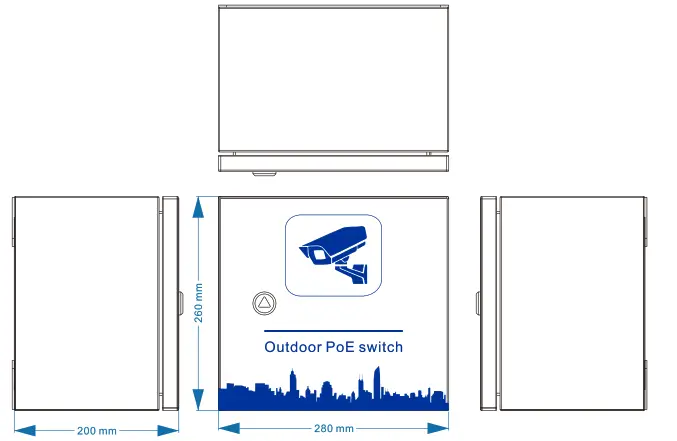

Structure dimension
PoE switch
Attention 1: This product must be well grounded against lightning, please use better than 20# cable to connect the grounding terminal and ground.
Package list
Please check the following items before installation,if any missing , please contact your local dealer.
| Surveillance box | 1 pc |
| User manual | 1set |
| Hanger for wall installation |
Installation

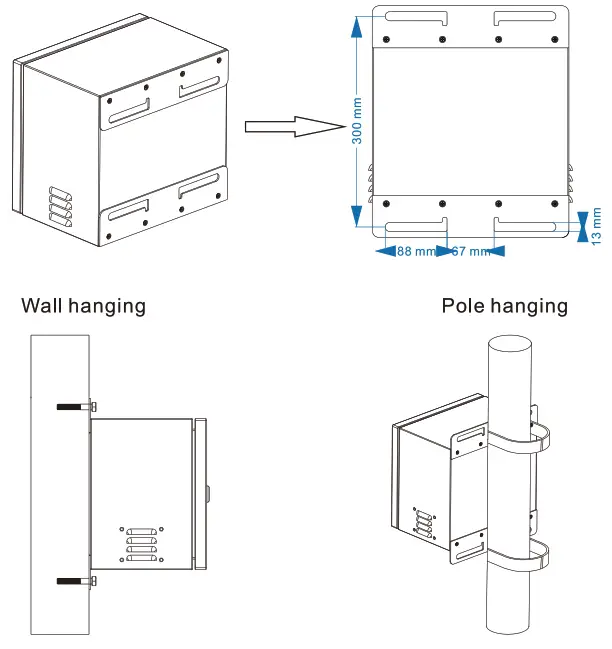

- Installation guide
1. Please remove 8 screws from the back of the box
2. Then please adjust the direction of the bracket and fix 8 screws
Noted: make sure the screws are fully tightened!
Specification
| Item | ||
| Power | Power supply | AC power supply |
| Range of voltage | AC100-220V,50HZ | |
| Consumption | Self-consumption<5W, PoE output Max.55W | |
| Ethernet ports parameter | Ethernet ports parameter | 1-4 ports: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at) 5-6 ports: 10/100/1000M RJ45 slots |
| Console port | RJ45 to serial port (38400,8,N,1) | |
| Reset key | Short press restart, > 5s press recovery to default | |
| Cable and distance | Use cat5e/6, 100m max. | |
| Switch parameter | Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 12Gbps | |
| Thoughput | 8.928Mpps | |
| Buffer | 448K | |
| MAC address table | 1K | |
| Indicator | Power | 1 *red |
| Uplink 5-6 | Green LEDs indicate Link/Act | |
| Downlink 1-4 | Green LEDs indicate Link/Act, yellow LEDs indicate PoE | |
| Protection | Surge | 6KV, standard: IEC61000-4-5 |
| ESD | 6KV: contact / 8KV: air, standard:IEC61000-4-2 | |
| Enviroment | Working temperature | -20°C-65°C |
| Storage temperature | -40°C-85°C | |
| Humidity | 0-95%(No condensation) | |
| Structure | Dimension(LxWxH) | 280mmx200mmx260mm |
| Material | Metal | |
| Colour | White | |
| Net-weight | 8KG | |
