6100-58

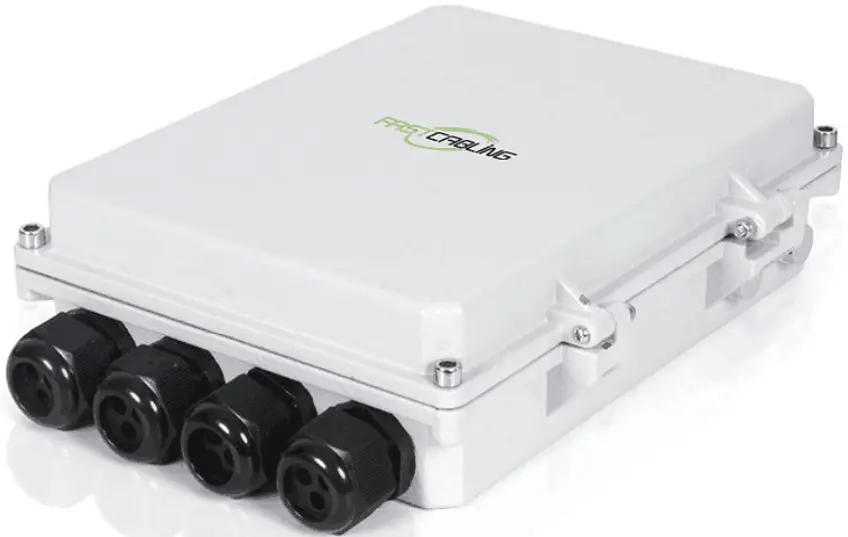

Outdoor Waterproof PoE Pass-Through Switch
Description
Outdoor Waterproof PoE Pass-Through Switch is an extremely reliable networking system for outdoor applications with high flexibility on installation. With a combination of 90W PoE injectors, setting this device in an outdoor environment without concern of water damage and provides a fast network and sufficient power for multiple network devices with easy and fast installation.
Typical Application
Retail
Convenience Store
Workshop
Logistics
Home
and others
6100-58
| Dimensions | 270’200’70mm |
| Weight | 1.5kg |
| Networking Interfaces | (7) 10/100/1000 Mbps PoE Ports (1) 1 Gbps PoE Powered RJ45 Ethernet Port |
| Management Interface | Plug and play |
| Switching Capacity | 16Gbps |
| Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K. The automatic study, automatic updates |
| Jumbo frame | 9216 Bytes |
| Packet buffer | 1.5M bit |
| VLAN | Dip switch ON/OFF |
| Power Method | External or Pass through PoE |
| Power Supply | 48V-55VDC |
| PoE budget | 95W |
| LEDs Per Port | PWR, LNK/ACT, PoE |
| ESD/EMP Protection | Air: ± 10 kV, Contact: ± 8 kV |
| Surge Protection | Different mode ±4 kV, Common mode ±6 kv |
| Operating Temperature | -25°C -60 °C |
| Operating Humidity | 5% – 90% non-condensing |
| Certifications | CE, FCC, IC |
| PoE Interfaces | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 32W |
| Voltage Range 802.3at Mode | DC53V |
| Waterproof Rate | IP67 |
© Golbong Technologies | Data subject to change without notice
Cur: en-US, V1, 7 July 2018
