Q-tran Flur Surface Flanged Extrusion Installation Guide

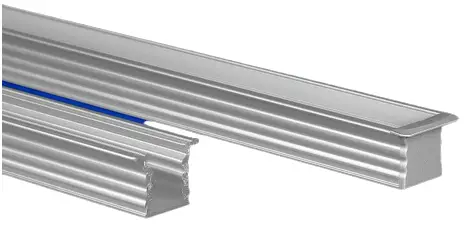

Q-TRAN FLUR Surface Flanged Extrusion

Mounting

NOTE: 2 clips provided for 4’ or less;
4 clips provided for greater than 4’

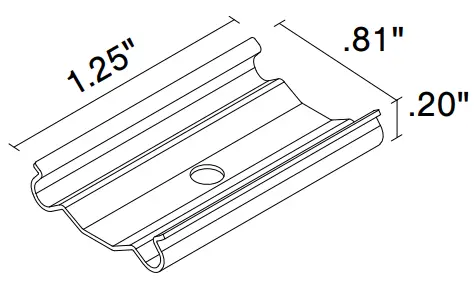

Stainless Steel Clip
(SST-01)

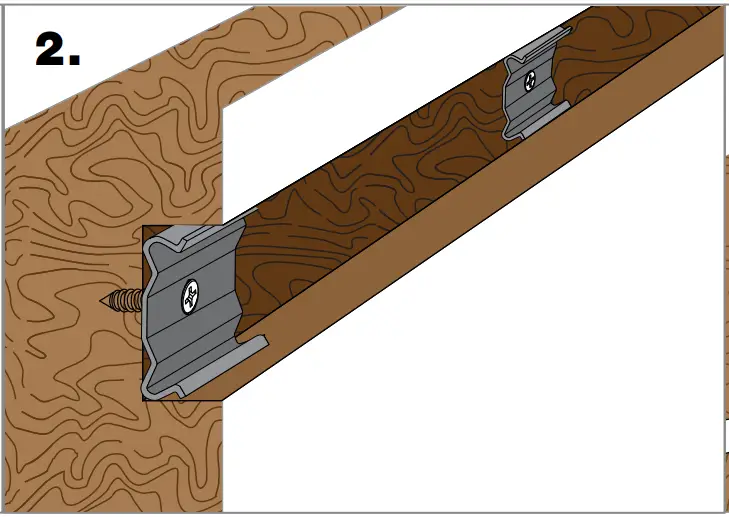

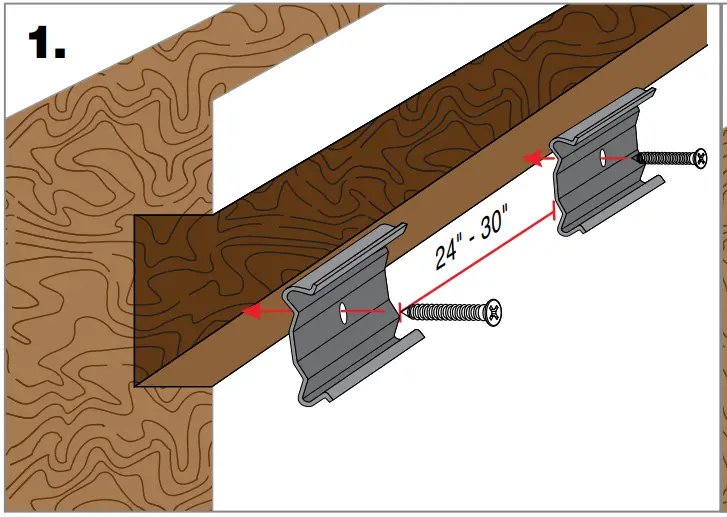

Screw Mounting

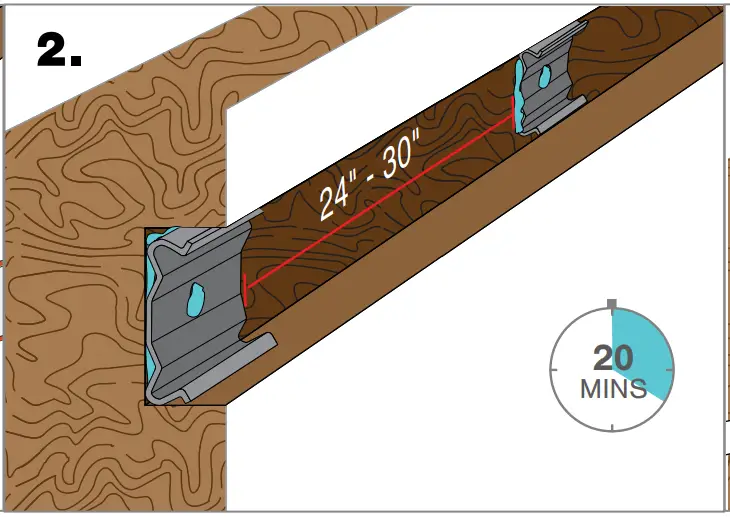

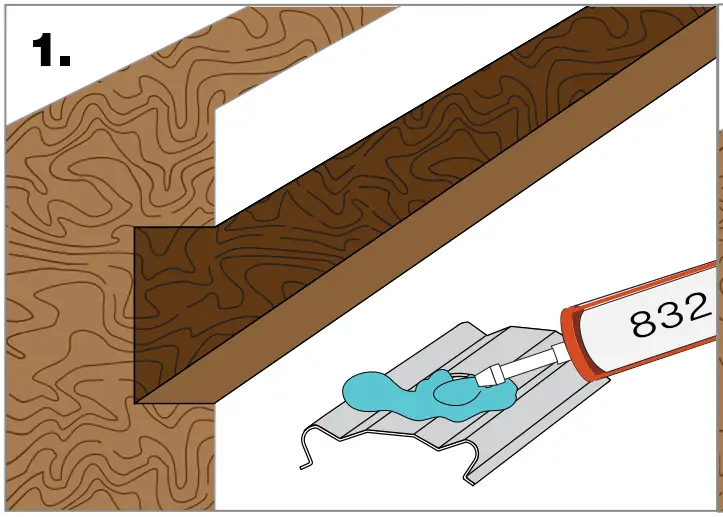

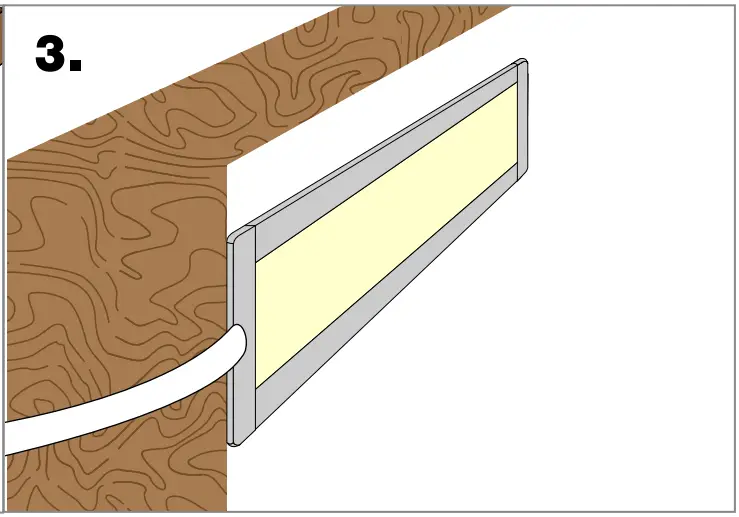

832 Silicone Mounting

NOTE: 832 Silicone use in a well- ventilated area, 832 Silicone sold with Caulking gun. Do not use in any submersible applications.

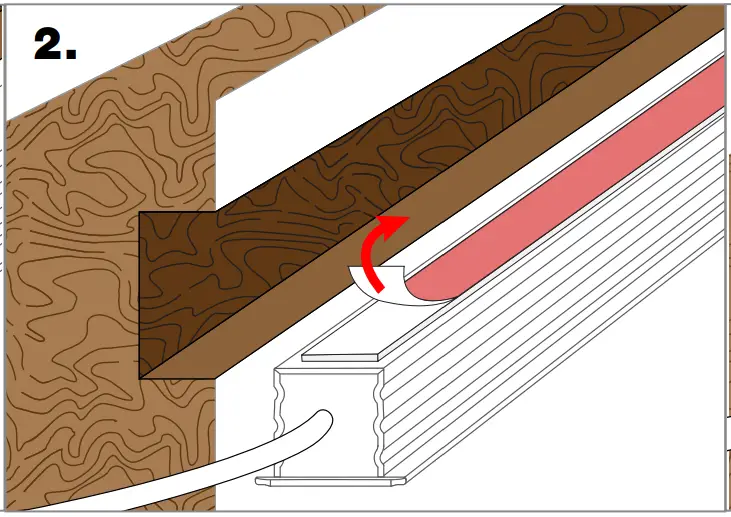

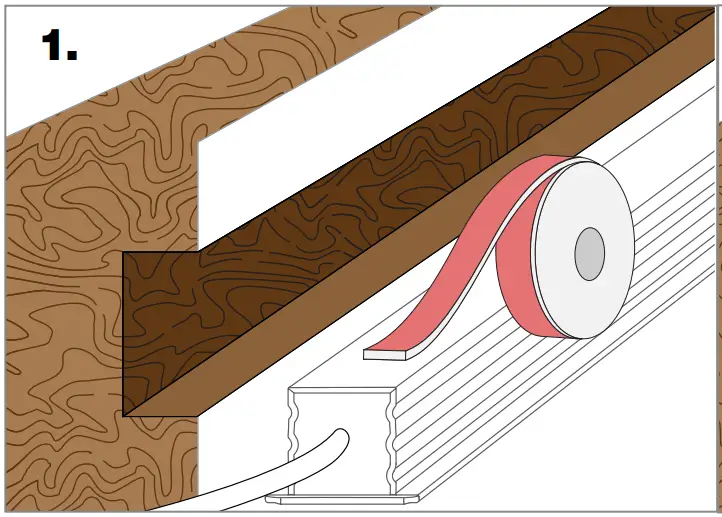

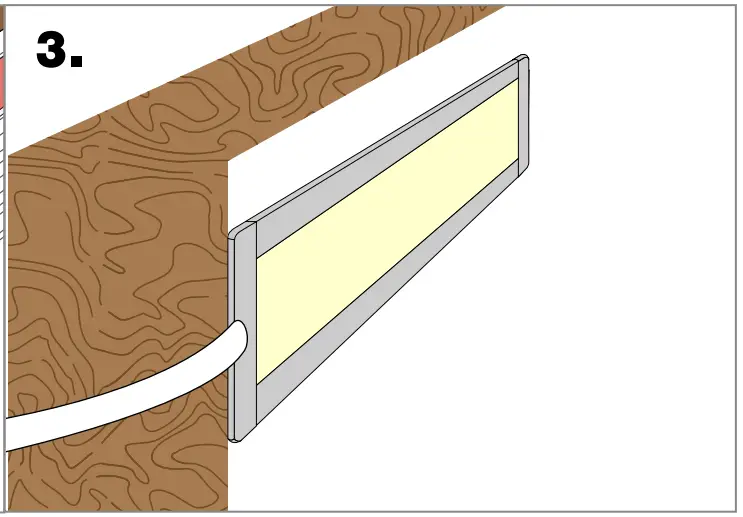

VHB Mounting

NOTES: • Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null and void.

CUSTOMER SERVICE

© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-02-23-22
