Q-tran Lato Shallow Surface Led Extrusion Installation Guide

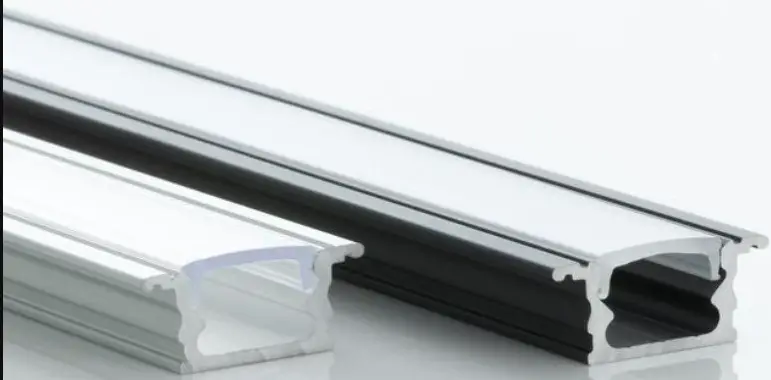

Q-TRAN LATO Shallow Surface LED Extrusion Installation Guide

INSTALLATION Linear Fixtures – LATO

Mounting

NOTE: 2 clips provided for 4’ or less; 4 clips provided for greater than 4’

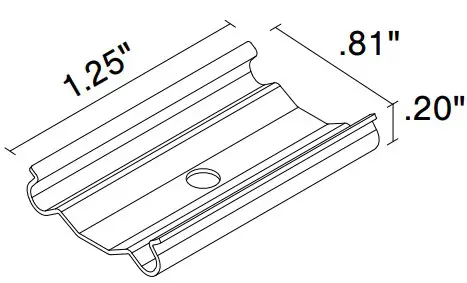

Stainless Steel Clip

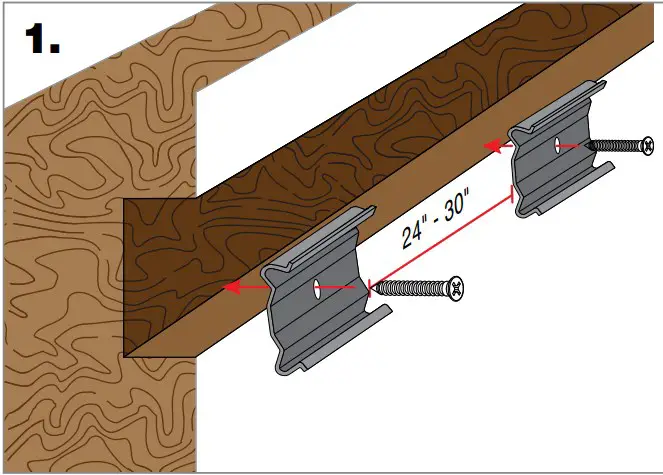

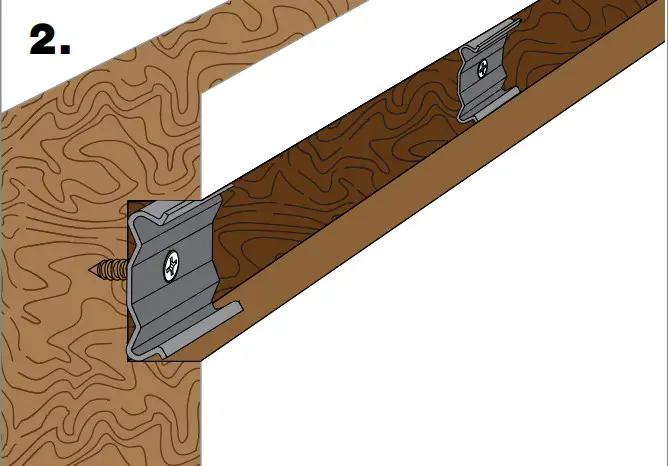

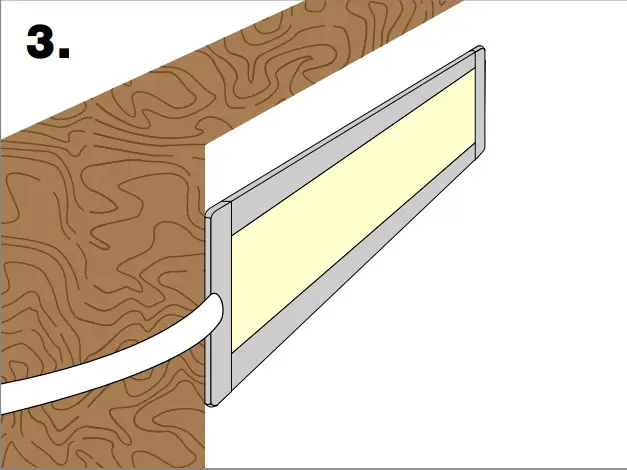

Screw Mounting

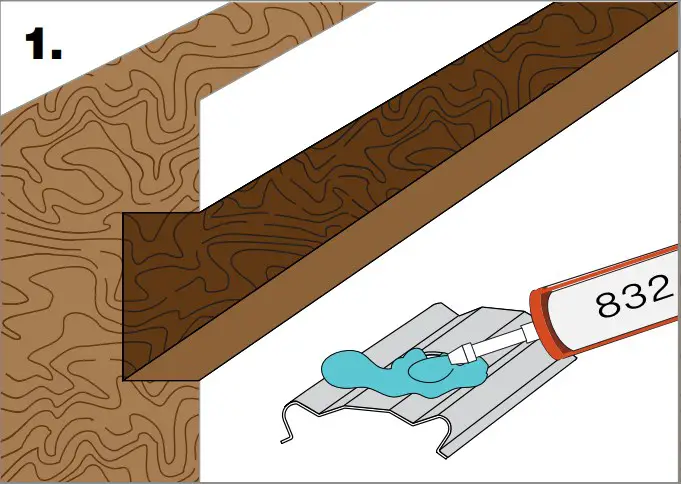

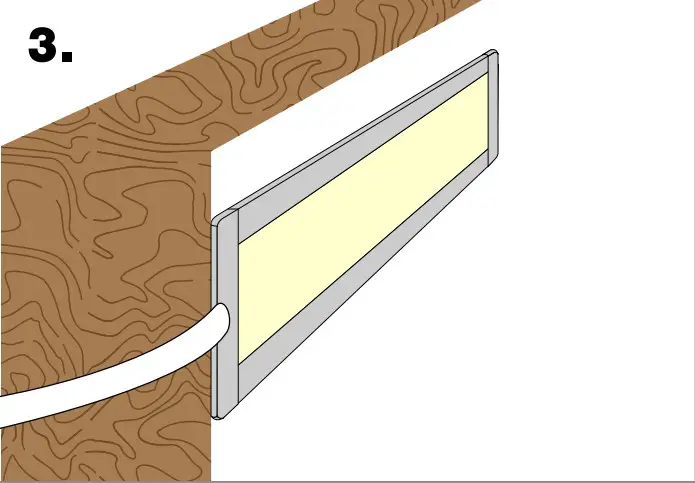

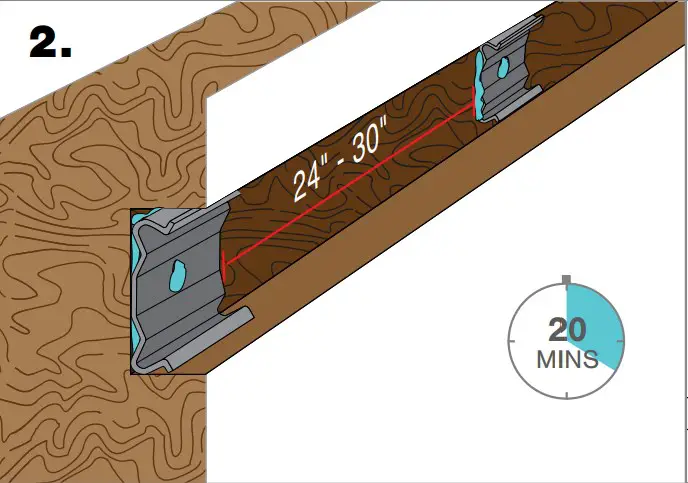

832 Silicone Mounting

NOTE: 832 Silicone use in a well- ventilated area, 832 Silicone sold with Caulking gun. Do not use in any submersible applications.

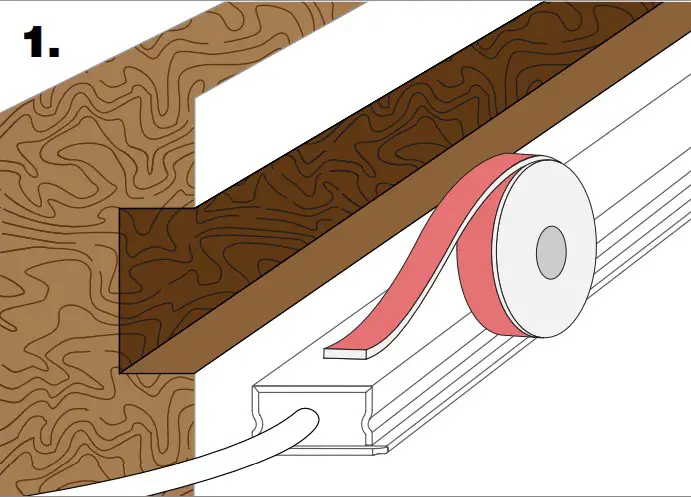

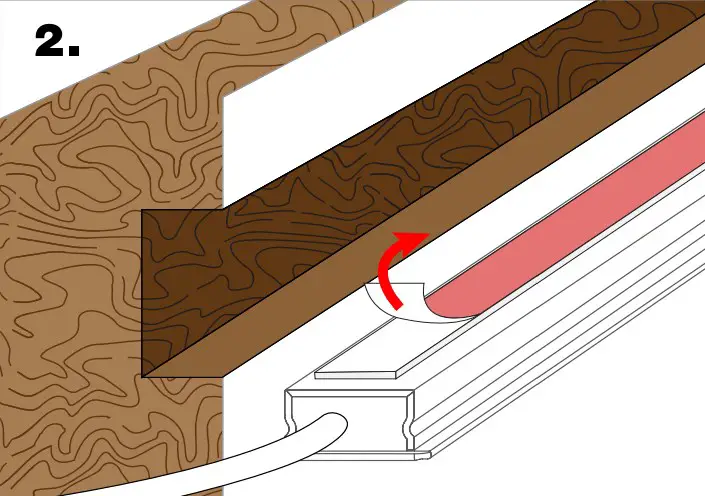

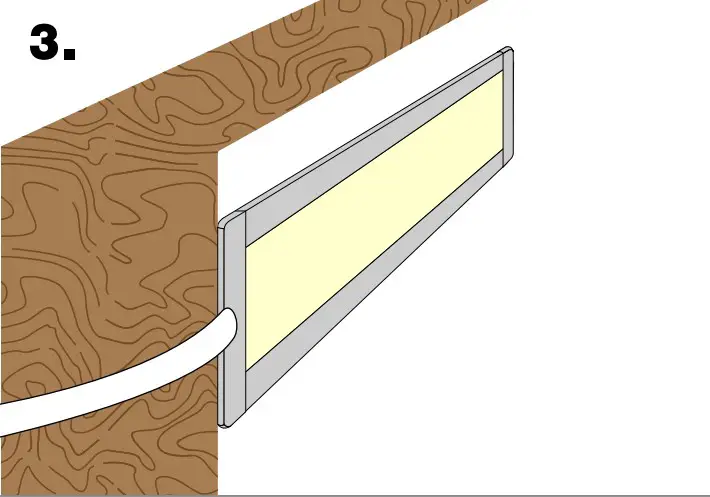

VHB Mounting

NOTES: • Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null and void.
