Tran Led Extrusion Wide Aluminum Extrusion Installation Guide

INSTALLATION EXTRUSION – WIDE

Mounting

NOTE:
2 clips provided for 4′ or less;
4 clips provided for greater than 4′

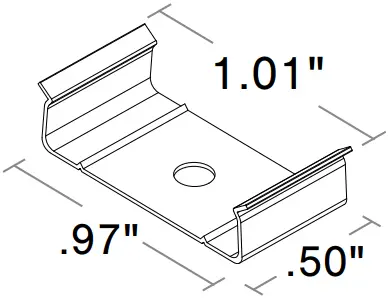

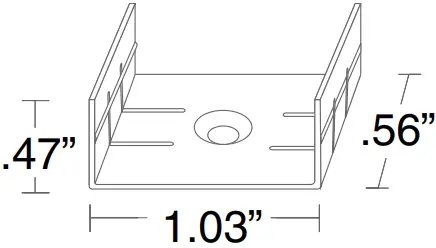

Stainless Steel Clip (SST-09)      Plastic Clip (PLC-03)

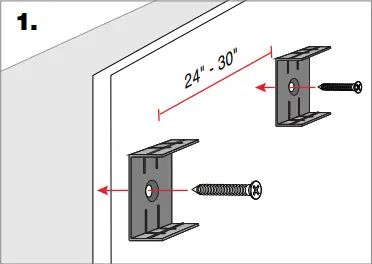

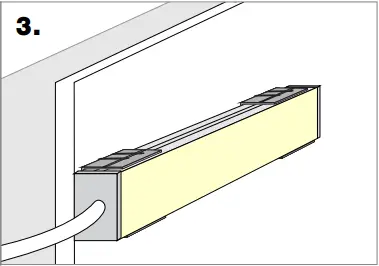

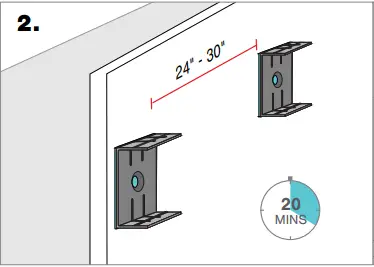

Screw Mounting

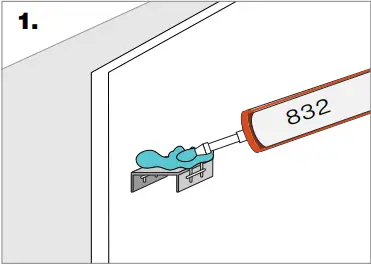

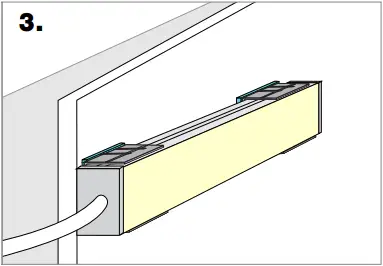

832 Silicone Mounting

NOTE: 832 Silicone use in a well- ventilated area, 832 Silicone sold with Caulking gun. Do not use in any submersible applications.

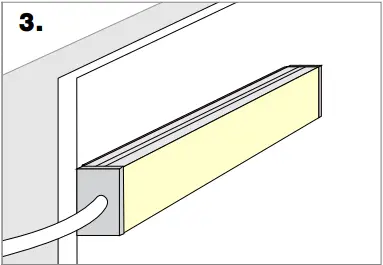

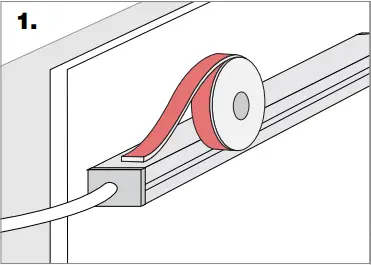

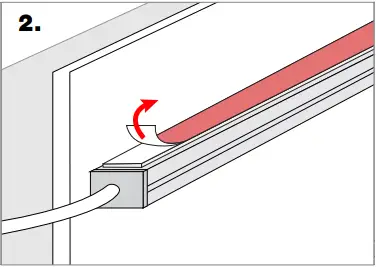

VHB Mounting

NOTES: • Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null and void

© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com

Specification subject to change. Rev-05-23-22
