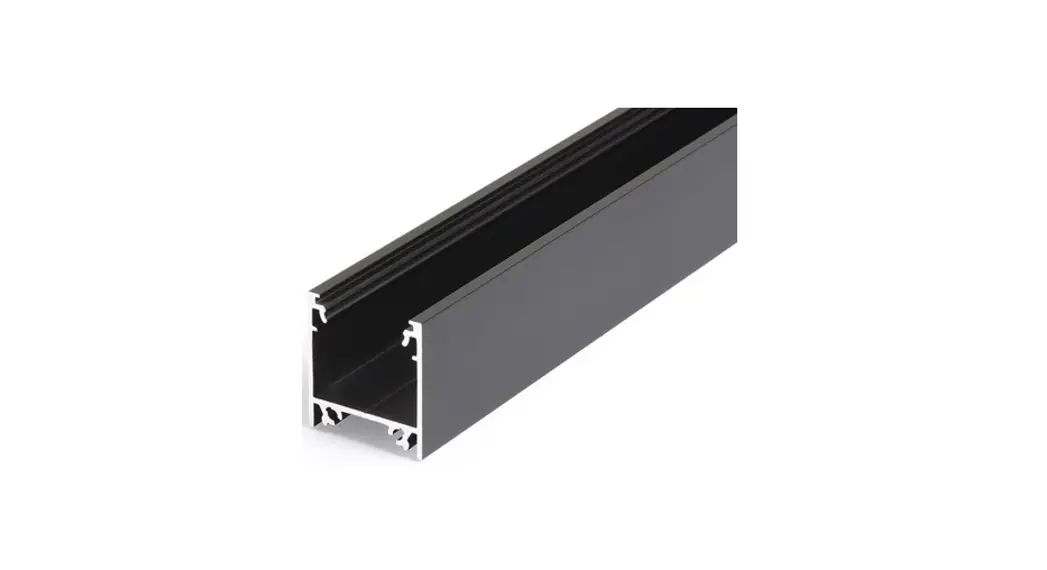

LINEA20 LED Aluminum Profile
User Manual

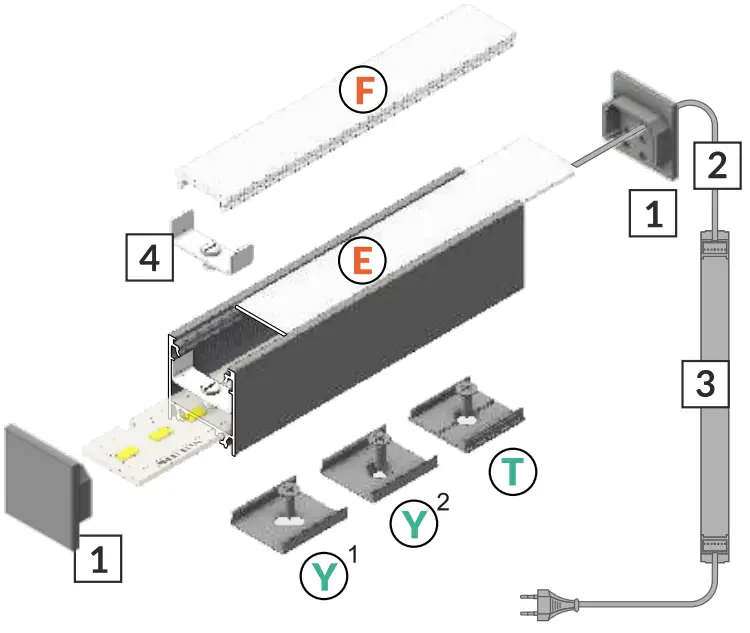

SURFACE PROFILE
| E | E slide cover | 1 | LINEA20 ending |
| F | F click cover | 2 | power supply cable |

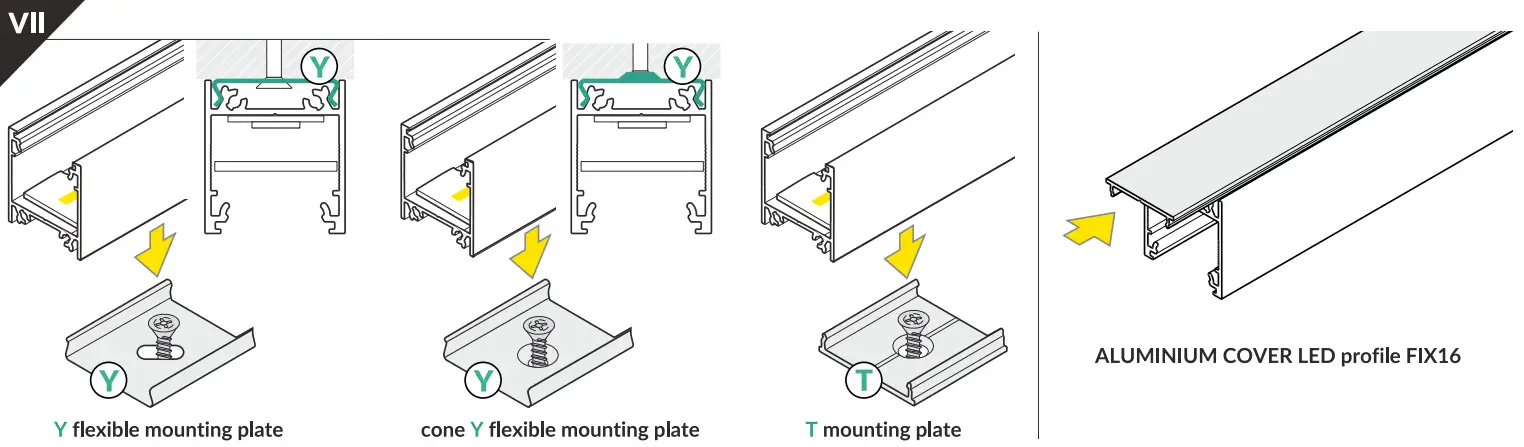

| Y 1 | Y flexible mounting plate | 3 | LED power supply |
| Y 2 | cone Y flexible mounting plate | 4 | LINEA20 LED clamp |
| T | T mounting plate |
Note! Ending with marked space to bore the holes. Possibility of buying dedicated screws.
Note! Ending thickness increases the length of the luminaire (+ 2 x 2 mm).

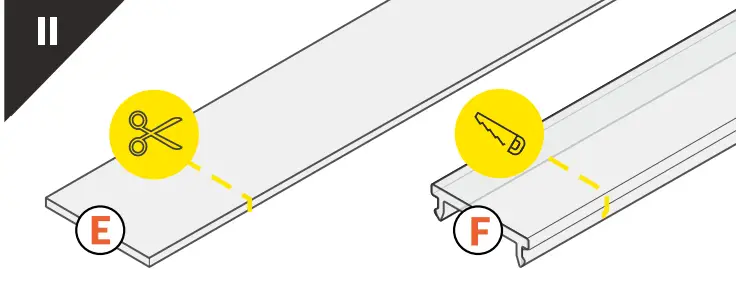

The length of the cover is equal to the length of the profile.

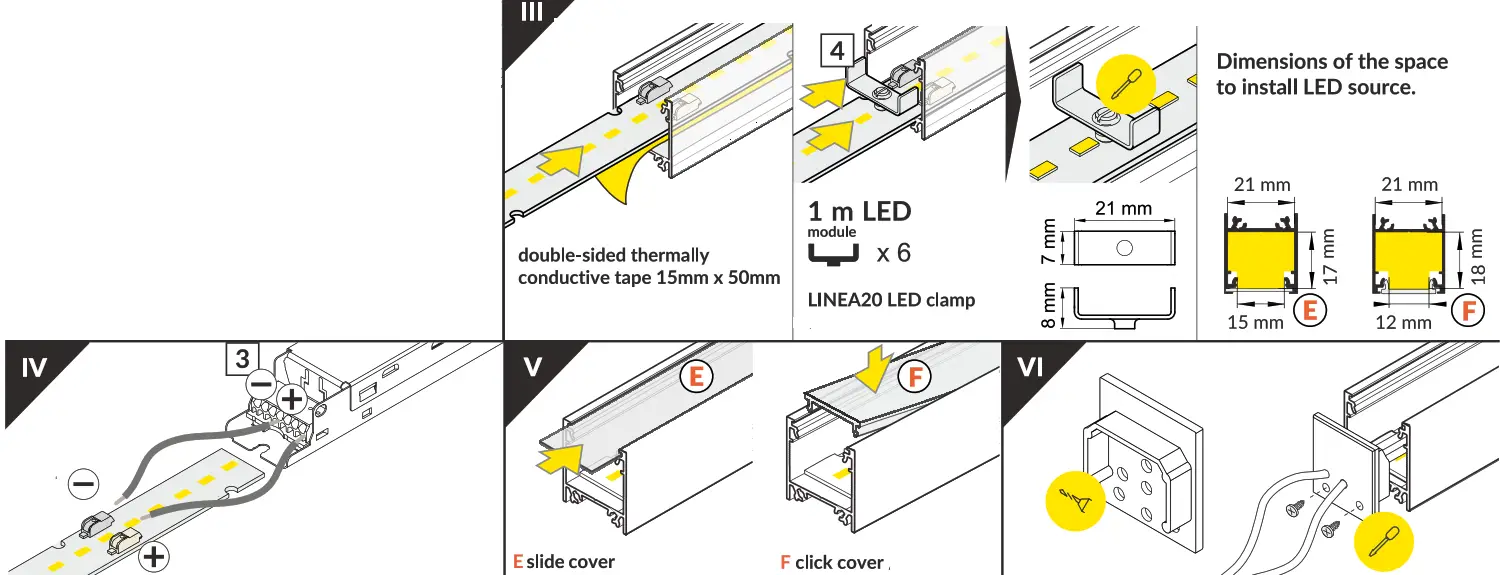

RECOMMENDED LED MODULE:
PHILIPS Fortimo LED strip LV
Mounting
Connectors

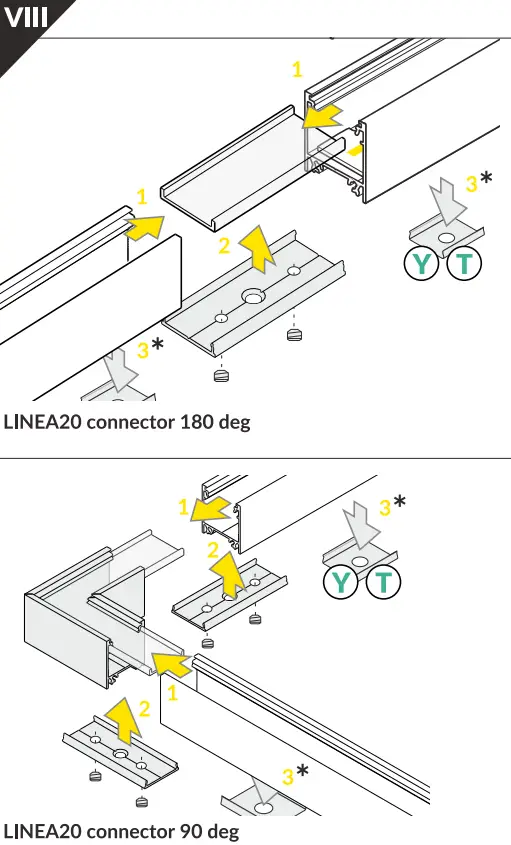

Every connector is installed similarly to LINEA20 connector 90 deg.
Available angular connectors:
- LINEA20 60°
- LINEA20 90°
- LINEA20 90° bent
- LINEA20 120°
- LINEA20 135°
- LINEA20 180°
- LINEA20 270° bent
* Surface mounting

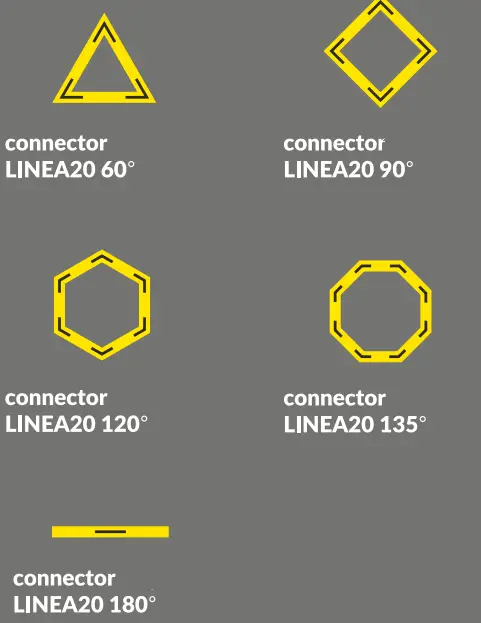

Connection Possibilities

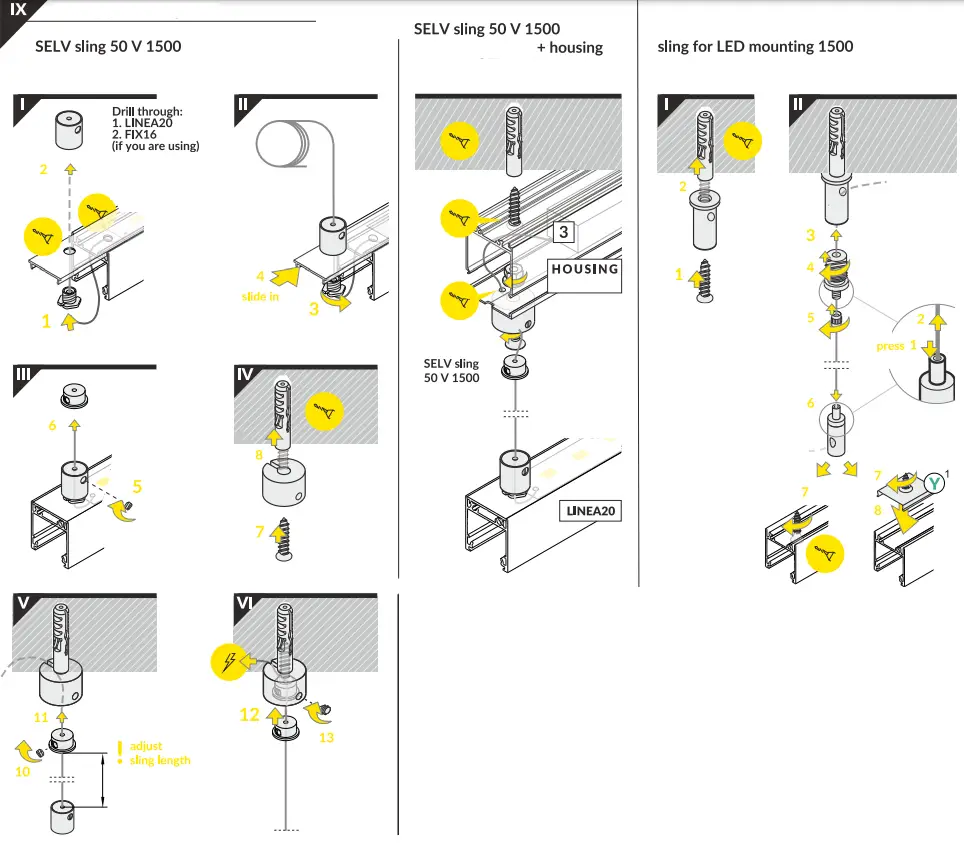

Sling

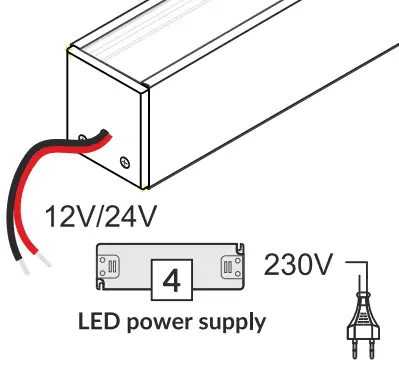

Power Supply
Accessories
Check the rest – TOPMET catalogue or www.topmet.co.uk
