Tran Led Arka Linear Fixtures Installation Guide

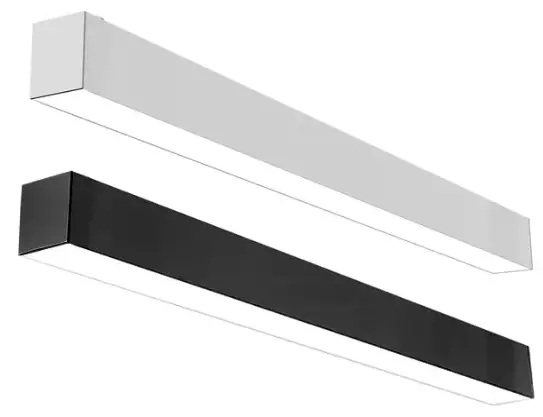

ARKA Linear Fixtures
Installation Guide

ARKA Linear Fixtures

Linear Fixtures – ARKA

Mounting

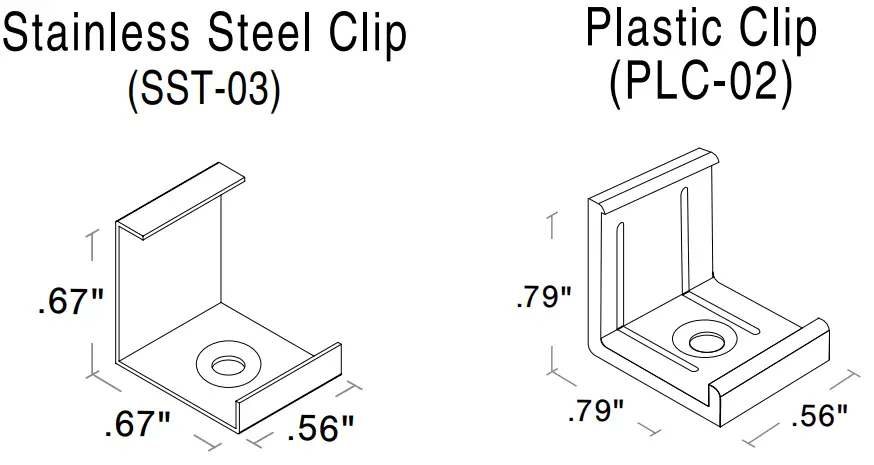

NOTE: 2 clips provided for 4’ or less;
4 clips provided for greater than 4’

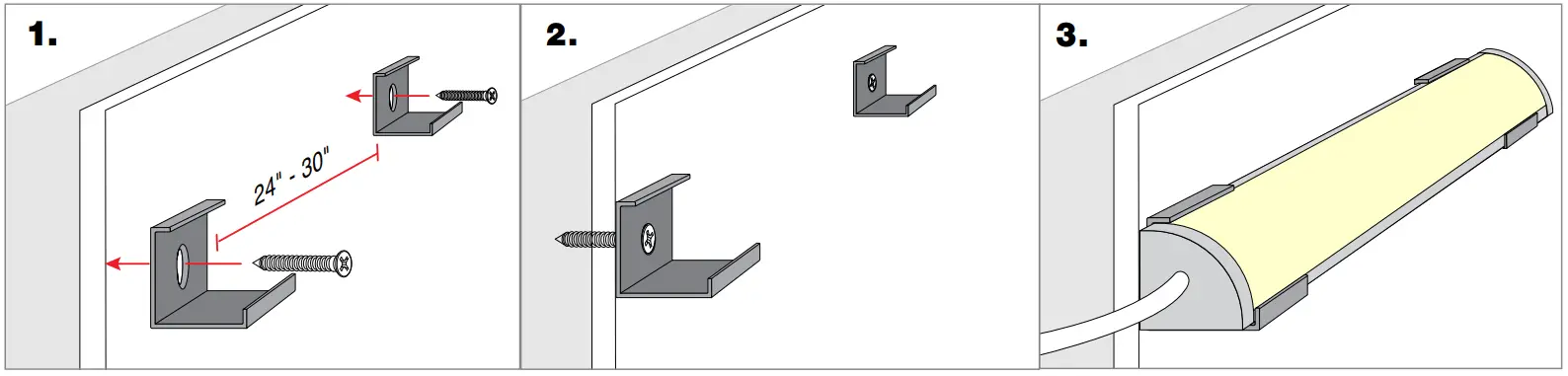

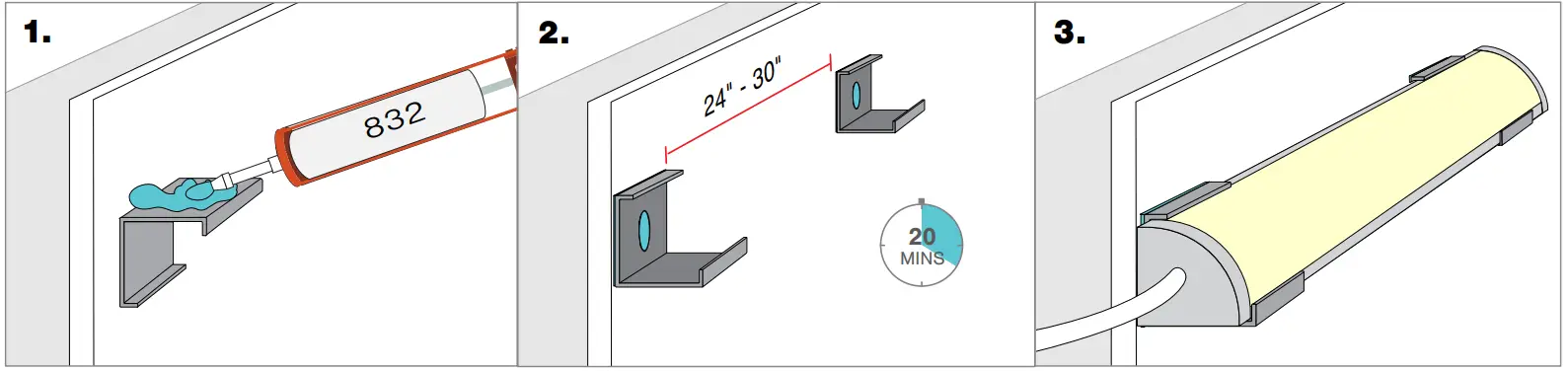

Screw Mounting 832 Silicone MountingNOTE: 832 Silicone use in a well- ventilated area, 832 Silicone sold with Caulking gun. Do not use in any submersible applications.

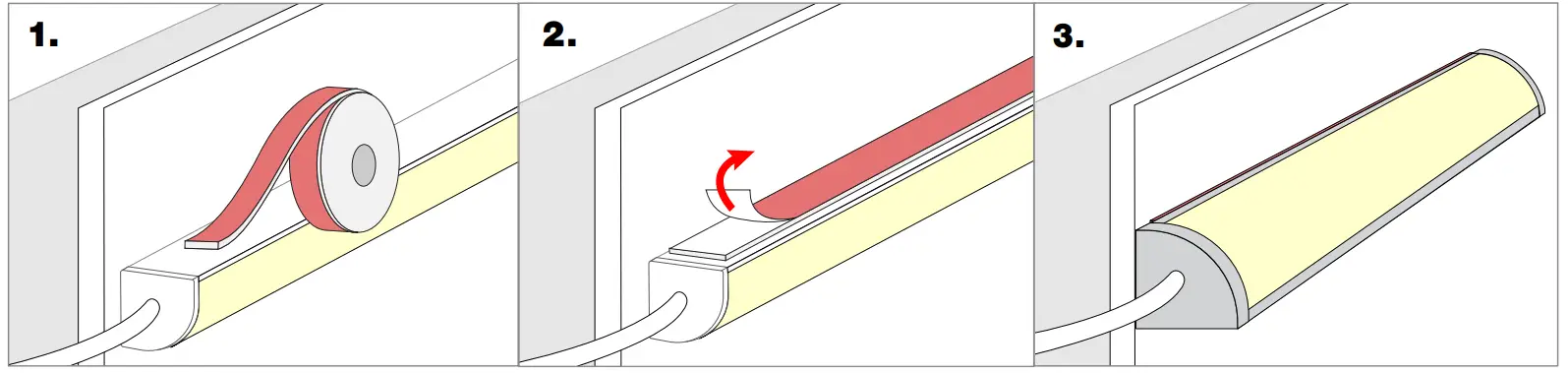

VHB Mounting

NOTES: Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null and void

© 2022 Q-Tran Inc. All rights reserved
155 Hill St. Milford, CT 06460
203-367-8777
[email protected]
www.q-tran.com
Specification subject to change.
Rev-02-23-22
