VERS Linear Fixtures
Installation Guide
VERS Linear Fixtures
Wiring Details
SCREW FOR CONCEALED CLIP
#4 x 5/8” flat head screw
CONCEALED CLIP INSTALL

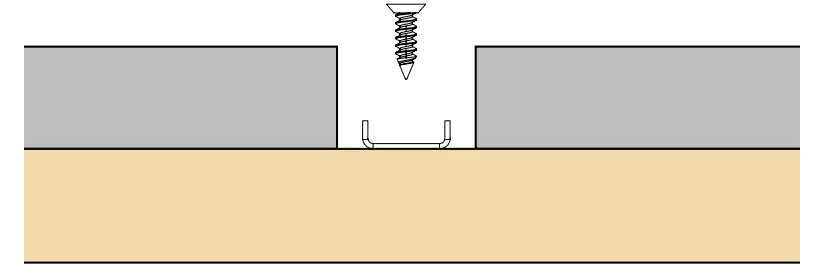

- Using the #4 x 5/8” flat head screws, mount the concealed clip. The first and last clip should be placed 4” inward from each end of the VERS.
NOTE: 2 clips provided for 4’ or less; 4 clips provided for greater than 4’ - Mount the VERS fixture by snapping onto the concealed clips.

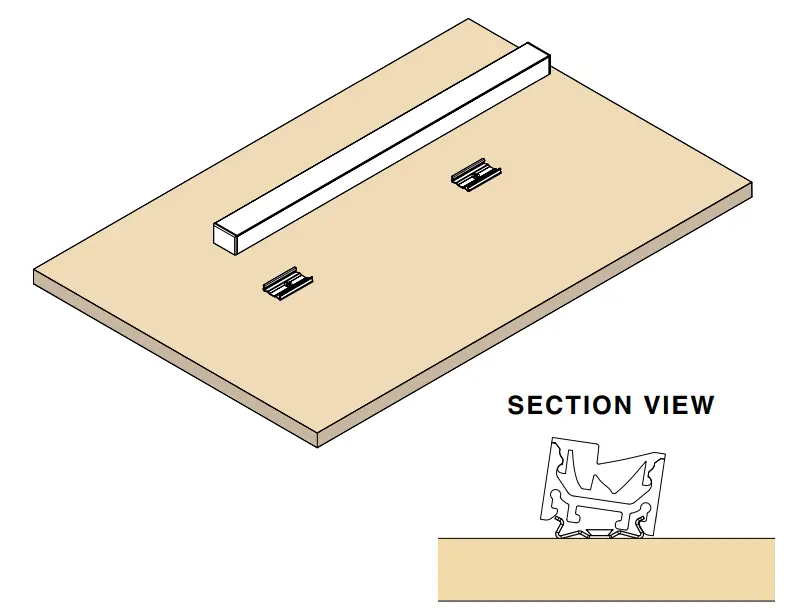

NOTE: The VERS makes a secure connection with the concealed clip by tilting and snapping on.

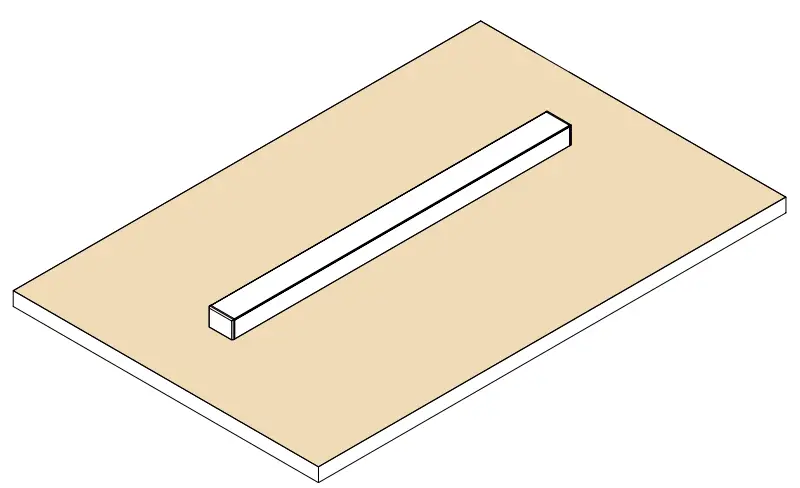

NOTE: The VERS makes a secure connection with the concealed clip by tilting and snapping on.ASSEMBLED
SCREW FOR MAGNETIC MOUNT ACCESSORY
#6 flat head screw
MAGNET INSTALL
- Using the #6 flat head screws, mount two screws into the 12” magnet bracket through the slotted holes at each end.

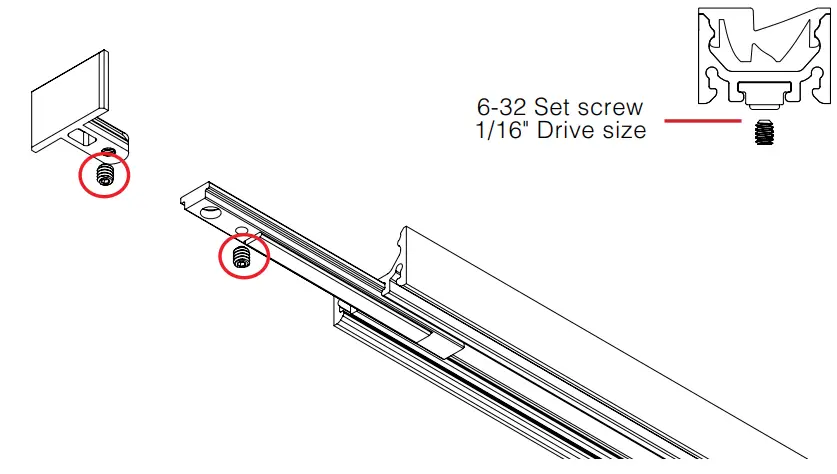

- Unscrew the CLS VERS endcap using the supplied allen key, and slide in the magnet clips.

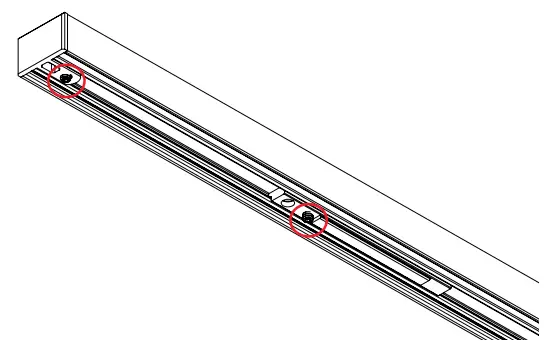

NOTE: 1 magnet clip needed per foot. - Using the supplied set screws fasten the CLS endcap that was removed, and secure the magnet clips into your desired location.

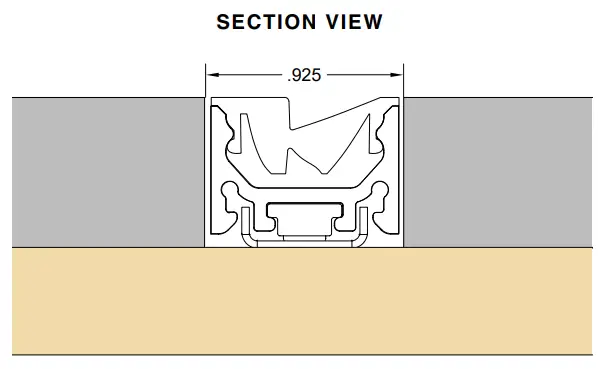

NOTE: The magnet clips should be offset to the flat heads used to secure the bracket, to maximize magnetic connection. - Drop the assembled VERS fixture into the mounted magnet bracket, the bracket should sit within the extrusion as pictured below.
NOTE: 1 magnet clip needed per foot.
NOTE: The magnet clips should be offset to the flat heads used to secure the bracket, to maximize magnetic connection.
MAGNET INSTALL
COVE INFO

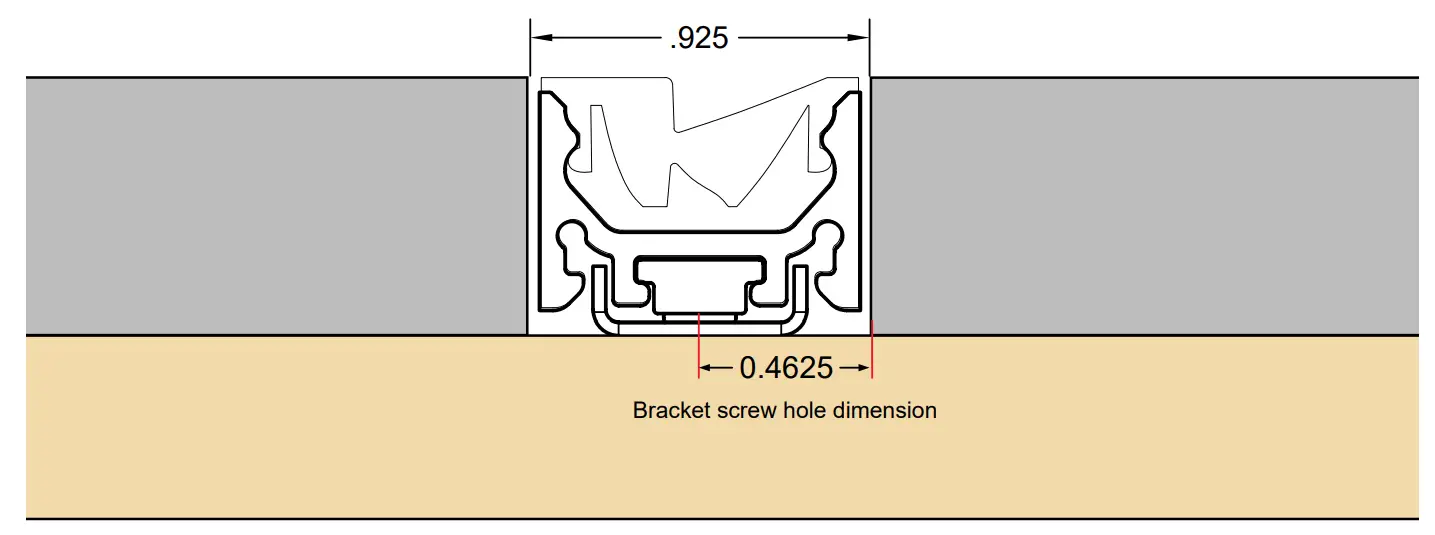

The VERS magnet install requires a .925” cut out to be recessed (The magnet bracket should be centered in the millwork).
NOTE: Height of millwork for recessed VERS should be based off the product specific dimensions found on the cutsheet.

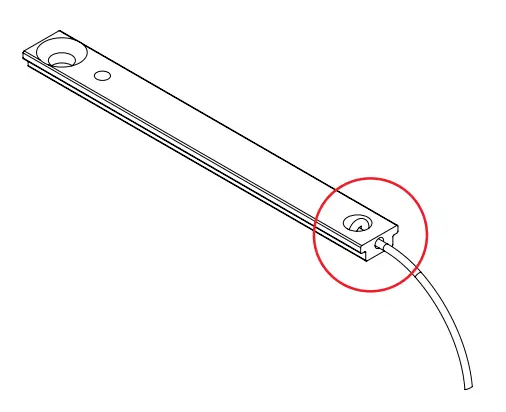

NOTE: For magnet installations requiring seismic precautions, monofiliment may be used with magnet clip as pictured below.
NOTES:
• Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null and void
© 2022 Q-Tran Inc. All rights reserved
155 Hill St. Milford, CT 06460
203-367-8777
[email protected]
www.q-tran.com
Specification subject to change. Rev-05-11-22
