Q-tran Linear Fixture-talo Sleek Flat Lens Led Aluminum Extrusion Instruction Manual (+ PDF)

Home » Blog » Q-tran Linear Fixture-talo Sleek Flat Lens Led Aluminum Extrusion Instruction Manual

Contents hide

1 Linear Fixture-Talo Sleek Flat Lens LED Aluminum Extrusion

2 Product Information

2.1 Methods & Installations

2.2 Components & Hardware

2.3 Wiring Options

2.4 Mounting

2.5 Documents / Resources

2.5.1 References

Linear Fixture-Talo Sleek Flat Lens LED Aluminum Extrusion

Product Information

The TALO Linear Fixture is a versatile lighting solution
suitable for various applications such as office, retail,
hospitality, education, laboratory, residential, and
transportation. It comes with a 5-year warranty and is compliant
with industry standards.

Methods & Installations

The fixture can be installed using different methods:

Plastic T-BAR-Clip: Use the PLC-01 standard 1(15/16) grid clips
for installation on a T-bar ceiling.
Hidden Stainless Steel Mount: Mount the fixture using the
SST-02 stainless steel clip.
Adhesive Mount: Use VHB Tape (sold separately) or silicone
adhesive (sold separately) for installation on various surfaces
like walls, ceilings, and concrete walls.
Additional Mounting: Optional mounting accessories like
Q-ANGLE, Q-PIVOT, and HINGE BRACKET (sold separately) can be used
for customized installations.

Components & Hardware

The TALO Linear Fixture includes the following components:

HIDDEN STAINLESS STEEL CLIP (SST-02): Used for mounting the
fixture.
PLASTIC T-BAR CLIP (PLC-01): Used for T-bar ceiling
installations.
HINGE BRACKET (HMB-M/HMB-L/HMB-XL): Optional mounting brackets
for customized installations.

Wiring Options

The fixture supports continuous wiring configuration options.
Review the wire methods provided in the manual to ensure a clean
installation. Additional wire methods include S1 & S2
(Connector/Wire Input only) and P1 & P2 (Connector/Wire Input
and Output).

Mounting

The TALO Linear Fixture can be surface-mounted using the
following steps:

Prepare the surface by cleaning it with a 50/50 alcohol mix and
allowing it to dry.
Peel back the protective film of the VHB tape and firmly adhere
it to the desired surface, avoiding air bubbles. Install the tape
in small sections until the entire length is installed.
For porous materials like wood, brick, and concrete, apply two
layers of paint or primer to create a better bonding surface.

View Fullscreen

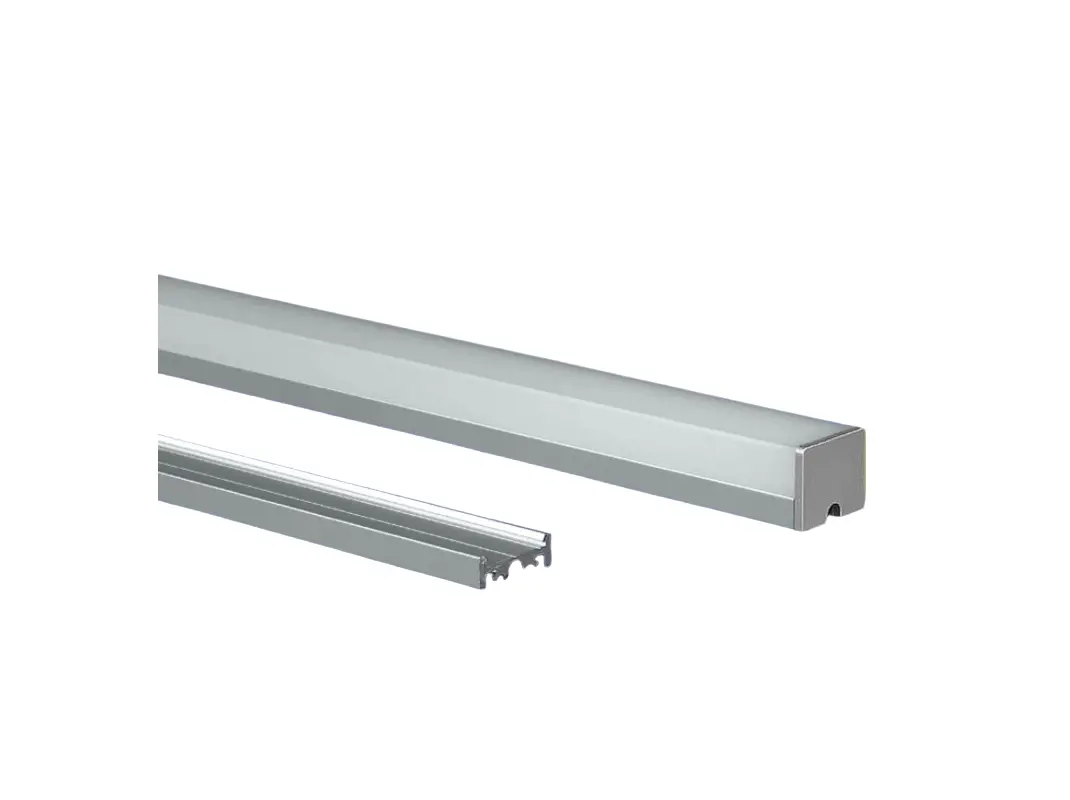

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO

TALO-FLAT (01)

TALO-ENCAPSULATED (03)

COMPLIANT

5YEAR WARRANTY

METHODS & INSTALLATIONS

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
ATTENTION: Please read all instructions BEFORE installation
· Product to be installed by a licensed electrician – Field modifications void warranty · Use only with Class 2 power supply unit — Compatible for use with Q-Tran power supplies · Surface mount · Suitable for installation in storage area of a clothes closet when assembled as a finished fixture up to 4W/ft at Q-Tran facility · Not rated for walkover · Input Voltage: 24VDC · Diagrams for representation only and not to scale

METHODS OF INSTALLATION

Plastic T-BAR-Clip
1.00″

.50″ .10″
PLC-01
Standard 1″(15/16) grid clips
Hidden Stainless Steel Mount

.53″

.17″
.625″
.50″

SST-02

#4 x 5/8″ Flat Head SS

WALL

CEILING

Adhesive Mount

832 .21″

CONCRETE WALL

Silicone Sold separately

VHB Tape Sold separately

FLOOR

Not rated for walkover

WALL
0.85″

Additional Mounting
(Sold separately) Q-ANGLE
1.38″
2.23″
1.50″ 1.93″
Q-PIVOT
0.75″
1.03″

HINGE BRACKET

HMB-M HMB-L HMB-XL

1.41″ 0.71″ 1.46″ 1.29″ 1.46″

4.00″

COMPONENTS & HARDWARE

WIRING OPTIONS

MOUNTING

SURFACE MOUNTING METHOD · VHB Adhesive Mount (page 5-6) · Silicone Mount (page 7)

· Hidden Stainless Steel Clip Mount (page 8) · Plastic T-BAR Clip Mount (page 9)

Cove, Under & over cabinet:
Ideal for office, retail, hospitality, education, laboratory, and residential.

Shelf:
Ideal for office, retail, hospitality, education, laboratory, and residential.

Display cabinet:
Ideal for retail and hospitality.

Signage:
Ideal for lobby, retail, hospitality, institutional, and transportation.

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO

METHODS & INSTALLATIONS

COMPONENTS & HARDWARE

WIRING OPTIONS

.56″

.57″

.19″ .74″

TALO-FLAT (01)

.56″

.57″

.19″ .74″

TALO-ENCAPSULATED (03)

COMPONENTS & HARDWARE
HIDDEN STAINLESS STEEL CLIP

.53″ .17″
.50″ SST-02

Included
Flat Head
.625″
Screw #4×5/8″

PLASTIC T-BAR CLIP
1.00″ .50″
.10″
PLC-01 Standard 1″(15/16) grid clips

.21″
0.85″

HINGE BRACKET; sold individually

Image shows HMB-M
HMB-M HMB-L HMB-XL

Included
· 3/4″ long mount screw · 1/4″ #4 clip mount
screw

ACCESSORIES SOLD SEPARATELY

Q-ANGLE; sold in pairs

1.38″
2.23″
1.50″ 1.93″
Q-ANGLE

Included
· 4 SS #6×1.25″ Flat head wood screws
· 2 SS 4-40 Flat head clip screws
· 2 SS 6-32 Fillister screws

Q-PIVOT; sold in pairs

0.75″
1.03″
Q-PIVOT

Included
· SS #4-40×3/16 Flat head screws
· 2 #4×3/4 Pan Head screws

SILICONE

ADHESIVE SOLD SEPARATELY VHB TAPE; sold in 15′ increments

832 DOWSIL 832

TAPE-VHB-IP20

HIDDEN STAINLESS STEEL CLIP · 2 clips provided for 4′ or less; 4 clips provided for greater than 4′

NOTES:

PLASTIC T-BAR CLIP

· 2 Clips provided per first 12″, 1 clip provided per additional foot.

MOUNTING

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
CONTINUOUS WIRING CONFIGURATION OPTIONS
Review wire method to ensure clean installation prior to mounting finished Fixture. NOTE: Additional wire methods include: S1 & S2: Connector/Wire Input only P1 & P2: Connector/Wire Input and Output

METHODS & INSTALLATIONS

COMPONENTS & HARDWARE

WIRING OPTIONS

MOUNTING

METHODS & INSTALLATIONS

COMPONENTS & HARDWARE

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
SURFACE MOUNTING METHOD SURFACE PREPARATION

50/50 alc
5 mins

70-100ºF

50% humidity or less

72 hrs

Temperature and environmental concerns:
· Ideal application environment is 70-100ºF in 50% humidity or less.
· Minimum application temperature: 50ºF
· This temperature and humidity should be maintained for 72 hours after application for maximum bond strength.

b.
a. Using a 50/50 alcohol mix, thoroughly clean the backside of the fixture and the surface area where fixture will be installed. Allow 5 minutes to dry.
b. Peel back 0.5″ of the VHB tape’s protective film on one end and use firm pressure to adhere it to the desired surface, avoiding air bubbles. Continue peeling the film and adhering the tape in small sections until the entire length is installed.

2 layers 1 layer

Wood

Brick

Concrete

Paint or 3M
Primer 94

For porous materials (Wood, Brick, Concrete etc.) apply two layers of paint or primer to the surface. This will help create a better bonding surface for these materials. These can be purchased from a local hardware store.

MATERIALS
Concrete, Stone, Cinderblock, Metal, and Brick ABS, Fiberglass, Plastic, and PVC
Tile, Wood, Ceramic, Glass, or Metal
All Purpose

SUGGESTED EPOXIES
Loctite Metal and Concrete Two-Part Epoxy
Loctite Plastic Two-Part Epoxy
Loctite Clear Two-Part Epoxy
Strong Stik

WIRING OPTIONS

MOUNTING

METHODS & INSTALLATIONS

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
SURFACE MOUNTING METHOD: VHB ADHESIVE
BEFORE installation, the surface must be thoroughly cleaned and dried for maximum bond strength. (Page 5)

Marker

Length as needed

28 29 30 31

Length as needed
Determine the TALO fixture(s) location and positioning on desired surface before adhering fixture to surface. Make any necessary reference markings to indicate fixture placement.

2
a.
b.
a. To adhere the VHB adhesive, peel the white film back while evenly applying the tape to the mounting side of the fixture. The red side should be visible.
b. Remove the red film and position fixture in place according to your previous reference marking(s).

COMPONENTS & HARDWARE

WIRING OPTIONS

MOUNTING

Remove protective film from the surface of the fixture’s lens.

NOTES: EPOXY ALTERNATIVE: For improved bonding strength, apply a small amount of epoxy at each end. Refer to table on page 5 for suggested epoxies. These can be purchased at a local hardware store. Please follow all manufacturer instructions for suggested epoxy.

METHODS & INSTALLATIONS

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
SURFACE MOUNTING METHOD: SILICONE · 2 clips provided for 4′ or less; 4 clips provided for greater than 4′

Marker

24″ – 30″

28 29 30 31

4″

24″ – 30″

4″

Determine the TALO fixture(s) location and positioning on desired surface; evenly distribute clips. Make any necessary reference markings to indicate where each clip is to be secured in place. Recommended every 24″ – 30″.

24″ – 30″

832
a.

a. Firmly press the silicone-coated clips on the marked reference points.
b. Wait for silicone adhesive to cure completely before snapping fixture into place.
c. Snap fixture onto clips.
NOTE: Cure time is dependent on the type of silicone adhesive used. Refer to silicone product manufacturer for accurate drying time.

COMPONENTS & HARDWARE

WIRING OPTIONS

MOUNTING

Remove protective film from the surface of the fixture’s lens.

METHODS & INSTALLATIONS

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
SURFACE MOUNTING METHOD: HIDDEN STAINLESS STEEL CLIPS · 2 clips provided for 4′ or less; 4 clips provided for greater than 4′

Marker

24″ – 30″

28 29 30 31
b.

4″

24″ – 30″

4″

a.
a. Secure clips using the #4 flat head hardware provided. b. Ensure the screw head is flush with the clip’s base. c. Snap fixture onto clips.
NOTE: Flat head screw type is dependent on surface/application material. Alternative flat head screws may be required. Refer to the surface material manufacturer for suggested screw type.

COMPONENTS & HARDWARE

WIRING OPTIONS

MOUNTING

Remove protective film from the surface of the fixture’s lens.

METHODS & INSTALLATIONS

INSTALLATION INSTRUCTIONS
LINEAR FIXTURE – TALO
SURFACE MOUNTING METHOD: PLASTIC T-BAR CLIPS · 2 Clips provided per first 12″, 1 clip provided per additional foot.

1
4″

Marker
12″
10 11 12 13
12″

4″
Cip on the T-BAR clips 4″ inward from each end, and then 12″ apart for the full length
Determine the TALO fixture(s) location and positioning on desired surface; evenly distribute clips. Make any necessary reference markings to indicate where each clip is to be secured in place. Recommended every 12″.

2
Snap fixture onto T-BAR.

COMPONENTS & HARDWARE

WIRING OPTIONS

MOUNTING

Remove protective film from the surface of the fixture’s lens.
