NEXUS-SW Q-CAP Flexible Fixtures
– MICRO 5 SERIES
Mounting
NOTE: 2 white snug clips provided per first 12″, 1 for each additional 12″.

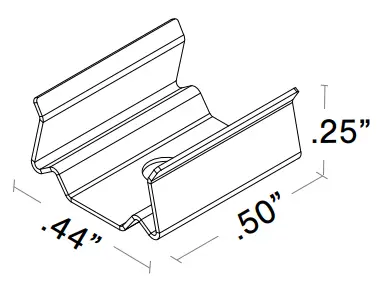

WSC-02:
WHITE SNUG CLIP
– For indoor/outdoor use
– Surface mounting
– Stainless steel/corrosion resistant
– Discrete mounting
– White glossy finish
MOUNTING HARDWARE
– #4 flat screw (one provided for each clip)
– 832 Silicone (sold separately)
Mounting Accessories

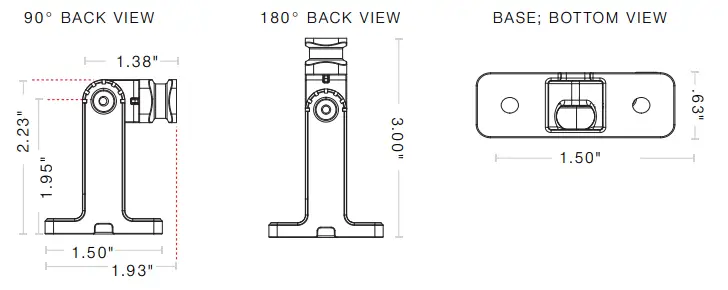

Q-ANGLE
(Full ordering guide and installation available for this product in the accessories section of website)
– Offset lighting to illuminate signs, artwork, etc.
– For indoor/outdoor use
– Wall, ceiling, or floor mounted
– Anodized aluminum/corrosion resistant
– Free moving rotating head which can be locked into specific angles

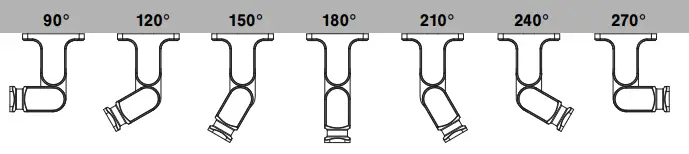

– Preset dial notches for easy adjustments from 90° to 270°
MOUNTING HARDWARE
– Mounting Clip
– 6-32 Fillister head screw
– 4-40 Flat head screw
– Drywall anchor (not provided)
– #6- 1 ¼ ” wood screw

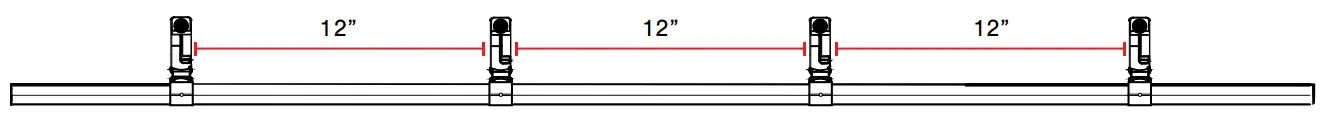

Q-ANGLE MUST BE MOUNTED EVERY 12″
SEE Q-ANGLE INSTALL FOR MORE INFORMATION

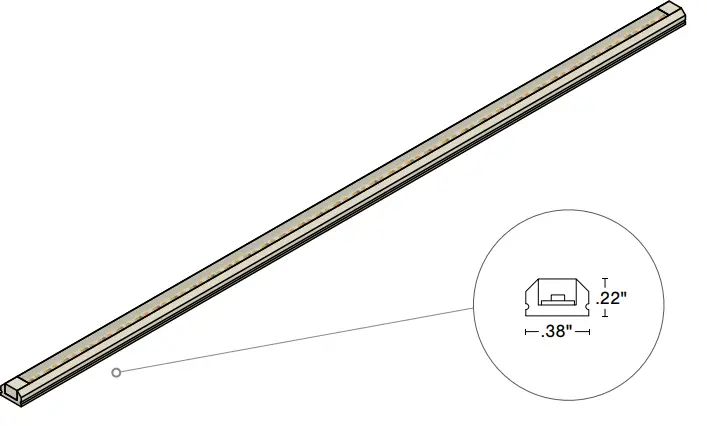

Rated
DRY
– Lengths up to 191″
– Encapsulated in polyurethane
– NOT FIELD CUTTABLE
COMPATIBLE CONNECTORS
WET
– Lengths up to 191″
– Encapsulated in polyurethane
– NOT FIELD CUTTABLE
COMPATIBLE CONNECTORS
Lens
Light Orientation

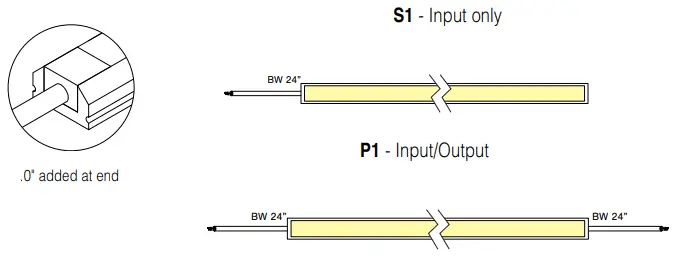

Connectors
Type
Connectors/Wire
BARE WIRE
– Belden wire 22 AWG
– Outdoor rated
– 24″ Standard length
Junction box that allows for splicing of LED lead wires
*Full ordering guide available for this product in the accessories section of website
© 2021 Q-Tran Inc. All rights reserved
155 Hill St. Milford, CT 06460
203-367-8777
[email protected]
www.q-tran.com
Specification subject to change. Rev-09-27-21
