Q-tran Nexus Q-cap Flexible Fixtures Instructions

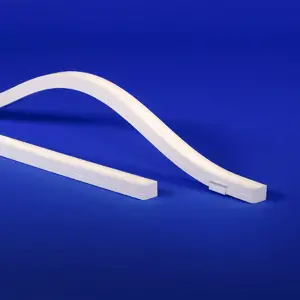

Q-TRAN NEXUS Q-CAP Flexible Fixtures

INSTALLATION

VHB MOUNTING

1. Remove the backing from the adhesive and apply firm pressure to the bonding surface.

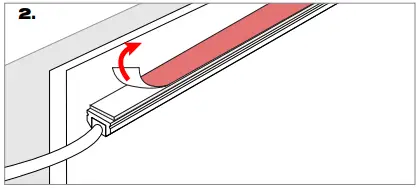

2. Peel off secondary backing.

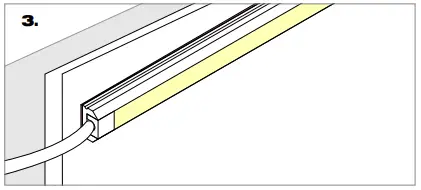

3. Adhere to mounting surface.

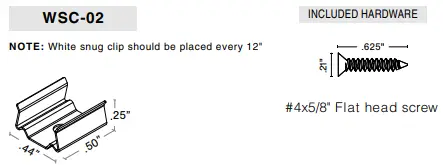

WHITE SNUG CLIP

1. Mount white snug clip with provided flat head screw.

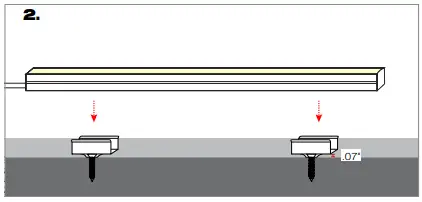

2. Align fixture to white snug clips matching distances.

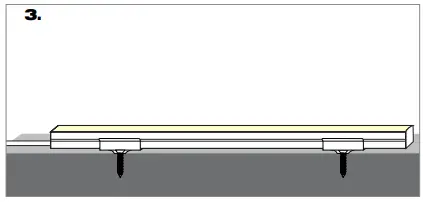

3. Press fixture into white snug clips.



© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com

Specification subject to change. Rev-08-09-21
