Q-TRAN WSC-02 WALA-RGB Q-CAP Flexible Fixtures
Mounting
WSC-02:

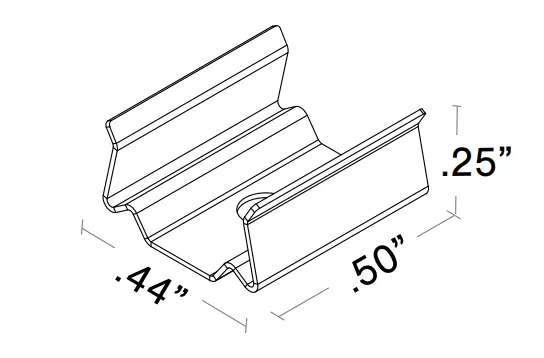

WHITE SNUG CLIP
- For indoor/outdoor use
- Surface mounting
- Stainless steel/corrosion resistant
- Discrete mounting
- White glossy finish
MOUNTING HARDWARE
- #4 flat screw (one provided for each clip)
- 832 Silicone (sold separately)

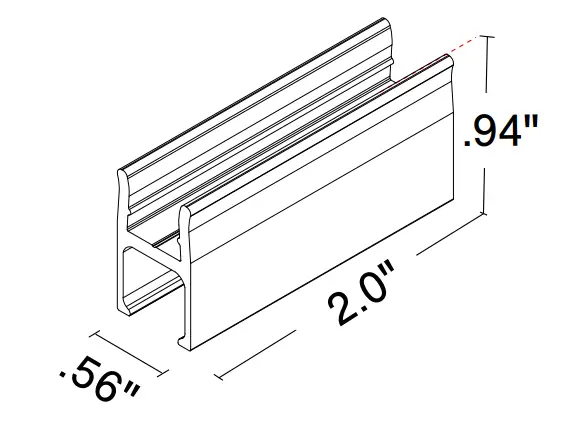

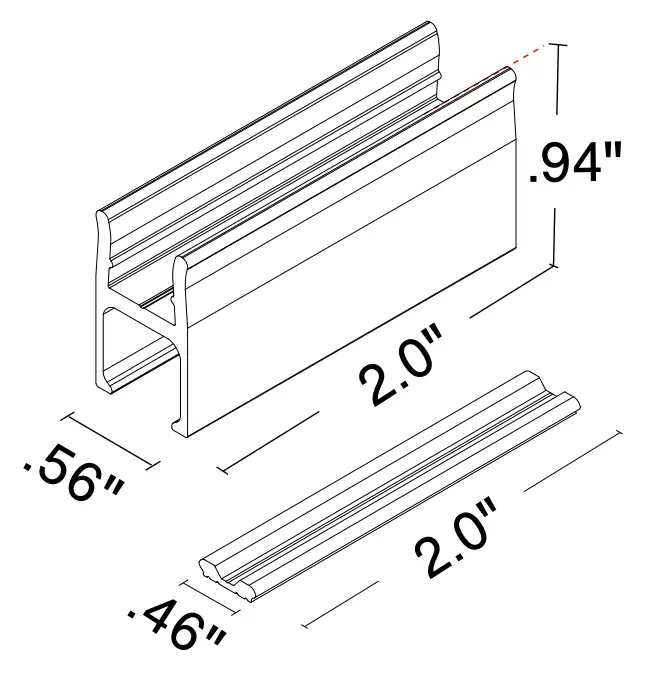

MICRO5-PPS-2:
PVC MOUNT CLIP
- For indoor/outdoor use
- Surface mounting
- For joining seamless fixtures
- Wire way feature
- Off white finish
- Can be mounted with or without PPS-BRACKET (COVE FRIENDLY)
- RGB CON6/CON24 does not fit in wireway

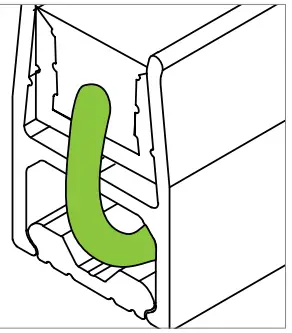

Built in wireway:
The PPS-BRACKET allows you to create a wire way under the PPS channel without any screws interfering.
MOUNTING HARDWARE
- #6 flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)
MICRO5-PPS-96 & MICRO5-PPS-FT:

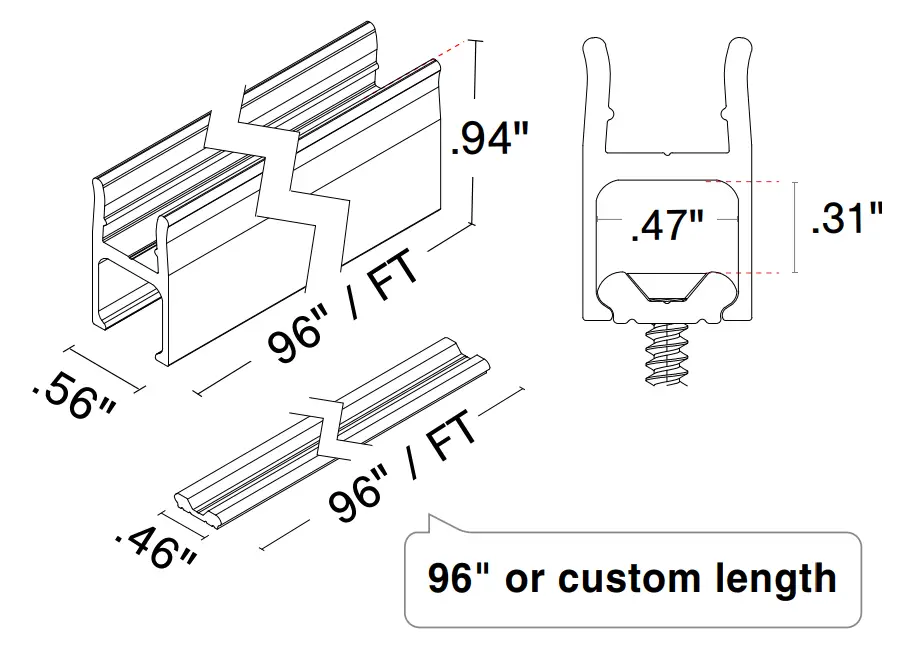

PVC MOUNT CHANNEL
- 96″ (PPS-96) or custom length (PPS-FT)
- For indoor/outdoor use
- Surface mounting
- Field modifications made easy
- Wire way feature
- Off white finish
- Can be mounted with or without PPS-BRACKET (COVE FRIENDLY)
- RGB CON6/CON24 does not fit in wireway
Built in wireway:
The PPS-BRACKET allows you to create a wire way under the PPS channel without any screws interfering.
MOUNTING HARDWARE
- #6 flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)

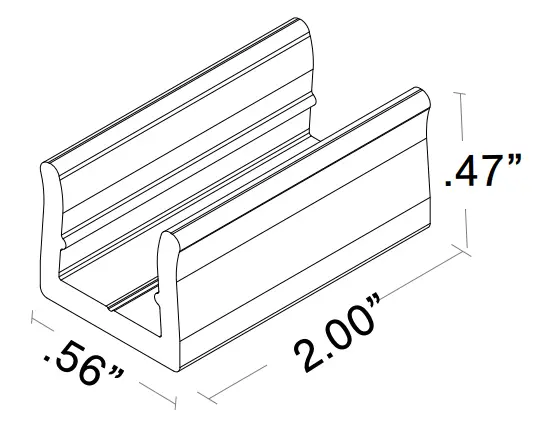

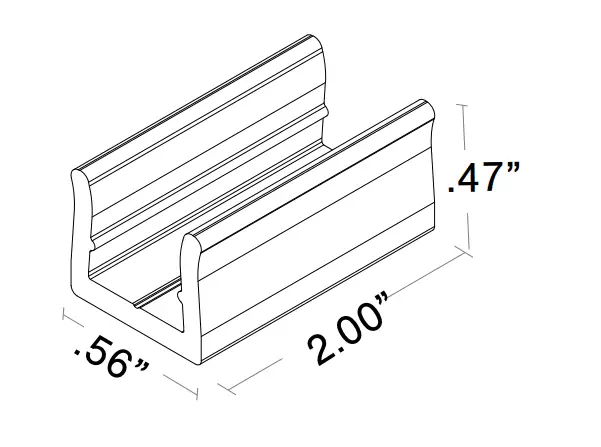

MICRO5-PPS-LP-2:
PVC LOW PROFILE MOUNT CLIP
- For indoor/outdoor use
- Surface mounting
- Low profile mounting
- For joining seamless fixtures
- No wire way
- Off white finish
MOUNTING HARDWARE
- #6 Flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)
MICRO5-PPS-LP-96 & MICRO5-PPS-LP-FT:

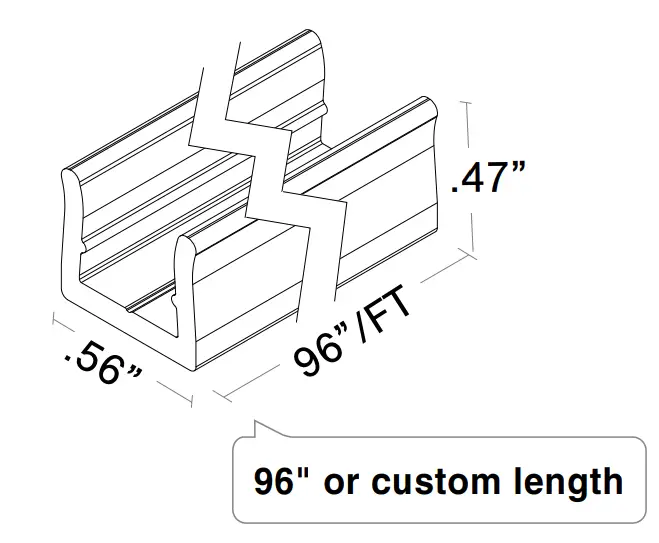

PVC LOW PROFILE MOUNT CHANNEL
- 96″ (PPS-LP-96) or custom length (PPS-LP-FT)
- For indoor/outdoor use
- Surface mounting
- Low profile mounting
- No wire way
- Off white finish
MOUNTING HARDWARE
- #6 Flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)
Mounting Accessories
Q-ANGLE
(Full ordering guide and installation available for this product in the accessories section of website)
- Offset lighting to illuminate signs, artwork, etc.
- For indoor/outdoor use
- Wall, ceiling, or floor mounted
- Anodized aluminum/corrosion resistant
- Free moving rotating head which can be locked into specific angles

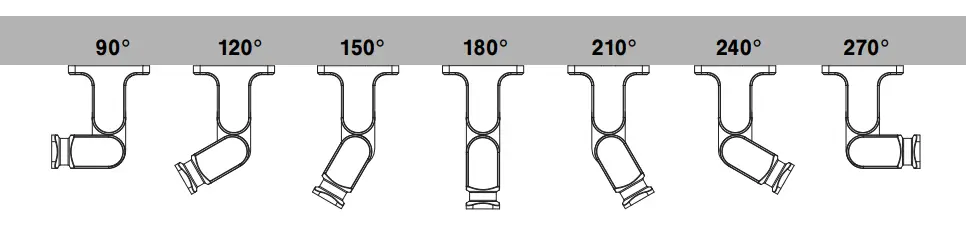

- Preset dial notches for easy adjustments from 90° to 270°

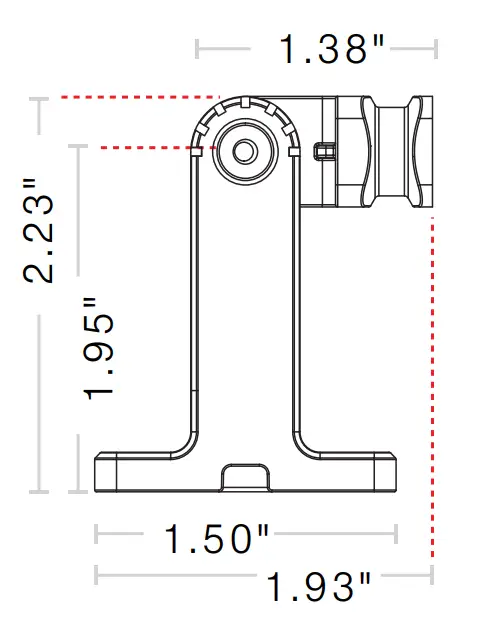

90° BACK VIEW

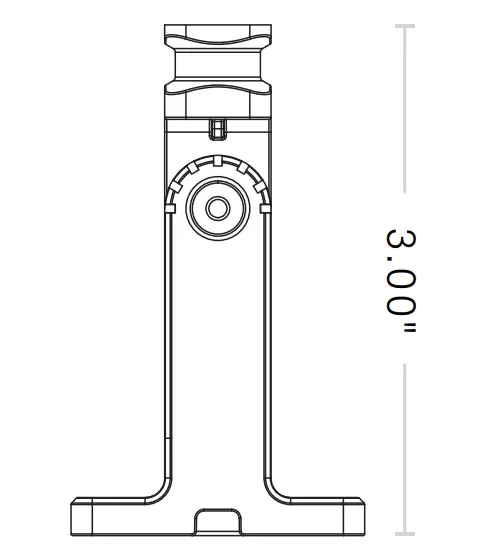

180° BACK VIEW

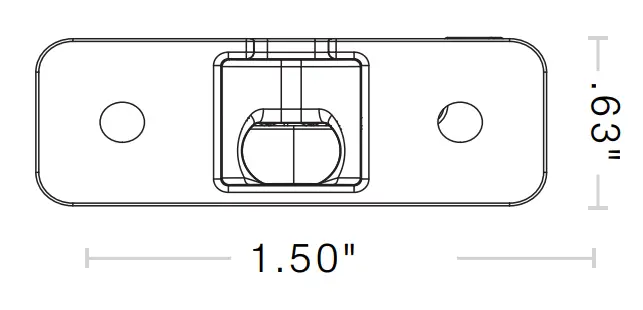

BASE; BOTTOM VIEW
MOUNTING HARDWARE
- Mounting Clip
- 6-32 Fillister head screw
- 4-40 Flat head screw
- Drywall anchor (not provided)
- #6- 1 ¼ ” wood screw

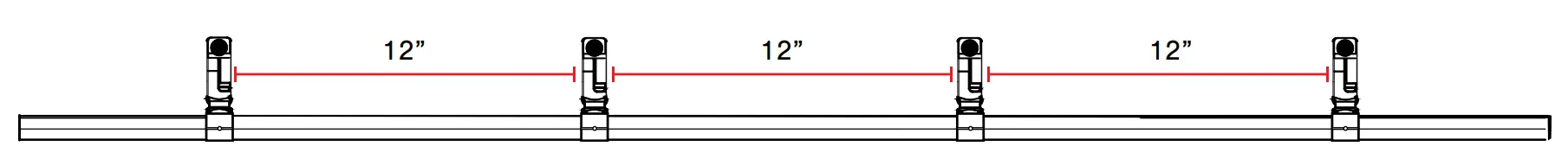

Q-ANGLE MUST BE MOUNTED EVERY 12″
SEE Q-ANGLE INSTALL FOR MORE INFORMATION

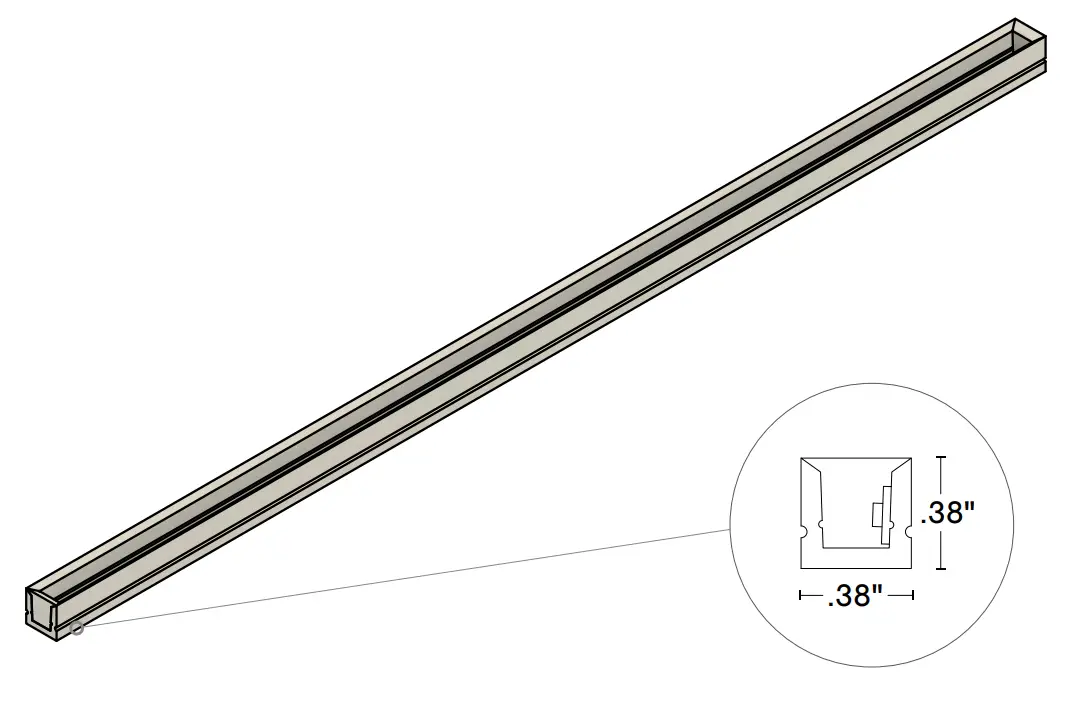

Rated
DRY
- Lengths up to 191″
- Encapsulated in polyurethane
- NOT FIELD CUTTABLE
COMPATIBLE CONNECTORS
- BARE WIRE 24″
- CONNECTOR 6″ CONNECTOR 24″
WET
- Lengths up to 191″
- Encapsulated in polyurethane
- NOT FIELD CUTTABLE
COMPATIBLE CONNECTORS
- BARE WIRE 24″

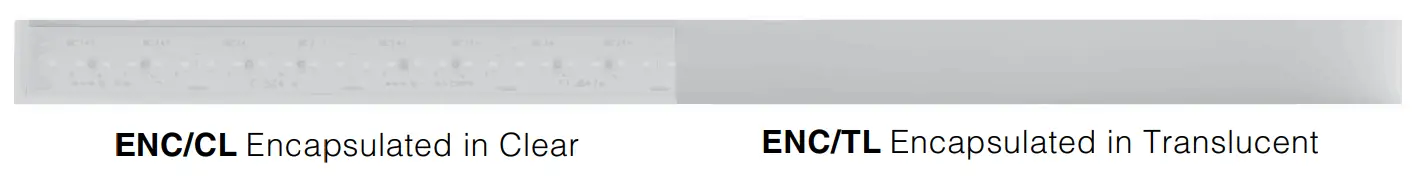

Lens
Lens Light Orientation

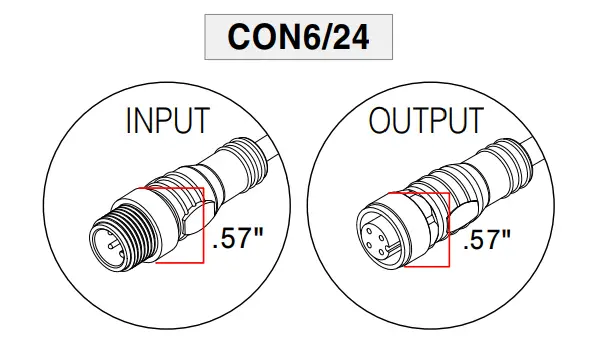

Connectors
- BARE WIRE 24″
- CONNECTOR 6″ CONNECTOR 24″

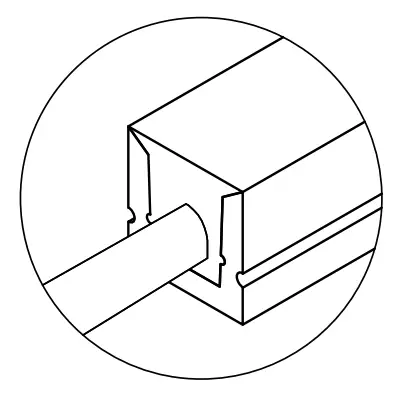

Type
- .0″ added at end

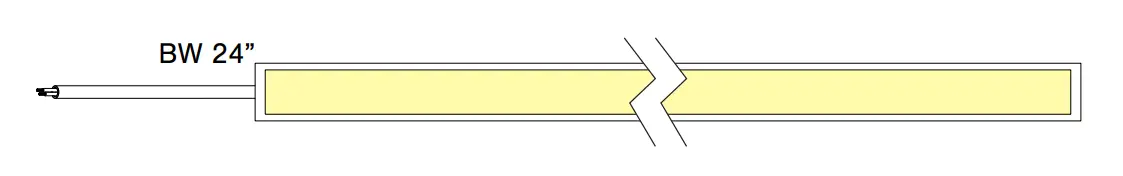

- S1 – Input only

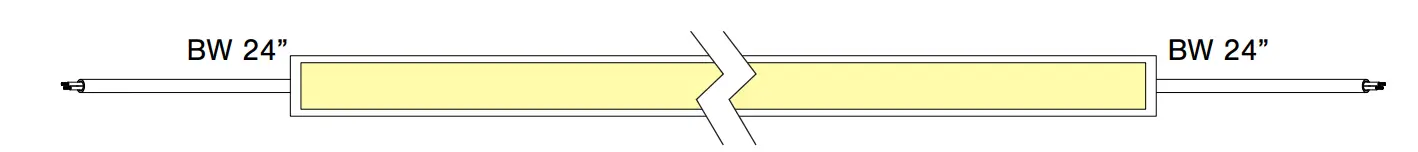

- P1 – Input/Output

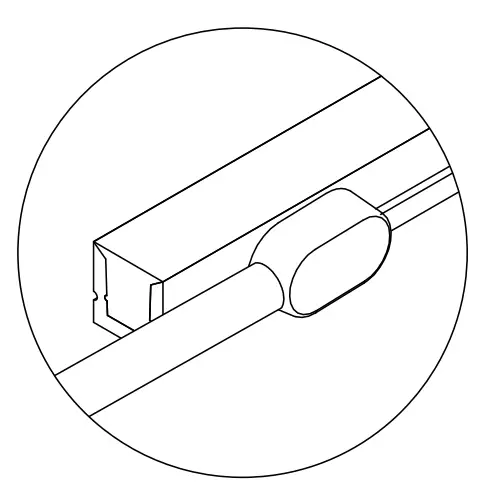

- 00″ added at end .25″ added to fixture side

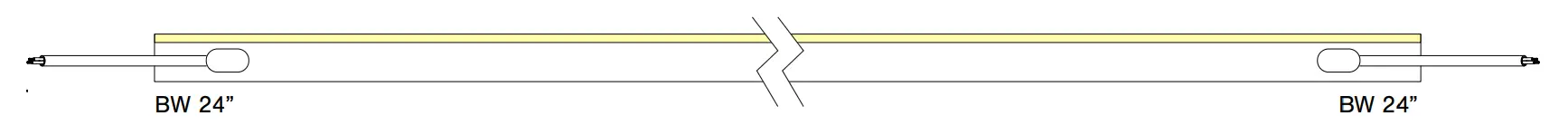

- S5 – Input only
- P5 – Input/Output

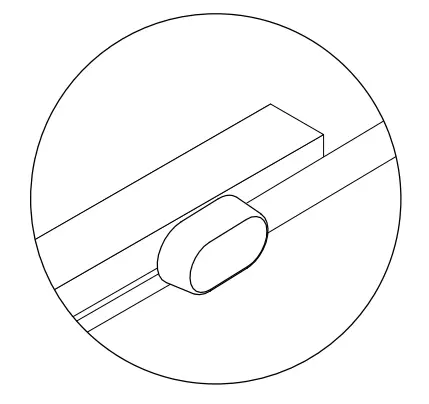

- .00″ added at end .25″ added to fixture side

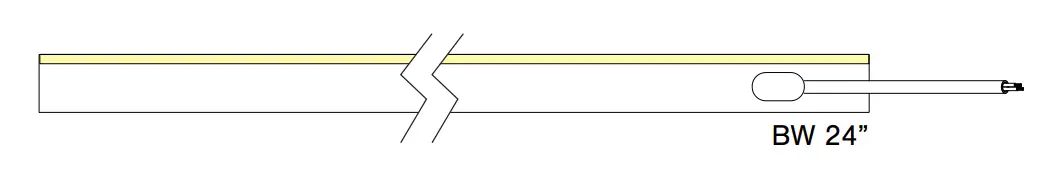

- S6 – Input only

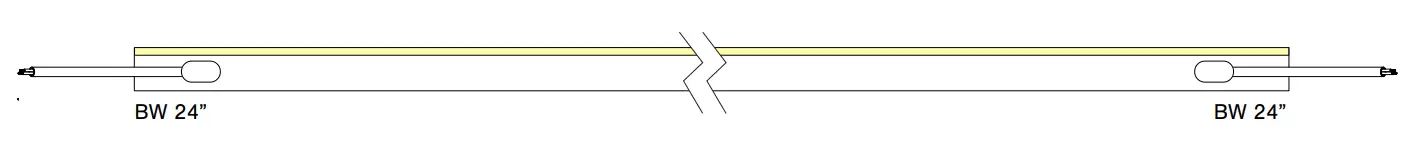

- P6 – Input/Output

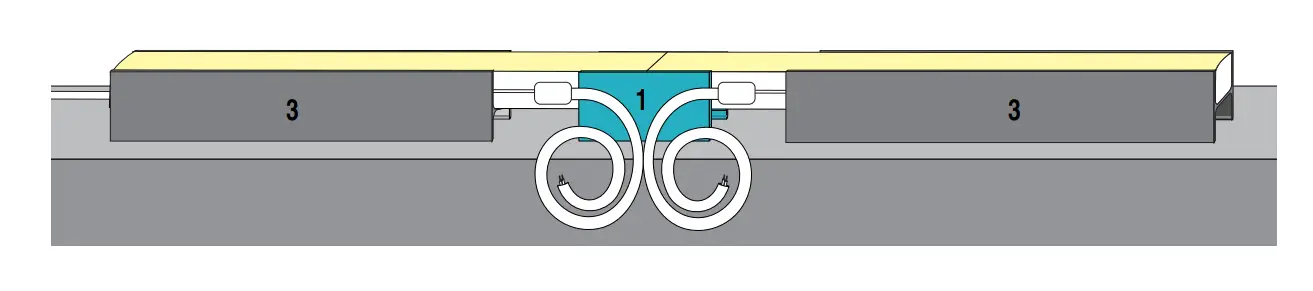

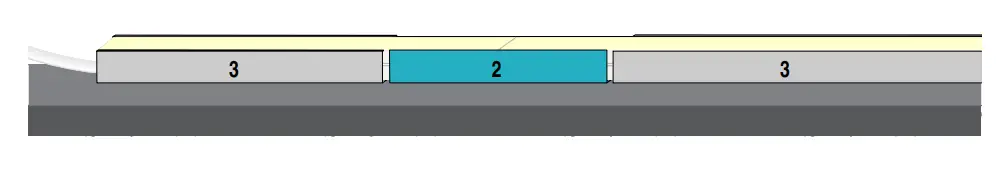

SEAMLESS
MICRO5-PPS-2
Order the PPS-2 to join two fixtures together with no visible break and order the PPS-96/PPS-FT or
to support the fixtures, All seamless fixtures have CLEAR endcaps

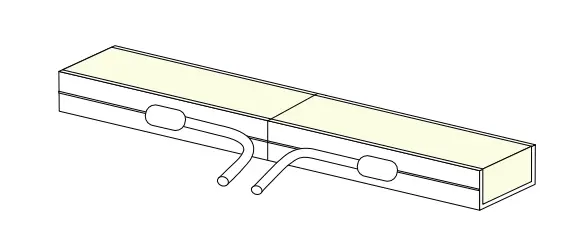

SEAMLESS WITH BARE WIRE
SEAMLESS
MICRO5-PPS-LP-2
Order the PPS-LP-2 to support two fixtures together with no visible break and order the PPS-LP-96/PPS-LP-FT to support the fixture.

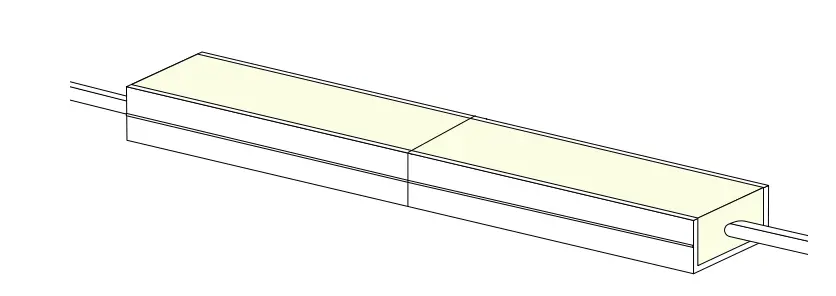

FIXTURE WITH BARE WIRE
- = PPS – 2
- = PPPS – LP – 2
- = PPS – 96/PPS – FT or PPS – LP – 96/PPS – LP – FT
Connectors/Wire

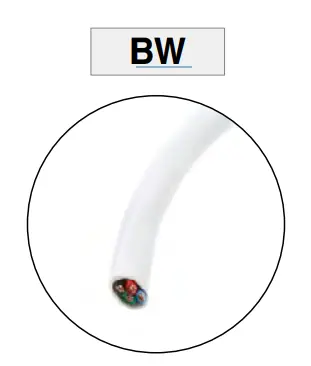

BARE WIRE
- 24 AWG, 4 conductor
- Outdoor rated
- 24″ Standard length
BARE WIRE

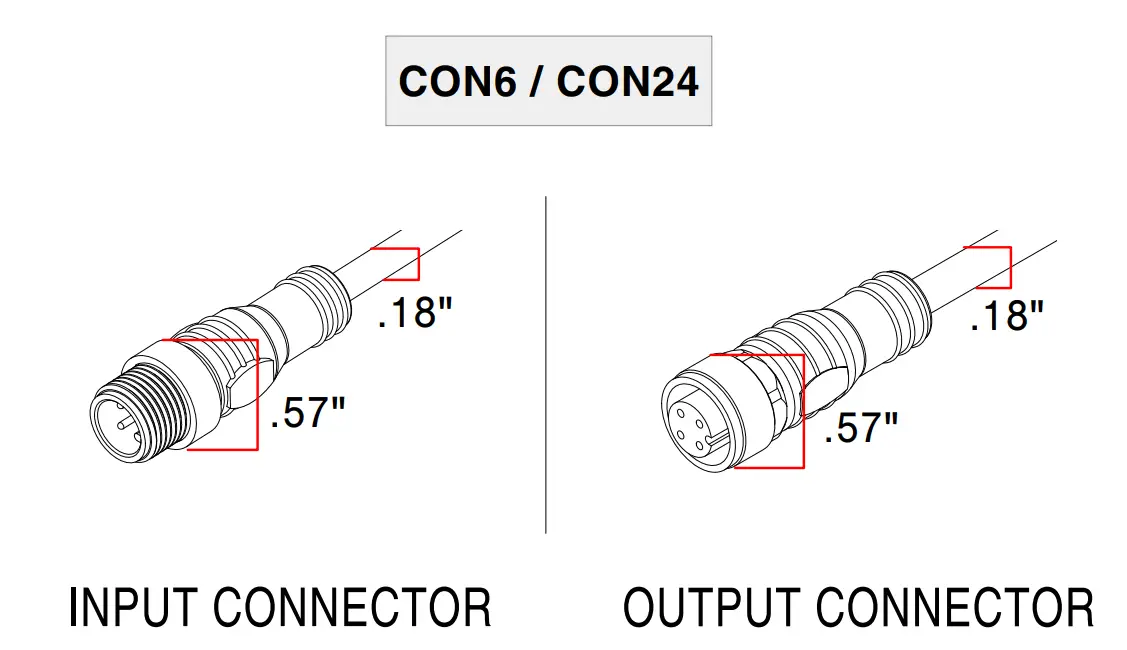

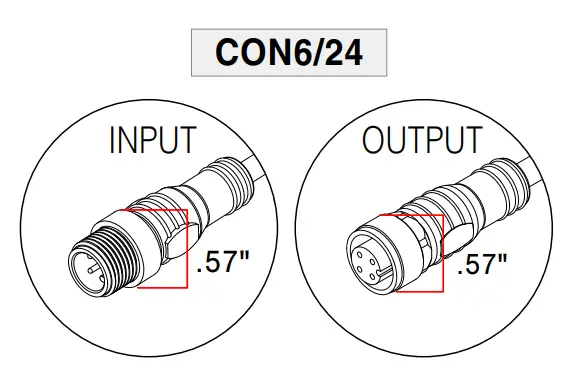

CONNECTOR 6″ / CONNECTOR 24″
- 24 AWG, 4 conductor
- Indoor rated
- 6″ or 24″ Standard length
