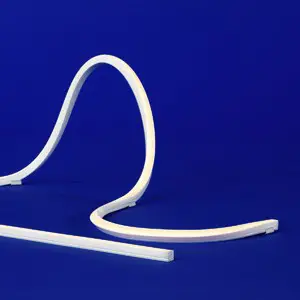

Q-TRAN ANYBEND-RGB Micro 5 Series Q CAP Flexible Fixtures
Mounting
WSC-02: WHITE SNUG CLIP
- For indoor/outdoor use
- Surface mounting
- Stainless steel/corrosion resistant
- Discrete mounting
- White glossy finish

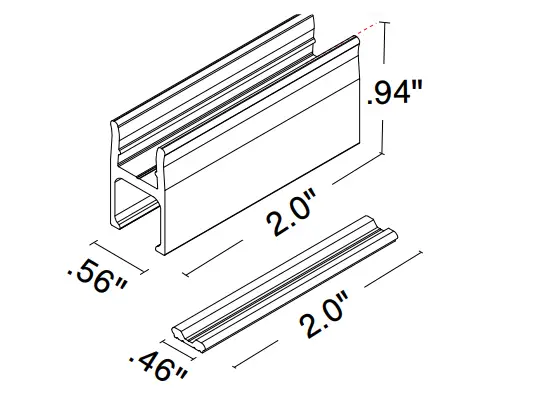

MICRO5-PPS-2 PVC MOUNT CLIP
- For indoor/outdoor use
- Surface mounting
- Wire way feature
- Off white finish
- Can be mounted with or without
PPS-BRACKET (COVE FRIENDLY)
Builtin wir eway :
The PPS-BRACKET allows you to create a wire way under the PPS channel without any screws interfering
MOUNTING HARDWARE
- #6 flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)

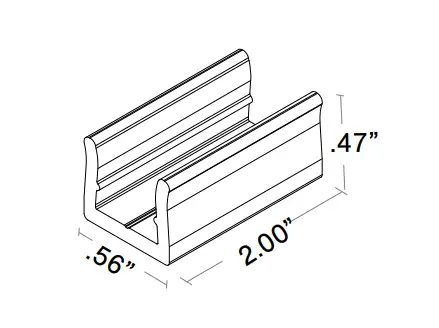

MICRO5-PPS-LP-2: PVC LOW PROFILE MOUNT CLIP
- For indoor/outdoor use
- Surface mounting
- Low profile mounting
- No wire way
- Off white finish
MOUNTING HARDWARE
- #6 Flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)

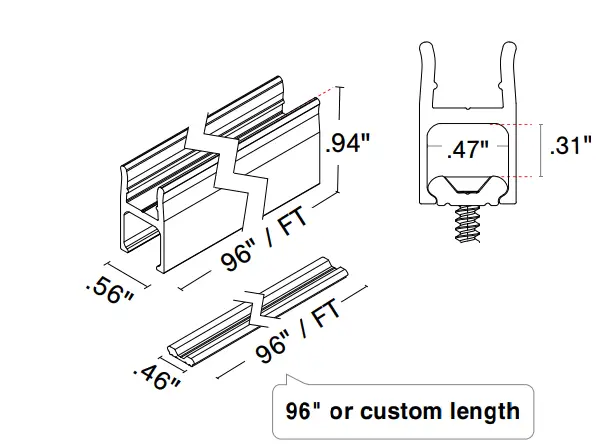

MICRO5-PPS-96 & MICRO5-PPS-FT: PVC MOUNT CHANNEL
- 96″ (PPS-96) or custom length (PPS-FT)
- For indoor/outdoor use
- Surface mounting
- Field modifications made easy
- Wire way feature
- Off white finish
- Can be mounted with or without
PPS-BRACKET (COVE FRIENDLY) - RGB CON6/CON24 does not fit in wireway
Builtin wir eway :
The PPS-BRACKET allows you to create a wire way under the PPS channel without any screws interfering
MOUNTING HARDWARE
- #6 flat head screw (1 screw for every 16″) – 832 Silicone (sold separately)
MICRO5-PPS-LP-96 & MICRO5-PPS-LP-FT: PVC LOW PROFILE MOUNT CHANNEL
- 96″ (PPS-LP-96) or custom length (PPS-LP-FT)
- For indoor/outdoor use
- Surface mounting
- Low profile mounting
- No wire way
- Off white finish
MOUNTING HARDWARE
- #6 Flat head screw (1 screw for every 16″)
- 832 Silicone (sold separately)
Mounting Accessories

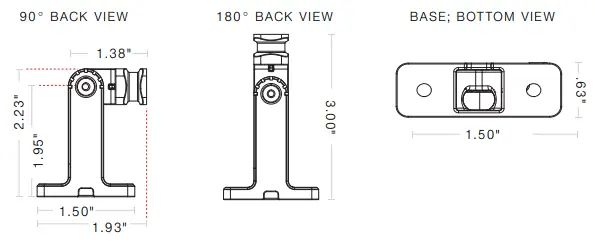

Q-ANGLE
(Full ordering guide and installation available for this product in the accessories section of website)
- Offset lighting to illuminate signs, artwork, etc.
- For indoor/outdoor use
- Wall, ceiling, or floor mounted
- Anodized aluminum/corrosion resistant
- Free moving rotating head which can be locked into specific angles

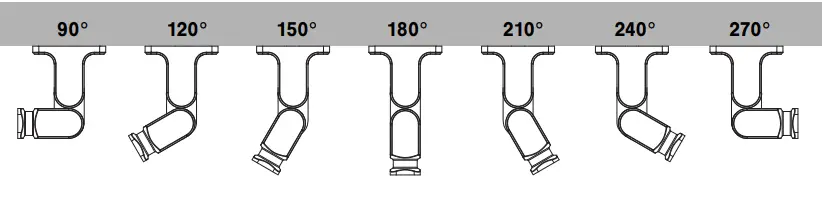

- Preset dial notches for easy adjustments from 90° to 270°
MOUNTING HARDWARE
- Mounting Clip
- 6-32 Fillister head screw
- 4-40 Flat head screw
- Drywall anchor (not provided)
- #6- 1 ¼ ” wood screw

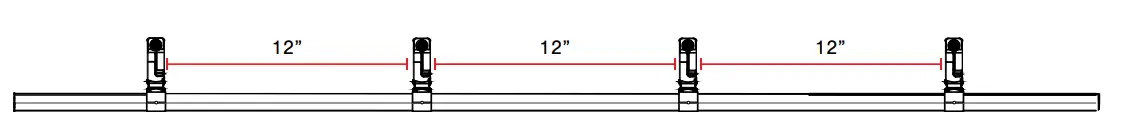

Q-ANGLE MUST BE MOUNTED EVERY 12″
- SEE Q-ANGLE INSTALL FOR MORE INFORMATION
Rated

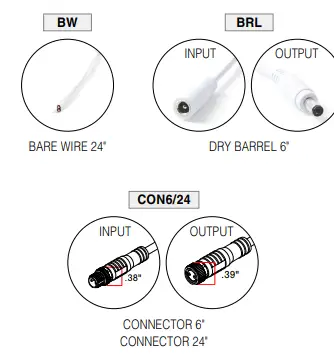

DRY

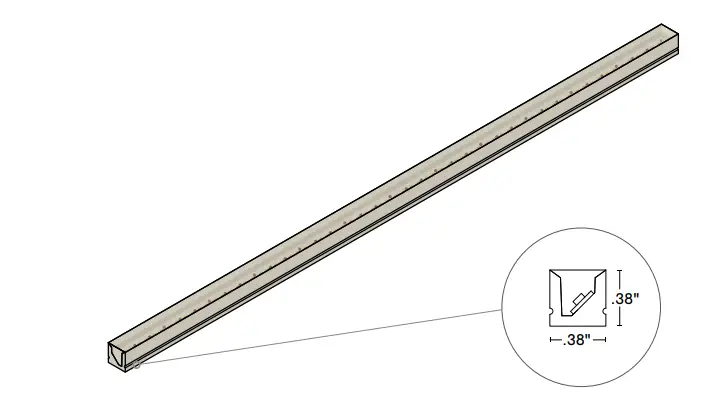

- Lengths up to 191″
- Encapsulated in polyurethane
- NOT FIELD CUTTABLE
COMPATIBLE CONNECTORS

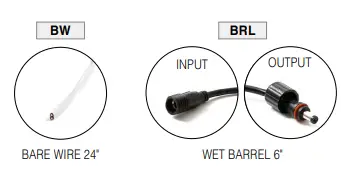

WET
- Lengths up to 191″
- Encapsulated in polyurethane
- NOT FIELD CUTTABLE
COMPATIBLE CONNECTORS
Lens
- ENC/CL Encapsulated in Clear
- ENC/TL Encapsulated in Translucent

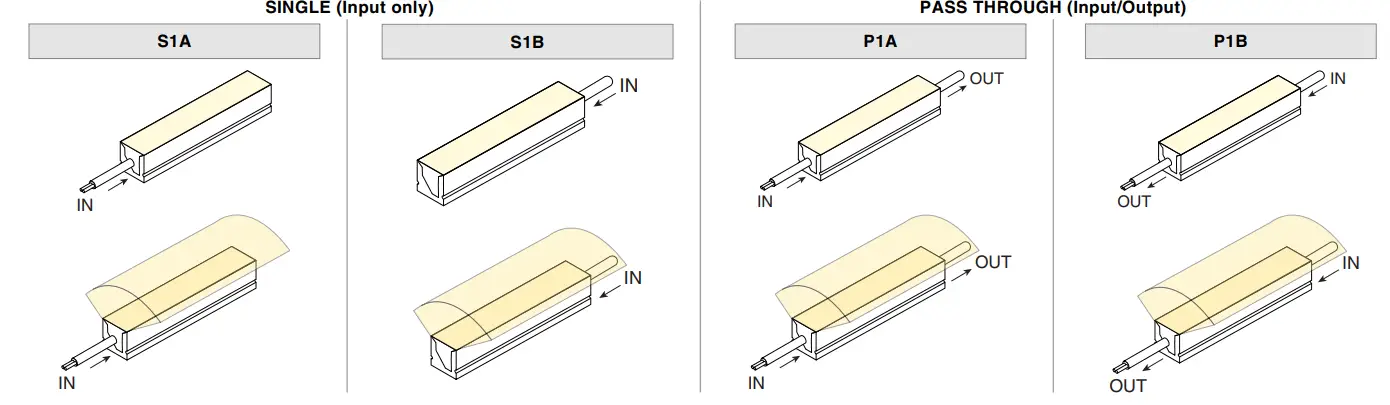

Connectors
Type
MICRO5-PPS-2

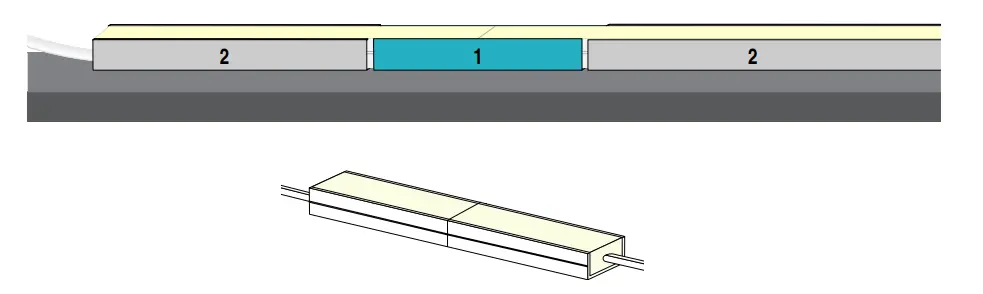

Order the PPS-2/PPS-LP-2 to support two fixtures together with no visible break and order the PS-96/PPS-FT/PS-LP-96/PPS-LP-FT to support the fixture
MICRO5-PPS-LP-2
- PPS – 2 or PPS – LP – 2
- PPS – 96/PPS – FT or PPS – LP – 96/PPS – LP – FT

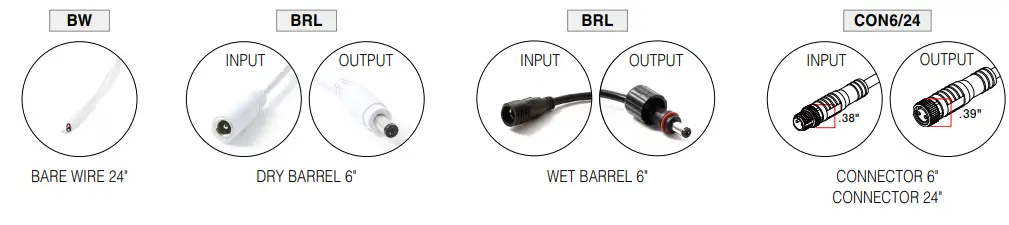

Connectors/Wire
BARE WIRE
- 24 AWG, 2 conductor
- Outdoor rated
- 24″ Standard length

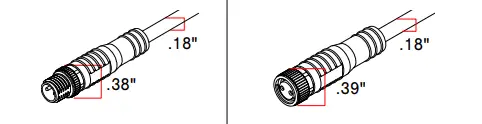

CONNECTOR 6″ / CONNECTOR 24″
- 24 AWG, 2 conductor
- Indoor rated
- 6″ or 24″ Standard length
CON6 / CON24
- INPUT CONNECTOR
- OUTPUT CONNECTOR
