Tran Led Wurm Q-cap Flexible Fixtures Installation Guide

Q-CAP Flexible Fixtures: WURM
INSTALLATION

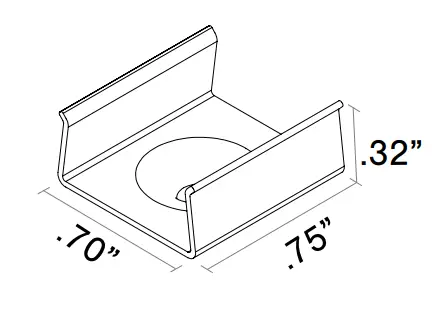

WHITE SNUG CLIP SMALL

NOTE: White snug clip should be placed every 12″

INCLUDED HARDWARE

#6×5/8″ Flat head screw

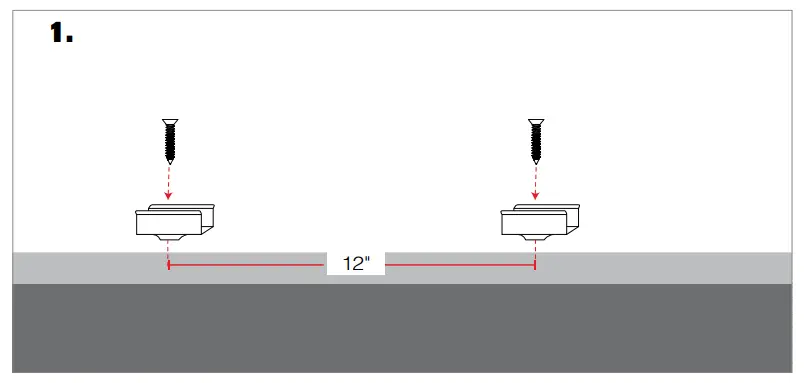

Mount white snug clip with provided flat head screw.

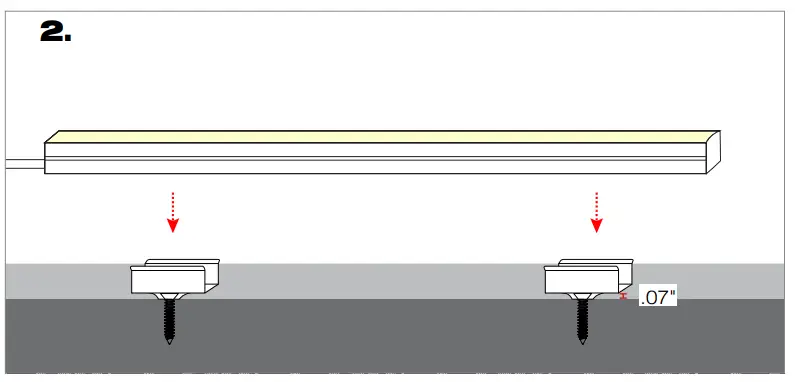

Align fixture to white snug clips matching distances.

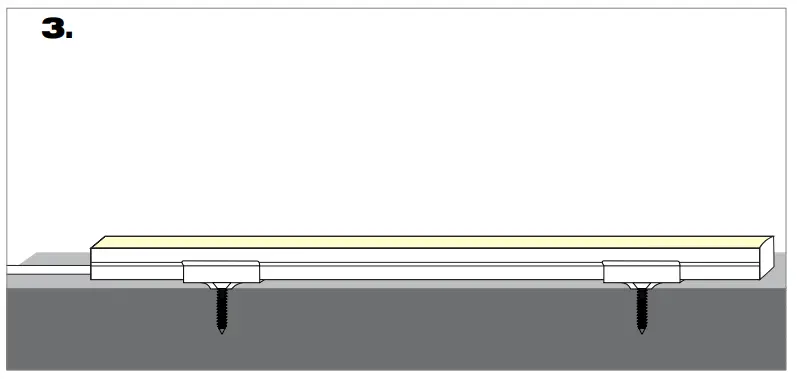

Press fixture into white snug clips.

MAGNETIC CLIP SMALL

NOTE: Magnetic clip should be placed every 12″

INCLUDED HARDWARE

#6×5/8″ Flat head screw

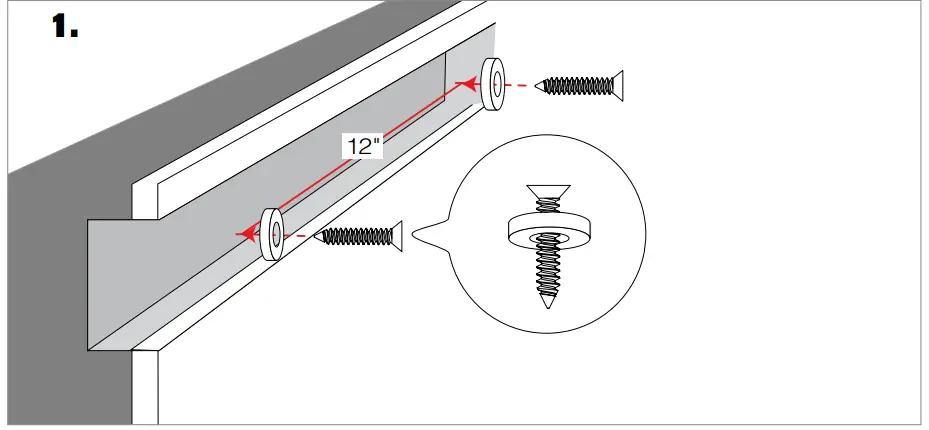

Install magnet rings with provided flat head screw.

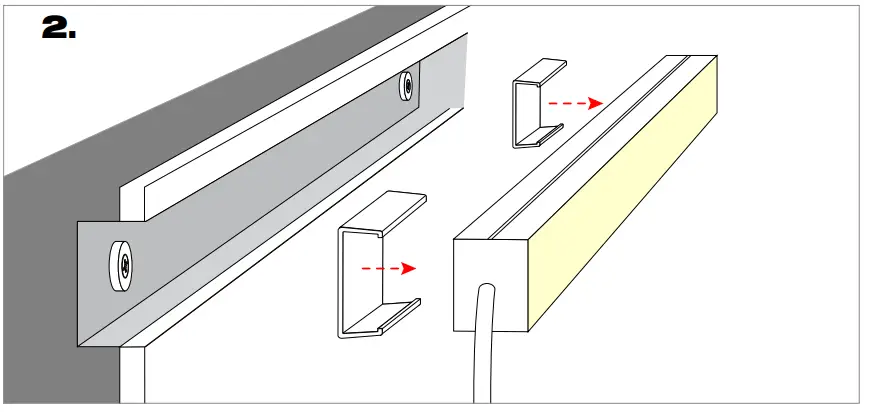

Attach clips to fixture matching magnet distances.

Align and snap fixture to magnetic rings.

2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com
Specification subject to change. Rev-08-05-21
