Q-TRAN LED KURV-BK Q-CAP Flexible Fixtures Installation Guide
PLASTIC CLIP

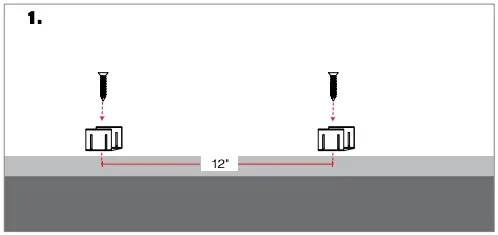

NOTE: Clip should be placed every 12″
Mount clip with provided flat head screw.
Align fixture to clips matching distances.

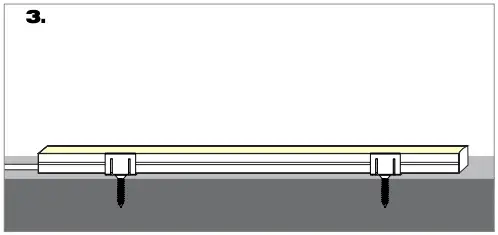

Press fixture into clips.
PVC MOUNT CLIP
Connects two seamless fixtures, with or without wire exit

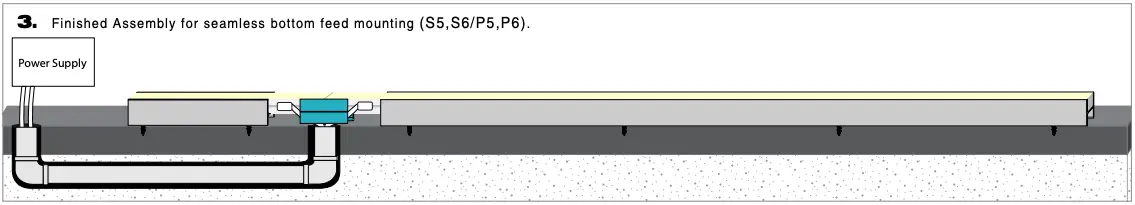

Mounting Feed (Shown: S5, S6 & P5, P6)

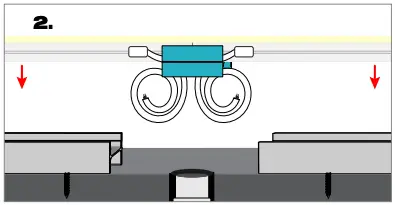

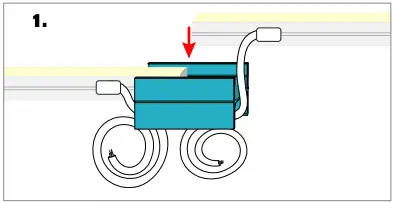

Press both fixtures into PPS clip.
Snap fixture into mounted PPS channel
When wire will exit into conduit do not install bracket.
PVC MOUNT CHANNEL
Support for the fixture

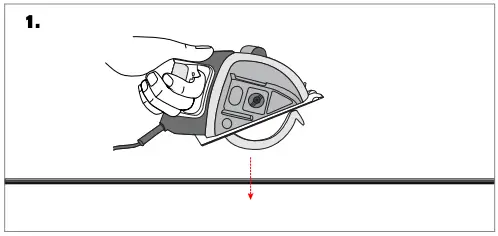

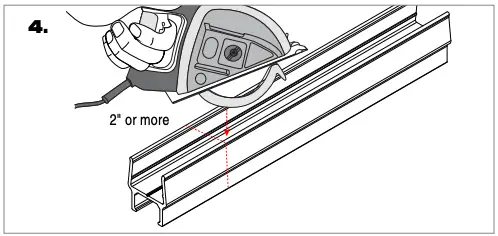

The PPS-BRACKET can be field cuttable and cut to whatever length your application requires. The PPS-BRACKET can be installed as a full length of 96″, multiple smaller pieces, or end to end for longer seamless runs.

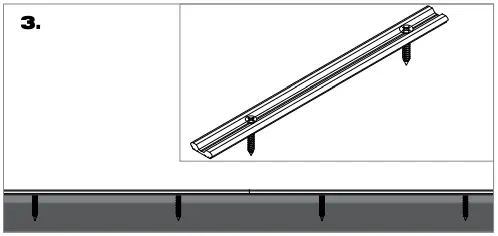

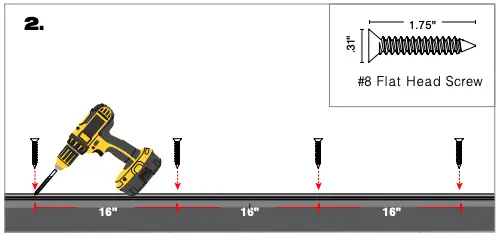

Using pre-drilled pilot holes screw the #8 flat head screws to mount the PPS-BRACKET (1 screw every 16″).
NOTE : For drywall applications mount directly into a stud.
Using pre-drilled pilot holes, use the #8 flat head screws to mount the PPS-BRACKET.

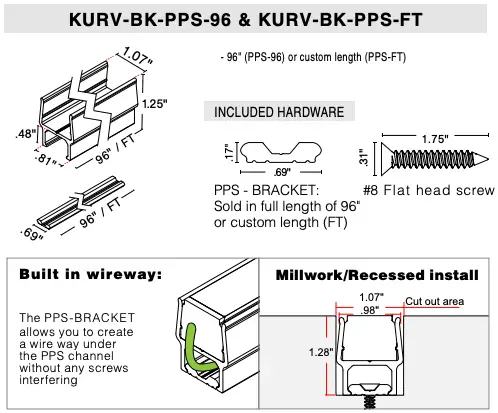

The PPS-96 or PPS-FT can be field cuttable and cut to whatever length your application requires. The PPS-96 or PPS-FT can be installed as a full length of 96″, multiple smaller pieces, or end to end for longer seamless runs.

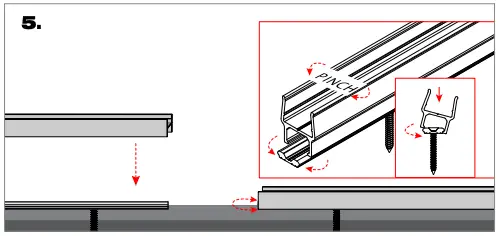

To mount, pinch the upper half of the PPS-96 or PPS-FT while you pivot it around one side of the PPS-BRACKET and push-in until you hear it snap into place. The PPS-96 or PPS-FT flexes around the PPS-BRACKET to create a solid, and secure snap on connection.
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com
Specification subject to change. Rev-05-16-22
