Q-TRAN Wide Linear Fixtures
Mounting
NOTE: 2 clips provided for 4’ or less; 4 clips provided for greater than 4’
Stainless Steel Clip (SST-09)
Plastic Clip (PLC-03)

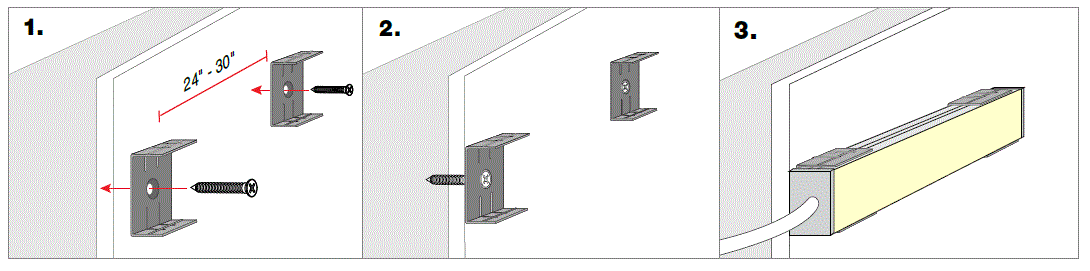

Screw Mounting

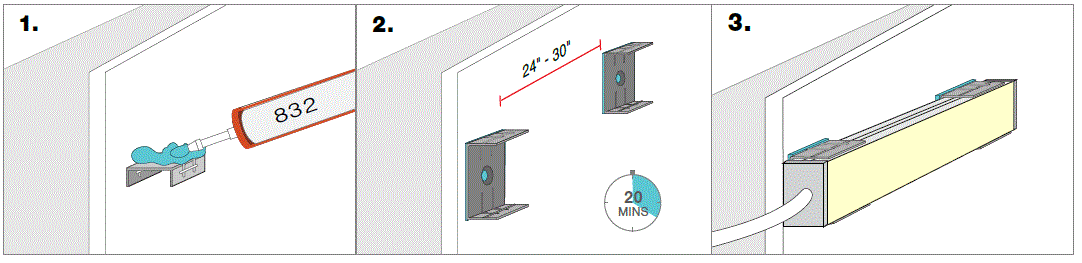

832 Silicone Mounting
NOTE: 832 Silicone use in a well- ventilated area, 832 Silicone sold with Caulking gun. Do not use in any submersible applications.

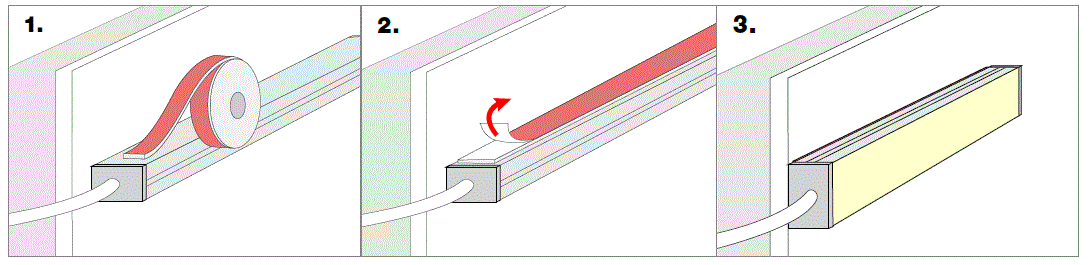

VHB Mounting
NOTES: • Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null and void
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com
