Q-TRAN QZ-STICK LED Power Supply Installation Guide

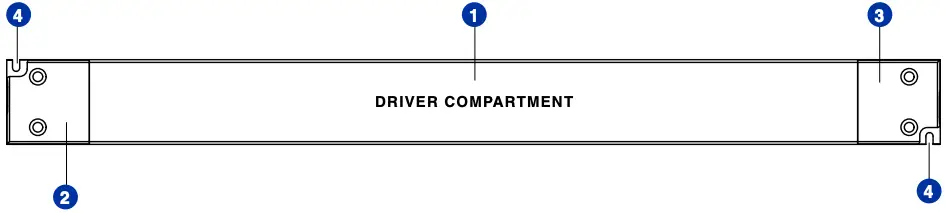

TOP VIEW

QZ-STICK Components

1. Driver Compartment
2. Primary Compartment
3. Secondary Compartment
4. Mounting Tab Slots

Required Hardware

Mounting

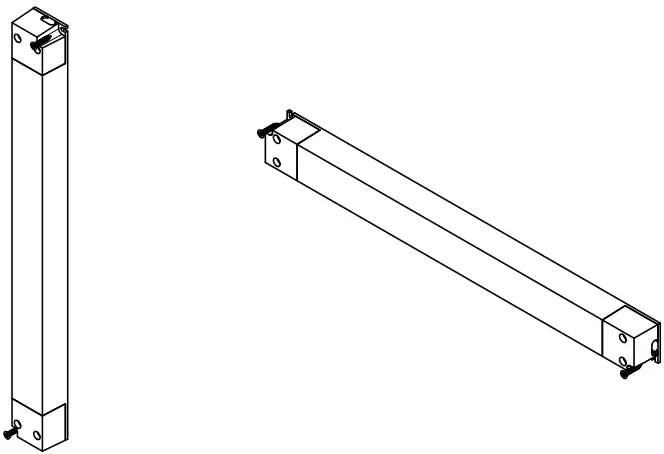

1. The QZ-STICK can be mounted either vertically or horizontally, utilizing the supplied screws and the mounting tabs on the bottom of the enclosure
   SIDE SLOT

2. The QZ-STICK must be mounted into a stud for sufficient support, using the slots of each mounting tab

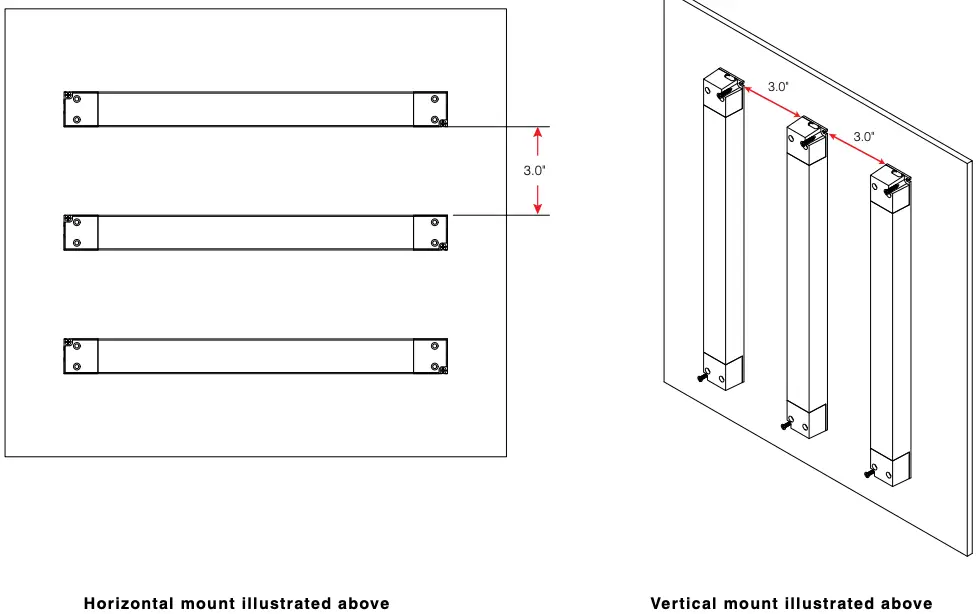

3. When installing multiple QZ-STICK power supplies, seperate the enclosures by 3” of space from edge to edge. This prevents the rise of ambient temperature between the power supplies.

4. Wiring diagram

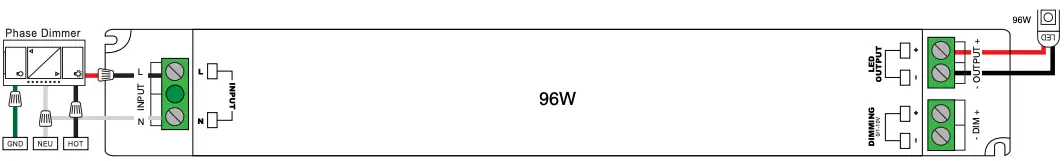

   Phase Dimming

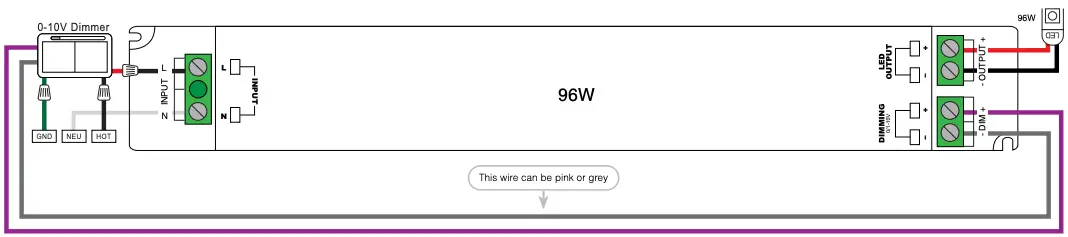

   0-10v Dimming

   Wiring from power supply to light fixture must be two conductor cable

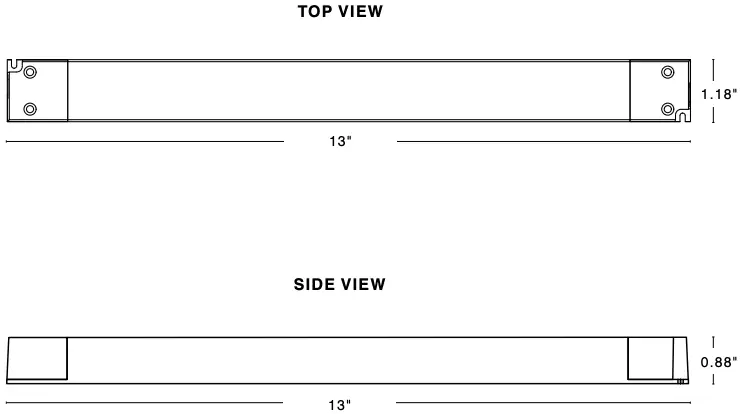

QZ-STICK 96W

© 2023 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com

Specification subject to change. Rev-04-04-23
