TRAN LED QZ-DMX LED Power Supply
TRAN LED QZ-DMX LED Power Supply

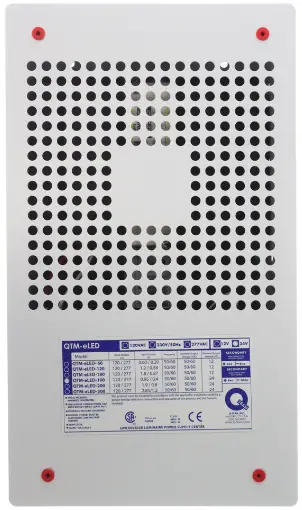

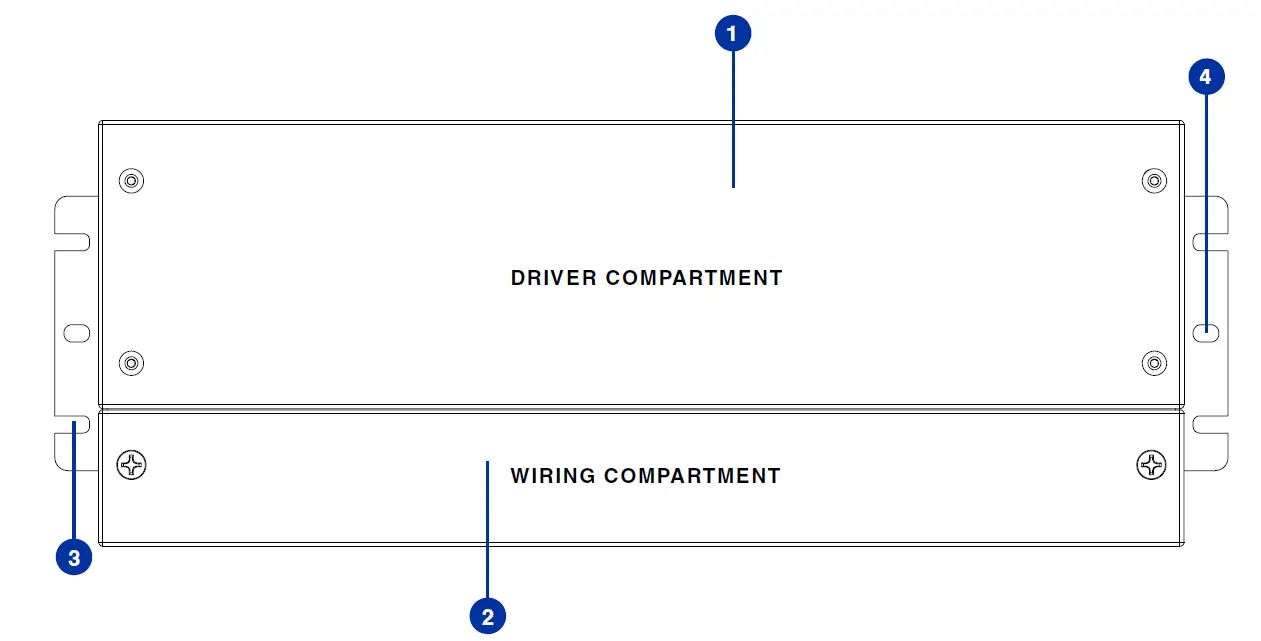

Top Overview
- Driver Compartment
- Wiring Compartment
- Mounting Tab Slots
- Mounting Tab Holes

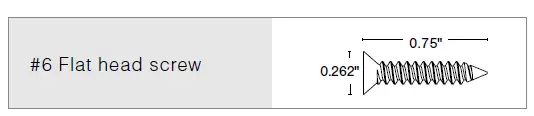

Required Hardware
Mounting Foot:
Mounting
- The QZ-Non Dim can be mounted either vertically or horizontally, utilizing the supplied screws and the mounting tabs on the bottom of the enclosure

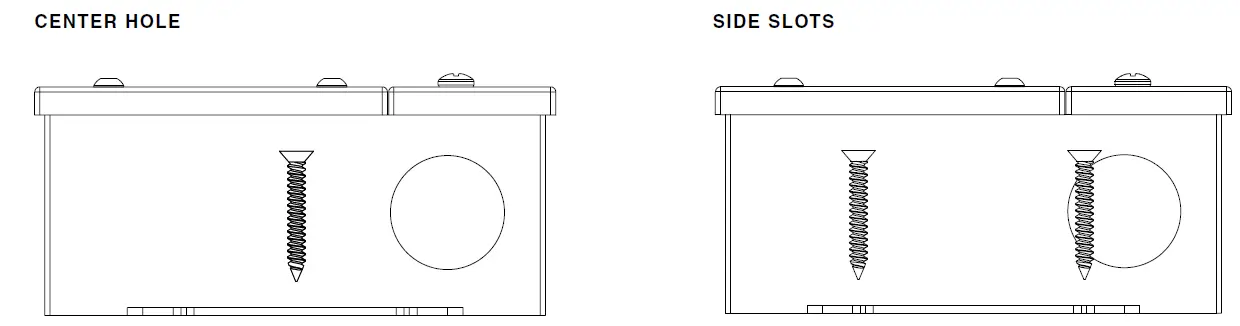

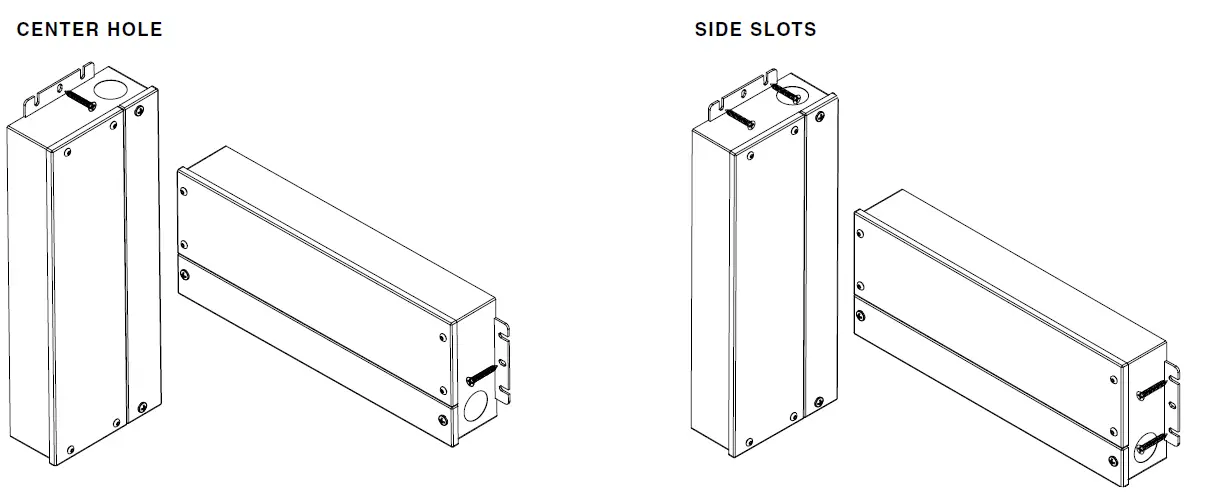

- The QZ must be mounted into a stud for sufficient support, using either the center holes or the slots of each mounting tab

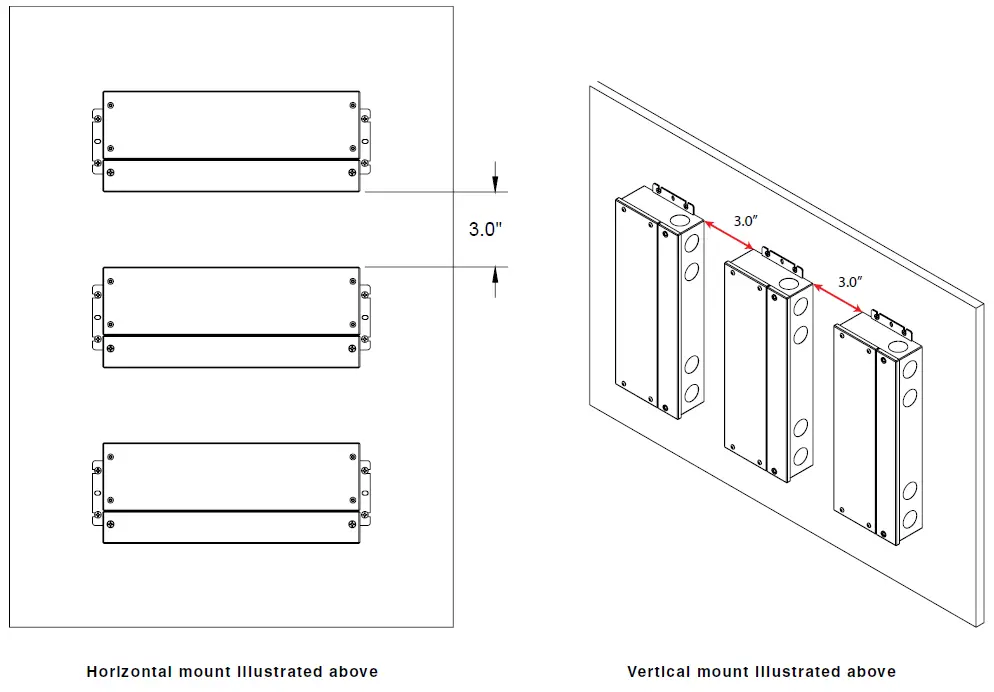

- When installing multiple QZ power supplies, seperate the enclosures by 3” of space from edge to edge. This prevents the rise of ambient temperature between the power supplies.

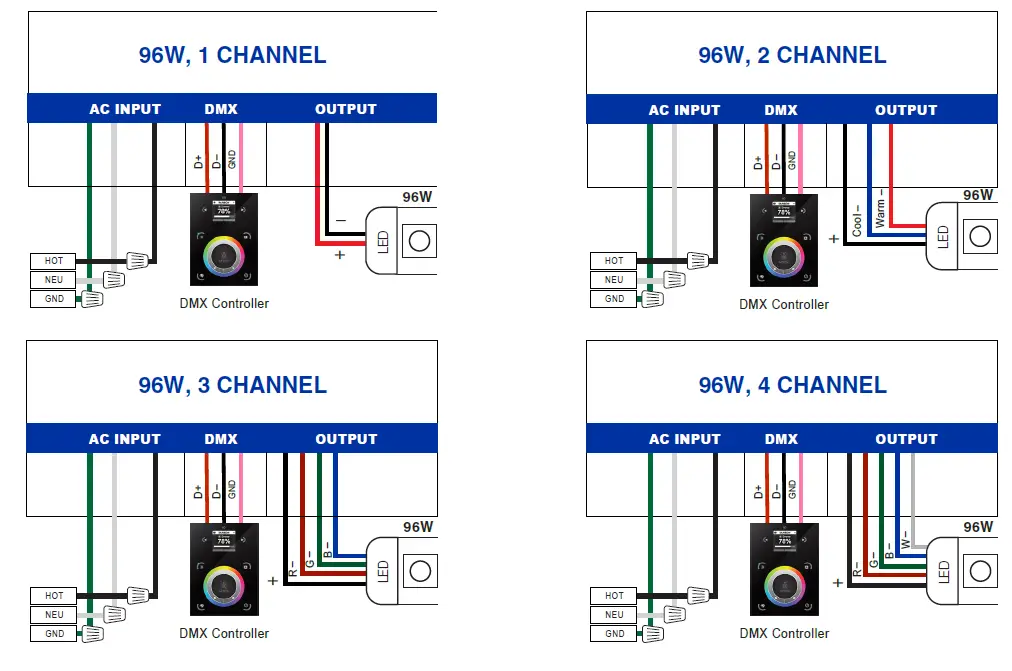

- Wiring diagram
Wiring from power supply to light fixture must be single multiconductor cable

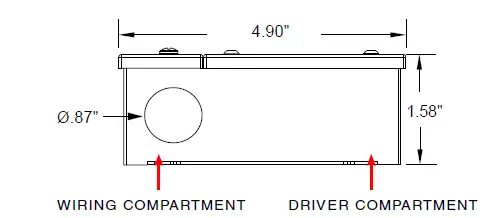

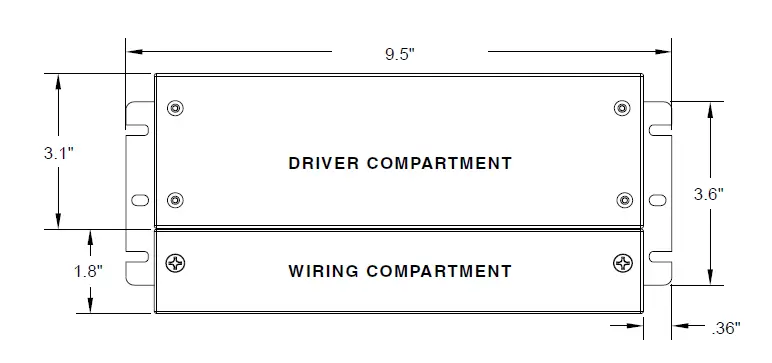

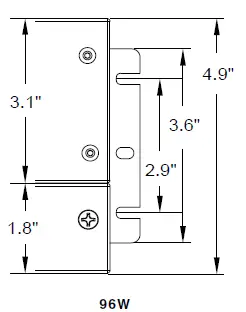

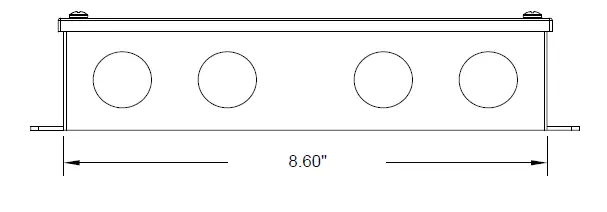

Dimensions
QZ-DMX 96W
