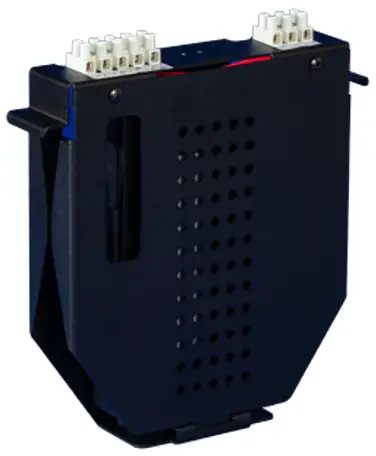

Q-tran Q-set+qz-ph/0-10v Led Power Supply 30w-96w Installation Guide

Q-SET+QZ-PH/0-10V
LED Power Supply – 30W-96W

Q-SET+QZ-PH/0-10V LED Power Supply 30W-96W

• Direct burial and outdoor rated electronic power supply to be installed in our Q-VAULT-5 enclosure
• Versatile Class 2 LED driver with dimmable or non-dimmable options
• Can be controlled via phase dimming (forward or reverse) or 0-10V dimming
• When using phase control, a dimmer with a neutral is recommended
• 24VDC constant voltage output and is available in 30W, 60W, and 96W
• Q-Tran proprietary dimming curve
• Controllable with phase or 0-10V dimming
• Control LED channel
• Fully potted driver(s) for moisture resistance
• Suitable for dry, damp, and wet locations
• Suitable for use with submersible luminaire

Sample Part Number: Q-SET+QZ-60W-UNV-24V-PH/010-PS

COMPATIBLE LEDS

STATIC WHITE

OTHER

SHEETS

MICRO 5

PRODUCT INFORMATION

• Constant voltage output
• PH/010 Dimming:
  • Phase dimming: works with forward phase / leading edge, MLV and Reverse phase / trailing edge, ELV, TRIAC dimmers
  • Dimming range: 0.1% – 100%
  • 0-10V dimming
  • 1-10V dimming
  • 10V PWM
  • Potentiometer
  • Flicker-free dimming
  • PWM (high frequency) output reduces visible flicker
• Follows recommended practices of IEEE standard P1789 to mitigate flicker includes health risks
• Suitable for dry, damp and wet locations
• Suitable for direct burial use
• Not for installation to conduit extending directly to an underwater pool light forming shell. In line Pool and Spa rated junction box required.
• Suitable for use with submersible luminaries
• Primary voltage – universal (110-277V)
• Operating temperature range: -40˚F to +122˚F
• UL, cUL listed
• Type HL rated
• Compliant to FCC Part 15B
• 5 year warranty
• CSA #239924
• Low Voltage Lighting Systems
  • CSA Class 3426-04 and Class 3426-94
  • CSA Standard C22.2 No. 250.0-08 – Luminaires
  • ANSI/UL Standard 2108 – Low Voltage Lighting System
• Landscape Lighting Systems
  • CSA Class 3425-15 and Class 3425-95
  • CSA Standard C22.2 No. 250.7-07 – Extra-Low Voltage Landscape Lighting Systems
  • ANSI/UL Standard 1838 – Low Voltage Landscape Lighting Systems
• Hydro massage (Pool and Spa)
  • CSA Class 3425-46 and class 3425-96
  • ANSI/UL Standard 379 – Power Units for Fountain, Swimming Pool, and Spa Luminaires

VOLTAGE DROP CHART

This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved Wiring from power supply to light fixture must be two conductor cable

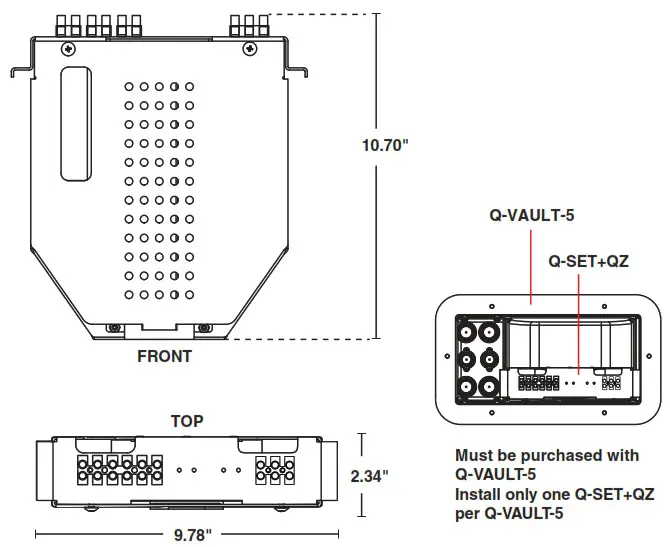

PRODUCT – DIMENSIONS

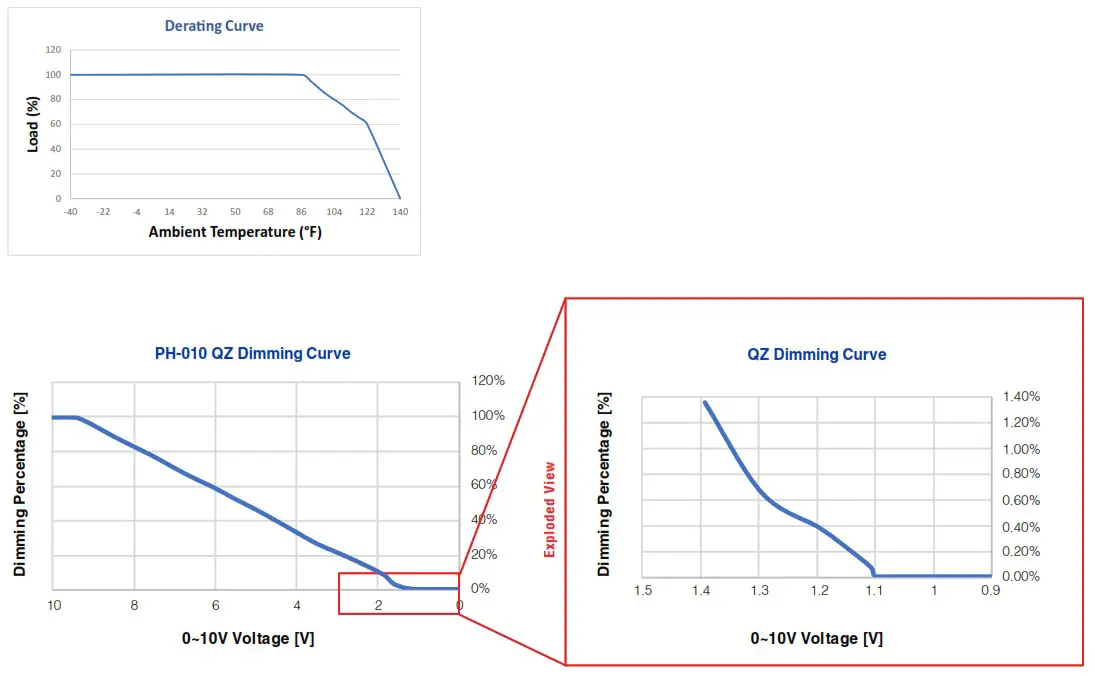

TECHNICAL INFORMATION

HOUSING

• Dimensions: 10.70″L x 9.78″W x 2.34″D
• Q-VAULT-5 enclosure can fit up to one Q-SET+QZ
• Q-VAULT-5 is IP68 rated
• Housing for direct burial fixtures shall be IP68 Rated, with all sealing materials supplied by the manufacturer
• Housing for direct burial fixtures shall be rated for burial in soil, gravel and concrete

PERFORMANCE

• Power supply shall be rated for outdoor and direct burial use in Q-VAULT-5 IP68 Listed direct burial enclosure
• Fully rated to operate low voltage load at listed wattage (No Derating Required)
• Limit voltage regulation to 5% or less of rated output voltage
• Universal input range of 120-277 Vrms
• Terminal blocks shall be made of tin plated copper with a voltage rating of 300V and a current rating of 40A
• Live tested by manufacturer to ensure proper operation
• Rated for:
  • CSA Class 3425-15 and Class 3425-95 – Landscape Lighting System Components
  • CSA Class 3426-04 and Class 3426-94 – Low Voltage Lighting Systems
  • CSA Class 3425-46 and Class 3425-96 – Hydromassage

SPECIFICATIONS

*-200us event

PROTECTIONS

• Short Circuit Protection (SCP)
• Over Loading Protection (OLP)
• Over Temperature Protecton (OTP)
• I/P-O/P:1.88KVAC
• I/P-O/P:100MΩ/500VDC/77ºF/70%RH

COMPLIANCE

• EMI Spec
• FCC 47 CFR Part 15 Subpart B
• CSA Certified
• UL-2108
• UL-8750
• UL-379
• CSA C22.2 No 250.7-07
• CSA C22.2 No 250.0-08

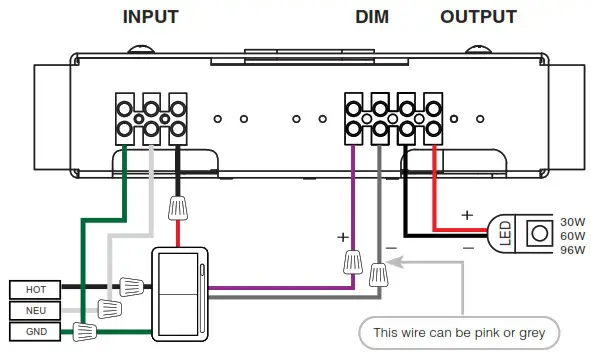

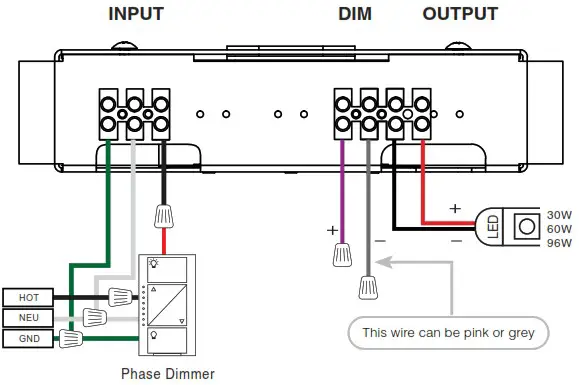

WIRING DIAGRAM

Wiring from power supply to light fixture must be two conductor cable

Phase Dimming 30W, 60W, 96W	0-10V Dimming 30W, 60W, 96W

© 2023 Q-Tran Inc. All rights reserved
155 Hill St. Milford, CT 06460
203-367-8777
[email protected]
www.q-tran.com
Specification subject to change. Rev-06-12-23
