Q-tran Qtm-eled+dali-dt6 Led Power Supply Installation Guide

INSTALLATION
LED POWER SUPPLY – QTM-eLED+DALI-DT6

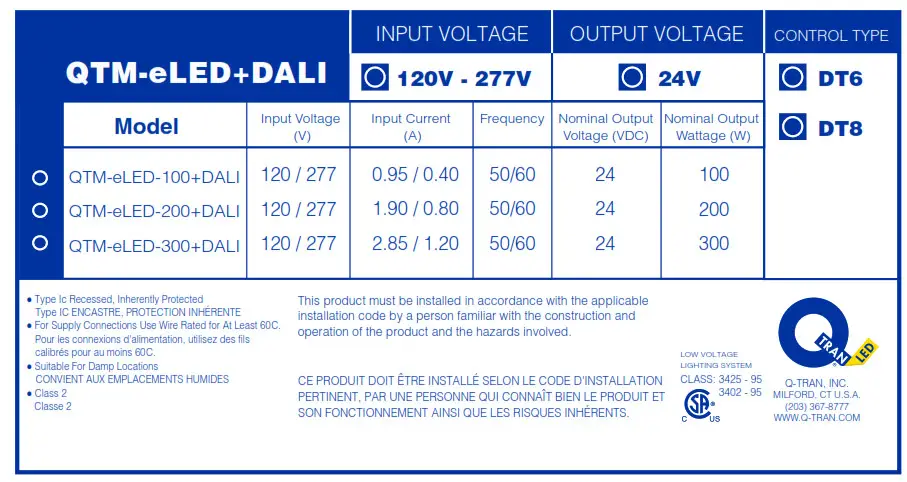

QTM-eLED+DALI-DT6 LED Power Supply

• Must be installed by licensed electrician.
  WARNING
  Risk of Fire / Electric Shock
  Transformer should be installed by a Licensed electrician in accordance with the N.E.C. and all local codes in force.

• Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
• This power supply must be installed according to the National Electric
• Code and local codes and ordinances.
• This power supply is to be installed and serviced only by an licensed electricians.
• This power supply is to be installed so that it is not likely to be contacted by people.
• To avoid a hazard to children, account for all parts and destroy all packaging materials.
• Do not install in wet locations.

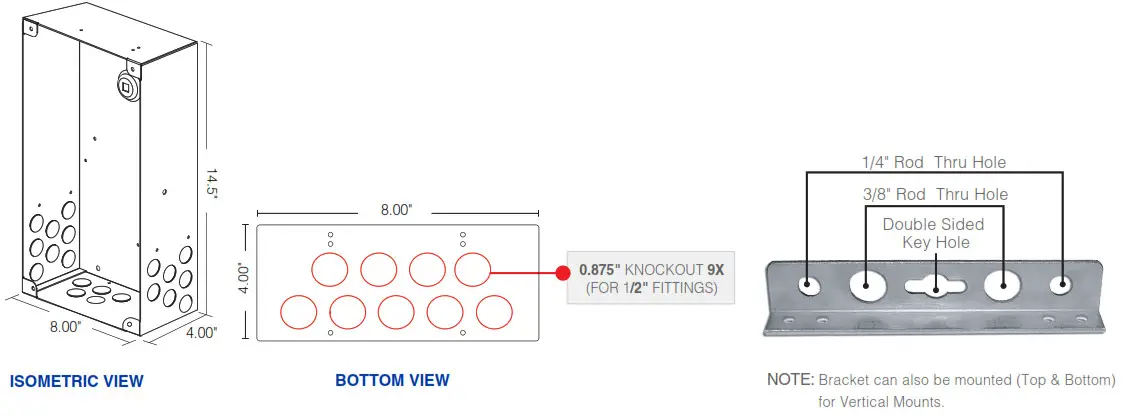

Housing

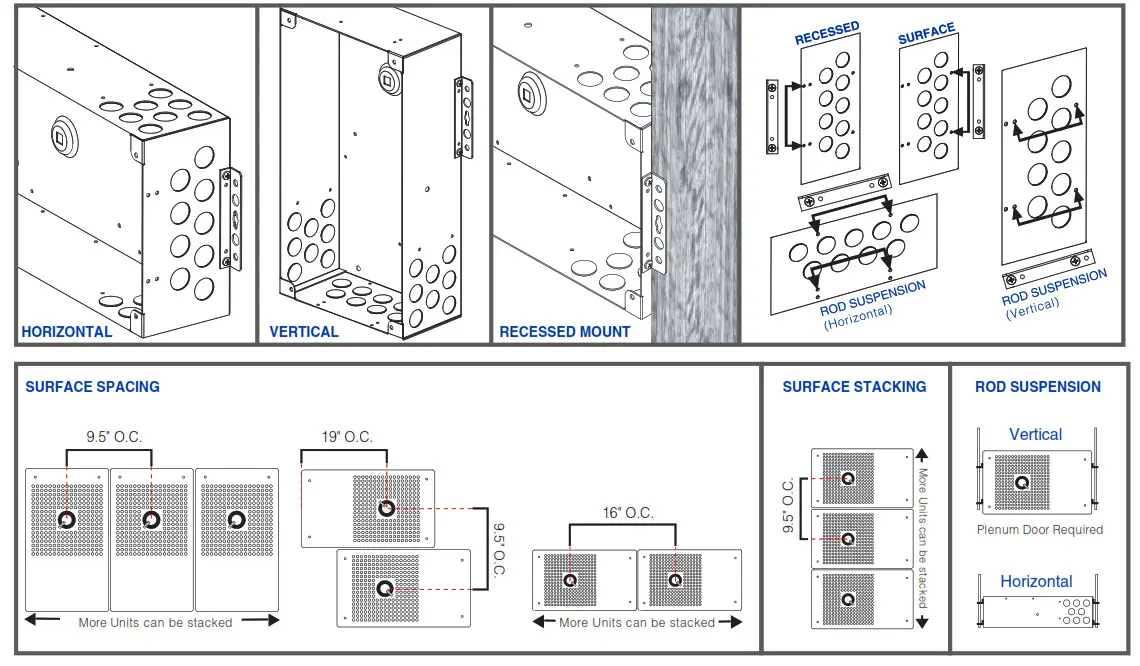

Mounting Options

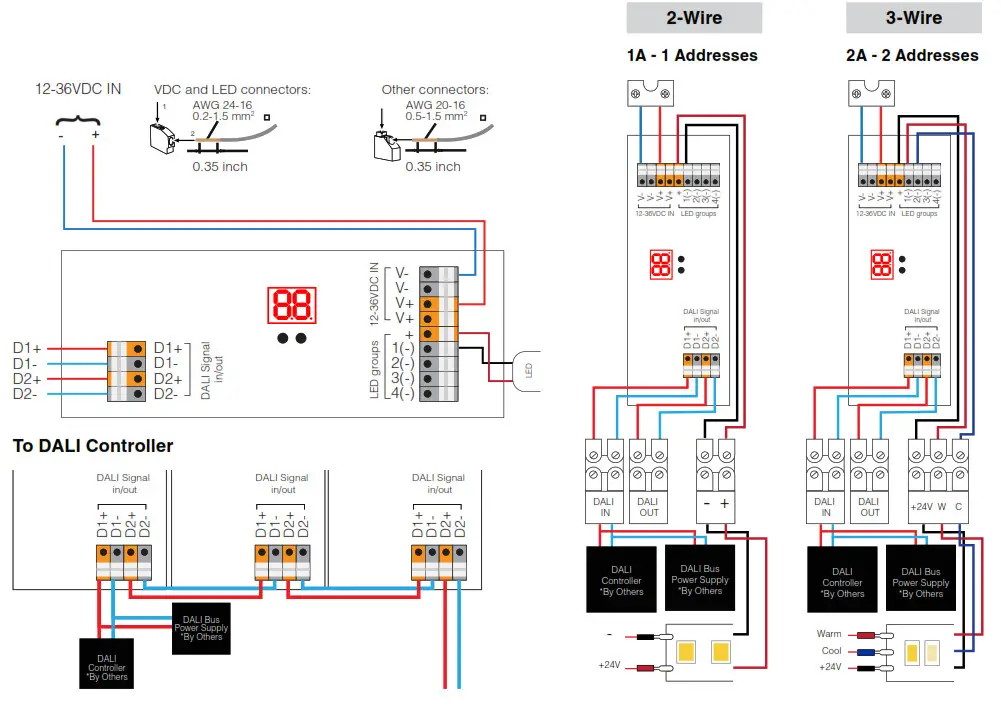

Connecting and Configuring the DALI-DT6 Decoder

NOTE:
2-Wire default is 1 address
3-Wire default is 2 addresses
For customization or pre-programming contact a local sales rep.
DALI commissioning to be performed by a third party at time of installation.

WARNING: Risk of electrical shock. May result in serious injury or death. Disconnect power before servicing or installing.
CAUTION: The device may only be connected and installed by a qualified electrician. All applicable regulations, legislation and building codes must be observed. Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.

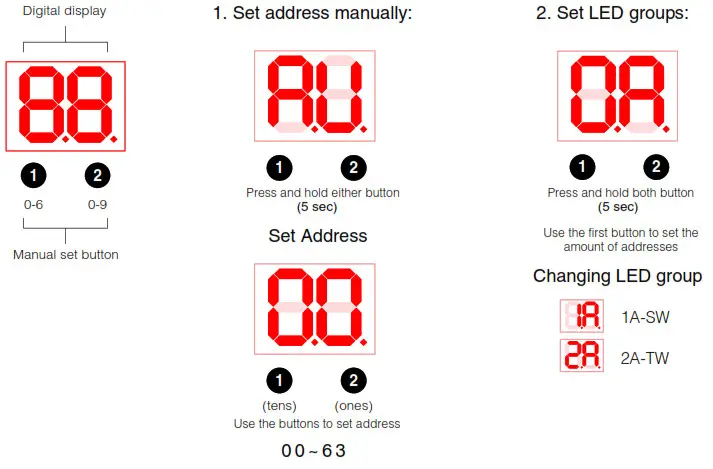

Manual Configuration

Other Features

DT6 Dimming Feature:
NOTE: DT6 color type of the dimmer can be SW, WD, or TW.

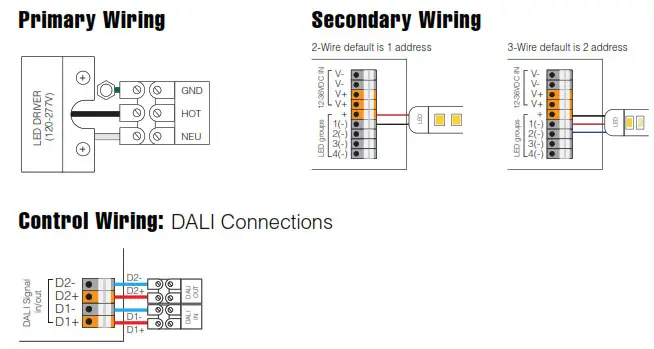

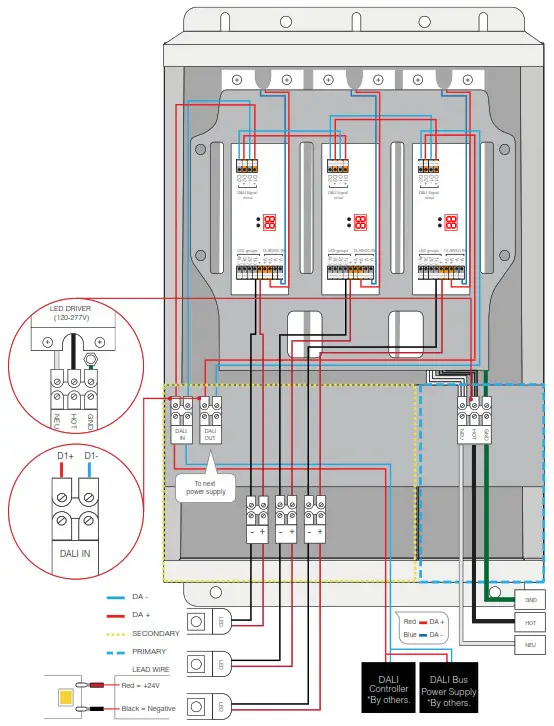

Wiring Installation

CSA Requirements

• Suitable for indoor use
• This power supply must be installed according to the National Electric Code and local codes and ordinances and in accordance with applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
• Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
• This power supply is to be installed in a location where it is not likely to be contacted by non-electricians.
• To avoid a hazard to children, account for all parts and destroy all packaging materials.
