Aluminum Extrusion
Owner’s Manual

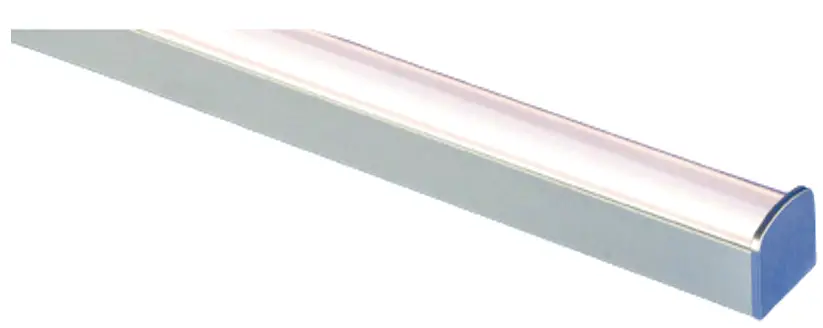

OPTI Aluminum Extrusion

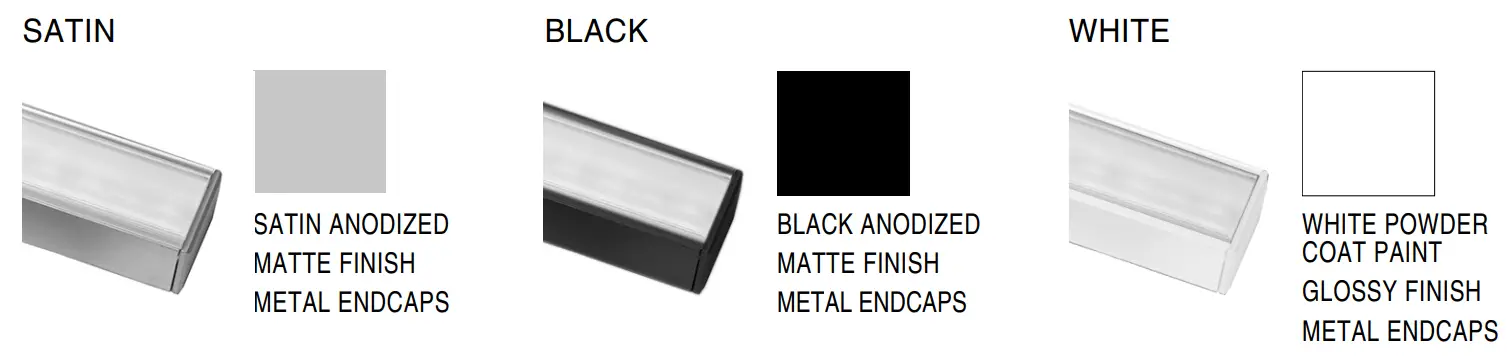

Finish
Mounting Type – Surface
Mounting – Hardware

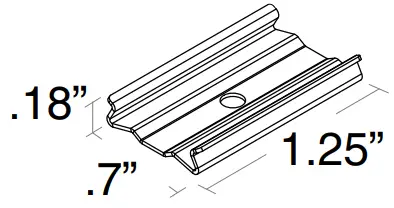

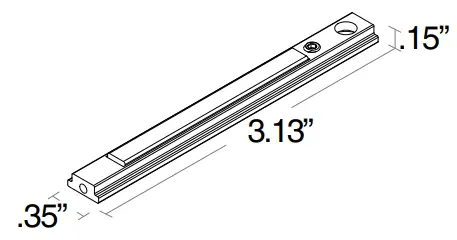

| Concealed Clip (CC-01) | Magnet Clip (MG-02) | Magnet Mount Accessory (MMA-02) |
 |  |  |
| 2 clips provided for 4′ or less; 4 clips provided for greater than 4′ | 1 magnet clip per foot | Sold separately |
| • Stainless Steel • Indoor/Outdoor | • Stainless Steel • Neodymium magnet • Indoor | • Steel Mounting Strip • Indoor • #6 x 5/8″ Flat Head SS (2 per magnet mount accessory included) |
Beam Angle
Connectors/Wire
 |  |

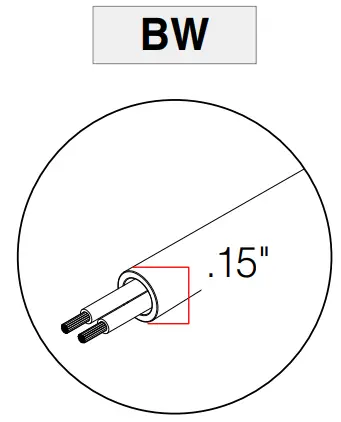

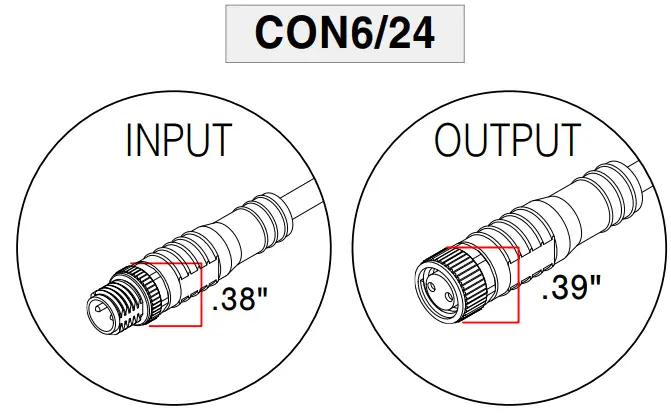

| BARE WIRE 24″ | CONNECTOR 6″ CONNECTOR 24″ |
| SW, SW-HE, SC wire shown | SW, SW-HE, DW, DW-HE, SC shown |

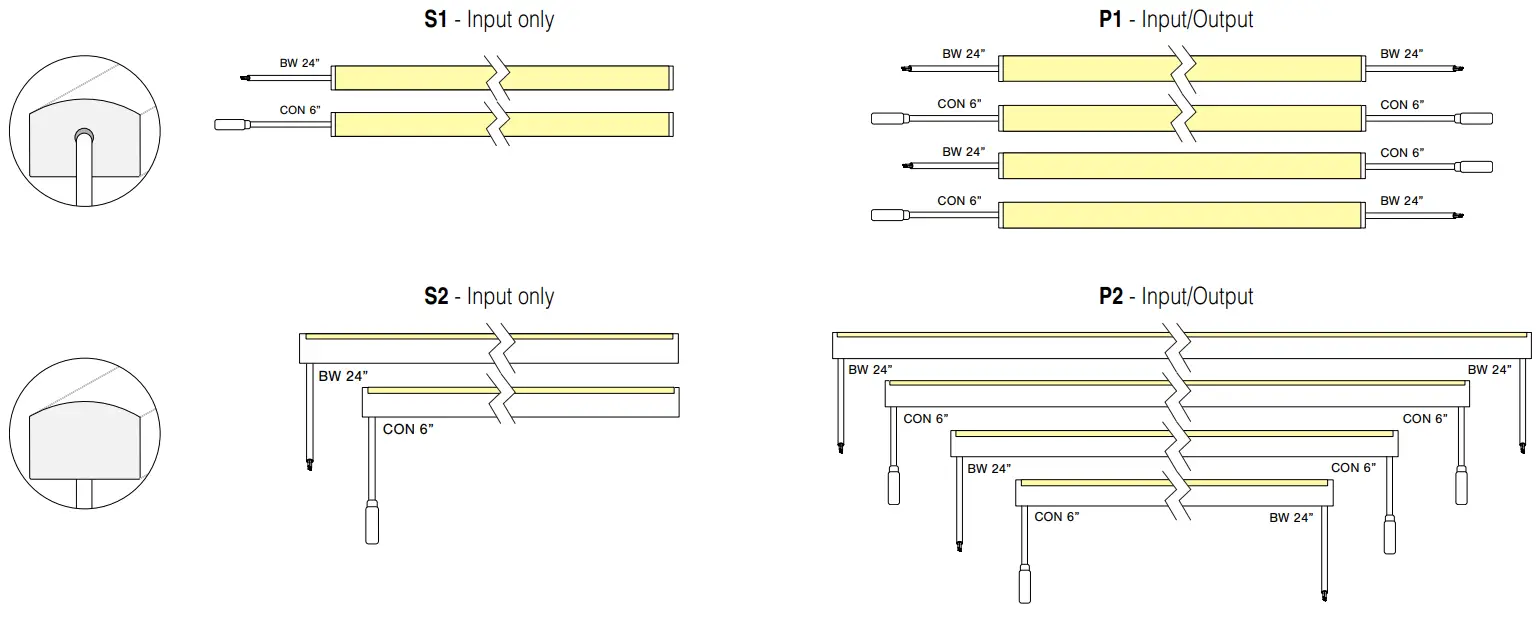

TYPE To order a bare extrusion without a strip installed in Q-Tran factory, choose NI (Not Installed) for your Type option

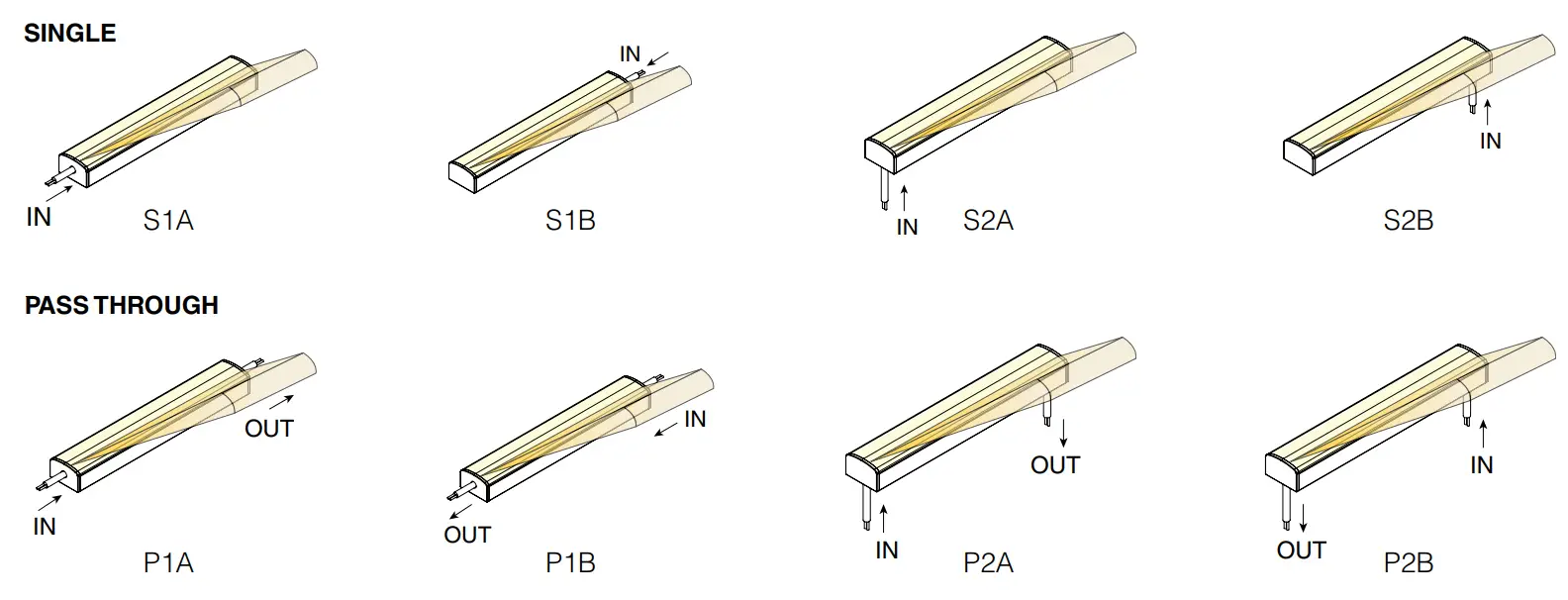

TYPE – Asymmetric
© 2022 Q-Tran Inc. All rights reserved
155 Hill St. Milford, CT 06460
203-367-8777
[email protected]
www.q-tran.com
Specification subject to change. Rev-01-20-22
