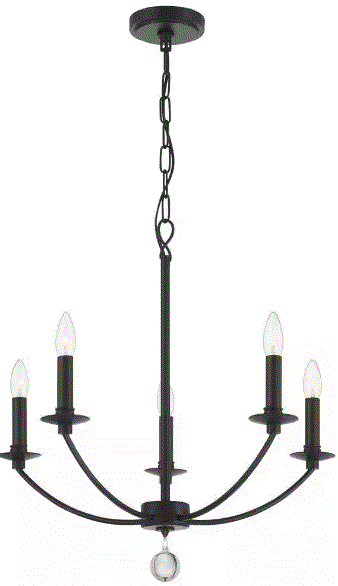

CRYSTORAMA MIL-8005-BK Mila 5 Light Black Chandelier
Product Information
- Model Number: MIL-8005-BK
- Part Number: MIL-8005-BK
- Product Type: Chandelier
- Recommended Bulb Type: Candelabra Base Bulb, 40 Watts (60 Watts Max)
- Usage: Indoor, Damp Rated
- Crystal Set: 1 Piece, Smooth Glass Ball
Product Usage Instructions
- Ensure that electrical power is turned off before installing the product.
- Hire a licensed electrician to install all electrical components in accordance with the National Electric Code and local electrical codes.
- Obtain 5 Candelabra Base Bulbs with a recommended wattage of 40 Watts (60 Watts Max). Use LED bulbs for extended use.
- Pass the wire through the rod and screw the rod onto the frame.
- Choose the desired hanging height and select the appropriate length of chain.
- Install the mounting strap onto the outlet box using two outlet box screws.
- Attach the canopy onto the mounting strap.
- Screw the glass ball onto the bottom of finial.
Note: The product can expose you to lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.P65warnings.ca.gov.
Parts List
| Part Number | Description |
|---|---|
| A | 2-Wire Connector |
| B | Mounting Bar |
| C | Lock Washer |
| D | Hex Nut |
| E | Nipple |
| F | Canopy (W5xH1) – Part Number XSN8005BKCAN5IN |
| G | Collar Ring |
| H | Collar Loop |
| I | Chain (4mmx72) – Part Number XSN8005BKCHA |
| J | Loop;H3 1/8 |
| K | Rod;H15.5 – Part Number XSN8005BKROD15.5IN |
| L | Candle Sleeve;H3 1/4 – Part Number XSN8005BKCDL3.25IN |
| M | Arms – Part Number XSN8005BKARM |
| N | Finial – Part Number XSN8005BKFIN |

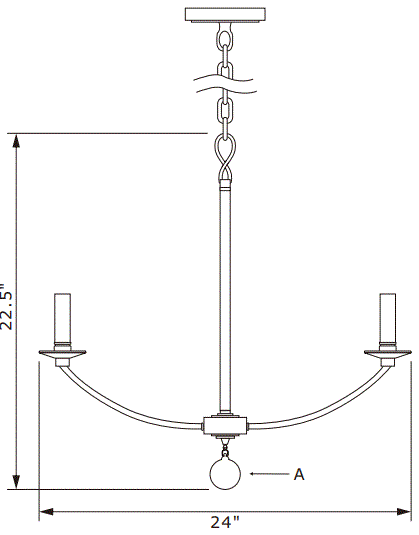

DIMENSION
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate
local electrical codes
You will need 5 -Candelabra Base Bulb 40 Watts recommended 60Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is Damp rated.
How to Install
- Pass the wire through the rod then screw the rod onto the frame.
- Decide the desired hanging height and choose the correct length of chain.
- Install the mounting strap onto the outlet box using two outlet box screws.
- Attach the canopy onto the mounting strap.
- Screw the glass ball onto the bottom of finial.
Crystal Sets
A. 1 Piece. (1)Smooth glass Ball-2″

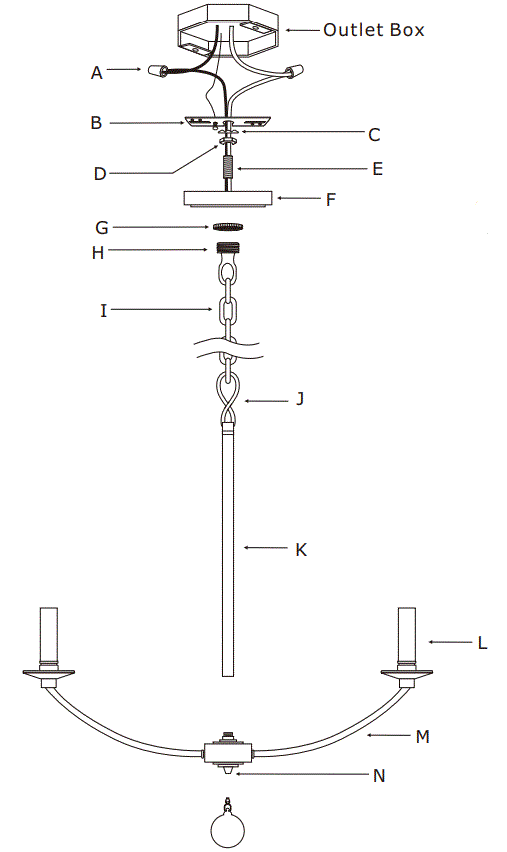

DETAILED ILLUSTRATION

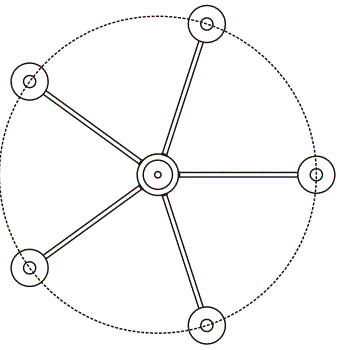

Top view
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov
PART NUMBER
- A. (2)-Wire Connector
- B. (1)-Mounting Bar
- C. (1)-Lock Washer
- D. (1)-Hex Nut
- E. (1)-Nipple
- F. (1)-Canopy (W5″xH1″) -XSN8005BKCAN5IN
- G. (1)-Collar Ring
- H. (1)-Collar Loop
- I. (1)-Chain (4mmx72″) -XSN8005BKCHA
- J. (1)-Loop;H3 1/8″
- K. (1)-Rod;H15.5″ -XSN8005BKROD15.5IN
- L. (5)-Candle Sleeve;H3 1/4″ -XSN8005BKCDL3.25IN
- M. (5)-Arms-XSN8005BKARM
- N. (1)-Finial-XSN8005BKFIN
P65warnings.ca.gov
