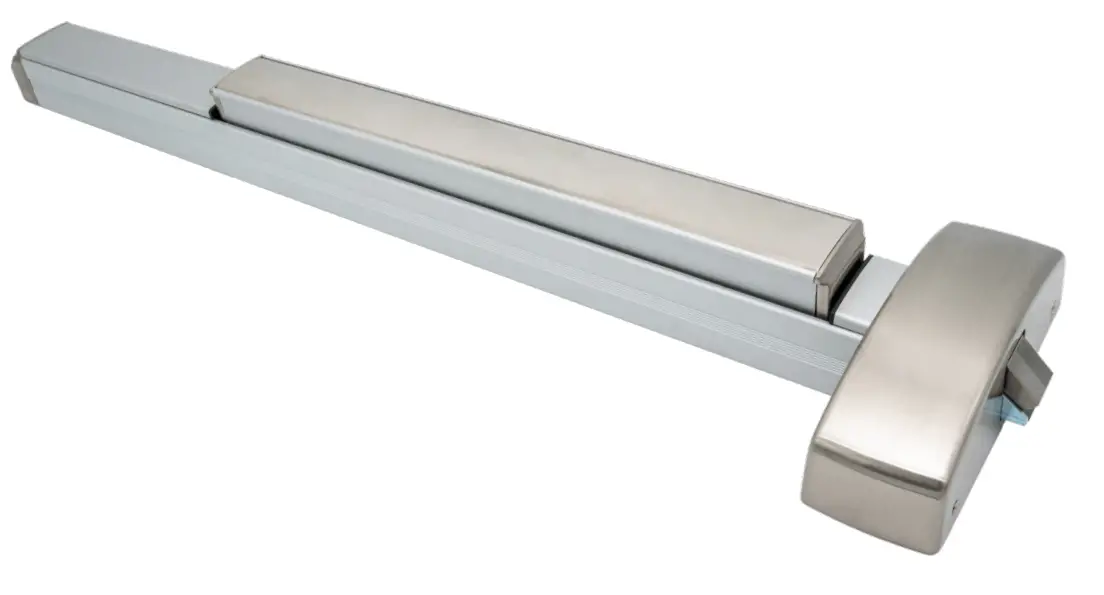

PDQ 6300D Dummy Exit Device

PDQ 6300D Dummy Exit Device

Contents hide
1 DEVICE
2 Documents / Resources
3 Related Posts

DEVICE

MACHINE SCREWS:
USE #7 OR 13/64″ DRILL AND 1/4-20 TAP
WOOD SCREWS:
USE 5/32″ DRILL
SEX NUTS:
USE 3/8″ DRILL PULL SIDE
USE 9/32″ DRILL PUSH SIDE

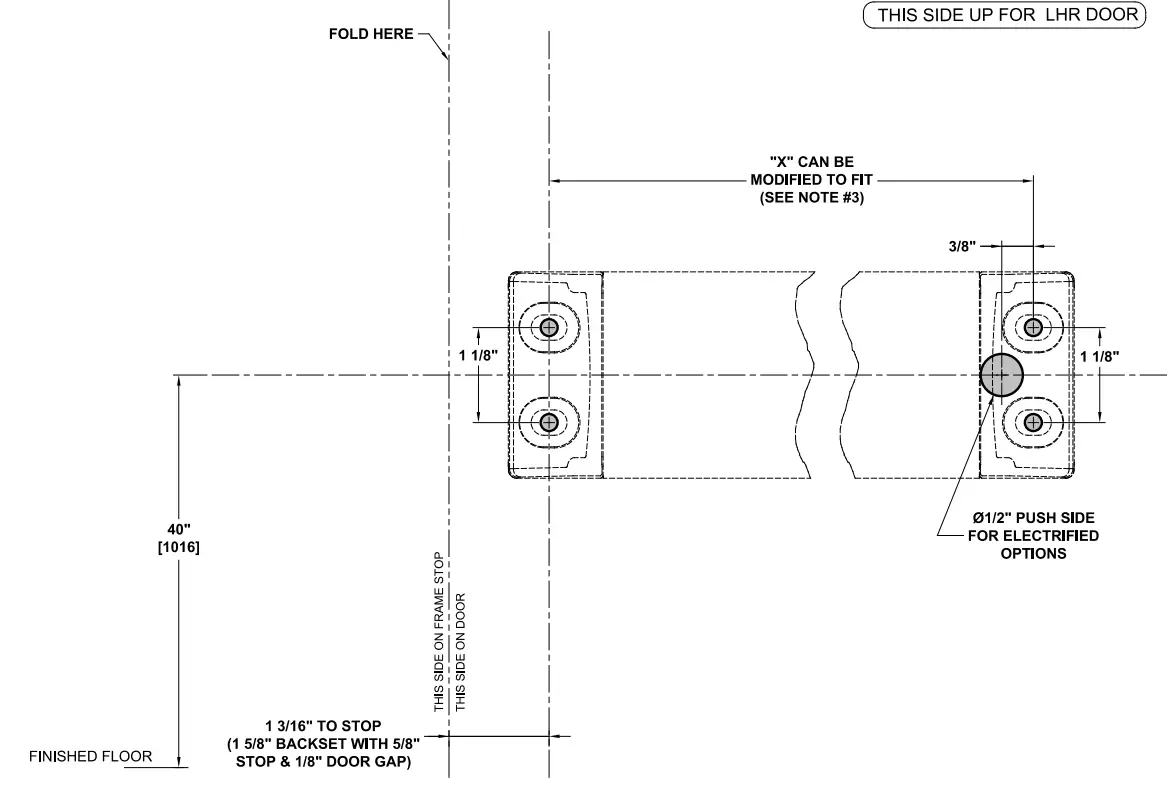

PDQ 6300D Dummy Exit Device Overivew

NOTES:

  1. VERIFY PRINTED TO SCALE
  2. SEX NUTS MAY BE REQUIRED
    FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS.
    CONSULT DOOR MANUFACTURER’S RECOMMENDATIONS
  3. DIMENSION “X” SIZED FOR DOOR.
    REFER TO DEVICE INSTRUCTIONS WHEN CUTTING DOWN FOR NARROWER OPENING
  4. MINIMUM STILE WIDTH: 3″
  5. CHECK PDQ WEBSITE FOR MOST RECENT REVISION
    WWW.PDQLOCKS.COM


PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
