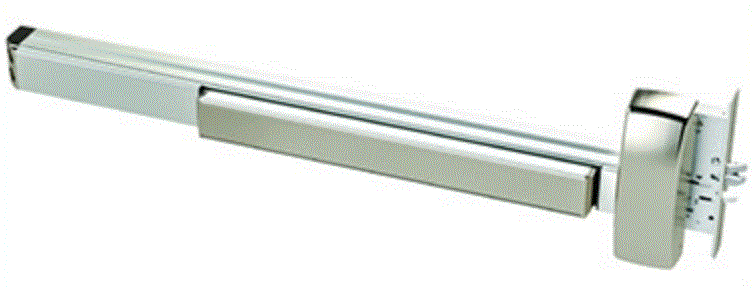

PDQ 6300M MF Mortise Device
MORTISE HANDING
- To re-hand, the mortise case, remove the latch bolt screw as shown.
- Orient the latch bolt head to match handing.
- Reinsert and tighten the latch bolt screw.
DOOR PREPARATION
- Prepare the door for the mortise lock using the 6300M/MF template inbox.
- Refer to trim template if installing trim.

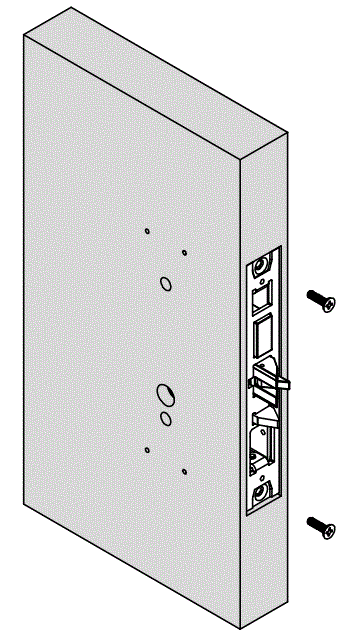

- Install the mortise case and secure using two (2) #12-24 combo screws supplied in the hardware kit.
PREPARE DEVICE

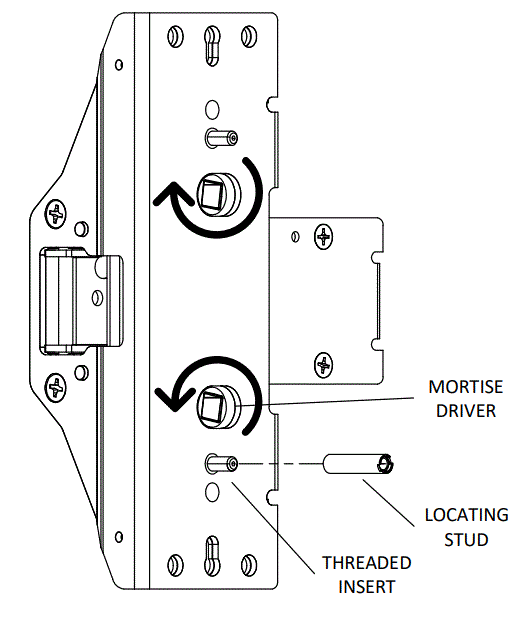

- Install locating stud on the lower threaded insert as determined by hand.
- Rotate the lower mortise driver as shown until it stops. Make sure when installing that the mortise driver remains in this position.
SIZE DEVICE
- Standard lengths are for 36″ or 48″ doors. The device must be cut for other lengths.
- Mark length with tape – length equals device size minus desired door size (for 30″ door = cut 6″ off 36″ device) ensuring a square cut.
| Maximum cut-off length: | ||||
| Panic | Fire | Alarm | MLR | |
| 36″ Device | 6″ | 8″ | 2″ | 3″ |
| 48″ Device | 12″ | 14″ | 8″ | 9″ |
INSTALL DEVICE SPINDLE

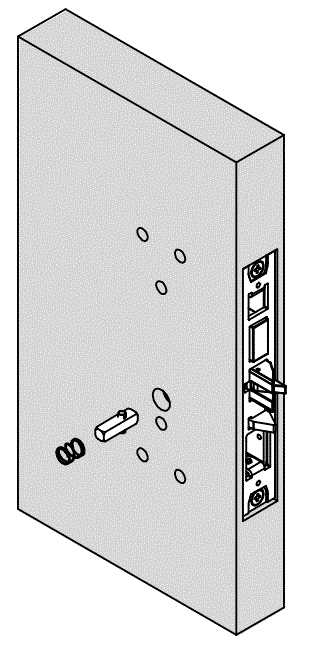

- Install the spindle and spring in the orientation shown on the push side of the door.
INSTALL DEVICE

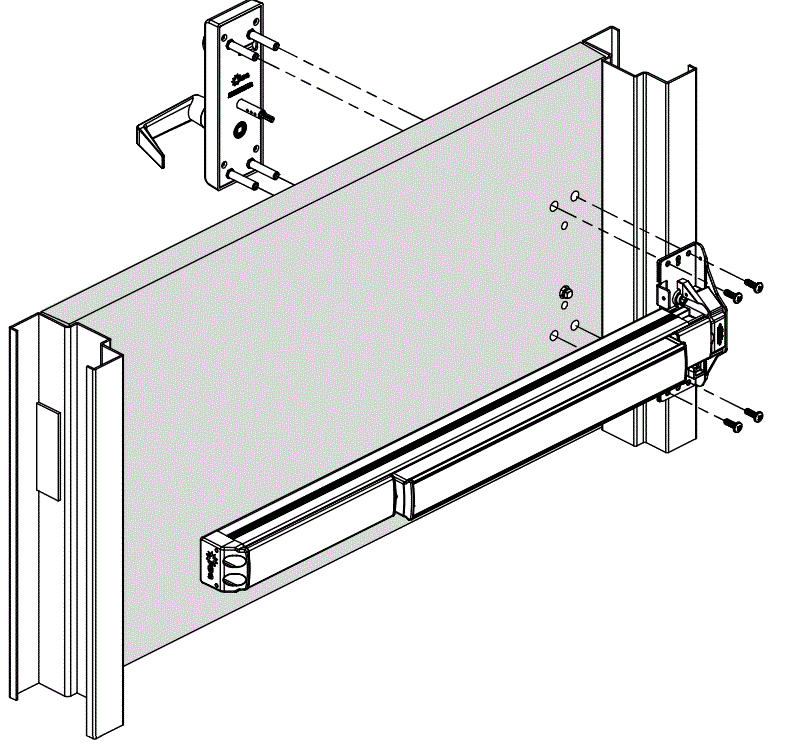

- Install device and trim with 1/4-20 screws from the hardware kit.

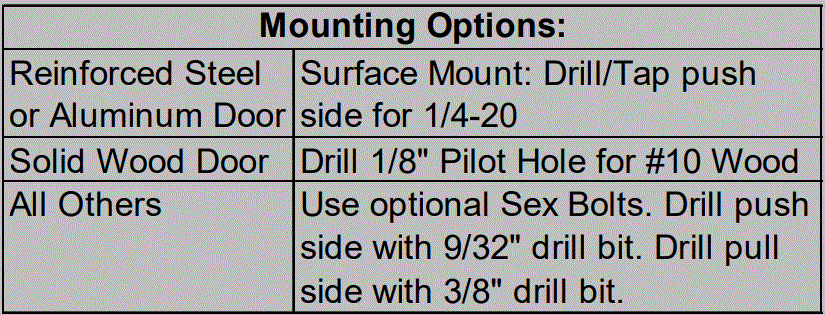

- The device can be surface mounted to the door, optional sex nuts are available, and the device is bolted when using trim.
INSTALL END CAP

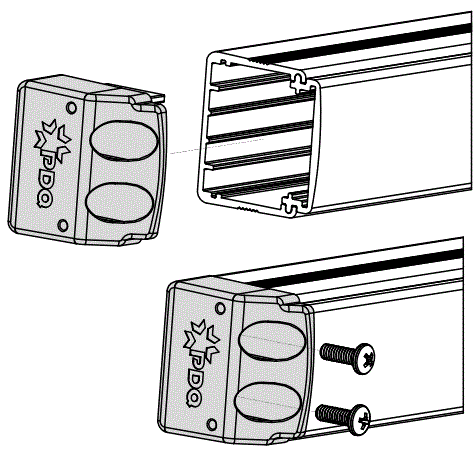

- Slide end cap into the rail. Ensure rail is level. Mark the centers of the slots.
- Remove the end cap then drill holes using the chart from Step 3.
- Reinstall the end cap and fasten it with screws.
INSTALL HEAD COVER

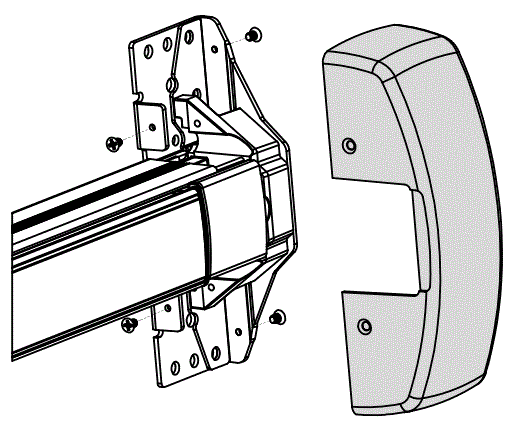

- Slide head cover onto exit device
- Install 4 mounting screws
INSTALL STRIKE

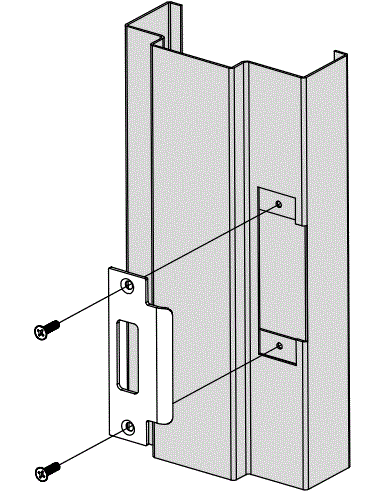

- Install the strike and secure it with two (2) #12-24 combo screws supplied in the strike screw pack.
