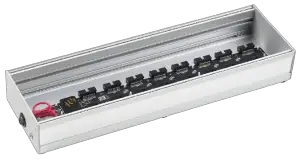

ALM 3U 84HP Eurorack Powered Case Installation Guide

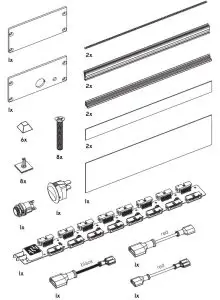

Parts List

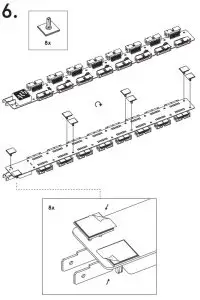

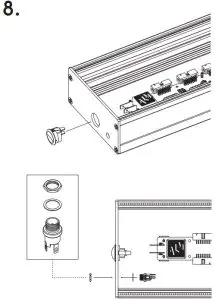

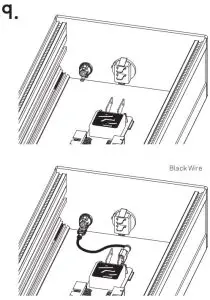

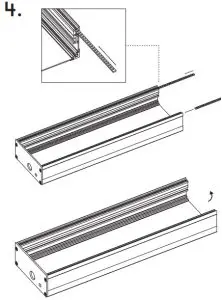

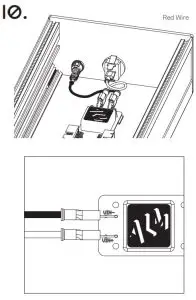

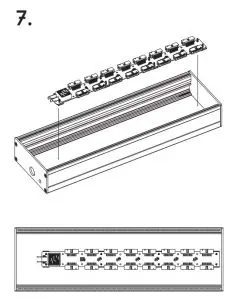

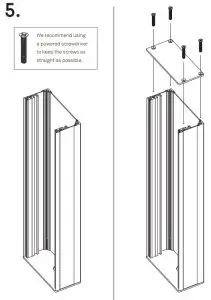

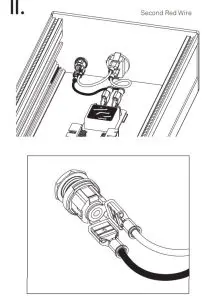

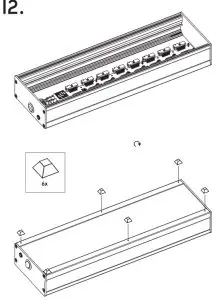

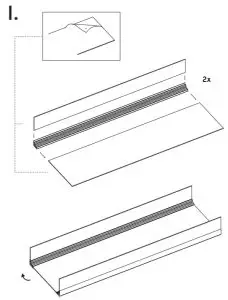

Assembly Instruction

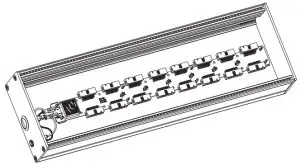

Assembly Complete!
Final Setup
- Locate a 12-15V center positive DC power supply with at least 2A of current.
- Prior to adding any modules test the empty case and ensure both the -12V and +12V LEDs light. If a +5V LED is present it will not light.
- If the LEDs do not light check that the connections match this manual’s
diagrams exactly. Additionally, make sure your supply has the correct polarity. - If the board powers properly you are ready to populate the case with your
favourite Eurorack modules. The power board can supply a maximum of 1A to all of the modules combined.- Use standard M3 screws to secure modules.
- Enjoy your new compact ALM case!
Visit the ALM TV YouTube channel to view our video assembly guide.
For additional support please visit busycircuits.com/support
