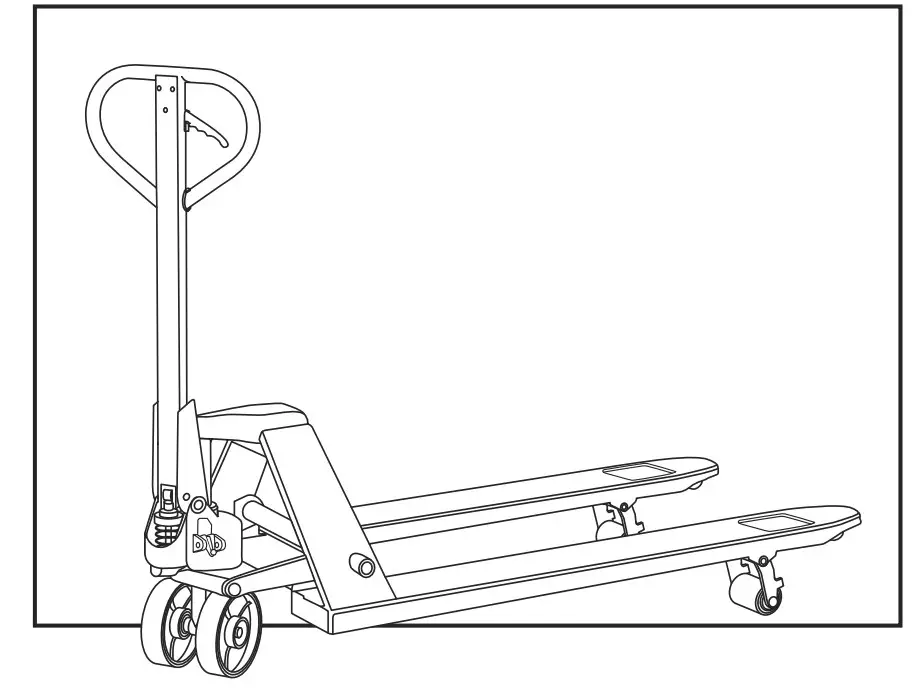

GALVANIZED STEEL PALLET TRUCK

Contents hide

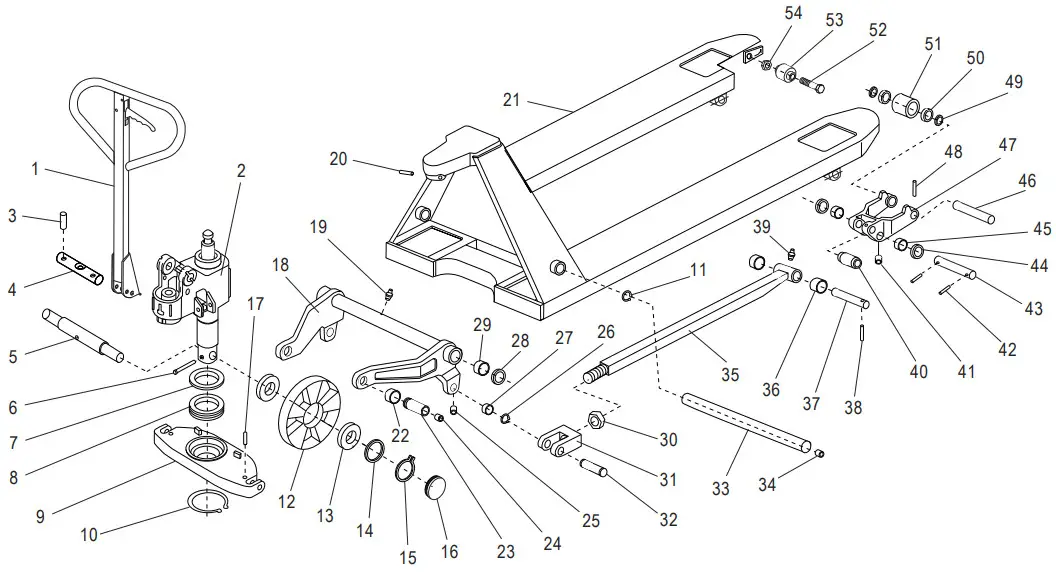

#	DESCRIPTION	CITY.	ULINE PART NO.	MFG. PART NO.
1	Handle Assembly (Including Chain)	1	H-2186-NPN	NPN
2	Pump Assembly	1	H-2186PUMP	———
3	Elastic Pin	2	H-2708-AC106	106
4	Axle	1	H-2186-105	105
5	Shaft	1	H-2186-316ZS	316ZS
6	Elastic Pin	1	H-2186-311	311
7	Bearing Cover	1	H-2186-337	337
8	Bearing	1	H-2186-315	315
9	Thrust Plate	1	H-2186-313	313
10	Retaining Ring	1	H-2186-314	314
11	Retaining Ring	2	H-2186-213	213
12	Big (Steering) Wheel	2	H-2186-310	310
13	Bearing	4	H-2186-309ZS	309ZS
14	Washer	2	H-2186-308ZS	308ZS

FRAME DIAGRAM PARTS LIST CONTINUED

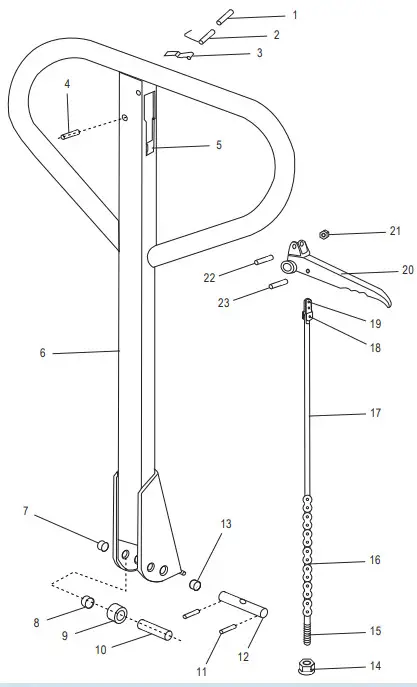

HANDLE DIAGRAM PARTS LIST

	DESCRIPTION	QTY.	ULINE PART NO.	MFG. PART NO.
A	Handle Assembly (Including Chain)	1	H-2186•NPN	NPN
1	Elastic Pin	1	H-2186-115	115
2	Spring	1	H-2186-114	114
3	Blade Spring	1	H-2900-113	113
4	Elastic Pin	1	H-2708-112	112
5	Stop Rubber	1	H-2186-111	111
6	Draw Bar	1		1102
7	Bushing	2	H-2186-107	107
8	Bushing	1	H•2186-109A	109A
9	Pressure Roller	1	H-2186.109	109
10	Roller Pin	1	H-2186.108	108
11	Elastic Pin	2	H-2708-AC106	106
12	Axle	1	H-2186-105	105
13	Bushing	2	H-2186-107	107
14	Adjusting Nut	1	H-2186-P104	104
15	Adjusting Bolt	1	H-2186.103	103
16	Chain	1	H-2186-1022	102Z
17	Release Rod	1	H-2186-1012	1012
18	Pin	1	H2708-AC122	122
19	Pull Board	1	H-2708-AC121	121
20	Control Handle	1	H-2708-AC117	117
21	Roper	1	H-2708-AC118	118
22	Elastic Pin	1	H-2708•AC119	119
23	Elastic Pin	1	H•2708•AC116	116
	Release Rod Assembly Includes: • Adjusting Bolt #15 (1) • Chain #16 (1) • Release Rod #17 (1) • Pin #18 (1) • Pull Board #19 (1)	1	H-2186-RRASM

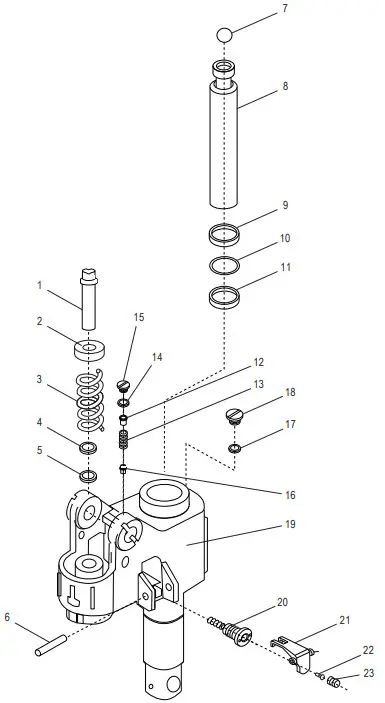

PUMP DIAGRAM

PUMP DIAGRAM PARTS LIST
