4-Way Pallet Truck
Instruction Manual
Description
Description

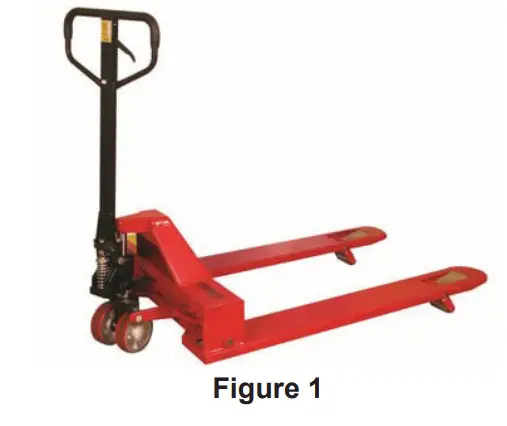

The Wesco 4-Way Pallet Truck is designed for entering pallets from all four sides. It features reinforced forks, adjustable fork connecting rods and a rubber coated handle.
Wesco Industrial Products, LLC
1250 Welsh Road
North Wales, PA 19454
Tel: 215-699-7031 Fax: 215-699-3836
Contact the factory for parts information and ordering.
Visit us on the web at www.wescomfg.com
Unpacking
When unpacking the Wesco Product, check carefully for shipping damage and missing parts. If damage has occurred or any parts are missing, file a claim with the delivering carrier within 24 hours and notify the dealer from whom the unit was purchased.
Warranty Repairs
If the unit does not work properly, contact your dealer or the factory (215-699-7031) for units less than 90 days old.
Non-Warranty Service
If units are older than 90 days, repairs can be made easily on site with factory supplied parts.
NOTE: Do not send units to the factory for service without first obtaining a “Return Merchandise Authorization” (RMA) number from the customer service department. We will not be responsible for merchandise returned without proper authorization.
Operation
Control Handle
The control handle of the truck and can be adjusted to three different positions:
Raise -handle down
Drive -handle in center position
Lower -handle up, the lever moves back to the drive position when released.
Entering Pallet
As shown below, the 4-way pallet truck can enter from any side of a pallet and then proceed to transport the load.
HANDLE PART INFORMATION

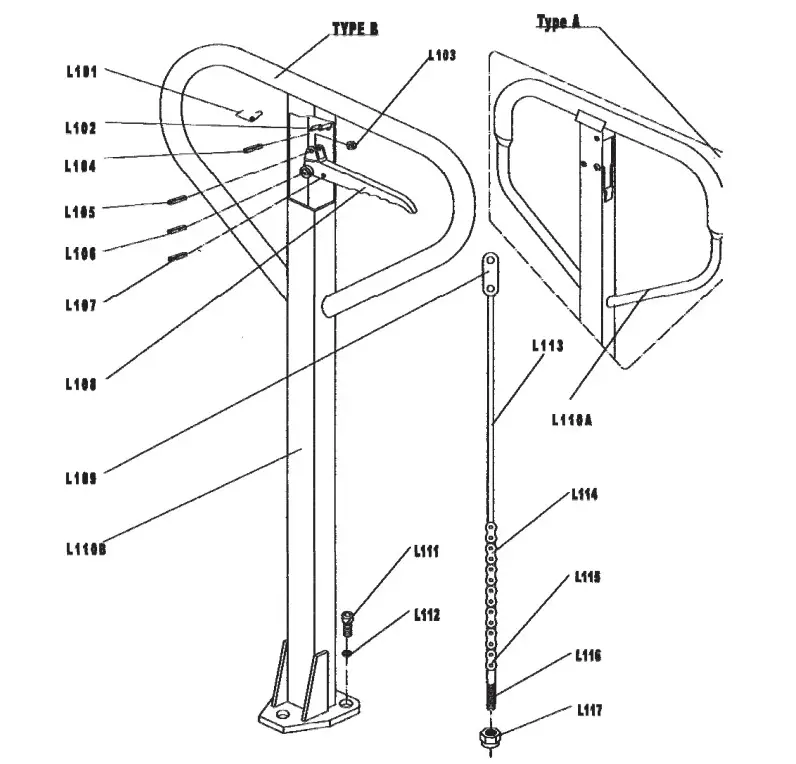

1.1 HANDLE PARTS DIAGRAM
1.2 HANDLE PARTS LIST
| Item | Part Number | Description | Qty. | Item | Part Number | Description | Qty. | |
| L101 | 274076 | Spring | L110A | 274075 | Handle | 1 | ||
| L102 | 274083 | Blade Spring | L110B | Handle | 1 | |||
| L103 | 274001 | Roller | 1 | L111 | Bolt | 3 | ||
| L104 | 272453 | Elastic Pin | L112 | Elastic Washer | 3 | |||
| L105 | 272042 | Elastic Pin | L113 | Pull Rod | 1 | |||
| L106 | 272043 | Elastic Pin | L114 | Chain | 1 | |||
| L107 | 272322 | Elastic Pin | L115 | Pin | 1 | |||
| L108 | Control Handle | L116 | 272456 | Adjusting Bolt | 1 | |||
| L109 | 274084 | Pull Board | L117 | 272337 | Adjusting Nut | 1 | ||
| REPLACEMENT KIT LIST | ||||||||
| 274495 | Handle Assembly | (Includes Items L101-L110A & L113-L117) | 1 | |||||
| 274079 | Bolt/Elastic Washer Kit | (Includes Items L111-L112) | 1 | |||||
| 272454 | Chain/Pin Kit | (Includes Items L114-L115) | 1 | |||||
| 272791 | Control Handle Kit | (Includes Items L103, L105, L108, L109, L113 & L114) | 1 | |||||
| 274087 | Release Assembly Kit | (Includes Items L115-017) | 1 | |||||
FRAME PART INFORMATION

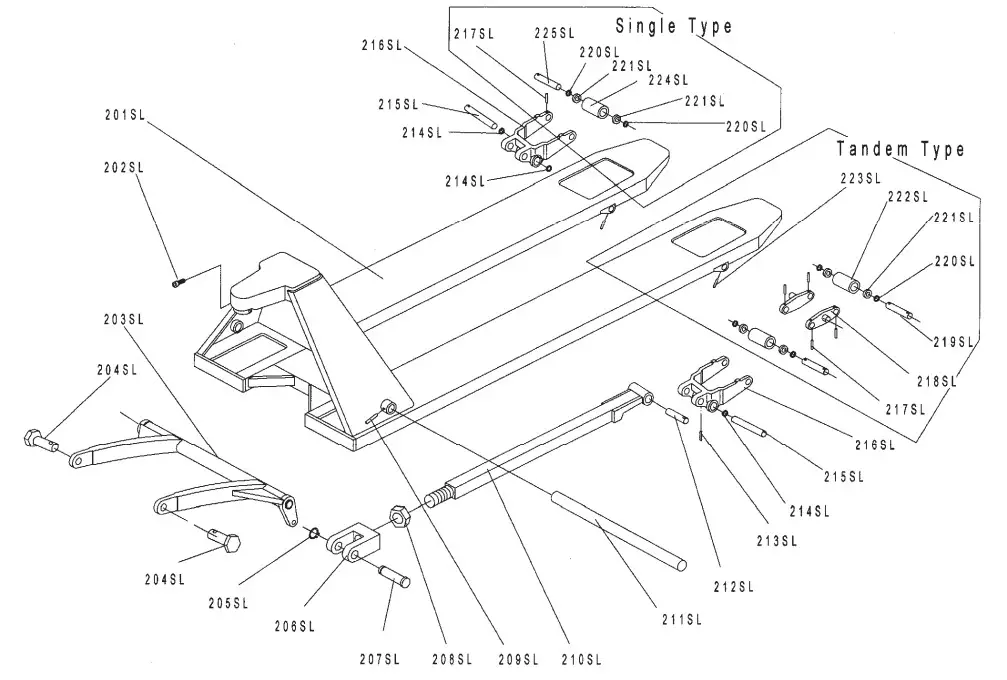

2.1 FRAME PARTS DIAGRAM
| Item | Part Number | Description | Qty. |
| L201SL | 272672 | Fork Frame | 1 |
| L202SL | 272673 | Bolt | 1 |
| L203SL | 272674 | Rock-Arm | 1 |
| L204SL | 274604 | Shaft | 2 |
| L205SL | 272676 | Retaining Ring | 2 |
| L206SL | 272677 | Joint | 2 |
| L207SL | 272678 | Pin | 2 |
| L208SL | 272679 | Nut | 2 |
| L209SL | 272680 | Elastic Pin | 1 |
| L210SL | 272681 | Pushing Rod | 2 |
| L211SL | 272682 | Long Shaft | 1 |
| L212SL | 272683 | Shaft | 2 |
| L213SL | 272684 | Elastic Pin | 2 |
| L214SL | 272685 | Washer | 4 |
| L215SL | 272686 | Shaft | 2 |
| L216SL | 272687 | Frame of Roller | 2 |
| L217SL | 272688 | Elastic Pin | 2 |
| L218SL | Link Plate | 4 | |
| L219SL | Shaft for Roller | 4 | |
| L220SL | 272689 | Washer | 4 |
| L221SL | 274472 | Bearing | 8 |
| L222SL | Roller | 4 | |
| L223SL | 272691 | Elastic Pin | 4 |
| L224SL | 274471 | Roller (Steel) 1.7″ x 3.7″ | 4 |
| L225SL | 272693 | Shaft for Roller | 2 |
PUMP PART INFORMATION

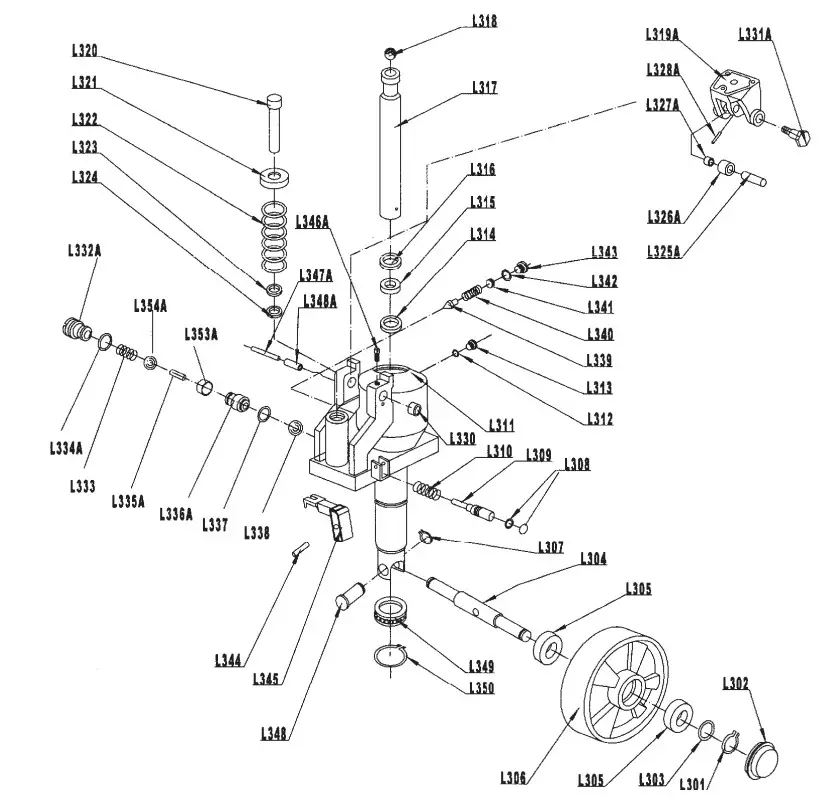

3.1 PUMP PARTS DIAGRAM
3.2 PUMP PARTS LIST
| Item | Part Number | Description | Qty. |
| L301 | 272789 | Retaining Ring (For Axle) | 2 |
| L302 | 272796 | Hub Cap | 2 |
| L303 | 272794 | Washer | 2 |
| L304 | 272795 | Shaft of Wheel | 1 |
| L305 | 272325 | Bearing | 4 |
| L306 | 274470 | Steering Wheel | 2 |
| L311 | 272779 | Pump Body | 1 |
| L348 | 273011 | Elastic Pin | 1 |
| L301N | Screw | 6 | |
| L302N | Hub Cap | 2 | |
| L303N | Retaining Ring (For Axle) | 2 | |
| L304N | Shaft of Wheel | 1 | |
| L305N | Bearing | 4 | |
| L306N | Steering Wheel | 2 | |
| L307N | Retaining Ring | 1 | |
| L311N | Pump Body | 1 | |
| L348N | Elastic Pin | 1 | |
| L308 | 273013 | 0-Ring | 2 |
| L309 | 273014 | Release Valve | 1 |
| L310 | 273015 | Spring | 1 |
| L312 | 273016 | Seal Washer | 1 |
| L313 | 273017 | Bolt | 1 |
| L314 | 273018 | Y-Seal | 1 |
| L315 | 273019 | Y-Seal | 1 |
| L316 | 273020 | Wiper | 1 |
| L317 | 273021 | Left Piston Rod | 1 |
| L318 | 273022 | Steel Ball | 1 |
| L319 | Bracket | 1 | |
| L320 | 272797 | Pump Piston | 1 |
| L321 | 272310 | Cap | 1 |
| L322 | 272790 | Spring | 1 |
| L323 | 272798 | Wiper | 1 |
| L324 | 272799 | Y-Seal | 1 |
| L325A | Axle of Roller | 1 | |
| L326A | Pressure Roller | 1 | |
| L327A | Bushing | 1 | |
| L328A | Elastic Pin | 1 | |
| L329A | Elastic Pin | 1 | |
| L330 | 273008 | Bushing | 2 |
| L331A | 274493 | Shoulder Bolt | 2 |
| L332A | Plug Bolt | 1 | |
| L333 | 273006 | Spring | 1 |
| L334A | 0-Ring | 1 | |
| L335A | Valve Pin | 1 | |
| L336A | Seat of Pumping Valve | 1 | |
| L337 | 273007 | 0-Ring | 1 |
| L338 | 273001 | Steel Ball | 1 |
| L339 | 272099 | Safety Valve Pin | 1 |
| L340 | 273026 | Spring | 1 |
| L341 | 273027 | Adjusting Bolt | 1 |
| L342 | 272028 | 0-Ring | 1 |
| L343 | 272029 | Plug Bolt | 1 |
| L344 | 273009 | Elastic Pin | 1 |
| L345 | 273010 | Lever Plate | 1 |
| L346A | Screw | 2 | |
| L347A | Elastic Pin | 1 | |
| L348A | Roller | 1 | |
| L349 | 272100 | Thrust Bearing | 1 |
| L350 | 273012 | Snap Ring | 1 |
| L353A | Sleeve | 1 | |
| L354A | Steel Ball | 1 | |
REPLACEMENT KIT LIST
| 274095 | Complete Replacement Pump | 1 |
| 274098 | Seal Kit | 1 |
