Gude GHW 2500 PU K Low Lift Pallet Truck Instruction Manual

Please read the instructions carefully before starting the machine.

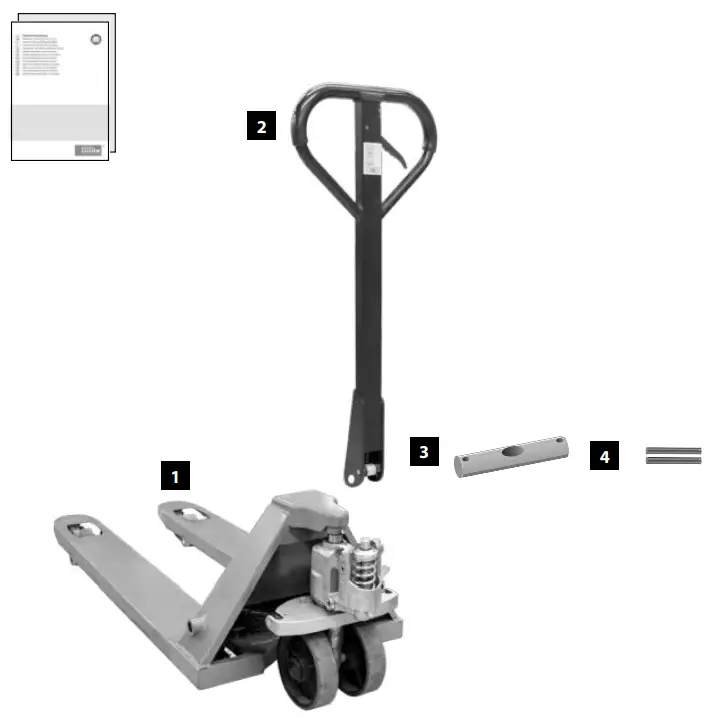

DELIVERED ITEMS

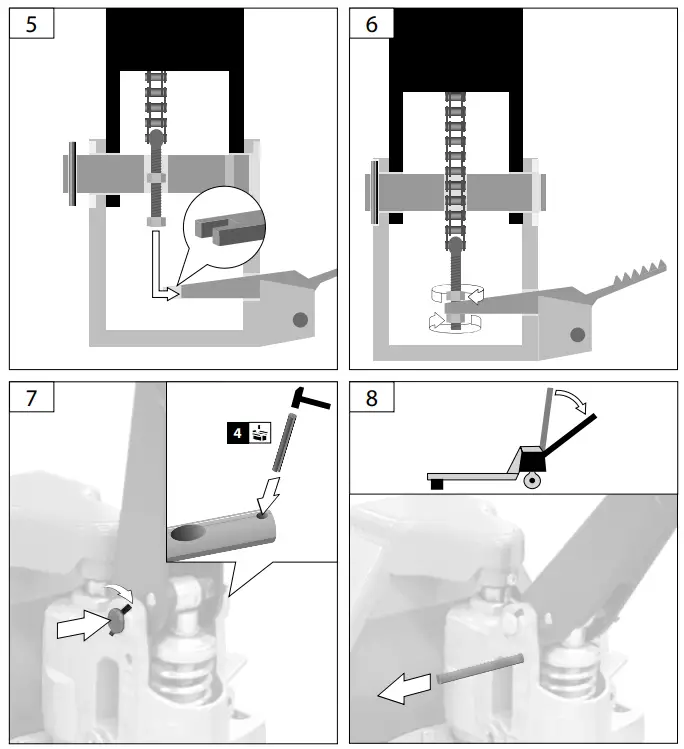

Assembly

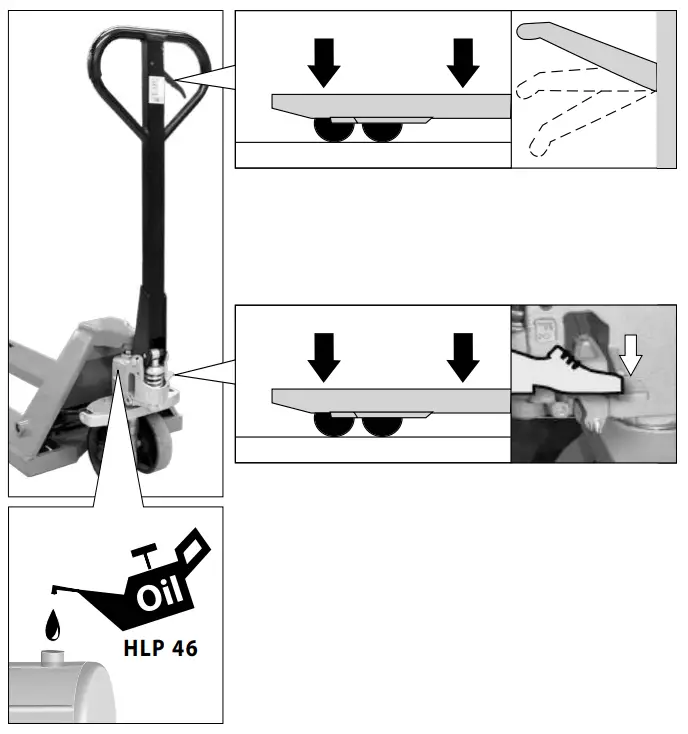

Starting-up the machine

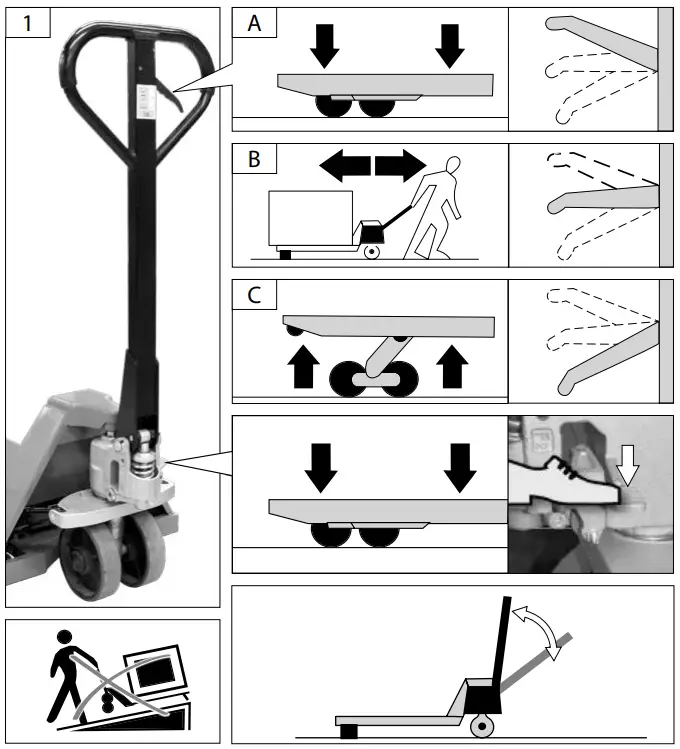

Operation

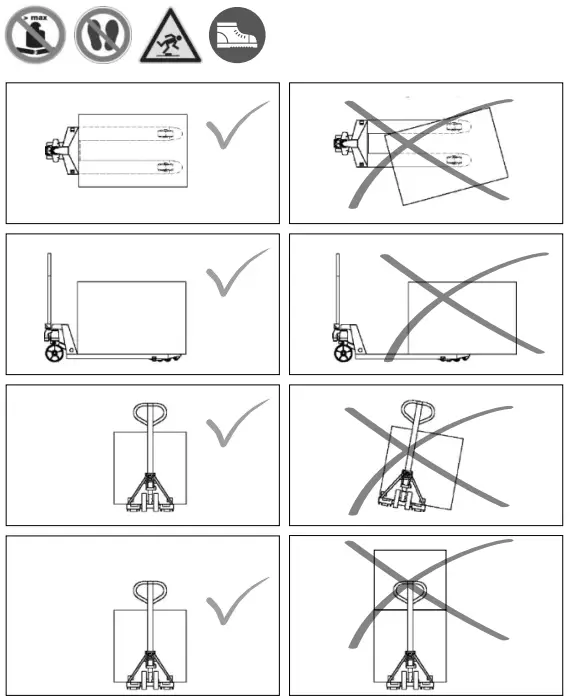

Work instructions

Technical Data

Low lift pallet truck		GHW 2500 PU K	GHW 2500 PU G
	Art. No	24320	24321
	Lifting capacity	2500 kg	2500 kg
	For length	800 mm	1800 mm
	Lowered fork height	85 mm	85 mm
	Lift height	115 mm	115 mm
	Total length	1200 mm	2140 mm
	Total height with the bar	1250 mm	1250 mm
	Dimensions L x B x H	1200 x 550 x 1250 mm	2140 x 550 x 1250 mm
	Weight	61,6 kg	109,6 kg

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The low lift pallet truck has only been designed for manual lifting, lowering and transport of loads on a flat surface.

It is necessary to comply with the regulations applicable in the country where the truck is used.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Requirements for operating staff

The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks.

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: : Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: : Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: : Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

WARNING!
Risk of crushing and cutting
when lowering loads
when moving and travelling with loads.

It is prohibited to stay under lifted loads.

Despite the observance of the operating instructions there still may be some hidden residual risks.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

Accident site
Accident type
Number of injured persons
Injury type(s)

Symbols

Warning/caution!
Read the operating instructions to reduce the risk of injury.
Wear safety shoes with steel reinforcement!
Warning against a risk of tripping
Do not stand on the machine
It is prohibited to exceed the specified usable lifting capacity.
CE marking
Load lever control
Protect against humidity
This side up

Safety Instructions

It is prohibited to transport persons or animals and stay in the danger area.
It is prohibited to stay under lifted loads.

Wear suitable work clothing such as sturdy shoes with a non-slip shoe and steel spikes.
No undesirable changes may be made on the machine and its setting.
Provide adequate lighting or good lighting conditions when working with the machine.
Protect against humidity Never expose tool to rain.

Load lifting
It is prohibited to exceed the specified usable lifting capacity.
Never load the low lift pallet truck when the fork is lifted.

Move the fork under a pallet and lift the load by pumping. The load must be equally distributed on both fork blades.

Transverse storing and lifting of long objects is not allowed.

Never leave a lifted load unattended.

Driving with a load.

The machine may only be operated on a flat and hard surface.
Caution! The low lift truck is not fitted with a brake.
Driving on slopes is prohibited.
Move the load as close to the ground as possible while respecting the clear height and drive at a reasonable speed to be able to stop at any time.
If you cannot stop the low lift truck using your own force, let the load go fully down so that you could stop the machine..

Putting load aside
Put the load aside by pulling the handle or controlling the foot pedal.

Vehicle parking
Low lift pallet truck to be always parked on a flat surface and the for to be always lowered all the way down.

transport
Low lift truck to be professionally loaded and sufficiently secured (e.g. using wedges, straps, etc.) for transport, e.g. on a lorry, trailer.

Before using, check the tightness and proper seating of all screwed and socket joints and protective equipment and if all moving parts are moving smoothly.

It is strictly prohibited to demount, adjust and alienate the protective equipment on the machine or put other protective equipment on the machine.

Do not use the appliance if damaged or the safety equipment is defective. Replace any worn and damaged parts.

Maintenance/Storage

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts.
Never spray water on the machine!
Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making..
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.

Disposal

Dispose the waste oil in an environment-friendly manner!

Make sure the oil products do not enter the soil. Oil products must not come into contact with skin, eyes and clothing.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions?
We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:
Art. No:
Year of production:

Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: [email protected]

Inspection and maintenance plan

Regular servicing period		Before any start-up	After 1 month	After 3 months	After 12 months
Function of controls	Inspection
Track rollers and roller pins	Inspection
Joints and bearings	Lubrication
Hydraulic oil when the fork is lowered	Inspection
Hydraulic oil when the fork is lowered	Change
