ULINE H-4121 Pallet Truck With Hand Brake Instruction Manual

1-800-295-5510
uline.com

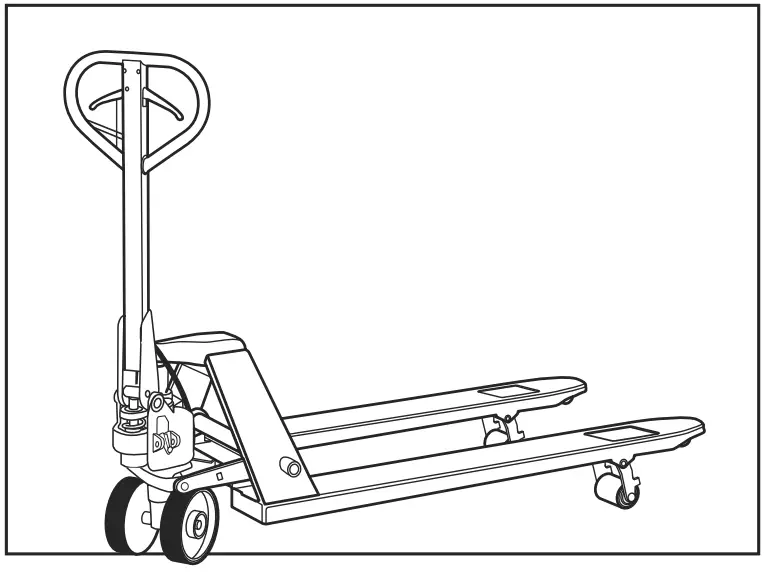

ULINE H-4121

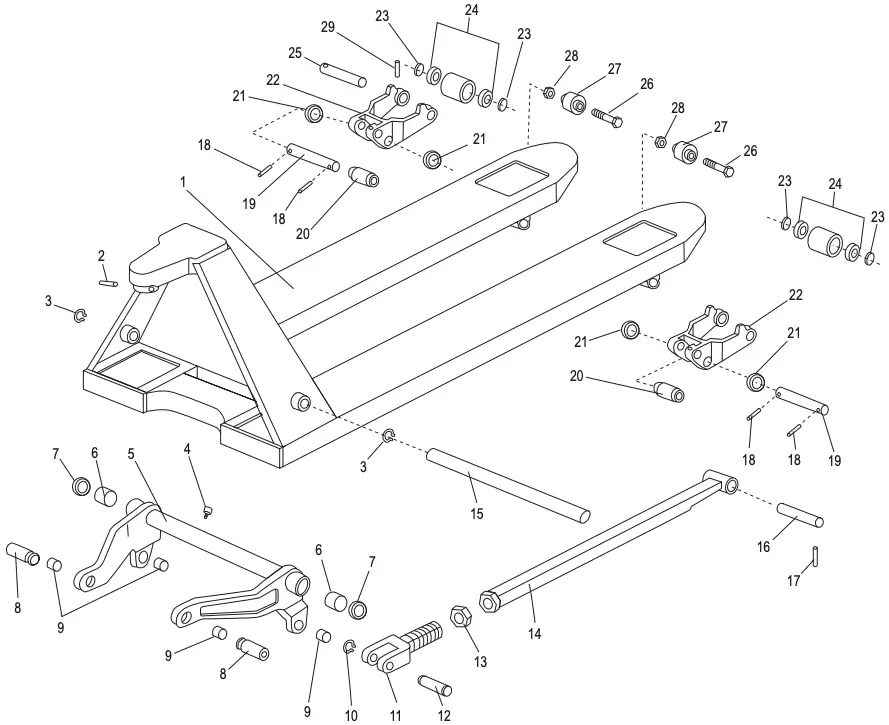

FRAME DIAGRAM

FRAME DIAGRAM

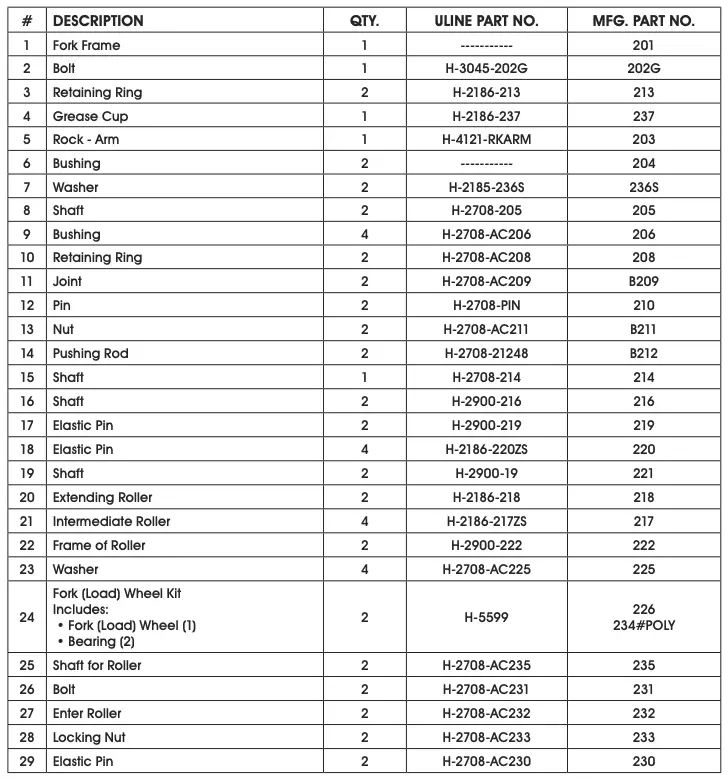

FRAME DIAGRAM PARTS LIST CONTINUED

FRAME DIAGRAM PARTS LIST CONTINUED

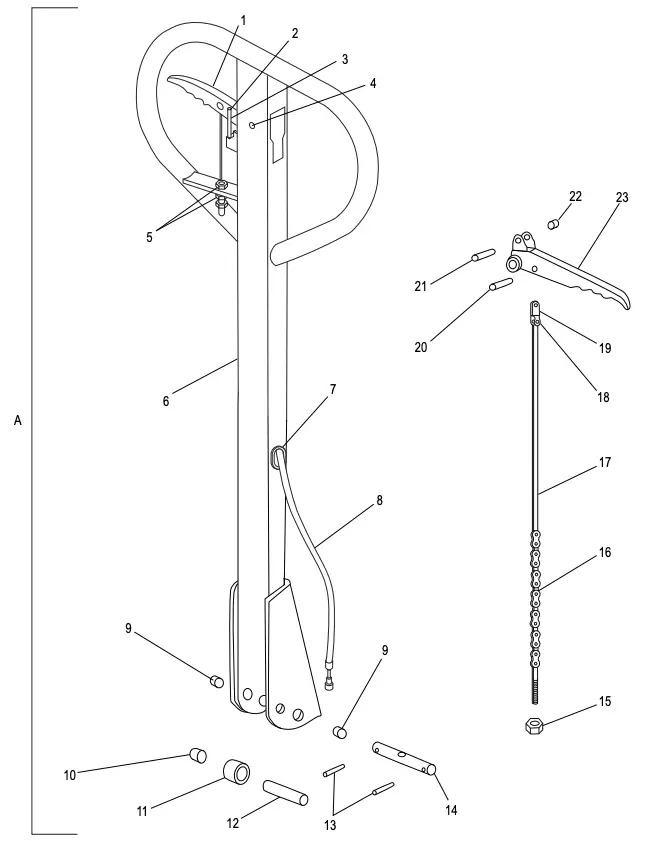

HANDLE DIAGRAM

HANDLE DIAGRAM

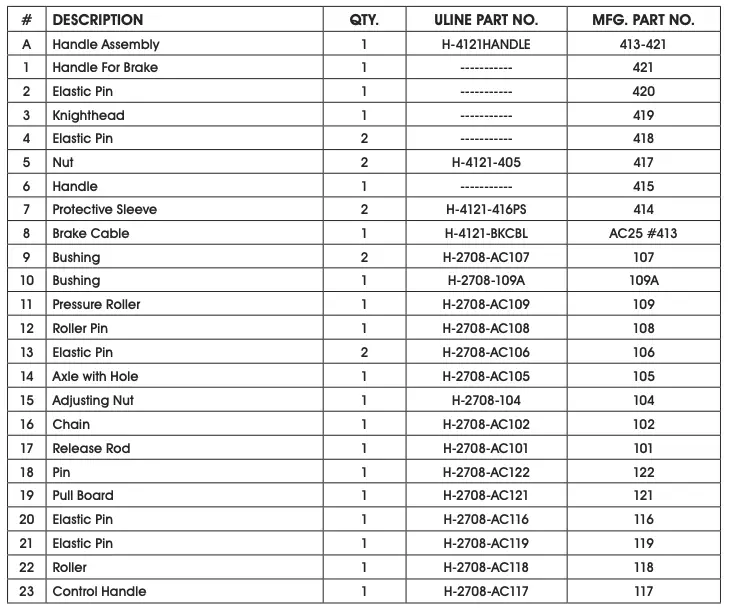

HANDLE DIAGRAM PARTS LIST

HANDLE DIAGRAM PARTS LIST

PUMP DIAGRAM

PUMP DIAGRAM

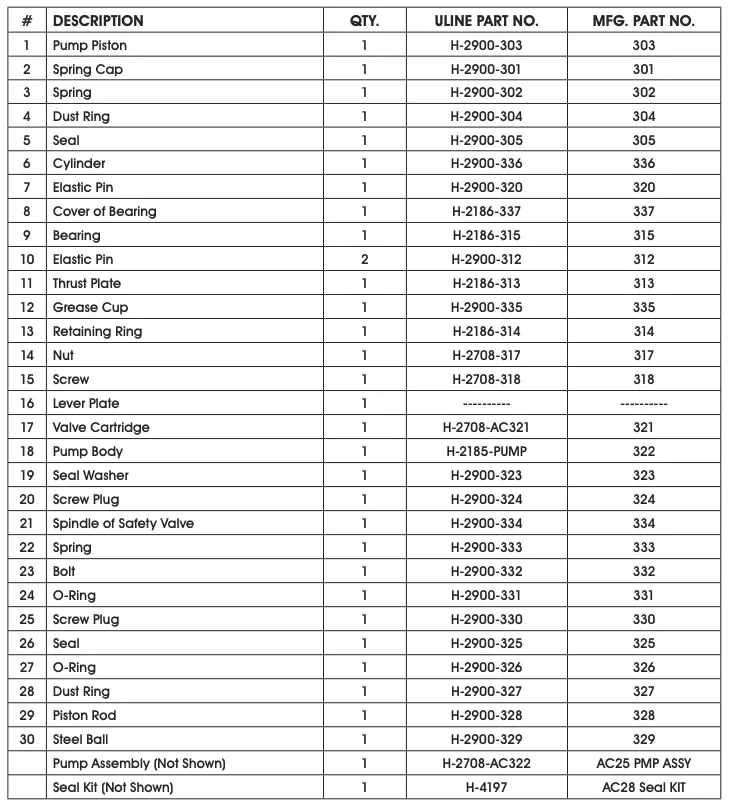

PUMP DIAGRAM PARTS LIST

PUMP DIAGRAM PARTS LIST

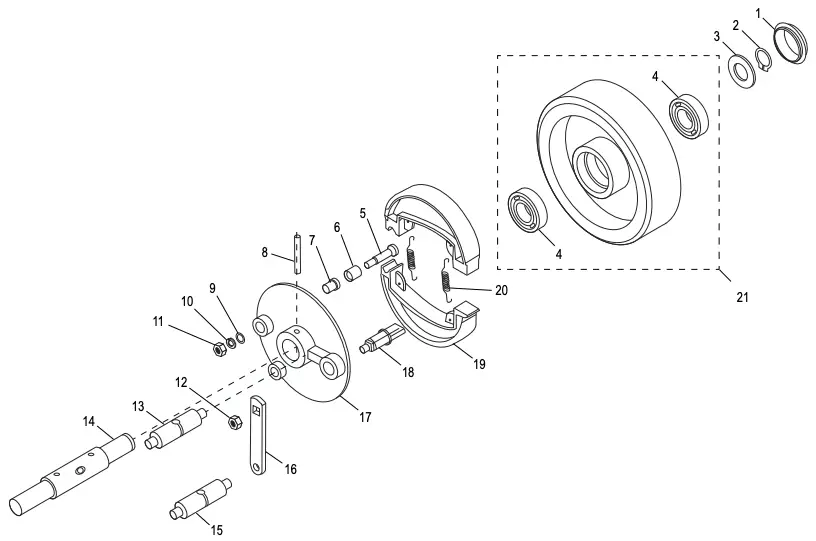

PARKING BRAKE DIAGRAM

PARKING BRAKE DIAGRAM

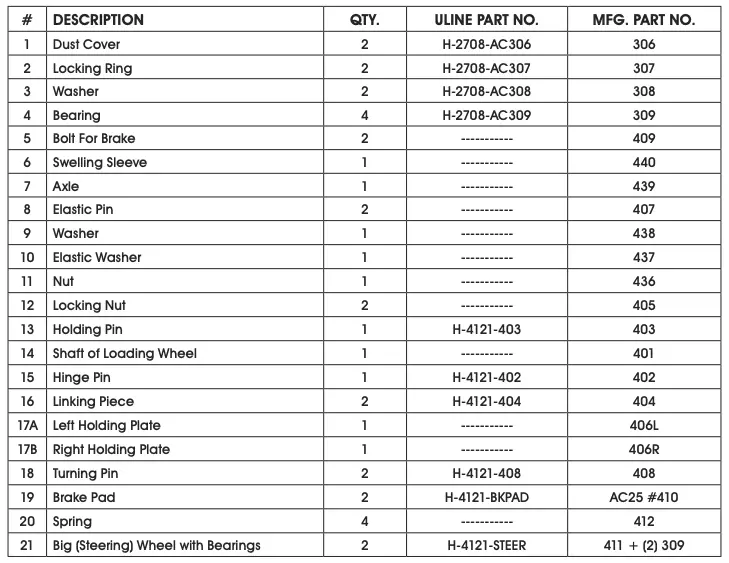

PARKING BRAKE DIAGRAM PARTS LIST

PARKING BRAKE DIAGRAM PARTS LIST

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
