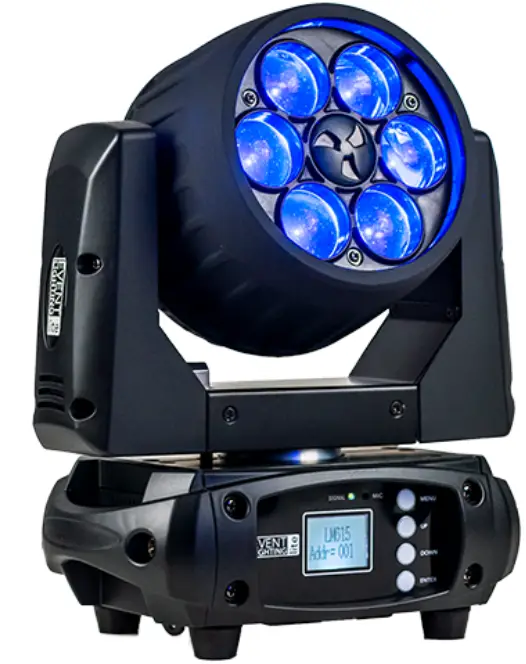

EVENT LIGHTING LM6X15 6x15W LED RGBW Zoom Wash Moving Head
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Safety Instructions
WARNING
- Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
- Do not look at the light source when the device is on.
CAUTION: This unit’s housing may be hot during and after operation.
- Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
- Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
- Use a safety chain when mounting this device overhead.
- Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
- Do not operate this device if the housing, lenses, or cables appear damaged.
- Do not connect this device to a dimmer or rheostat.
- ONLY connect this device to a grounded and protected circuit.
- ONLY use the hanging bracket to carry this device.
- In case of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating. Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.

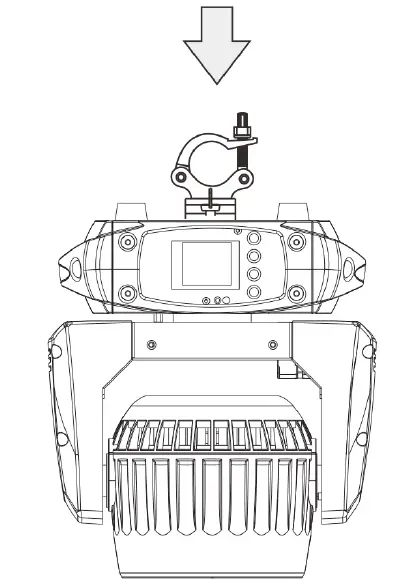

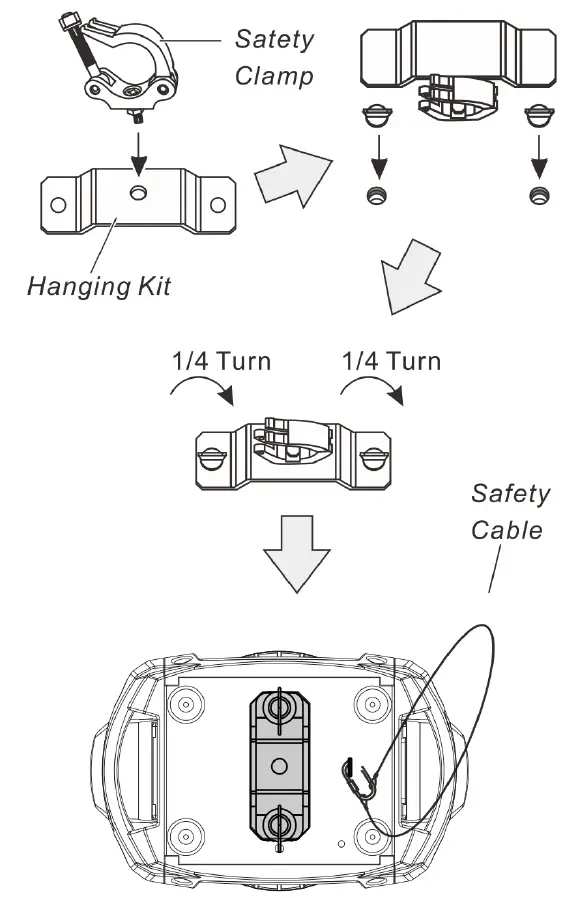

Product Installation

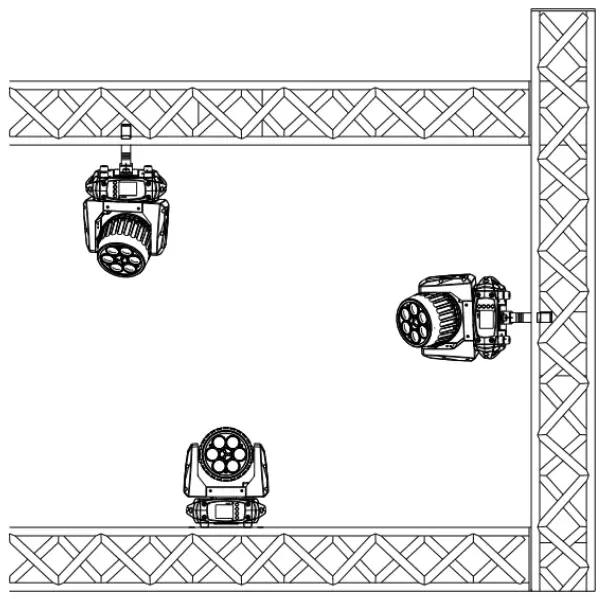

- This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket.
- Use a safety chain when mounting this device overhead.

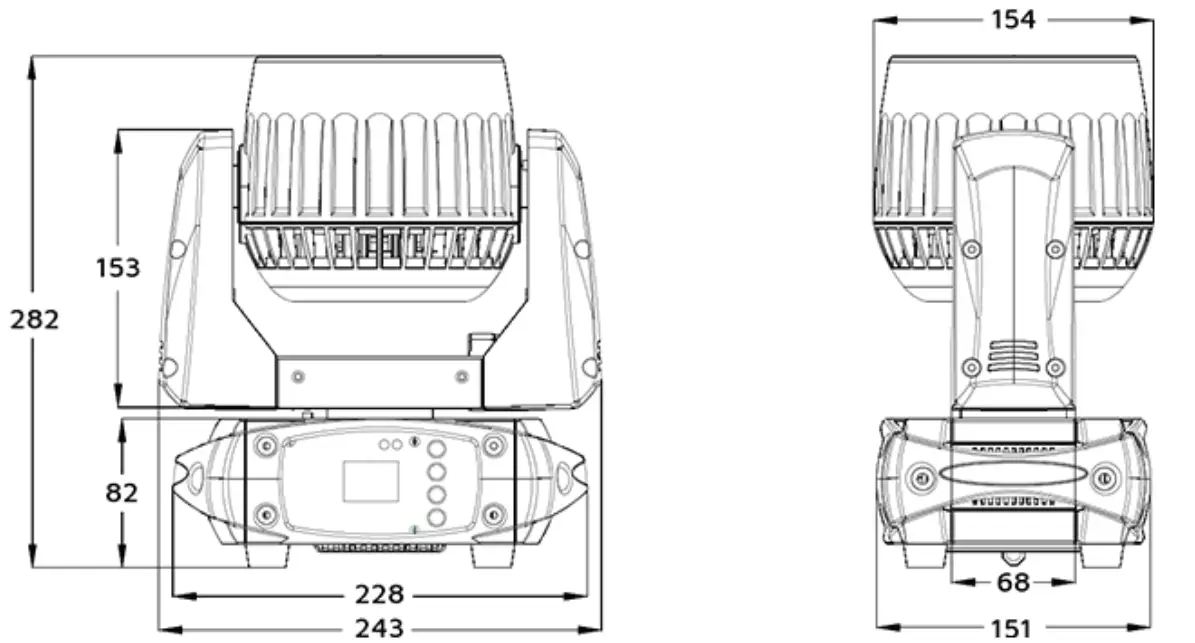

Dimensions
Lux Chart

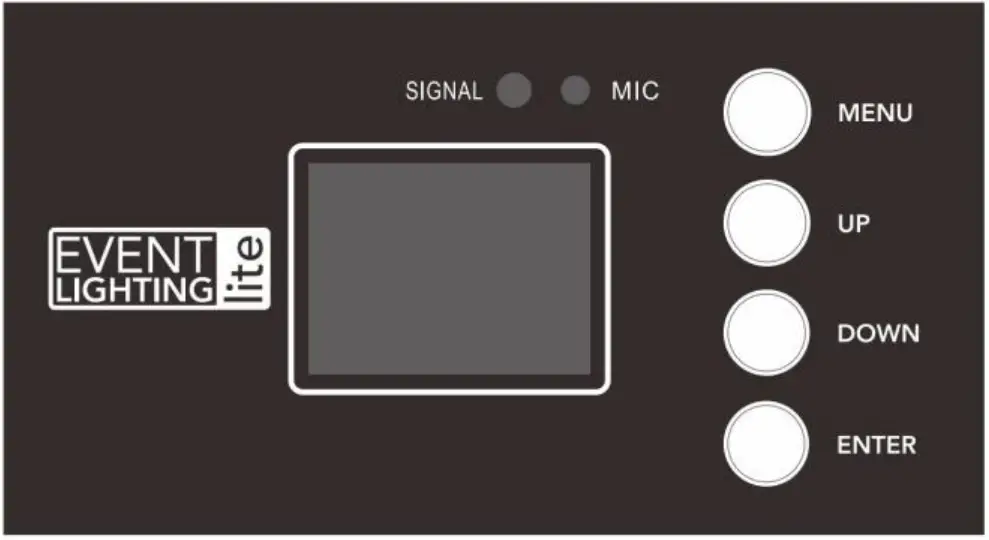

Menu – Move up a level.
Up – Move selection up one item.
Down – Move selection down one item.
Enter – Select / Mode down a level.
| MENU | DESCRIPTION | ||
| DMX Address | DMX Address | A001~AXXX | DMX Address Setting |
| Auto Run | Auto Run | Program 1-8 | Master/Alone | Auto Run State |
| Music Run | Program 1-8 | Master/Alone | Music Control State | |
| Reset | ALL | On/Off | Reset all motors |
| Pan/Tilt | On/Off | Reset pan/tilt motor | |
| Zoom | On/Off | Reset zoom motor | |
| Reverse Pan | On/Off | Reverse pan | |
| Reverse Tilt | On/Off | Reverse tilt | |
| Special | R Default | On/Off | Reset to default settings |
| Cal | Code (Password: 088) | Calibration code | |
| Pan, Tilt, Colour, Gobo, Focus, Prism | Calibrate the selected channel | ||
| Temp. | XXX °C/°F | Current temperature | |
| Manual Ctrl. | Pan = XXX… | Manual control | |
| Mic Sens. | 0-99% | Microphone sensitivity | |
| Limit Mode | Limit Mode Off/Centre/Right/Left | Select Edge or Corner range | |
| DMX Mode | CH15 Mode | 15 channel mode | |
| CH13 Mode | 13 channel mode | ||
| Scan Degree | Pan Degree | Pan 630° | Select Pan degree (default 540°) |
| Pan 540° | |||
| Pan 360° | |||
| Tilt Degree | Tilt 270° | Select Tilt degree (default 270°) | |
| Tilt 180° | |||
| Tilt 90° | |||
| Version | V1.0 – vX.X | Software version | |
DMX Chart
| Channel Mode | Min DMX | Max DMX | Name | Function | |
| Standard | Basic | ||||
| 1 | 1 | 0 | 255 | Dimmer | Dimmer 0%..100% |
| 2 | 2 | 0 | 31 | Shutter | Shutter closed |
| 32 | 63 | Shutter open | |||
| 64 | 95 | Strobe effect, slow to fast | |||
| 96 | 127 | Shutter open | |||
| 128 | 159 | Pulse effect, slow to fast | |||
| 160 | 191 | Shutter open | |||
| 192 | 223 | Random strobe effect, slow to fast | |||
| 224 | 255 | shutter open | |||
| 3 | 3 | 0 | 255 | Pan | Pan movement |
| 4 | 0 | 255 | Pan-fine | Fine control of pan movement | |
| 5 | 4 | 0 | 255 | Tilt | Tilt movement |
| 6 | 0 | 255 | Tilt-fine | Fine control of tilt movement | |
| 7 | 5 | 0 | 255 | Zoom | In (near) to out (far) |
| 8 | 6 | 0 | 225 | Pan/tilt function | Pan/tilt speed, fast to slow |
| 226 | 235 | Blackout during pan/tilt functions | |||
| 236 | 255 | TBD | |||
| 9 | 7 | 0 | 255 | Red | Red 0..100% |
| 10 | 8 | 0 | 255 | Green | Green 0..100% |
| 11 | 9 | 0 | 255 | Blue | Blue 0..100% |
| 12 | 10 | 0 | 255 | White | White 0..100% |
| 13 | 11 | 0 | 15 | Macros | TBD |
| 16 | 31 | Red | |||
| 32 | 47 | Green | |||
| 48 | 63 | Blue | |||
| 64 | 79 | White | |||
| 80 | 95 | Red+Green | |||
| 96 | 111 | Red+Blue | |||
| 112 | 127 | Red+White | |||
| 128 | 143 | Green+Blue | |||
| 144 | 159 | Green+White | |||
| 160 | 175 | Blue+White | |||
| 176 | 191 | Red+Blue+Green | |||
| 192 | 207 | Red+Blue+Green+White | |||
| 208 | 223 | Jump Effect | |||
| 224 | 239 | Fading Effect | |||
| 240 | 255 | Pulse effect | |||
| 14 | 12 | 0 | 255 | Macro speed | Slow to fast |
| 15 | 13 | 0 | 79 | Special functions | TBD |
| 80 | 84 | Reset all motors | |||
| 85 | 87 | Reset pan/tilt motor | |||
| 88 | 96 | TBD | |||
| 97 | 99 | Reset zoom motor | |||
| 100 | 109 | Internal program 1 | |||
| 110 | 119 | Internal program 2 | |||
| 120 | 129 | Internal program 3 | |||
| 130 | 139 | Internal program 4 | |||
| 140 | 149 | Internal program 5 | |||
| 150 | 159 | Internal program 6 | |||
| 160 | 169 | Internal program 7 | |||
| 170 | 179 | Internal program 8 | |||
| 180 | 189 | Internal sound program 1 | |||
| 190 | 199 | Internal sound program 2 | |||
| 200 | 209 | Internal sound program 3 | |||
| 210 | 219 | Internal sound program 4 | |||
| 220 | 229 | Internal sound program 5 | |||
| 230 | 239 | Internal sound program 6 | |||
| 240 | 249 | Internal sound program 7 | |||
| 250 | 255 | Internal sound program 8 |
The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has two channel modes:
15/13, if we set the mode at standard 13 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 14, third one at 27, etc.
- If the devices have the same address, they will behave synchronically.
- Display is flashing when no DMX signal is received.
More Functions
- Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via a software upgrade box, without the need to change any mechanical parts.
The upgrade box is not included in the package, if you need any further assistance please contact your authorized dealer. - Hibernation. The device will enter sleeping mode if activated after a period of disconnecting DMX signal to save power and will wake immediately when the DMX signal is sent or received again.
Technical Specifications
Photometric
- Light Source: 6 pcs 15W RGBW LED
- Beam Angle: 6° – 60°
- Output: 8000lux @ 3M @ 6°
- PWM: 800Hz
- LED Lifespan: 50,000 hours
Effects
- Dimming: 0~100%
- Strobe: 0.6~22 Hz
- Zoom: 6° – 60°
Movement
- 8 / 16 – bit, auto-reposition
- Pan: 360°/540°/ 630°
- Tilt: 90°/180°/270°
- Limit mode: centre/corner/edge
Power
- Input Voltage: 100~240V AC, 50/60 Hz
- Power Consumption: 99W
- Connection: Powercon in
- Fuse: T2A, 250V
Control
- Protocol: DMX512
- Operation modes: DMX, auto, manual, sound active, master/slave
- DMX Channels: 15 / 13
- Interface: 3-pin XLR in & out
- Display: 4-button 1.44 inch LCD display control panel
Housing
- Materials: Metal & Flame retardant ABS
- Finishing: Matte black
- Cooling: Fan
- IP rating: IP20
- Net Weight: 4 kg
- Rigging: 1x omega bracket with ¼ turn quick locks
Warranty
Please refer to your local dealer or please contact Event Lighting Pty Ltd.
