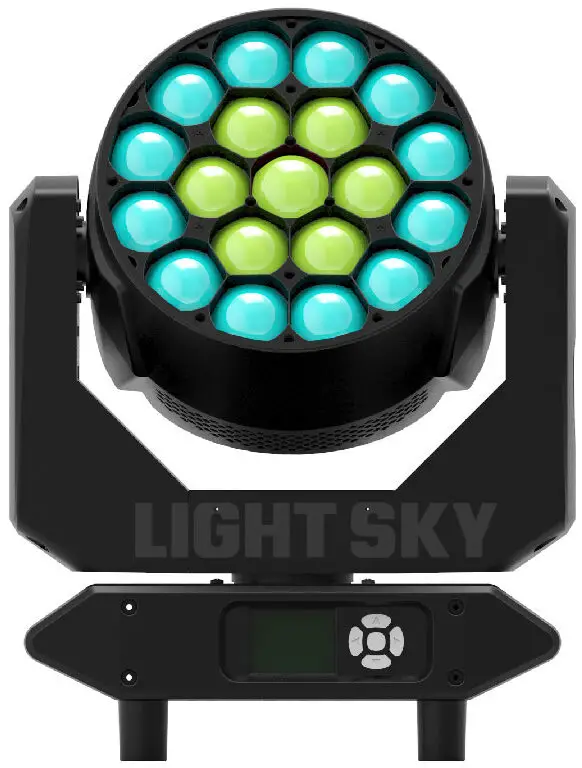

LIGHT SKY TX1920-HC High BrigHtness LED Zoom Moving Head
CHANNEL FUNCTION
| Channel | DMX | Percentage | Function | Note |
| 1 | 0 – 255 | 0 – 100 | Pan | |
| 2 | 0 – 255 | 0 – 100 | Pan fine | |
| 3 | 0 – 255 | Tilt | ||
| 4 | 0 – 255 | 0 – 100 | Tilt fine | |
| 5 | 0 – 255 | 0 – 100 | P/T Speed | |
|
6 | Function | |||
| 0 – 10 | Reserved | |||
| 11 — 20 | Total reset | |||
| 21 — 30 | Pan/Tilt reset | |||
| 31 — 40 | Zoom reset | |||
| 41 — 50 | Silent mode | |||
| 51 — 60 | Standard mode | |||
| 61 — 70 | Hot mode | |||
| 71 — 80 | Pan invert on | |||
| 81 — 90 | Tilt invert on | |||
| 91 — 100 | P/T invert off | |||
| 101 — 110 | PT swap on | |||
| 111 — 120 | PT swap off | |||
| 121 — 130 | Backlight time Always | |||
| 131 — 140 | Backlight time Auto | |||
| 141 — 150 | Linear | |||
| 151 — 160 | Square | |||
| 161 — 170 | I-Square | |||
| 171 — 180 | Scurve | |||
| 181 — 190 | Led Hz 3000HZ | |||
| 191 — 200 | Led Hz 6000HZ | |||
| 201 — 210 | Led Hz 12000HZ | |||
| 211 — 220 | Led Hz 24000HZ | |||
| 221 — 230 | Dimmer Speed Fade | |||
| 231 — 240 | Dimmer Speed Snap | |||
| 241 — 255 | Reserved | |||
| 7 | 0 – 255 | 0 – 100 | Dimmer | |
| 8 | 0 – 255 | 0 – 100 | Dimmer fine | |
|
9 | Strobe | |||
| 0 – 9 | Reserved | |||
| 10 – 199 | Strobe-effect from slow to fast | |||
| 200 – 249 | Random strobe-effect from slow to fast | |||
| 250 – 255 | Reserved | |||
| 10 | 0 – 255 | 0 – 100 | Cold white | |
| 11 | 0 – 255 | 0 – 100 | Warm white | |
| 12 | 0 – 255 | 0 – 100 | CCT | |
| 13 | 0 – 255 | 0 – 100 | Zoom |
