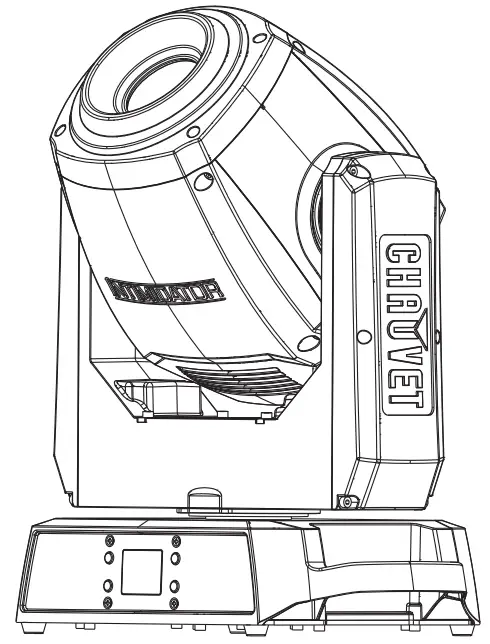

DJ Intimidator Spot 360X IP
User Guide
About This Guide
The Intimidator Spot 360X IP Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdi.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers In the United States and Mexico: www.chauvetlighting.com/warrantv-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warrantv-registration. Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use and maintenance.
ONLY connect this product to a grounded and protected circuit.- DISCONNECT from power before cleaning or replacing the fuse.
- DO NOT look at the light source when the product is on.
- Make sure the power cord is not crimped or damaged.
- Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, ALWAYS use a safety cable.
- DO NOT allow flammable materials close to the product when it is operating.
- DO NOT touch the product’s housing when it is on because it will be hot. The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- DO NOT open this product. It contains no user-serviceable parts.
- DO NOT submerge this product (IP65). Regular outdoor operation is fine.
- Not for permanent outdoor installation in locations with extreme environmental conditions.
This includes, but is not limited to: - Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
- Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
- Locations that are prone to flooding or being buried in snow.
- Other areas where the product will be subject to extreme radiation or caustic substances
- Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit’s housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
- The maximum ambient temperature is 104 T (40 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
This includes, but is not limited to:Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
- Intimidator Spot 360X IP
- Flanging bracket
- Power cord
- Quick Reference Guide
To Begin Unpack your Intimidator Spot 360X IP and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate wear and Improve Its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Power Linking
It is possible to power link up to 5 Intimidator Spot 360X IP products on 120 V or 9 products on 230 V. Never exceed this number. Power-linking cords can be purchased separately.
Fuse Replacement
- Disconnect the product from power.
- Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
- Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the Safety Notes.

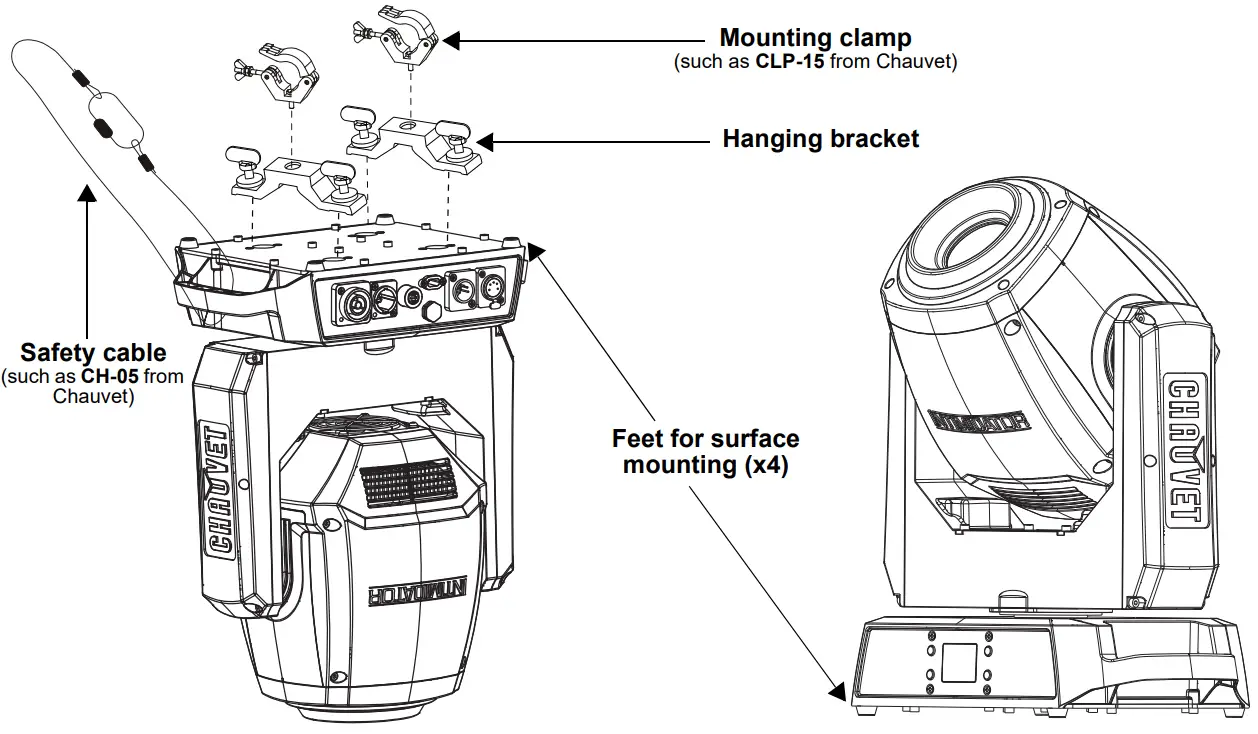

Mounting Diagram
Control Panel Description
| Button | Function |
| <MENU> | Exits from the current menu or function |
| <UP> | Navigates upwards through the menu list and increases the numeric value when in a function |
| <DOWN> | Navigates downwards through the menu list and decreases the numeric value when in a function |
| <ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function |
Menu Map
Refer to the Intimidator Spot 360X IP product page on www.chauvetdj.com for the latest menu map.
| Main Level | Programming Levels | Description | ||
| Address | 001-512 | Sets the DMX startin g address | ||
| Run Mode | DMX | 14CH | Selects DMX mode | |
| 8CH | ||||
| Slave | Slavel-4 | Selects Slave mode 1, 2, 3, or 4 | ||
| Auto | Selects Auto mode | |||
| Sound | Selects Sound-Active mode | |||
| RF | RF 1-4 | Sets the product to work with the RFC-XL remote in group 1, 2, 3, or 4 (RF remote must be bound to the product first) | ||
| RFP | Sets the product to work with public RF signal | |||
| Manual | Pan | 000-255 | Manual pan control | |
| Tilt | Manual tilt control | |||
| Color | Manual color control | |||
| Gobo | Manual rotating gobo control | |||
| Gobo Rotate | Manual gobo rotation control | |||
| Prism | Manual prism control | |||
| Focus | Manual focus control | |||
| Dimmer | Manual dimmer control | |||
| Shutter | Manual shutter control | |||
| Setup | Pan Reverse | OFF | Normal pan operation | |
| ON | Reverse pan operation | |||
| Tilt Reverse | OFF | Normal tilt operation | ||
| ON | Reverse tilt operation | |||
| Screen Reverse | OFF | Normal display | ||
| ON | Reverse display | |||
| AUTO | Automatic display orientation | |||
| Pan Angle | 540 | Selects the 540° pan angle range | ||
| 360 | Selects the 360° pan angle range | |||
| 180 | Selects the 180° pan angle range | |||
| Tilt Angle | 270 | Selects the 270° tilt angle range | ||
| 180 | Selects the 180° tilt angle range | |||
| 90 | Selects the 90° tilt angle range | |||
| Totem Mode | OFF | Does not restrict the pan and tilt motion | ||
| UP | Restricts the pan and tilt motion for overhead mounting | |||
| DOWN | Restricts the pan and tilt motion for surface/floor mounting | |||
| Sensitivity | 001-100 | Sets sound sensitivity | ||
| DMX Loss | Hold | Holds the last setting when signal is lost | ||
| Black | Blacks out the product when signal is lost | |||
| Auto | Sets the unit to Auto mode when signal is lost | |||
| Sound | Sets the unit to Sound mode when signal is lost | |||
| USB Update | Yes | Enables/disables software update through USB-C | ||
| No | ||||
| RF | Bind | Shows instructions on how to bind the RF remote to the product | ||
| Reset | Resets the product | |||
| Factory Set | Loads factory defaults | |||
| Sys Info | Ver: | V | Displays the firmware version | |
| Running Mode: | Displays the current running mode | |||
| DMX Address: | Displays the current DMX address | |||
| Temperature: | Displays the current product temperature | |||
| LED FAN: | Displays LED fan information | |||
| Base Fan1: | Displays base fan information | |||
DMX Linking
The Intimidator Spot 360X IP can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 499.
Master/Slave Connection
The Intimidator Spot 360X IP uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Spot 360X IP for Master/Slave operation is in the User Manual, which is available from the Chauvet website.
RF Remote
The Intimidator Spot 360X IP can be operated with the CHAUVET RFC or RFC-XL remotes. For more information about the RF Remote, download instructions for the Intimidator Spot 360X IP User Manual from www.chauvetdj.com.

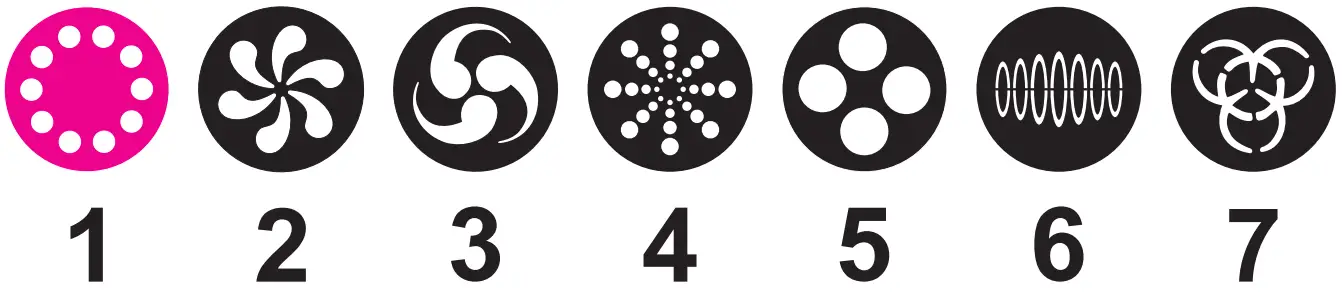

Gobos
DMX Values
| 8Ch | 14Ch | Function | Value | Percent/Setting |
| 1 | 1 | Pan | 000  255 | 0-540′ |
| – | 2 | Pan fine | 000 255 | Fine control of panning |
| 2 | 3 | Tilt | 000 255 | 0-270′ |
| – | 4 | Tilt fine | 000 255 | Fine control of tilting |
| – | 5 | Pan/tilt speed | 000 255 | Pan/Tilt speed. fast to slow |
| 3 | 6 | Color wheel | 000 006 | White |
| 007 013 | Red | |||
| 014 020 | Orange | |||
| 021 027 | Yellow | |||
| 028 034 | Green | |||
| 035 041 | Blue | |||
| 042 048 | CTO | |||
| 049 055 | Cyan | |||
| 056 062 | Magenta | |||
| 063 064 | White | |||
| 065 189 | Color indexing | |||
| 190 221 | Color cycling rainbow. fast to slow | |||
| 222 223 | Stop | |||
| 224 255 | Reverse color cycling rainbow, slow to fast | |||
| 4 | 7 | Gobo wheel (see (Mbns) | 000 007 | Open |
| 008 015 | Gobo 1 | |||
| 016 023 | Gobo 2 | |||
| 024 031 | Gobo 3 | |||
| 032 039 | Gobo 4 | |||
| 040 047 | Gobo 5 | |||
| 048 055 | Gobo 6 | |||
| 056 063 | Gobo 7 | |||
| 064 071 | Gobo 7 shake slow to fast | |||
| 072 079 | Gobo 6 shake slow to fast | |||
| 080 087 | Gobo 5 shake slow to fast | |||
| 088 095 | Gobo 4 shake slow to fast | |||
| 096 103 | Gobo 3 shake, slow to fast | |||
| 104 111 | Gobo 2 shake, slow to fast | |||
| 112 119 | Gobo 1 shake. slow to fast | |||
| 120127 | Open | |||
| 128 189 | Cycle effect. slow to fast | |||
| 190 193 | Stop | |||
| 194 255 | Reverse cycle effect slow to fast | |||
| 5 | 8 | Gobo rotation | 000 063 | Gobo indexing |
| 064 145 | Gobo rotation. slow to fast | |||
| 146 149 | Stop | |||
| 150 231 | Reverse gobo rotation. slow to fast | |||
| 232 255 | Gobo bounce. short to long |
| 6 | 9 | Prism | 000 003 | No function |
| 004 4D 006 | 3-facet prism | |||
| 007 065 | Prism rotation. slow to fast | |||
| 660123 | Reverse prism rotation. slow to fast | |||
| 124127 | 3-facet prism | |||
| 128 131 | No function | |||
| 132134 | 5-facet prism | |||
| 135 193 | Prism rotation. slow to fast | |||
| 194251 | Reverse prism rotation. slow to fast | |||
| 252255 | 5-facet prism | |||
| 7 | 10 | Focus | 000255 | Focus |
| – | 11 | Dimmer | 000255 | 0-100% |
| 8 | 12 | Strobe | 000 003 | Off |
| 004 007 | On | |||
| 008076 | Strobe. slow to fast | |||
| 077145 | Pulse strobe. slow to fast | |||
| 146215 | Random strobe. slow to fast | |||
| 216225 | On | |||
| – | 13 | Function | 000 007 | No function |
| 008 015 | Blackout on pan/tilt movement | |||
| 016 023 | Blackout on color wheel movement | |||
| 024031 | Blackout on gobo wheel movement | |||
| 032.039 | Blackout on paratitUcolor wheel movement | |||
| 040047 | Blackout on pan/tilt/gobo wheel movement | |||
| 048 055 | Blackout on peNtilticolor wheel/gobo wheel movement | |||
| 056 095 | No function | |||
| 096 103 | Pan reset | |||
| 104111 | Tit reset | |||
| 112119 | Color wheel reset | |||
| 120 127 | Gobo wheel reset | |||
| 128 • 135 | No function | |||
| 136143 | Prism reset | |||
| 144 m 151 | Focus reset | |||
| 152159 | All reset | |||
| 160255 | No function | |||
| – | 14 | Movement macros | 000007 | No function |
| 008 023 | Movement macro 1 | |||
| 240039 | Movement macro 2 | |||
| 040 055 | Movement macro 3 | |||
| 056.071 | Movement macro 4 | |||
| 072087 | Movement macro 5 | |||
| 088.103 | Movement macro 6 | |||
| 104119 | Movement macro 7 | |||
| 120135 | Movement macro 8 | |||
| 136151 | Sound-active movement macro 1 | |||
| 152167 | Sound-active movement macro 2 | |||
| 168183 | Sound-active movement macro 3 | |||
| 184199 | Sound-active movement macro 4 | |||
| 200215 | Sound-active movement macro 5 | |||
| 216231 | Sound-active movement macro 6 | |||
| 232247 | Sound-active movement macro 7 | |||
| 248255 | Sound-active movement macro 8 |
Contact Us
General Information Technical Support
Chauvet World Headquarters
Address. 5200 NW 108th Ave. Sunrise, FL 33351
Voice: (954) 577-4455
Fax: (954) 929-5560
Toll Free: (800) 762-1084
Voice: (844) 393-7575 Fax: (954) 756-8015
Email. [email protected]
Website: www.chauveta.com
Chauvet U.K.
Address: Unit 1C Brookhill Road Industrial Estate
Pinxton, Nottingham. UK NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Email: [email protected]
Website: www.chauvetdi.eu
Chauvet Benelux
Address: Stokstraat 18 9770
Kruishoutem Belgium Voice: +32 9 388 93 97
Email: [email protected]
Website: www.chauvetdi.eu
Chauvet France
Address: 3. Rue Ampere 91380 Chilly-Mazarin France Voice: +33 1 78 85 33 59
Email: [email protected]
Website: www.chauvetdi.eu
Chauvet Germany
Address: Bruno-BUrgel-Str. 11 28759
Bremen Germany Voice: +49 421 62 60 20
Email: [email protected]
Website: www.chauvetdi.eu
Chauvet Mexico
Address: Av. de las Partidas 34 – 38 (Entrance by Calle 2)
Zona Industrial Lerma Lerma, Edo. de Mexico. CP 52000 Voice: +52 (728) 690-2010
Email: serviciolachauvet.com.mx
Website: www.chauvetdi.mx
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.
Follow the instructions to request support or to return a product. Visit our website for contact details.
Intimidator Spot 360X IP QRG ML6 Rev. 1
© Copyright 2022 Chauvet All rights reserved
