Zenitel A100k12187 Ip Desk Master Stations User Guide

IP Desk Master Stations
Getting Started Guide

A100K12187 IP Desk Master Stations

About
This document serves as a quick configuration guide for the IP Desk Master Stations.
The information in this document pertains to following IP Stations:

For more information and instructions on configuration of the IPDM-V2_P please go to https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P.
For more information and instructions on configuration of the IPDMH-V2_P and IPDMHB-V2_P please go to
https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P_w/handset.

Installation

Network Connection & Power Supply
There is one RJ45 port on the IP Desk Master Station. (10/100 Mbps RJ45 port for LAN (uplink) connection). The LAN port serves as both network and Power over Ethernet (PoE) connection.
The IP Station must be connected to a switch/hub which supports PoE.

Configuration

The station can operate in different modes: ICX-AlphaCom, Edge and SIP.
The default mode is Edge. The description in the rest of this document uses the ICX-AlphaCom mode as an example.
There are two ways of configuring the IP Desk Master Station, either via the station keypad or via a web browser.
For ICX-AlphaCom configuration, there are essentially three parameters set:

• ICX-AlphaCom IP address
• Station directory number
• Station IP address

Configuration via Station Keypad

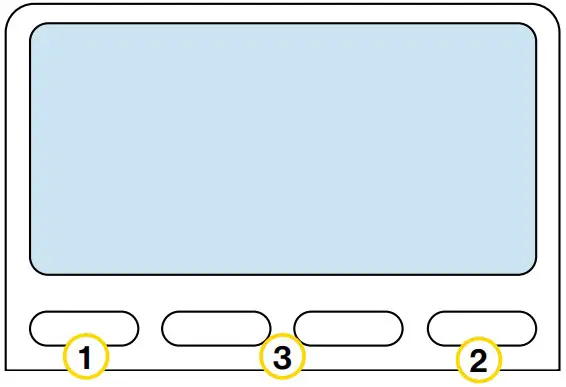

When the IP Desk Master Station is not connected to the ICX-AlphaCom server, an offline menu is displayed. The offline menu can be used to configure the station and is navigated with the 4 keys below the display.

1. The left key is used as a Setup, Select or OK key.
2. The right key is used as a Esc or Back key.
3. The middle keys are used to navigate according to the arrows on the display.

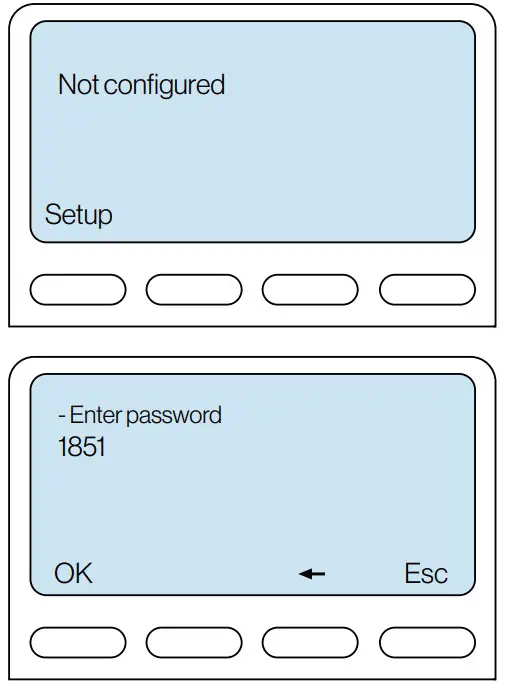

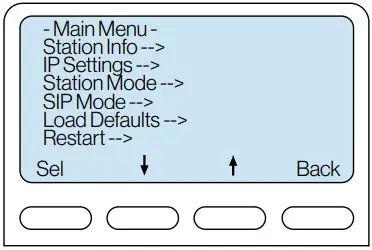

The Main Menu
To enter the setup menu:

1. Press the Setup key
2. Enter the default password 1851 by using the station keypad
3. Press the OK key

A menu with six options will be displayed. Use the two arrow keys in the middle to navigate through the menu options. Press the Sel key to select the menu option and the OK key to confirm data entered. When entering data the left arrow is used for deleting characters.

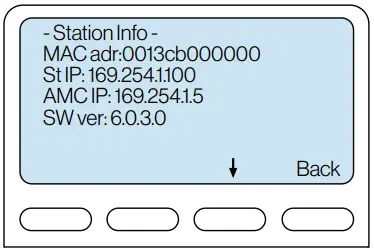

Station Info
This shows the station MAC and IP addresses, the configured ICXAlphaCom address and software version.

IP Settings
Choose between DHCP and STATIC IP address. If STATIC IP is chosen, it is possible to configure the IP address, mask and gateway.

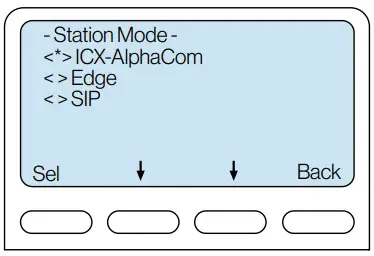

Station Mode
Select Station Mode followed by ICXAlphaCom

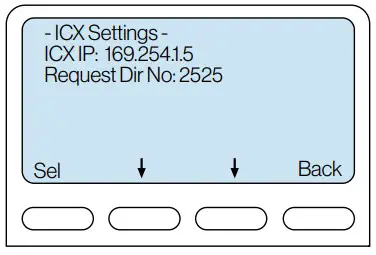

ICX Settings
Set the IP address of ICX-AlphaCom that the station shall connect to, and the directory number of the station. Id A directory number is not entered the station will register with its MAC address.

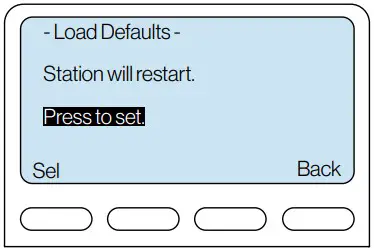

Load Defaults
This will load the factory default settings.
Press Sel key to load the default settings.

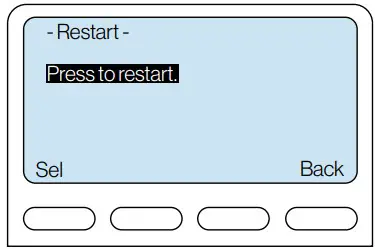

Restart
This will restart the station. Press Sel tore start the station. Restarting the station will apply the new settings.

Configuration via Web Browser

IP Desk Master Station Web Interface
The IP Desk Master Station features an embedded web server, which allows users to login via a standard web browser. At commissioning, the IP station needs to be configured to enable it to subscribe to an ICXAlphaCom server. Connect a PC to the IP station via a PoE switch by using network cables.
By default, the station is set to DHCP an will thus obtain an IP address from a DHCP server. Obtain the actual IP address of the station by performing the method described in the previous section under the heading Station Info.

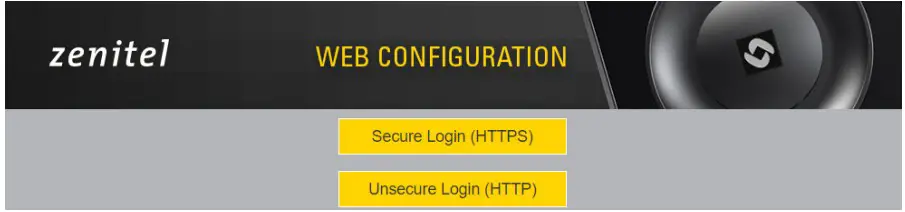

After the IP properties have been updated, access the station by logging into the web interface using a standard web browser:

1. Open a web browser
2. In the browser’s address bar, type IP address as listed in the Station Info screen. The station login page will be displayed.

3. Log into the station by clicking Login. Default username/password: admin/alphaadmin.

The Station Information page will now be displayed, showing the IP station configuration.

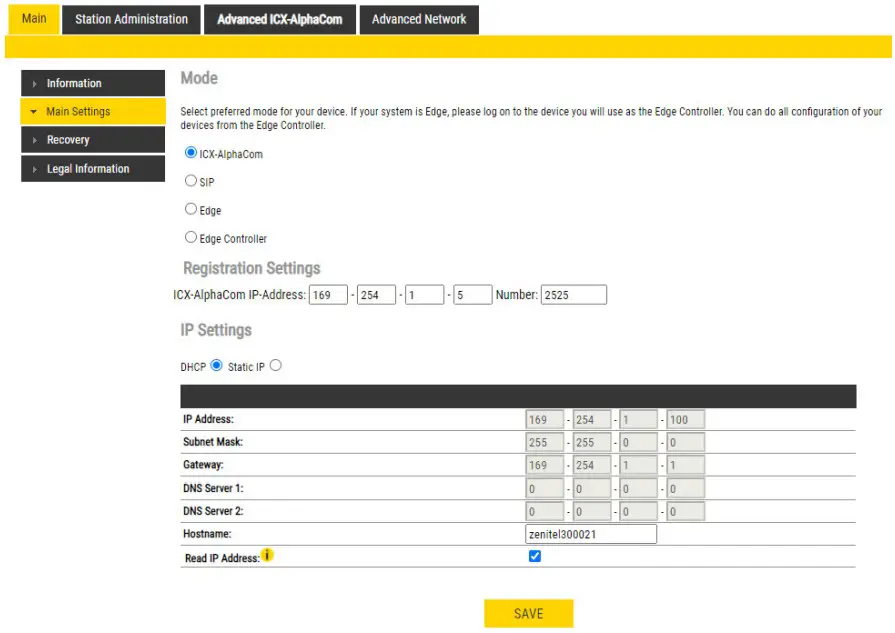

Station Main Settings

1. Click Station Main > Main Settings to access the page for configuring station mode and IP parameters.

2. Under Mode, select ICX-AlphaCom.
3. Registration Settings. Enter the IP address of the ICX-AlphaCom server in which the IP station is to be a subscriber in the ICX-AlphaCom IP-addresses field. Then enter the directory of the station in the Directory Number field.
   If a directory number is not entered, the station will register with its MAC address. The MAC address is found on the Station Information page and needs to be entered into the AlphaPro programming tool.
4. IP Settings:
   • DHCP – Use this option if the station shall obtain an IP address from a DHCP server.
   • Static IP – Use this option if the IP station shall use a static IP address. Enter values for IP-address, Subnet-mask, Gateway.

Click Save followed by Apply to apply the new configuration settings.
Go to https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P, or scan the QR-code below for more instructions on how to set up and configure the IPDM-V2_P.Go to https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P_w/handset, or scan the QR-code below for more instructions on how to set up and configure the IP Desk Master with Handset V2_P.
