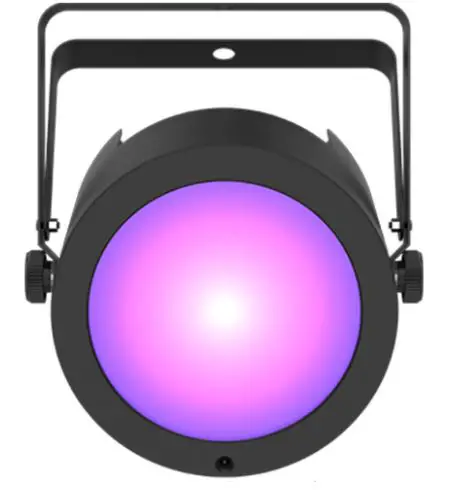

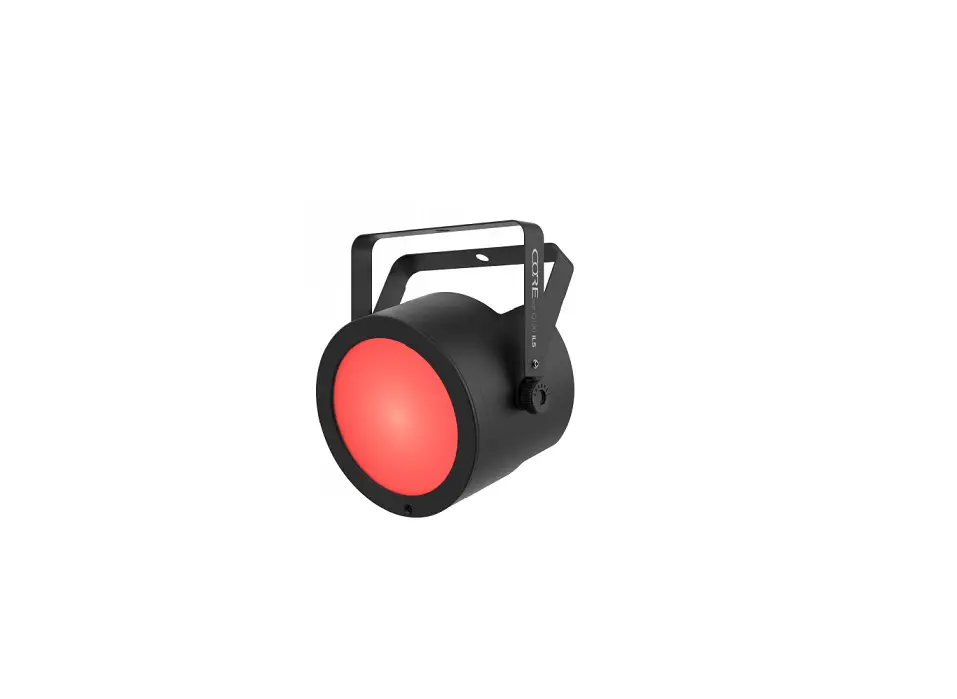

CHAUVET DJ COREpar Q120 ILS Light
About This Guide
The COREpar Q120 ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice
LIMITED WARRANTY
- FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
- For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
- For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
- Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED
- WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
- Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- ONLY connect this product to a grounded and protected circuit.
- DISCONNECT from power before cleaning or replacing the fuse.
- DO NOT look at the light source when the product is on.
- Make sure the power cord is not crimped or damaged.
- Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, ALWAYS use a safety cable.
- DO NOT allow flammable materials close to the product when it is operating.
- DO NOT touch the product’s housing when it is on because it will be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
- Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit’s housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Replace the fuse with the same type and rating.
- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
- The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
- DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
- COREpar Q120 ILS
- Magnetic lens
- Power cord
- Quick Reference Guide
To Begin
Unpack your COREpar Q120 ILS to make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it
Fuse Replacement
- Disconnect the product from power.
- Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
- Pry the safety cap out of the housing.
- Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the Safety Notes.

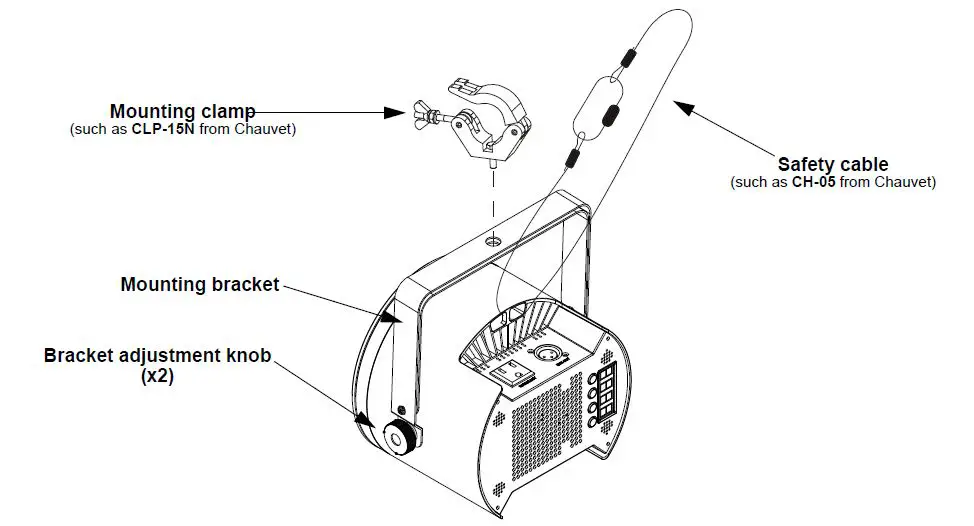

Mounting Diagram
Control Panel Description
| Button | Function |
| <MENU> | Exits from the current menu or function |
| <UP> | Navigates upwards through the menu list and increases the numeric value when in a function |
| <DOWN> | Navigates downwards through the menu list and decreases the numeric value when in a function |
| <ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function |
Menu Map
Refer to the COREpar Q120 ILS product page on www.chauvetdj.com for the latest menu map.
| Main Level | Programming Levels | Description | |||
| 4-Ch | d 1–509 | 4-channel DMX mode | |||
| 9-Ch | d 1–504 | 9-channel DMX mode | |||
| iLS | iLS 1–4 | Sets ILS mode | |||
| 1: Red | 2: Green | 3: Blue 4: White | |||
| 5: Yellow | 6: Magenta | 7: Light Pink 8. Cyan | |||
| 9: Mint green | 10: High Power White | 11: Sol 12: Seafoam | |||
| C– (Static color) | C 1–29 | 13: Turquoise 17: Lime | 14: Orange 18: Ocean | 15: Baby Blue 16: Hot Pink 19: Baby Pink 20: Goldenrod | |
| 21: Sky | 22: Lavender | 23: Faded Orange 24: Fuschia | |||
| 25: 2700K | 26: 3500K | 27:4000K 28: 5000K | |||
| 29: 6000K | |||||
| P– (Automatic program) | P 1 | 4-color snap | |||
| P 2 | 4-color pulse | ||||
| P 3 | 29-color snap | ||||
| P 4 | 29-color pulse | ||||
| S– | S. 1–100 | Automatic program speed | |||
| Snd (Sound-active) | Snd1 | 4-color snap | |||
| Snd2 | 29-color snap | ||||
| SEnS | u 0–100 | Sound sensitivity | |||
| u– (Custom color) | r. 0–255 | Combine red, green, blue, and white for a custom static color | |||
| g. 0–255 | |||||
| b. 0–255 | |||||
| w. 0-255 | |||||
| diM (Dimmer speed) | oFF | Sets the dimmer speed | |||
| diM1 | |||||
| diM2 | |||||
| diM3 | |||||
| SEt (Infrared) | ir | on | Enables/disables infrared control | ||
| off | |||||
| rESt | yes | Reset to factory default | |||
| no | |||||
| Temp | Shows the temperature | ||||
DMX Linking
The COREpar Q120 ILS can work with a DMX controller. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 504.
Master/Slave Connection
The COREpar Q120 ILS uses the DMX data connection and ILS for its Master/Slave mode.
IRC-6
The COREpar Q120 ILS can be operated with the CHAUVET Infrared Remote Control (IRC-6). For more information about the IRC-6, download instructions for the IRC-6 or the COREpar Q120 ILS User Manual from www.chauvetdj.com.
| Button | Function |
| <BLACKOUT> | Turns LEDs on/off |
| <AUTO> | Enables snap and fade modes |
| <SOUND> | Enables sound active mode |
| <SPEED> | Increases and decreases speed |
| <SENSITIVITY> | Adjusts sound sensitivity |
| <FADE> | Fade program |
| <STROBE> | Adjusts strobe speed |
| <%> | Adjusts brightness |
| <R,G,B,W> | Adjust percentage of red, green, blue, and white colors |
| <0>–<9> | 1:C1 2:C20 3:C5 4:C2 5:C8 6:C3 7:C23 8:C6 9:C11 0:C4 |
| <+> | Increases values for controls as described above |
| <-> | Decreases values for controls as described above |
D-Fi USB Connectivity
The COREpar Q120 ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product’s DMX Personality and DMX Address.
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.
Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:
- D-Fi USB
- Wired DMX
- IRC-6 Remote Control
- Manual Digital Display/Menu Buttons
Master/Slave Mode (D-Fi USB)
The D-Fi USB allows a single COREpar Q120 ILS product (the “master”) to control the actions of one or more COREpar Q120 ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product. Configure the products as indicated below.
Slave products:
- Press <MENU> repeatedly until 9-Ch shows on the display.
- Press <ENTER>.
- Use <UP> or <DOWN> to set the starting address to d 1.
- Press <ENTER>.
- Set the D-Fi USB to receive on a specific channel, 1–16.
- Plug in the D-Fi USB.
- Finish setting and connecting all the slave products.
Master product:
- Set the master product to operate in standalone mode.
- Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
- Plug in the D-Fi USB.
All products must be set to the same DMX personality, DMX address, and D-Fi channel.
Configure all the slave products before configuring the master to transmit.
Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.
ILS Mode
ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode.
This product will synchronize with the par effect on the selected side of the GigBAR MOVE+ILS.
To set the COREpar Q120 ILS to respond to an ILS signal:
- Press <MENU> repeatedly until iLS_ shows on the display.
- Use <UP> or <DOWN> to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
- Press <ENTER>
DMX Values
| 4-Ch | 9-Ch | Function | Value | Percent/Setting |
| 1 | 1 | Red | 000 ó 255 | 0–100% |
| 2 | 2 | Green | 000 ó 255 | 0–100% |
| 3 | 3 | Blue | 000 ó 255 | 0–100% |
| 4 | 4 | White | 000 ó 255 | 0–100% |
| – | 5 | Color macros | 000 ó 010 | No function |
| 011 ó 255 | Color macros | |||
|
– |
6 | Strobe (when Ch. 7 is 000ó031) | 000 ó 015 | No function |
| 016 ó 255 | Strobe (slow to fast) | |||
| Program speed (when Ch. 7is 032ó223) | 000 ó 255 | Program speed, slow to fast | ||
| Sound sensitivity (when Ch. 7is 224ó255) | 000 ó 010 | Sound sensitivity off | ||
| 011 ó 255 | Sound sensitivity, low to high | |||
|
– |
7 |
Auto program | 000 ó 031 | No function |
| 032 ó 063 | Pulse effect, 0–100% (when Ch. 1-4 are active) | |||
| 064 ó 095 | Pulse effect, 100–0% (when Ch. 1-4 are active) | |||
| 096 ó 127 | Pulse effect, 100–0–100% (when Ch. 1-4 are active) | |||
| 128 ó 159 | Automatic 4-color pulse | |||
| 160 ó 191 | Automatic 4-color snap | |||
| 192 ó 223 | Automatic 29-color snap | |||
| 224 ó 255 | Sound-active 29-color snap | |||
| – | 8 | Dimmer | 000 ó 255 | 0–100% |
|
– |
9 |
Dimmer speed | 000 ó 051 | Dimmer speed set from display menu |
| 052 ó 101 | Dimmer speed mode off | |||
| 102 ó 152 | Dimmer speed mode 1 (fast) | |||
| 153 ó 203 | Dimmer speed mode 2 (medium) | |||
| 204 ó 255 | Dimmer speed mode 3 (slow) |
Contact Us
Chauvet World Headquarters
Address: 3360 Davie Rd. Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015
Voice: (954) 577-4455
Email: [email protected]
Fax: (954) 929-5560
Toll Free: (800) 762-1084
Website: www.chauvetdj.com
Chauvet U.K.
Address: Unit 1C Email: [email protected]
Brookhill Road Industrial Estate Pinxton, Nottingham,
UK Website: www.chauvetdj.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Chauvet Mexico
Address: Av. de las Partidas 34 – 3B (Entrance by Calle 2)
Email: [email protected]
Zona Industrial Lerma
Website: www.chauvetdj.mx
Lerma, Edo. de México, CP 52000
Voice: +52 (728) 690-2010
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record
COREpar Q120 ILS QRG ML6 Rev. 5
© Copyright 2022 Chauvet
All rights reserved
