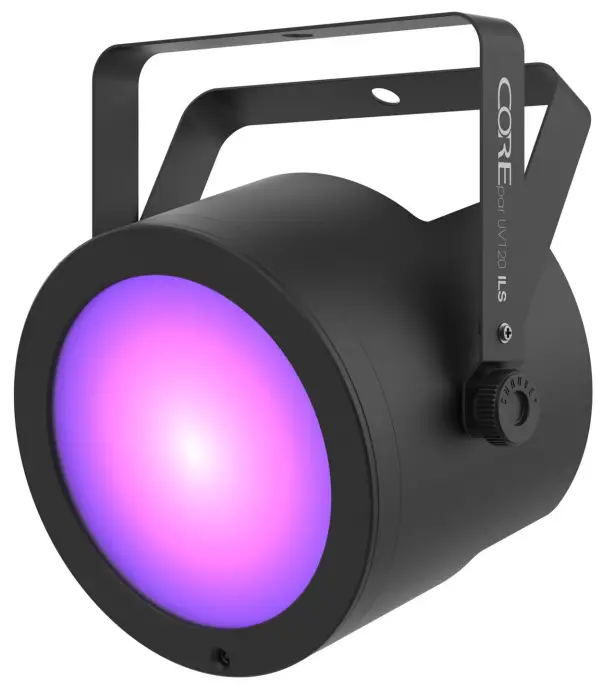

Chauvet Dj Corepar Uv120 Ils Stage Light User Manual

COREpar UV120 ILS Stage Light

User Manual

Before You Begin

What Is Included

• COREpar UV120 ILS
• Power cord
• Magnetic lens
• Quick Reference Guide

Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Symbols

Symbol	Meaning
	Electrical warning. Not following these instructions may cause electrical damage to the product, accessories, or the user.
	Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator.
	Important installation or configuration information. The product may not function correctly if this information is not used.
	Useful information.

Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com.

Intellectual Property
The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet.
© Copyright 2023 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and COREpar UV120 ILS are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

Safety Notes
ALWAYS:

• Connect to a grounded circuit.
• Connect to operating voltages as specified on the product’s spec sticker.
• Disconnect from power before replacing the fuse.
• Disconnect from its power source during periods of inactivity.
• Use a safety cable when suspending overhead.
• Heed all restrictions and warnings on the spec sticker.
• Mount in a location with at least 20 in (50 cm) of ventilation.
• Replace the fuse with the same type and rating.
• Use a clamp with a captive bolt when a single hanging bracket is used.

Inthe event of a serious operating problem, stop using immediately.
 DO NOT:

• Open this product or attempt any repairs. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Use if the power cord is crimped or damaged.
• Disconnect by pulling on the power cord.
• Allow flammable materials close to the product when it is operating.
• Touch the housing when it is on.
• Block any ventilation holes/slots in the housing.
• Connect to a dimmer or rheostat.
• Carry the product by its power cord.
• Operate in temperatures higher than 104°F (40°C).
• Expose to environments that exceed the Ingress Protection (IP) rating.
• Expose to rain or moisture.
• Use outdoors.
• Submerge.
• Leave outdoors for extended periods of time.
• Expose to corrosive environmental conditions such as temperature, humidity, salinity,
• pressure, radiation, or shock.
• Set this product on a flammable surface.

  Keep this User Manual for future use.

Introduction

Product Overview

Product Dimensions

Setup

AC Power
The COREpar UV120 ILS has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s average current draw under normal conditions.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of nonuse completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Power Linking
The product provides power linking via the Edison outlet located in the back of the product. Please see the diagram below for further explanation.

Power-Linking Diagram

It is possible to power link up to 5 COREpar UV120 ILS products on 120 VAC or up to 9 COREpar UV120 ILS products on 230 VAC.
ONLY! If using the product in other markets, consult with the local Chauvet distributor,
The power-linking diagram corresponds to the North American version of the product  as power-linking connectors and requirements may differ by country or region.

Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The COREpar UV120 ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product.

Rigging

• Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes.
• Make sure that the structure onto which the product is being mounted can support the product’s weight (see the Technical Specifications for weight information).
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power-linking cables to reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.

Mounting Diagram

Operation

Control Panel Operation
To access the control panel functions, use the four buttons located next to the display. Please refer to the Product Overview to see the button locations on the control panel.

Menu Map
Refer to the COREpar UV120 ILS product page on www.chauvetdj.com for the latest menu map.

Configuration (DMX)

The COREpar UV120 ILS works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website: www.chauvetdj.com.
DMX Personality and Starting Address
When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. Choosing a starting address that is too high could restrict the access to some of the product’s channels.
The COREpar UV120 ILS uses up to 5 DMX channels in a 5Ch DMX mode, which defines the highest configurable address to 508.
For more information about the DMX protocol, download the DMX Primer from: www.chauvetdj.com.
To select the starting address, do the following:

1. 1. Press <MENU> repeatedly until 1Ch or 5Ch shows on the display.
2. Press <ENTER> and d 1-512 will show on the display.
3. Use <UP> or <DOWN> to select the starting address.
4. Press <ENTER>.

D-Fi USB Connectivity
The COREpar UV120 ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product’s DMX Personality and DMX Address, set the DIP switch DFi receiving/transmitting channel, then plug it into the D-Fi USB port.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.
Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control / menu buttons will be unavailable until the D-Fi USB in unplugged.
The priority levels are:

1. D-Fi USB
2. Wired DMX
3. Manual Digital Display/Menu Buttons

D-Fi USB Compatibility
The D-Fi USB can receive a DMX signal from the D-Fi Hub and the FlareCON Air 2 as well as other D-Fi USB products.
Configuration (D-Fi USB)

1. Set the DMX Personality and DMX address on the COREpar UV120 ILS.
2. Use the Chart provided to set BOTH:
   • the Channel, and then
   • The Receiving or Transmitting option

[4 DIP Switch 5 is for Transmitting OR Receiving, please choose carefully.
D-Fi USB DIP Switch Channels

DMX Values

Configuration (Standalone)

Set the product in one of the standalone modes to control without a DMX controller.
Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller.

Automatic Programs
To run the COREpar UV120 ILS in automatic mode, follow the instructions below:

1. Press <MENU> repeatedly until P— shows on the display.
2. Press <ENTER>. 3. Use <UP> or <DOWN> to select an automatic program, from P 1-3.
3. Press <ENTER>.

Auto-Program Speed
To change the auto-program speed on the COREpar UV120 ILS, do the following:

1. Press <MENU> repeatedly until S— shows on the display.
2. Use <UP> or <DOWN> to increase or decrease the program speed, from S. 1-100.
3. Press <ENTER>. The product will return to the last selected mode.

Sound-Active Programs
To run the COREpar UV120 ILS with a sound-active program, follow the instructions below.

1. Press <MENU> repeatedly until Snd shows on the display.
2. Use <UP> or <DOWN> to set the Sound-Active program, from Snd1 to Snd2.
3. Press <ENTER>.

Sound Sensitivity
To set the sound sensitivity on the COREpar UV120 ILS, do the following:

1. Press <MENU> repeatedly until SenS shows on the display.
2. Use <UP> or <DOWN> to increase or decrease the sound sensitivity, from u 0-100.
3. Press <ENTER>.

Dimmer Curve
To set the dimmer curve, follow the instructions below:

1. Press <MENU> repeatedly until diM shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to set the dimmer curve, from oFF to diM1-3, with diM1 as the fastest and diM3 as the slowest.
4. Press <ENTER>.

Factory Reset
To reset the COREpar UV120 ILS to default factory settings, follow the instructions below:

1. Press <MENU> repeatedly until SEt shows on the display. Press <ENTER>.
2. Use <UP> or <DOWN> to select rESt. Press <ENTER>.
3. Use <UP> or <DOWN> to select yes (resets product to factory default) or no (keep current settings).
4. Press <ENTER>.

Temperature
To view the current temperature of the COREpar UV120 ILS, follow the instructions below:

1. Press <MENU> repeatedly until Temp shows on the display.
2. Press <ENTER>.

IRC-6 Infrared Remote Control
The COREpar UV120 ILS can be operated with the CHAUVET IRC-6. To enable IR wireless control, follow the instructions below.

1. Press <MENU> repeatedly until SEt shows on the display.
2. Press <ENTER>.
3. Press <UP> repeatedly until it shows on the display.
4. Press <ENTER>.
5. Press <UP> repeatedly until on shows on the display.
6. Press <ENTER>.

IRC-6 Operation

Automatic Mode
To turn on Automatic mode with the IRC-6:
1. Press on the IRC-6.
Sound-Active Mode
To turn on Sound-Active mode with the IRC-6:
1. Press on the IRC-6.
To adjust the sound sensitivity:
1. Press on the IRC-6.
2. Press <+> or <—> to increase or decrease the sensitivity.
Strobe
To adjust the strobe with the IRC-6:
1. Press on the IRC-6.
2. Press <+> or <—> to increase or decrease the speed of the strobe.
Brightness
To adjust the LED brightness with the IRC-6:
1. Press <%> on the IRC-6.
2. Press <+> or <—> to increase or decrease the brightness of the output.
Black Out
To black out the lasers with the IRC-6:
1. Press on the IRC-6.
This will turn off all the lasers until the button is pressed again.
NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the product does not respond when a button is pressed, try pressing .
Black Out may have been activated.
Any setting on the IRC-6 will be saved until the system is rebooted. The system will revert to Auto Mode after reboot.
The buttons on the IRC-6 not listed above are reserved for future use.
Master/Slave Mode
The Master/Slave mode allows a single COREpar UV120 ILS product (the “master”) to control the actions of one or more COREpar UV120 ILS products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in Standalone, whereas the slave products will be set to operate in Slave mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:

1. Press <MENU> repeatedly until 1-CH shows on the display.
2. Press <ENTER>.
3. Set the DMX address to d 1.
4. Connect the DMX input of the first slave product to the DMX output of the master product.
5. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave product.
6. Finish setting and connecting all the slave products.

Master product:

1. Press <MENU> repeatedly to go to the desired function or program.
2. Press <ENTER>.
3. Set the master product to operate in standalone.
4. Make the master product the first product in the DMX daisy chain.
   • Configure all the slave products before connecting the master to the daisy chain.
   • Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master.

Master/Slave Mode (D-Fi USB)
The D-Fi USB allows a single COREpar UV120 ILS product (the “master”) to control the actions of one or more COREpar UV120 ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:

1. Press <MENU> repeatedly until 1-CH shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to set the starling address to d 1.
4. Press <ENTER>.
5. Set the D-Fi USB to receive on a specific channel, 1-16.
6. Plug in the D-Fi USB.
7. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode.
2. Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
3. Plug in the D-Fi USB.
   • All products must be set to the same DMX personality, DMX address, and D-Fi channel.
   • Configure all the slave products before configuring the master to transmit.
   • Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.

ILS Mode
ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked. effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode. This product will synchronize with the par effect on the selected side of the GigBAR MOVE+ILS.
To set the COREpar UV120 ILS to respond to an ILS signal:

1. Press <MENU> repeatedly until iLS_ shows on the display.
2. Use <UP> or <DOWN> to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
3. Press <ENTER>.


Maintenance

Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean the lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens-cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
   Always dry the transparent surfaces carefully after cleaning them.

Technical Specifications

Dimensions and Weight

Note: Dimensions in inches rounded to the nearest hundredth.
Power

Light Source

Photometrics

Thermal

DMX

Ordering

Contact Us

Warranty & Returns

For warranty registration and complete terms and conditions, please visit the Chauvet website.
For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg,
France, and Germany: www.chauvetlighting.eu/warranty-registration.
COREpar UV120 ILS User Manual Rev. 1

References

• CHAUVET DJ lighting, controllers and accessories
• Warranty Registration | CHAUVET Lighting
• CHAUVET Lighting, leading the entertainment lighting market.
• CHAUVET Professional
• CHAUVET Professional
• CHAUVET Professional
