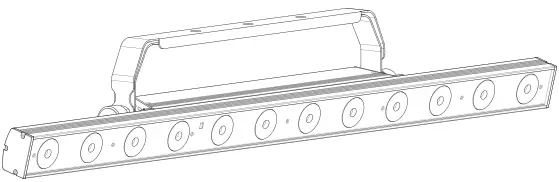

CHAUVET DJ COLORband PiX ILS

About This Guide

The COLORband PiX ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

ONLY connect this product to a grounded and protected circuit.
DISCONNECT from power before cleaning or replacing the fuse.
DO NOT look at the light source when the product is on.
Make sure the power cord is not crimped or damaged.
Never disconnect this product from power by pulling on the cord.
When mounting this product overhead, ALWAYS use a safety cable.
DO NOT allow flammable materials close to the product when it is operating.
DO NOT touch the product’s housing when it is on because it will be hot.
The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
Be sure that no ventilation slots on the unit’s housing are blocked.
Never connect this product to a dimmer or rheostat.
Replace the fuse with the same type and rating.
Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
In the event of a serious operating problem, stop using immediately.
DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

COLORband PiX ILS
Power cord
Hanging bracket
Quick Reference Guide

To Begin

Unpack the COLORband PiX ILS and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking
It is possible to power link up to 19 COLORband PiX ILS products on 120 VAC or up to 35 COLORband PiX ILS products on 230 VAC.

Fuse Replacement

Disconnect the product from power.
Using a Phillips-head screwdriver, unscrew the fuse holder and pull it straight out.
Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

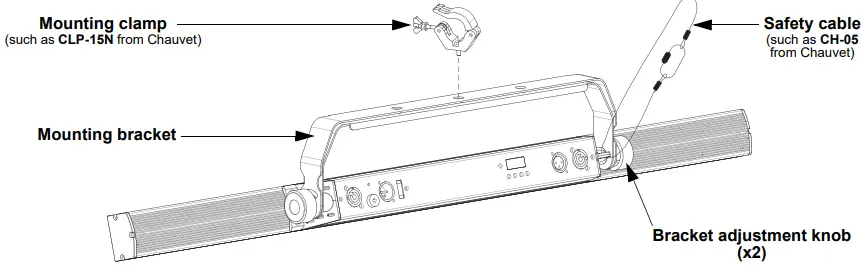

Mounting Diagram

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the COLORband PiX ILS product page on www.chauvetdj.com for the latest menu map.

Mode	Programming Levels			Description
DMX Mode	3-Ch	d 1–510		3-channel, 1-zone DMX mode
	4-Ch	d 1–509		4-channel, 1-zone DMX mode
	6-Ch	d 1–507		6-channel, 2-zone DMX mode
	7-Ch	d 1–506		7-channel, 1-zone DMX mode
	8-Ch	d 1–505		8-channel, 1-zone DMX mode
	9-Ch	d 1–504		9-channel, 3-zone DMX mode
	12Ch	d 1–501		12-channel, 4-zone DMX mode
	18Ch	d 1–495		18-channel, 6-zone DMX mode
	36Ch	d 1–477		36-channel, 12-zone DMX mode
	41Ch	d 1–472		41-channel, 12-zone DMX mode
ILS Mode	iLS	iLS1–4		Sets ILS mode
Static Color	C-–	C 1–7		Static colors
Programs	P-–	P 1–23		Automatic programs
Speed	S-–	S. 1–100		Automatic program speed
Sound Mode	Snd	Snd		Sound-active program
Sensitivity	SenS	u 0–100		Sound sensitivity
Manual Mode	U-–	r. 0–255		Combine red, green, and blue for a custom static color
		G. 0–255
		b. 0–255
Dimmer Speed	dIM	oFF		Sets the dimmer speed
		dIM1–3
RF Control	SEt	RF	oFF	Disables RFC remote control
			Link	Link to a single remote by pressing and holding <freeze>, (RFC) or <BLACK OUT> (RFC-XL) until the display shows PASS (success) or ErrO (failure)
			PubL	Public mode, control with any RFC or RFC-XL remote
			GP1–4	Sets to an RFC-XL remote receiving group
		REST		Reset to factory default settings

DMX Linking

The COLORband PiX ILS can work with a DMX controller. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 472.

Master/Slave Connection
The COLORband PiX ILS uses the DMX data connection for its Master/Slave mode.

RFC (Radio Frequency Control) and RFC-XL
The COLORband PiX ILS can be operated with the CHAUVET RFC and RFC-XL.

D-Fi USB Connectivity

The COLORband PiX ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product’s DMX Personality and DMX Address.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.
Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

D-Fi USB
Wired DMX
IRC-6 Remote Control
Manual Digital Display/Menu Buttons

Master/Slave Mode (D-Fi USB)

The D-Fi USB allows a single COLORband PiX ILS product (the “master”) to control the actions of one or more COLORband PiX ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master
(transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.

Slave products:

Press <MENU> repeatedly until 9-Ch shows on the display.
Press <ENTER>.
Use <UP> or <DOWN> to set the starting address to d 1.
Press <ENTER>.
Set the D-Fi USB to receive on a specific channel, 1–16.
Plug in the D-Fi USB.
Finish setting and connecting all the slave products.

Master product:

Set the master product to operate in standalone mode.
Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
Plug in the D-Fi USB.
- All products must be set to the same DMX personality, DMX address, and D-Fi channel.
- Configure all the slave products before configuring the master to transmit.
- Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.

ILS Mode

ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode.
This product will synchronize with the par effect on the selected side of the GigBAR MOVE+ILS.
To set the COLORband PiX ILS to respond to an ILS signal:

Press <MENU> repeatedly until iLS_ shows on the display.
Use <UP> or <DOWN> to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
Press <ENTER>

DMX Values

	3-Ch	4-Ch	6-Ch	7-Ch	8-Ch	9-Ch	12Ch	18Ch	36Ch	41Ch
Control	Pixel	Full	Pixel	Full	Full	Pixel	Pixel	Pixel	Pixel	Full
Zones	1	1	2	1	1	3	4	6	12	12

Full Control Modes

4-Ch	7-Ch	8-Ch	41Ch	Function		Value	Percent/Setting
1	1	1	1	Red 1	Zone 1	000 ó 255	0–100%
2	2	2	2	Green 1		000 ó 255	0–100%
3	3	3	3	Blue 1		000 ó 255	0–100%
–			4	Red 2	Zone 2	000 ó 255	0–100%
			5	Green 2		000 ó 255	0–100%
			6	Blue 2		000 ó 255	0–100%
			7	Red 3	Zone 3	000 ó 255	0–100%
			8	Green 3		000 ó 255	0–100%
			9	Blue 3		000 ó 255	0–100%
			10	Red 4	Zone 4	000 ó 255	0–100%
			11	Green 4		000 ó 255	0–100%
			12	Blue 4		000 ó 255	0–100%
			13	Red 5	Zone 5	000 ó 255	0–100%
			14	Green 5		000 ó 255	0–100%
			15	Blue 5		000 ó 255	0–100%
			16	Red 6	Zone 6	000 ó 255	0–100%
			17	Green 6		000 ó 255	0–100%
			18	Blue 6		000 ó 255	0–100%
			19	Red 7	Zone 7	000 ó 255	0–100%
			20	Green 7		000 ó 255	0–100%
			21	Blue 7		000 ó 255	0–100%
			22	Red 8	Zone 8	000 ó 255	0–100%
			23	Green 8		000 ó 255	0–100%
			24	Blue 8		000 ó 255	0–100%
			25	Red 9	Zone 9	000 ó 255	0–100%
			26	Green 9		000 ó 255	0–100%
			27	Blue 9		000 ó 255	0–100%
			28	Red 10	Zone 10	000 ó 255	0–100%
			29	Green 10		000 ó 255	0–100%
			30	Blue 10		000 ó 255	0–100%
–			31	Red 11	Zone 11	000 ó 255	0–100%
			32	Green 11		000 ó 255	0–100%
			33	Blue 11		000 ó 255	0–100%
			34	Red 12	Zone 12	000 ó 255	0–100%
			35	Green 12		000 ó 255	0–100%
			36	Blue 12		000 ó 255	0–100%
–	4	4	37	Color macros		000 ó 014	No function
–	4	4	37	Color macros		015 ó 255	Color macros

4-Ch	7-Ch	8-Ch	41Ch	Function	Value	Percent/Setting
–	5	5	38	Strobe (when Ch. 6/39 is 000ó 031)	000 ó 015	No function
				Strobe (when Ch. 6/39 is 000ó 031)	016 ó 255	Strobe, slow to fast
				Program speed (when Ch. 6/39 is 032ó 223/229)	000 ó 255	Program speed, slow to fast
				Sound sensitivity (when Ch. 6/39 is 224/230ó 255)	000 ó 010	Sound sensitivity off
					011 ó 255	Sound sensitivity, low to high
–	–	6	39	Program	000 ó 031	No function
					032 ó 063	Pulse effect, 0-100%
					064 ó 095	Pulse effect, 100-0%
					096 ó 114	Pulse effect, 100-0-100%
					115 ó 119	Automatic program 1
					120 ó 124	Automatic program 2
					125 ó 129	Automatic program 3
					130 ó 134	Automatic program 4
					135 ó 139	Automatic program 5
					140 ó 144	Automatic program 6
					145 ó 149	Automatic program 7
					150 ó 154	Automatic program 8
					155 ó 159	Automatic program 9
					160 ó 164	Automatic program 10
					165 ó 169	Automatic program 11
					170 ó 174	Automatic program 12
					175 ó 179	Automatic program 13
					180 ó 184	Automatic program 14
					185 ó 189	Automatic program 15
					190 ó 194	Automatic program 16
					195 ó 199	Automatic program 17
					200 ó 204	Automatic program 18
					205 ó 209	Automatic program 19
					210 ó 214	Automatic program 20
					215 ó 219	Automatic program 21
					220 ó 224	Automatic program 22
					225 ó 229	Automatic program 23
					230 ó 255	Sound-active program
–	6	–	–	Program	000 ó 031	No function
					032 ó 063	Pulse effect, 0-100%
					064 ó 095	Pulse effect, 100-0%
					096 ó 114	Pulse effect, 100-0-100%
					115 ó 127	Automatic chase
					128 ó 159	Automatic fade
					160 ó 191	Automatic 3-color snap
					192 ó 223	Automatic 7-color snap
					224 ó 255	Sound-active program
4	7	7	40	Dimmer	000 ó 255	0–100%

4-Ch	7-Ch	8-Ch	41Ch	Function	Value	Percent/Setting
–	–	8	41	Dimmer speed	000 ó 051	Dimmer speed set from display menu
					052 ó 101	Dimmer speed mode off
					102 ó 152	Dimmer speed mode 1 (fast)
					153 ó 203	Dimmer speed mode 2 (medium)
					204 ó 255	Dimmer speed mode 3 (slow)

Pixel Control Modes

3-Ch	6-Ch	9-Ch	12Ch	18Ch	36Ch	Function		Value	Percent/Setting
1	1	1	1	1	1	Red 1		000 ó 255	0–100%
2	2	2	2	2	2	Green 1	Zone 1	000 ó 255	0–100%
3	3	3	3	3	3	Blue 1		000 ó 255	0–100%
	4	4	4	4	4	Red 2		000 ó 255	0–100%
	5	5	5	5	5	Green 2	Zone 2	000 ó 255	0–100%
	6	6	6	6	6	Blue 2		000 ó 255	0–100%
		7	7	7	7	Red 3		000 ó 255	0–100%
		8	8	8	8	Green 3	Zone 3	000 ó 255	0–100%
		9	9	9	9	Blue 3		000 ó 255	0–100%
			10	10	10	Red 4		000 ó 255	0–100%
			11	11	11	Green 4	Zone 4	000 ó 255	0–100%
			12	12	12	Blue 4		000 ó 255	0–100%
				13	13	Red 5		000 ó 255	0–100%
				14	14	Green 5	Zone 5	000 ó 255	0–100%
				15	15	Blue 5		000 ó 255	0–100%
				16	16	Red 6		000 ó 255	0–100%
				17	17	Green 6	Zone 6	000 ó 255	0–100%
				18	18	Blue 6		000 ó 255	0–100%
					19	Red 7		000 ó 255	0–100%
					20	Green 7	Zone 7	000 ó 255	0–100%
					21	Blue 7		000 ó 255	0–100%
					22	Red 8		000 ó 255	0–100%
					23	Green 8	Zone 8	000 ó 255	0–100%
					24	Blue 8		000 ó 255	0–100%
					25	Red 9		000 ó 255	0–100%
					26	Green 9	Zone 9	000 ó 255	0–100%
					27	Blue 9		000 ó 255	0–100%
					28	Red 10		000 ó 255	0–100%
					29	Green 10	Zone 10	000 ó 255	0–100%
					30	Blue 10		000 ó 255	0–100%
					31	Red 11		000 ó 255	0–100%
					32	Green 11	Zone 11	000 ó 255	0–100%
					33	Blue 11		000 ó 255	0–100%
					34	Red 12		000 ó 255	0–100%
					35	Green 12	Zone 12	000 ó 255	0–100%
					36	Blue 12		000 ó 255	0–100%

Zones for DMX Control

Contact Us

Chauvet U.K.

Address: Unit 1C
Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT
Voice: +44 (0) 1773 511115 Fax: +44 (0) 1773 511110

Email: [email protected]

Website: www.chauvetdj.eu

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
