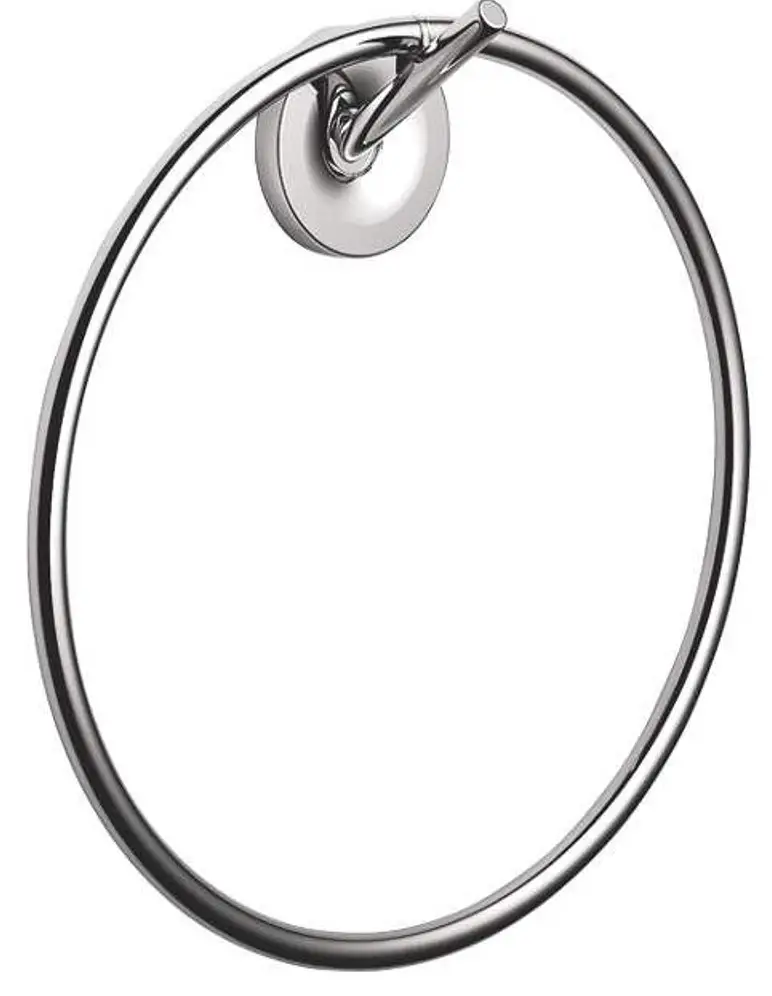

AXOR 40821000 Starck Towel Ring Instruction Manual
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The product may not be used as a holding handle. A separate handle must be installed.
Check the proper attachment and tight seating of the installed products periodically (annually).
Installation Instructions
Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
Symbol description
- Do not use silicone containing acetic acid!
- Dimensions (see page 17)
- Spare parts (see page 20)
XXX = Colors
000 = chrome plated
820 = brushed nickel - Cleaning
see enclosed brochure.

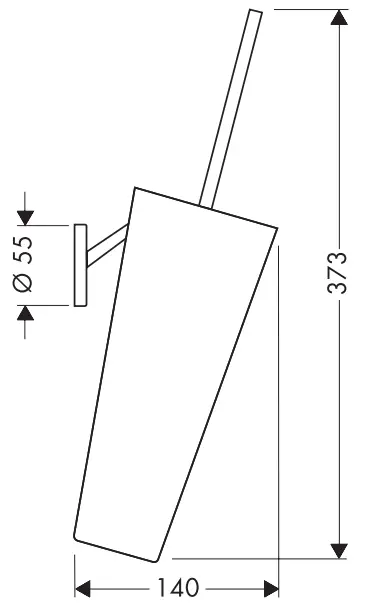

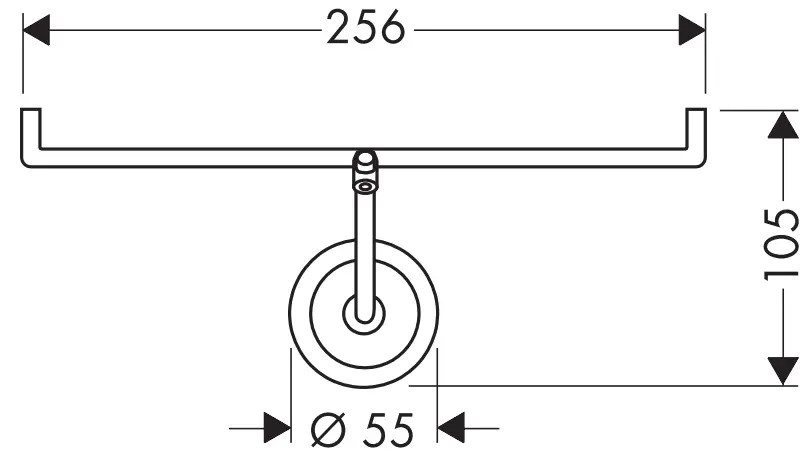

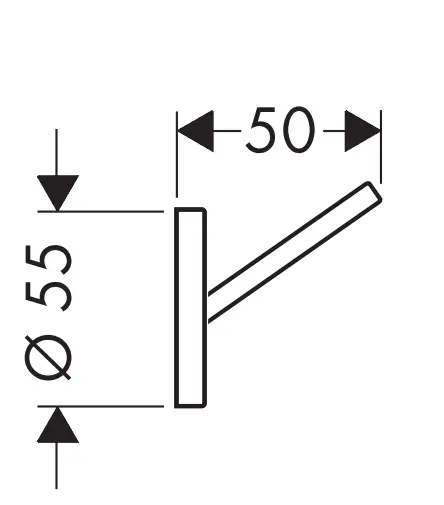

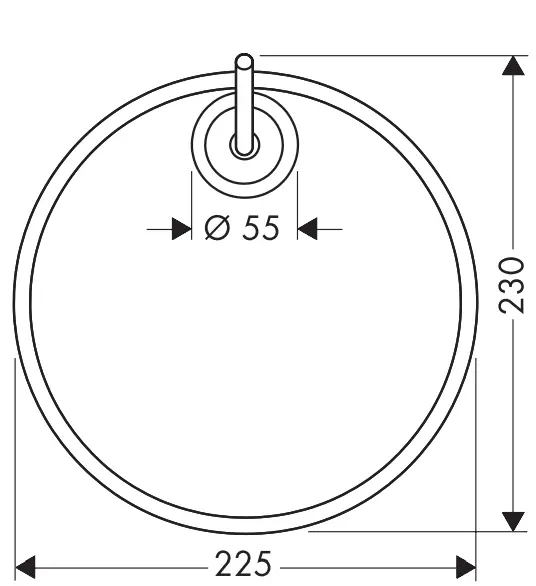

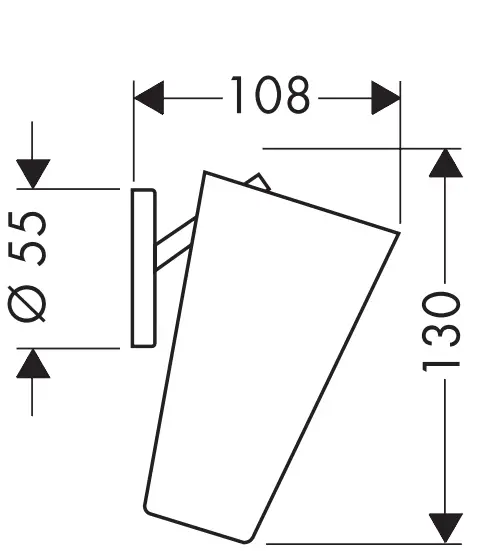

Dimensions
- Starck 40821XXX
- Starck 40833XXX
- Starck 40834XXX
- Starck 40836XXX
- Starck 40833XXX
- Starck 40837XXX

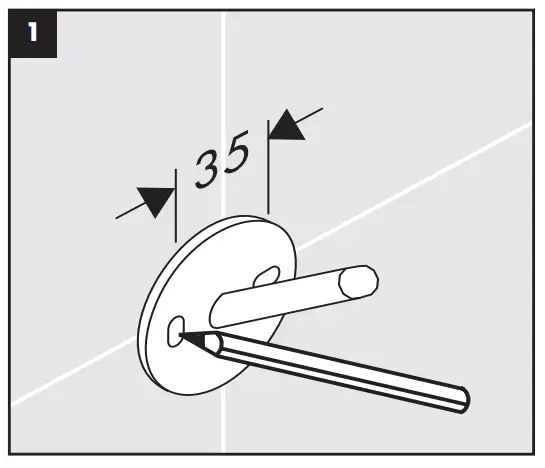

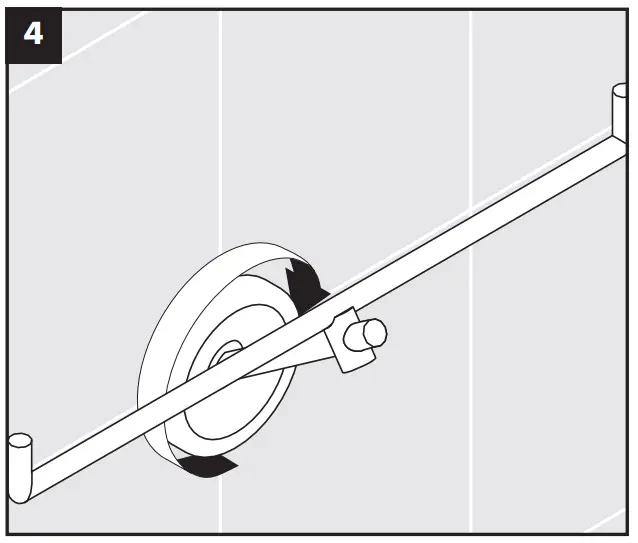

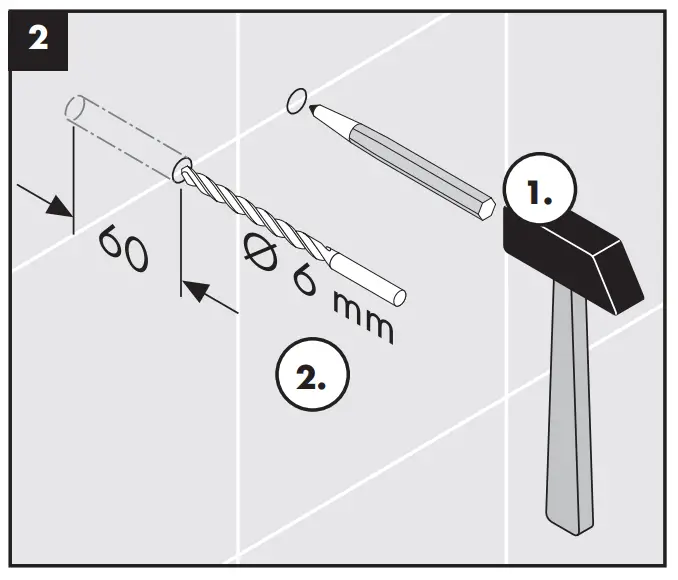

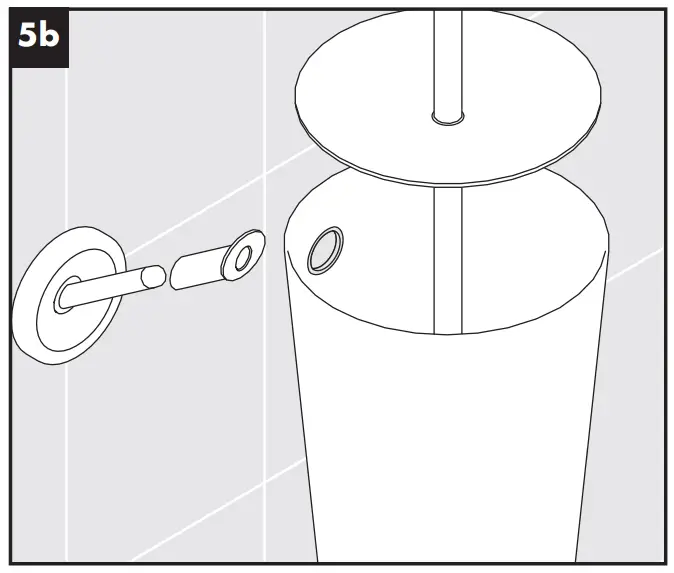

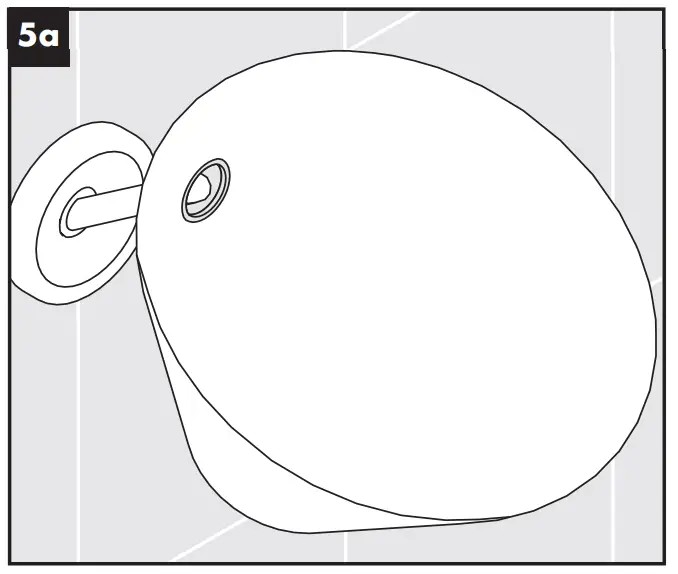

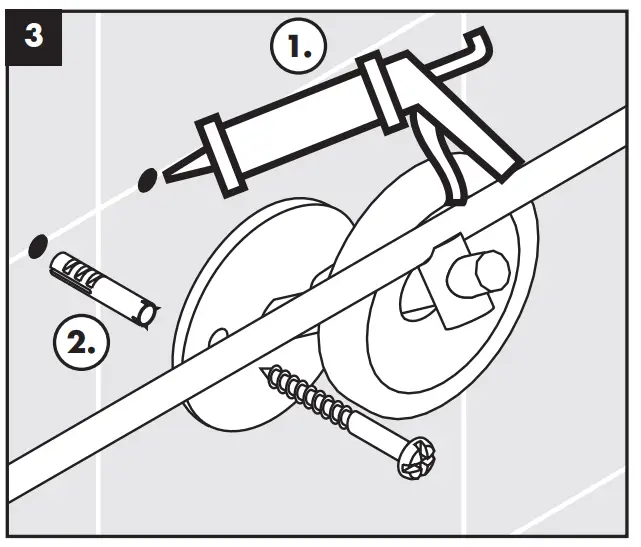

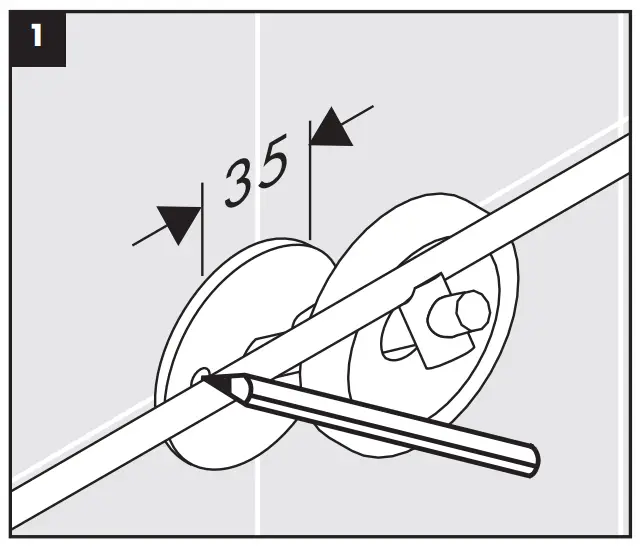

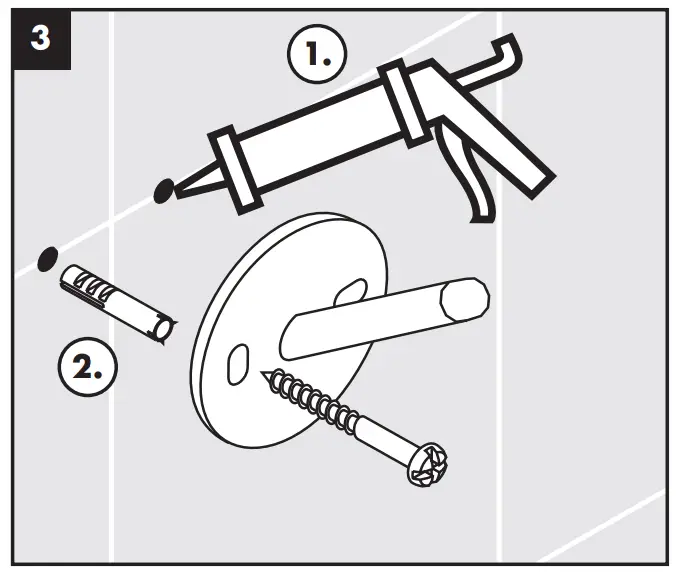

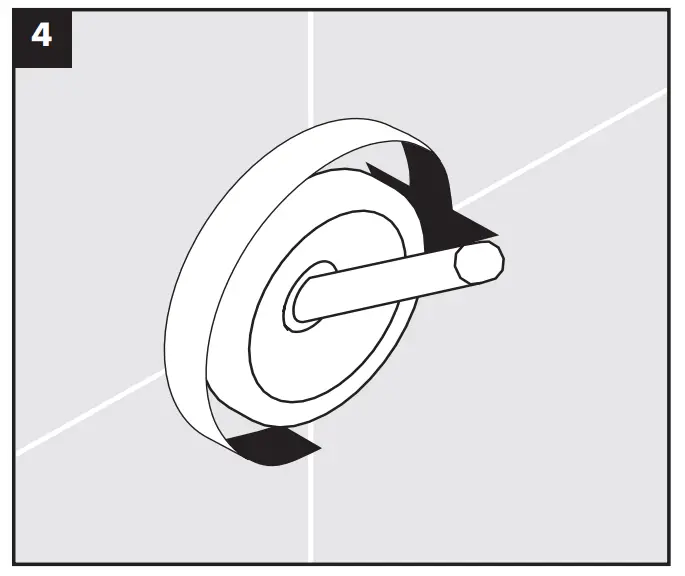

Installation Instruction

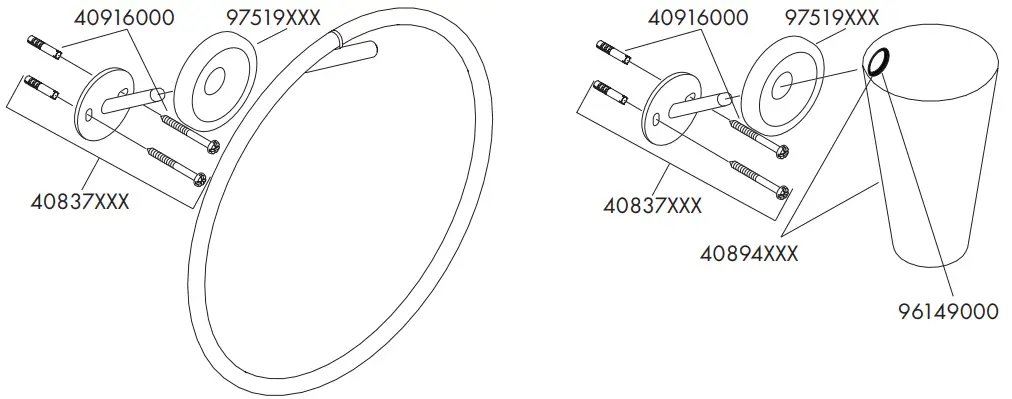

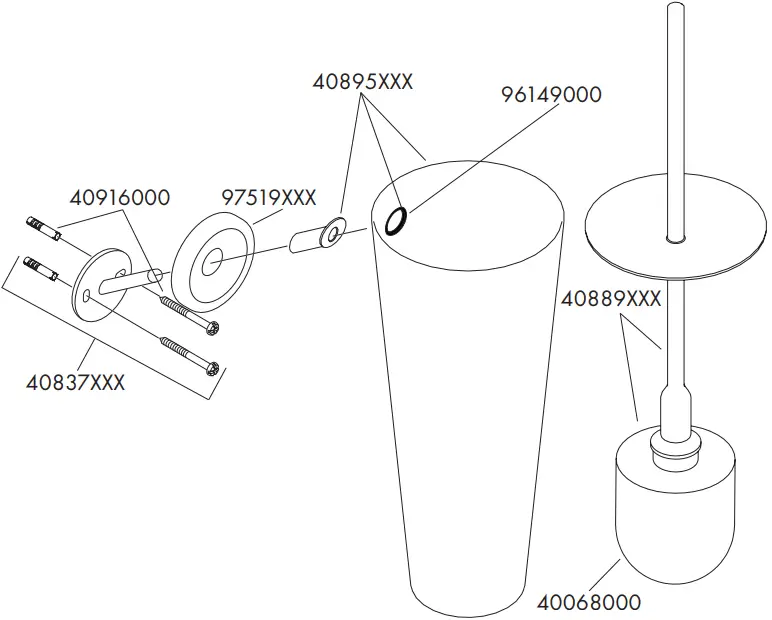

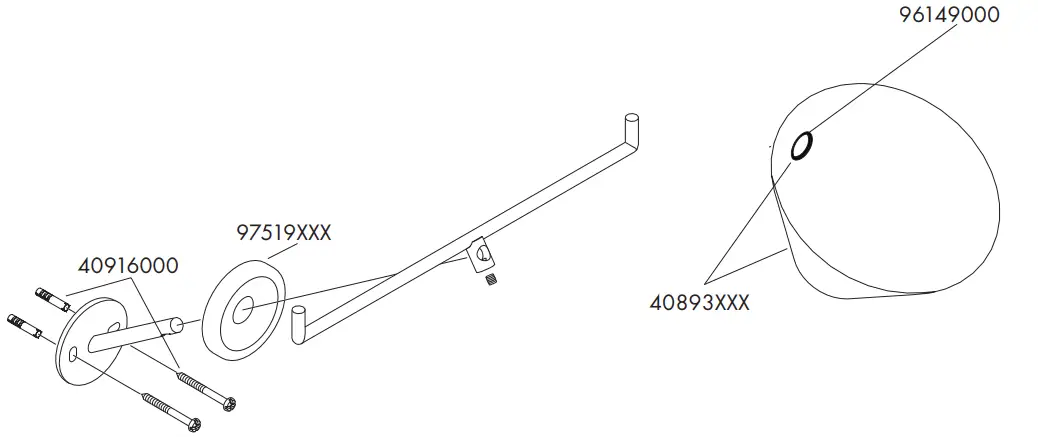

Part List
