HAMILTON SINKLER BATR4005 Towel Ring Installation and Template

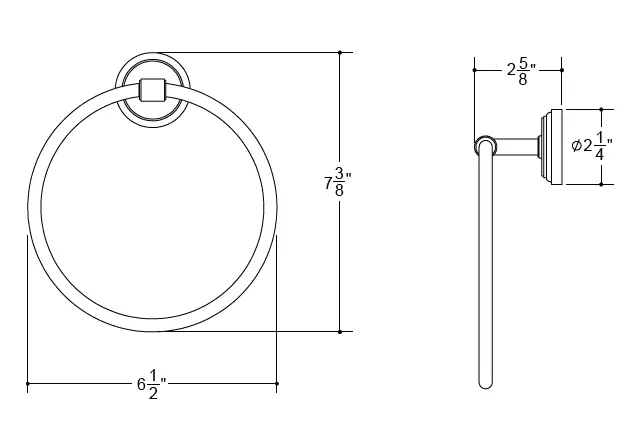

Dimension

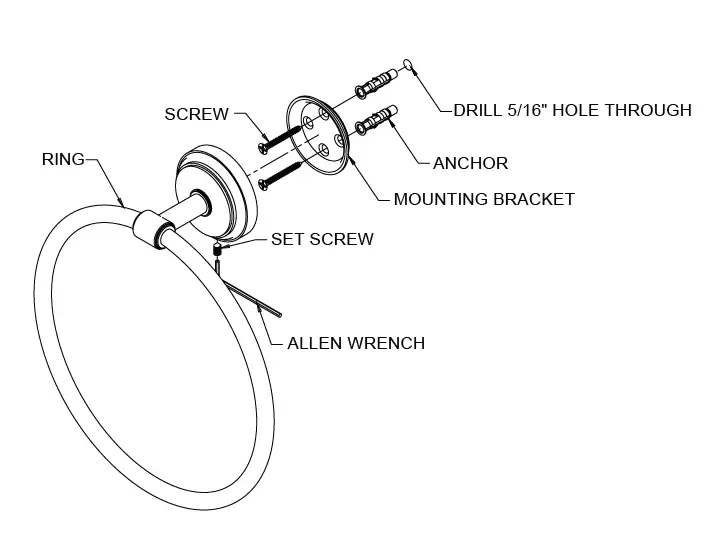

Installation

1. Mark two screw holes at required location through the mounting bracket (top and bottom)
2. Drill 5/16” hole and insert anchors
3. Secure mounting bracket using two fasteners
4. Position towel ring over the bracket and tighten the set screw from the bottom using an Allen wrench
