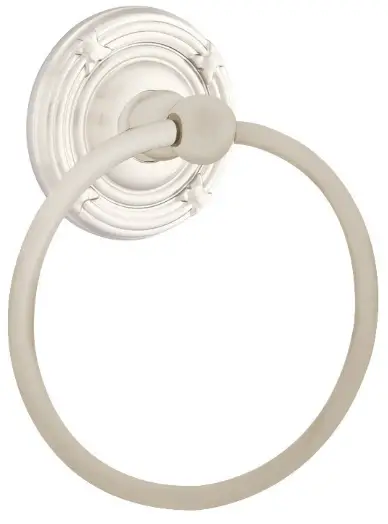

EMTEK 26017US15 Towel Ring

EMTEK-26017US15-Towel-Ring-PRODUCT

Installation

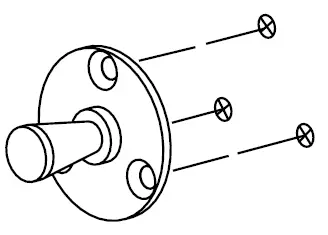

  1. Mark hole locations
    Using the mounting plate, mark the hole locations.EMTEK-26017US15-Towel-Ring-fig-1

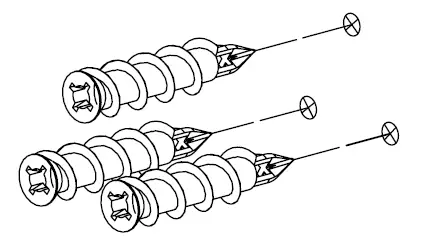

  2. Install screw anchors
    Use a screwdriver to install three screw anchors into the wallEMTEK-26017US15-Towel-Ring-fig-2

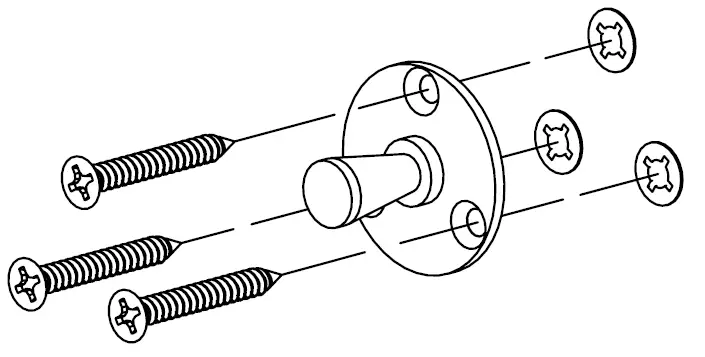

  3. Install mounting plate
    Secure mounting plate using screws providedEMTEK-26017US15-Towel-Ring-fig-3

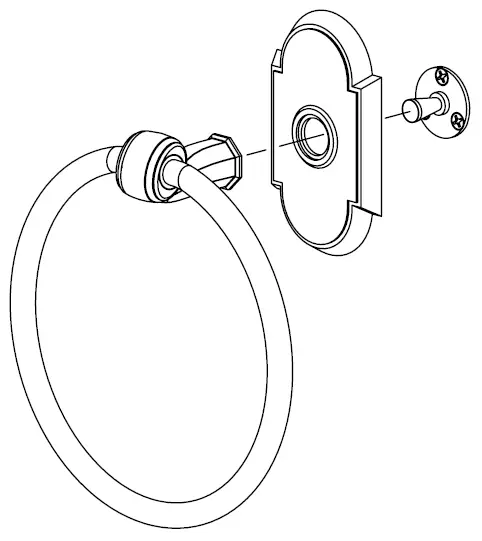

  4. Install Trim Plate and Ring Post
    Trim Plates vary depending on the styleEMTEK-26017US15-Towel-Ring-fig-4

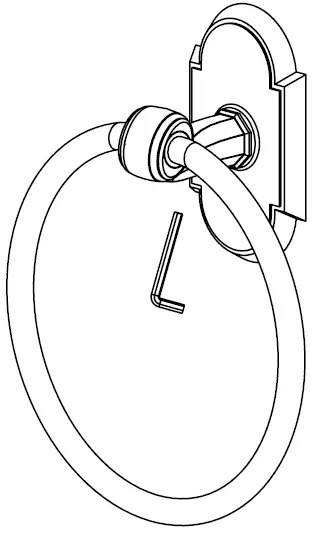

  5. Tighten Set screw
    Tighten the set screw at the base of the post with the Allen Wrench provided.EMTEK-26017US15-Towel-Ring-fig-5
