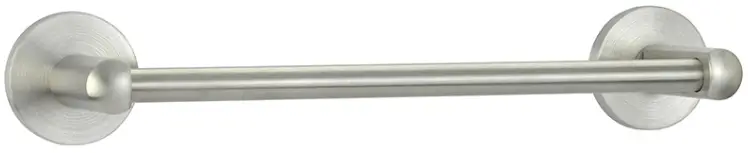

EMTEK S7010 Towel Bar
Installation

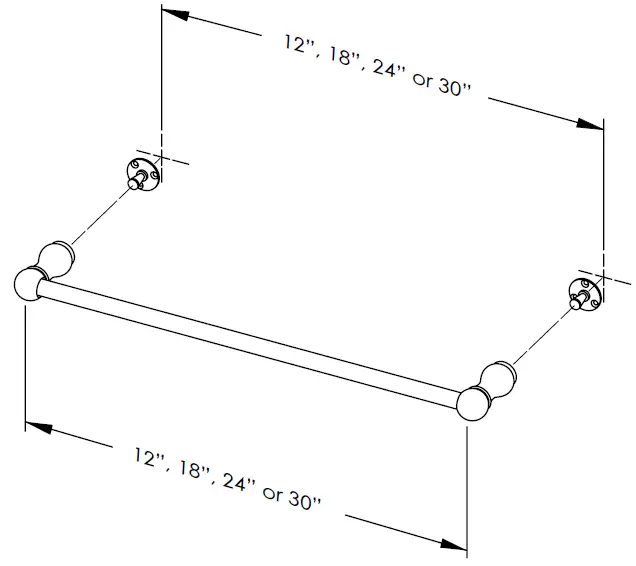

- Locate Center of Mounting Plates
Make two marks on the wall to locate the center of the mouting plates. Center-to-center spacing for mounting plates is the same as the length of the towel bar.

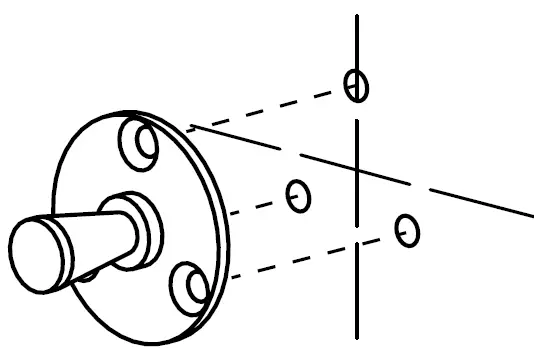

- Install Mounting Plates
Mark three hole locations for each mouting plate.

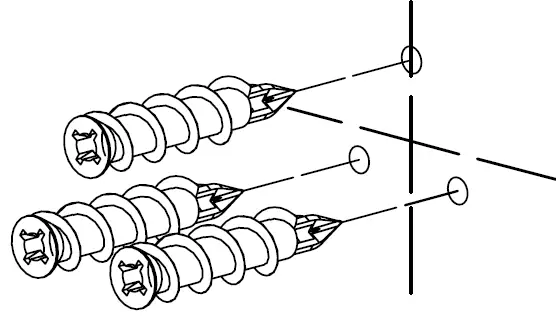

- Install Screw Anchors
Use a screwdriver to install three screw anchors into the wall for each mounting plate.

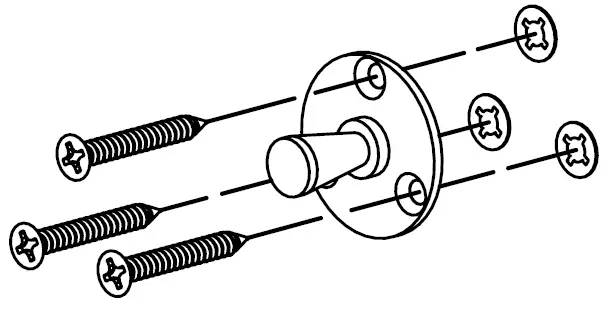

- Install Mounting Plates
Secure mounting plates using the screws provided.

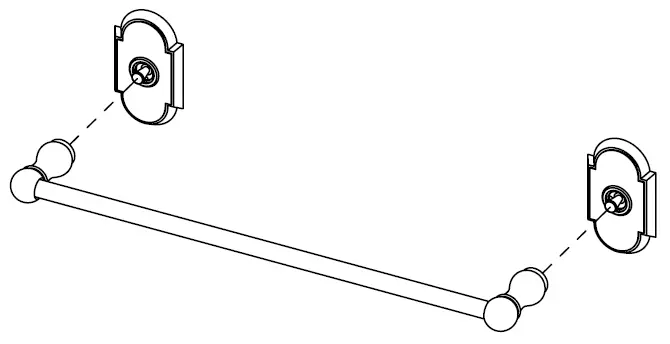

- Install Trim Plates and Towel Bar
Slip Trim Plates and Tower Bar posts over the mounting plate studs.

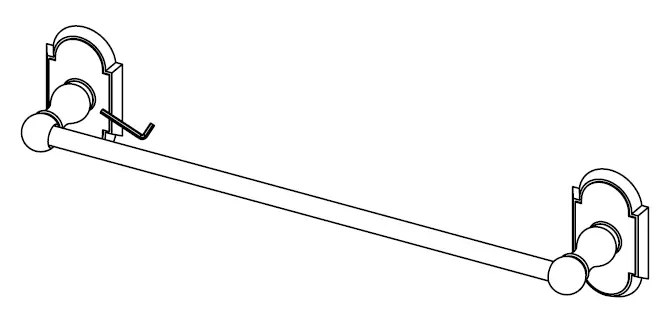

- Tighten Set Screw
Tighten the set screw at the base of the post with the Allen Wrench Provided.
