UNIVERSAL ACCESSORIES
42821XXX Universal Circular
Universal Towel Holder
Instructions
42821XXX Universal Circular Universal Towel Holder
SAFETY NOTES
Gloves should be worn during installation to prevent crushing and cutting injuries. Use only the handle #42830XxXxX for support, the remaining products are not intended to be used as supports. Check the proper attachment and tight seating of the installed products periodically (annually).
INSTALLATION INSTRUCTIONS
/ Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
/ During installation of the product by qualified trained personnel, make sure that the entire fastening surtace is even and smooth (no protruding seams or tile offset), that the finish of the wall is suitable to apply the product and has no weak points.
SYMBOL DESCRIPTION
Do not use silicone containing acetic acid!

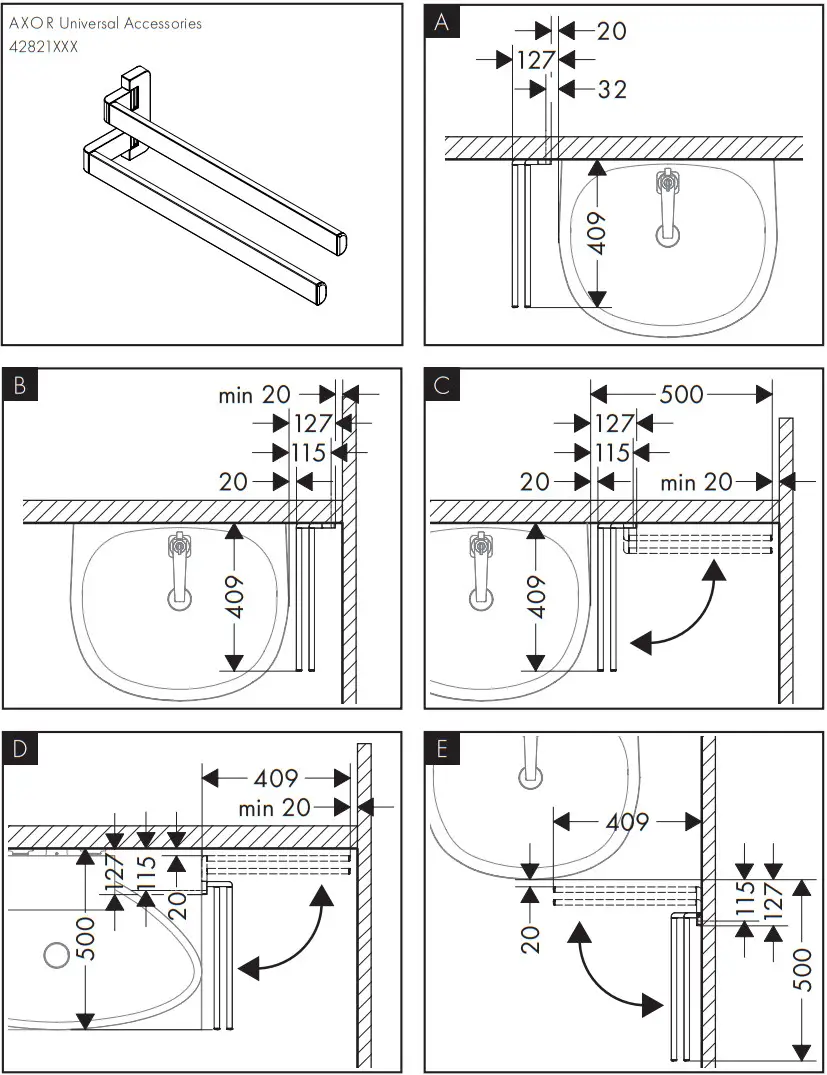

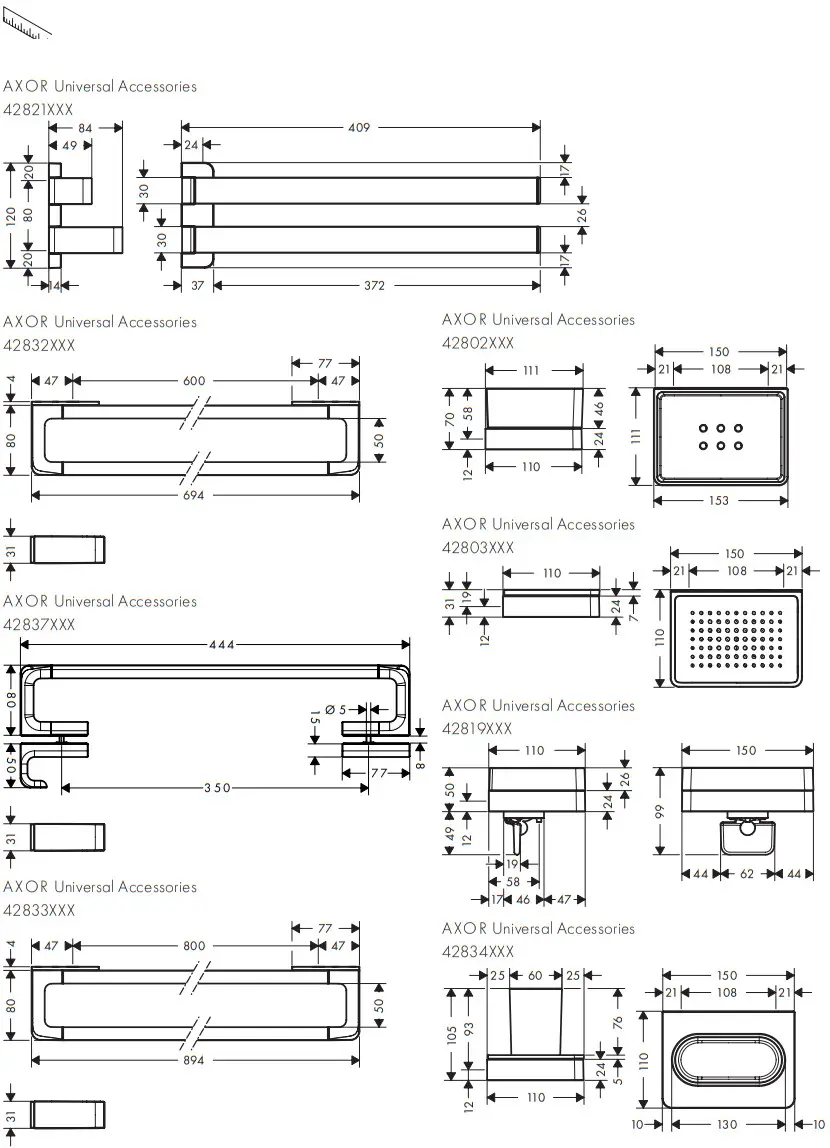

DIMENSIONS (see page 18)

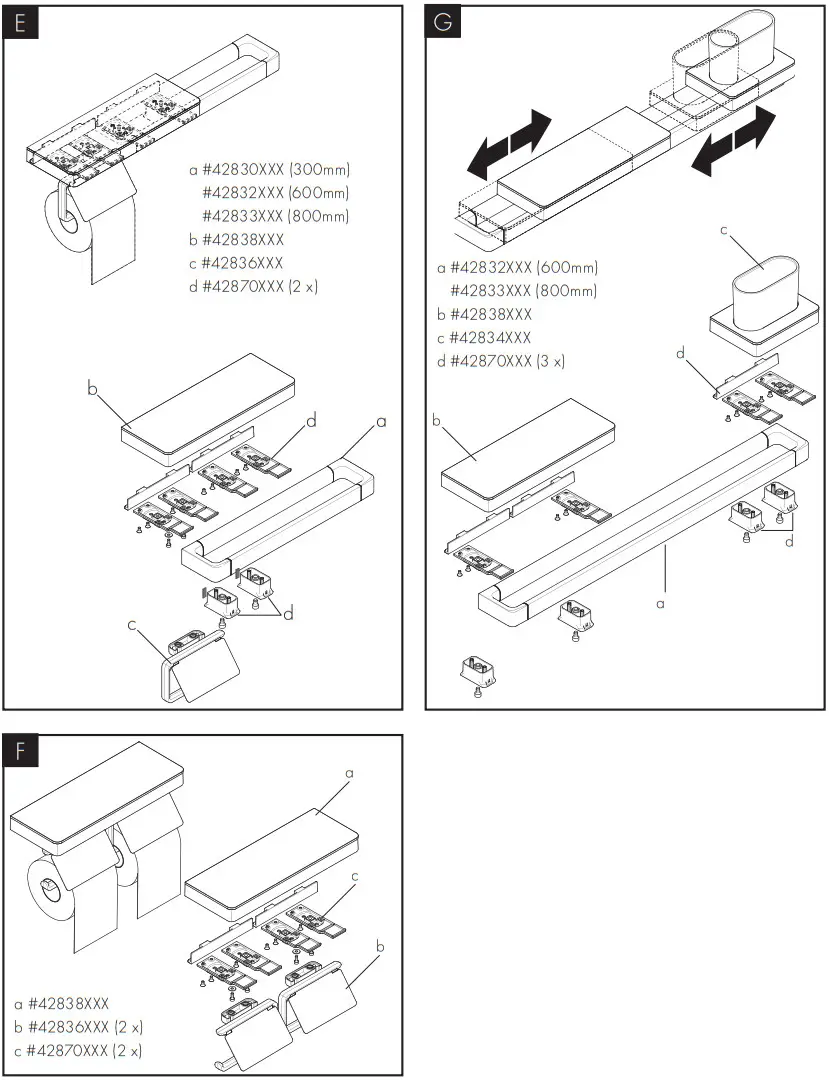

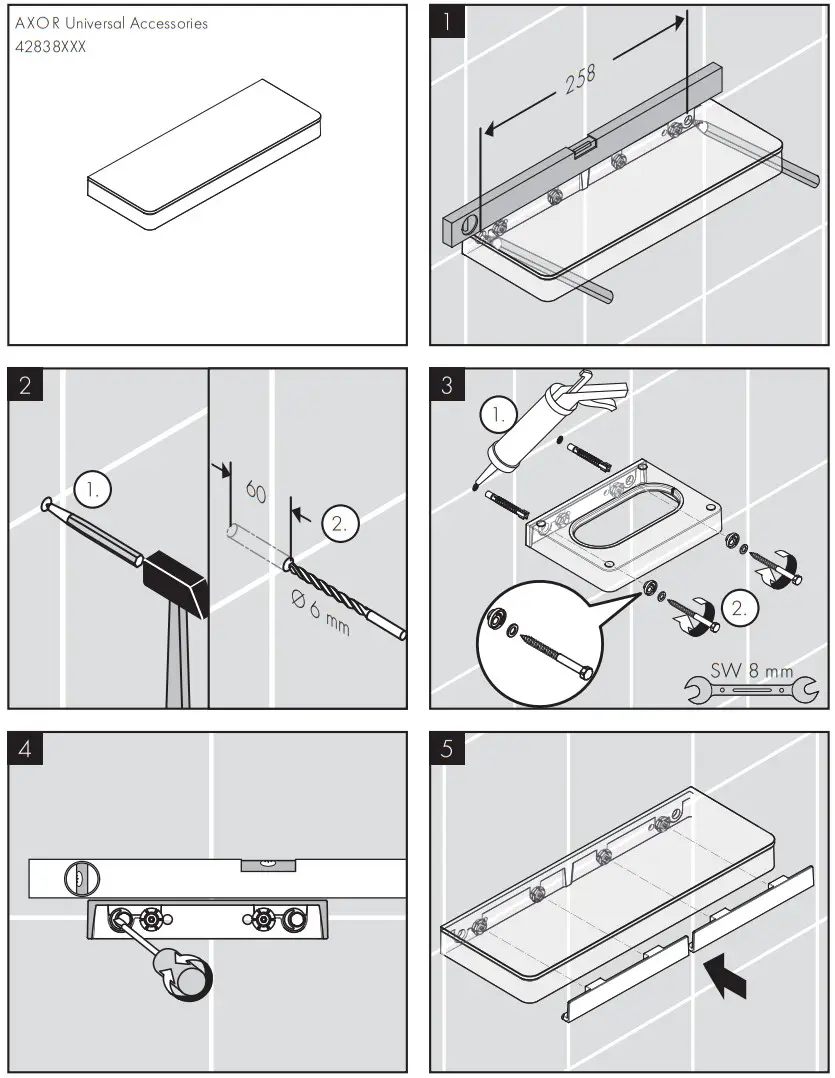

INSTALLATION EXAMPLE (see page 20)

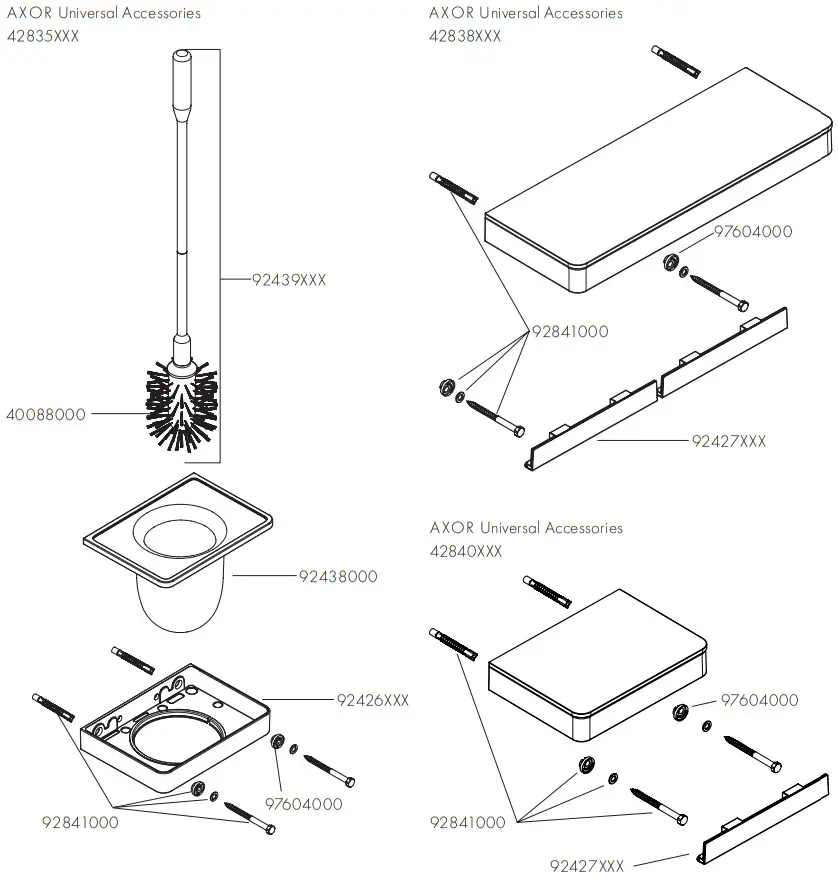

SPARE PARTS (see page 36)

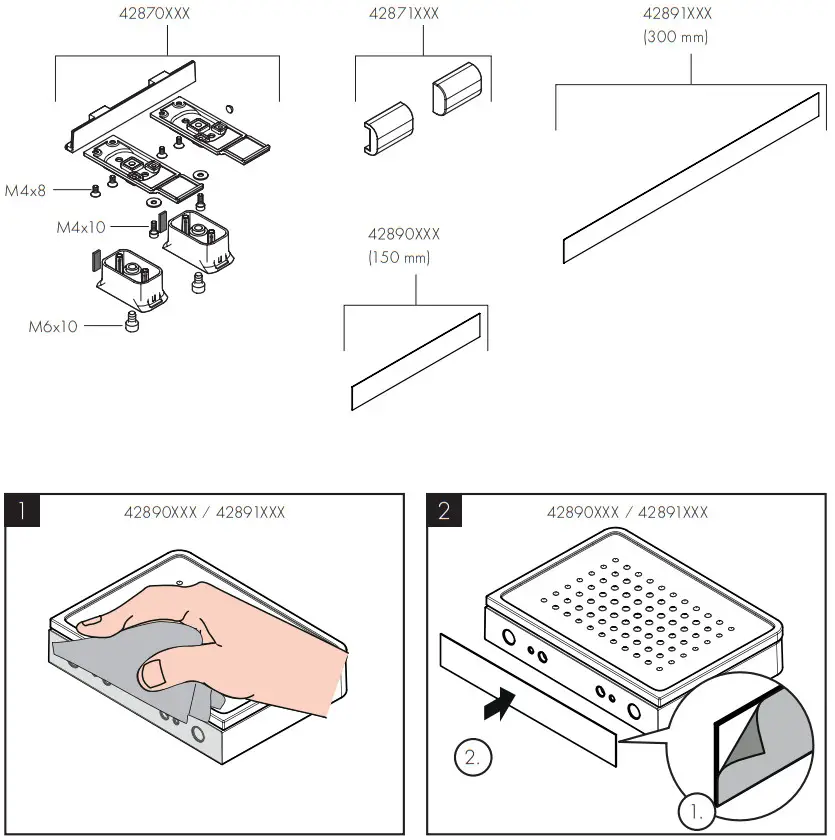

SPECIAL ACCESSORIES (order as an extra) (see page 40)
/ Adapter #42870XXX
/ cover cap set #4287 IXXX
/ mounting kit #42841000
/ cover (150 mm) #42890XXX
/ cover (300 mm) #42891XXX
CLEANING (see page 41)
With the excentric washer it is possible to equalize tolerance of the drilling.
TEST CERTIFICATE (see page 43)

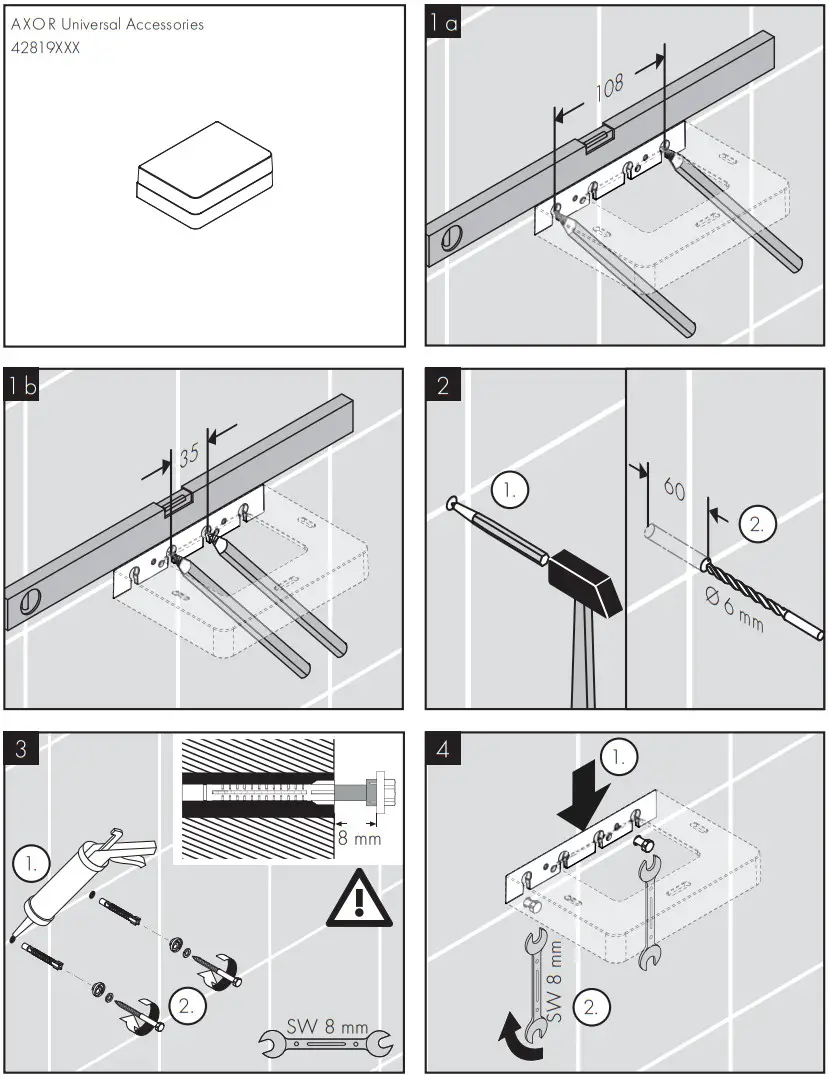

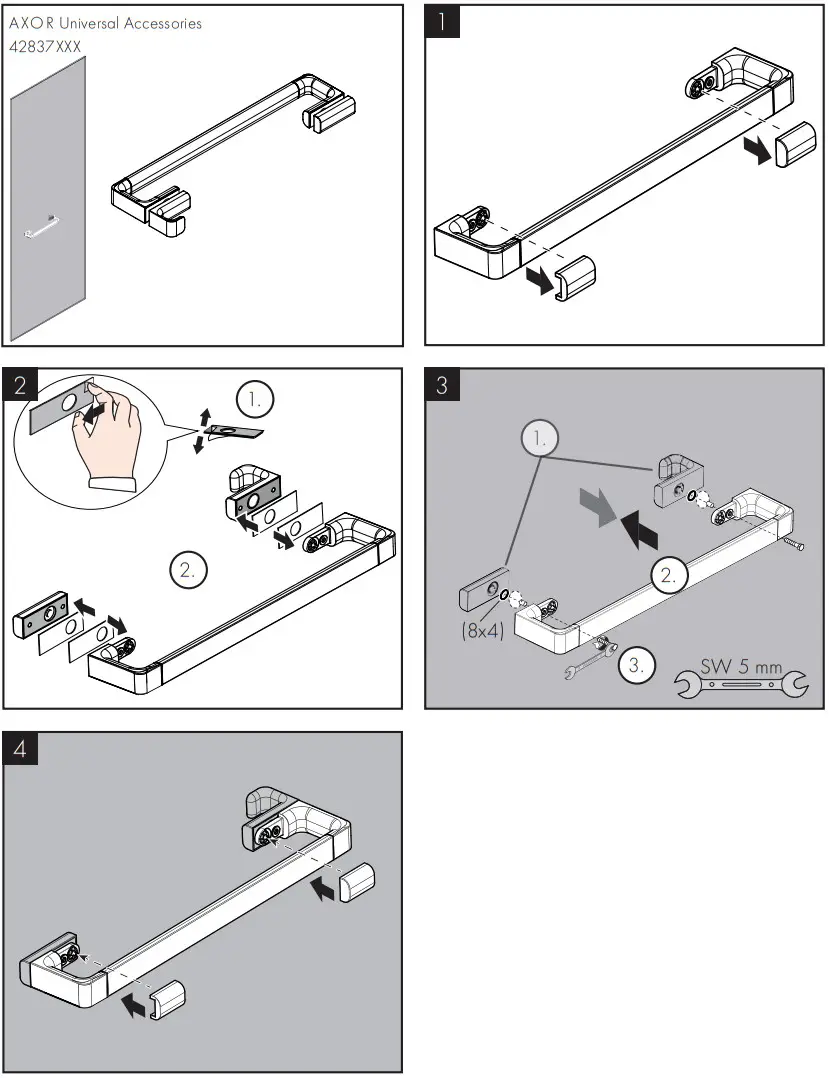

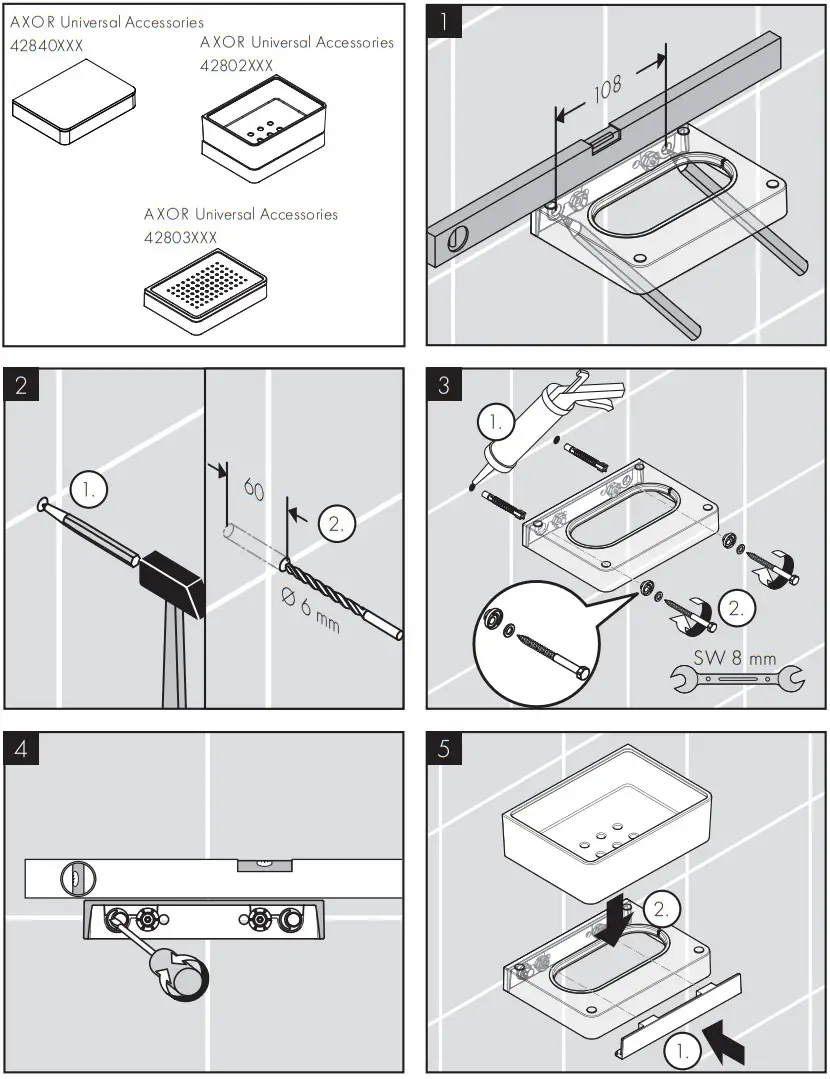

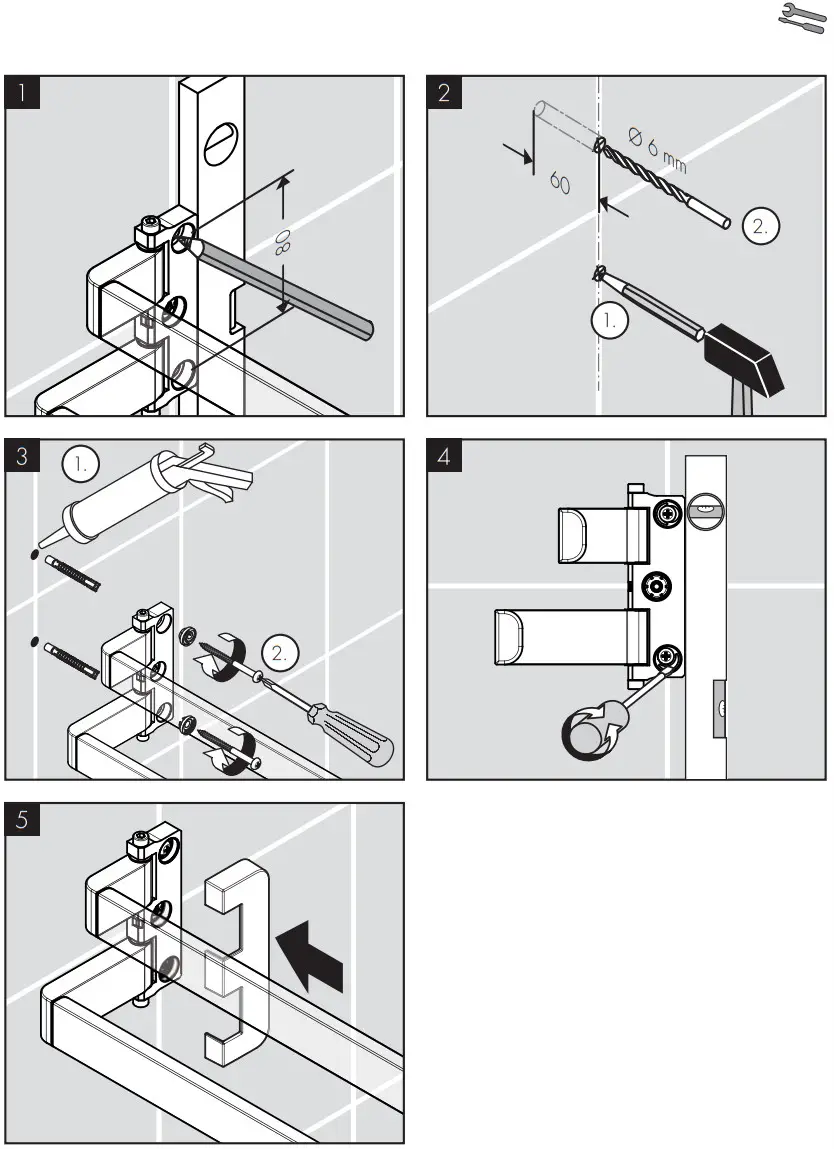

ASSEMBLY (see page 23)
XXX = Colors
