AXOR Universal Circular
Toilet paper holder
Surfaces: ___Article Number: 42856670
Product features
- wall-mounted
- installation horizontal or vertical possible
- material: metal
- with mounting material
- concealed fastening
- drilling distance: 35 mm
- diameter drill hole: 6 mm
- can also be used as spare roll holder
Product image

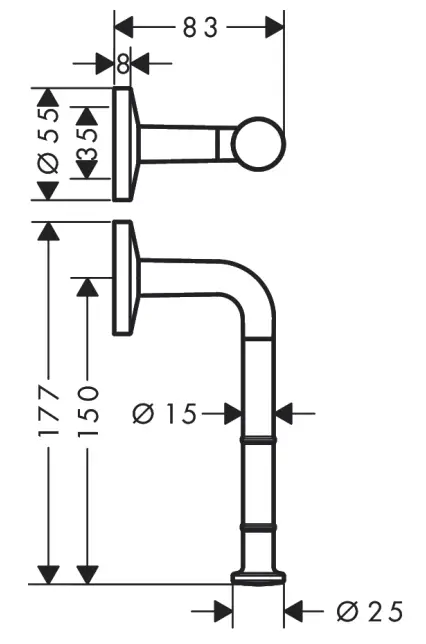

Scale drawing

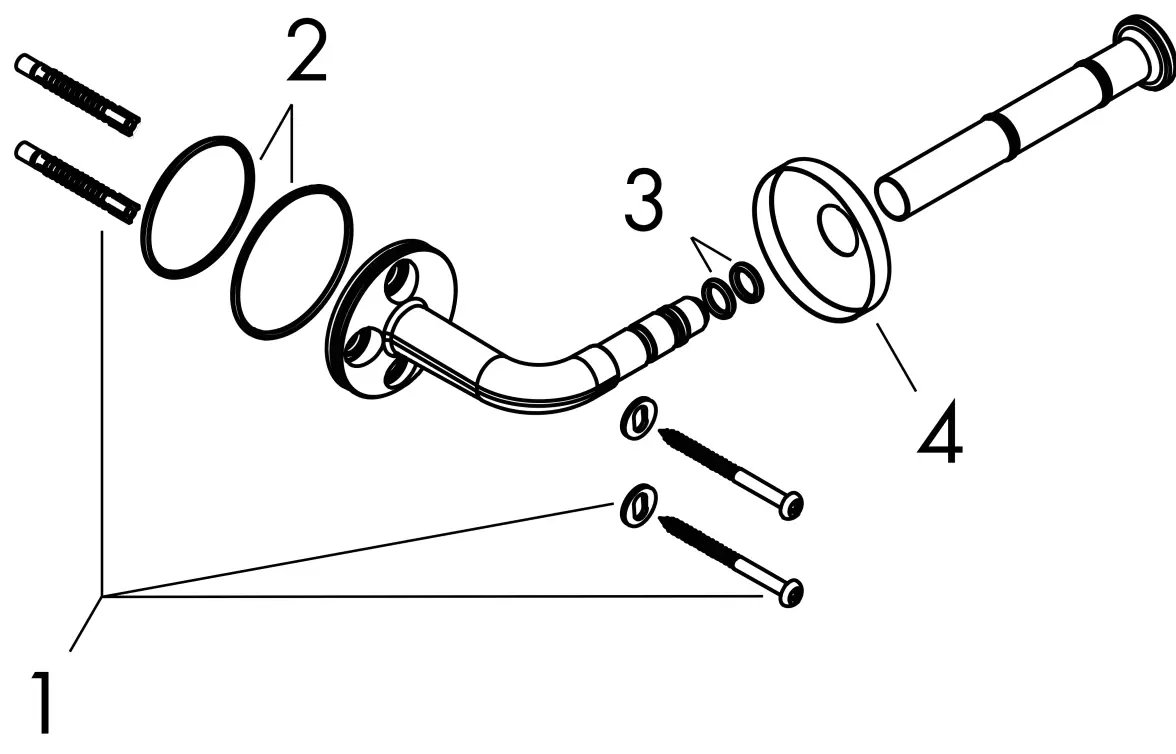

Exploded Drawing
Year of production: >10/21
Spare part list
Year of production: >10/21
| Pos. | Article Number | Price | PU | |
| 1 | mounting set | 96179000 | € 11,66 | 1 |
| 2 | O-Ring 46×2 | 98195000 | € 3,33 | 1 |
| 3 | O-Ring 8×2,5 | 93236000 | € 3,33 | 1 |
| 4 | escutcheon | 94429670 | € 28,20 | 1 |
