AXOR UNIVERSAL ACCESSORIES
SAFETY NOTES
Gloves should be worn during installation to prevent crushing and cutting injuries. Use only the handle #42830XXX for support, the remaining products are not intended to be used as supports. Check the proper attachment and tight seating of the installed products periodically (annually).
INSTALLATION INSTRUCTIONS
⁄ Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
⁄ During installation of the product by qualified trained personnel, make sure that the entire fastening surface is even and smooth (no protruding seams or tile offset), that the finish of the wall is suitable to apply the product and has no weak points.
SYMBOL DESCRIPTION
Do not use silicone containing acetic acid!

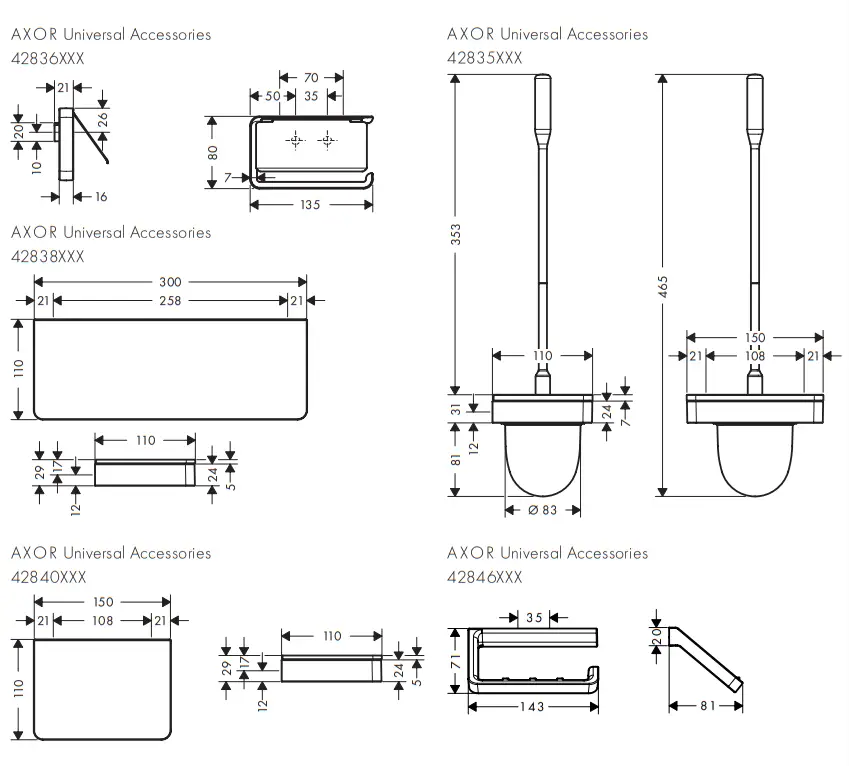

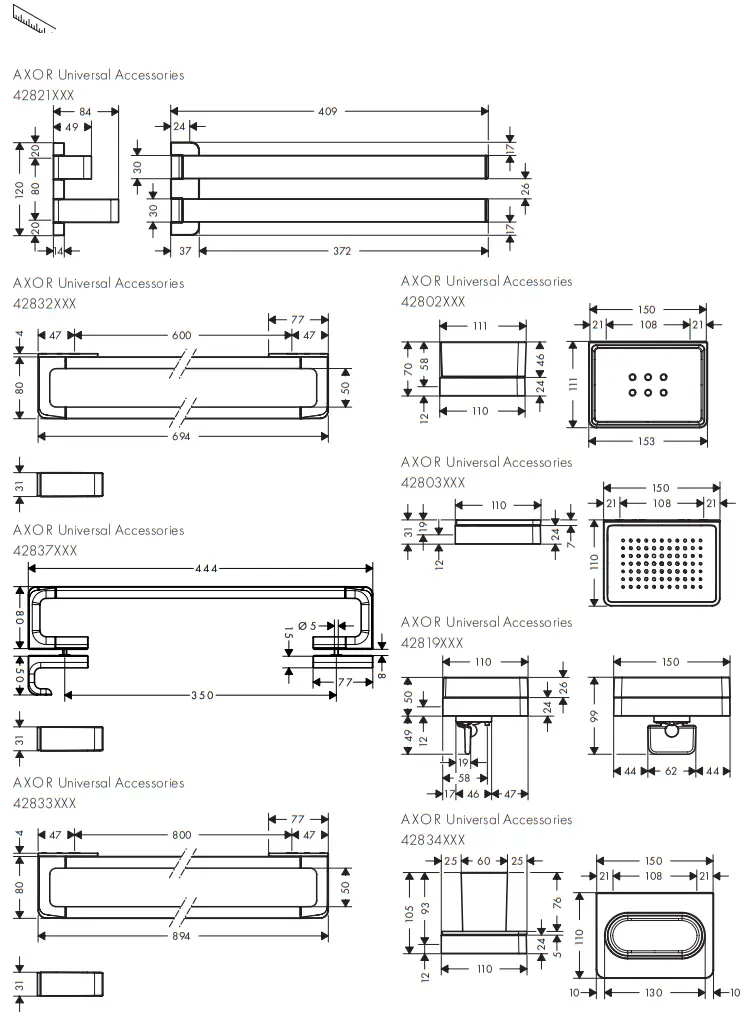

DIMENSIONS
DIMENSIONS

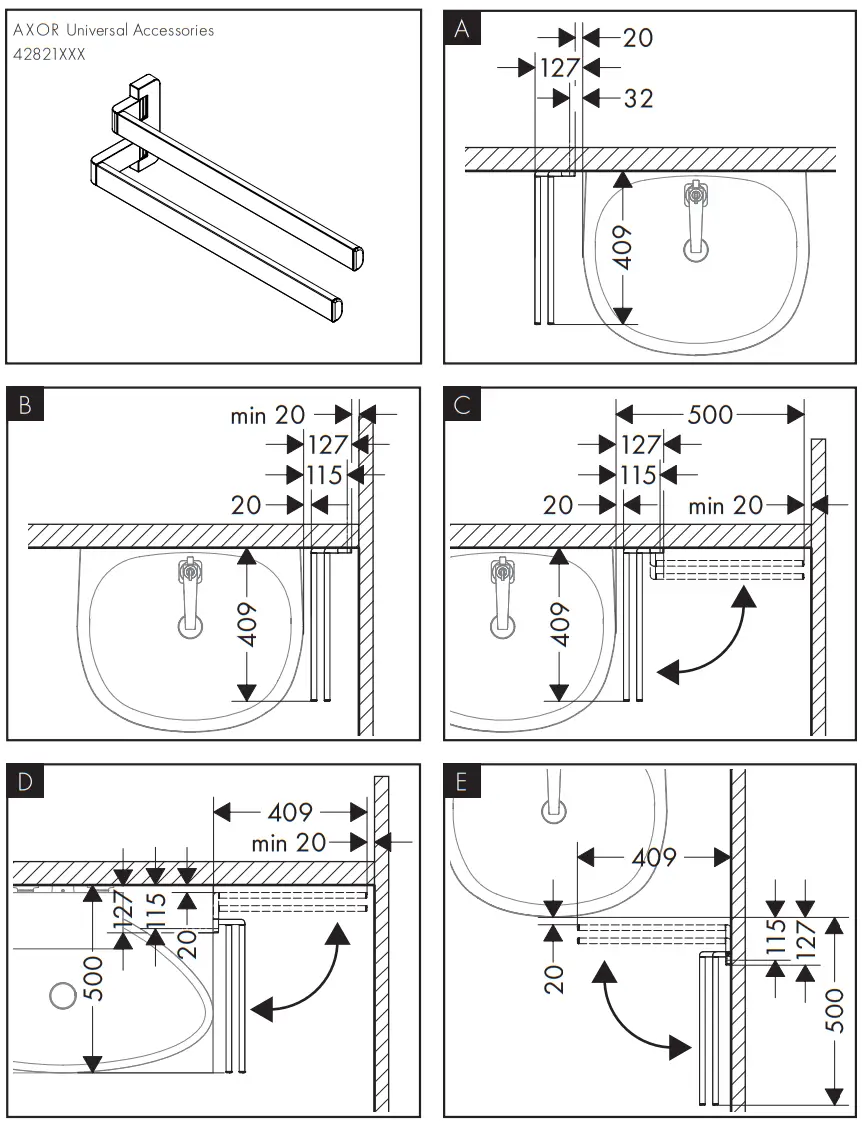

INSTALLATION EXAMPLE
INSTALLATION EXAMPLE

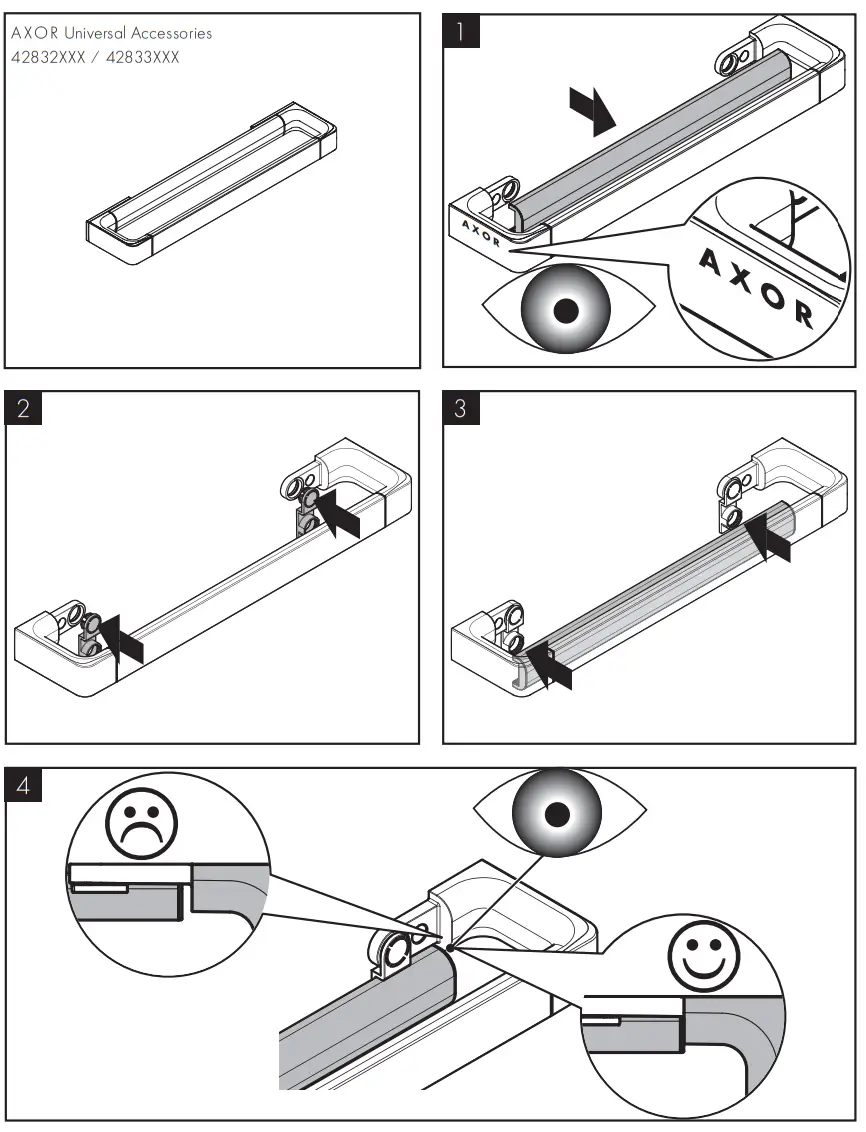

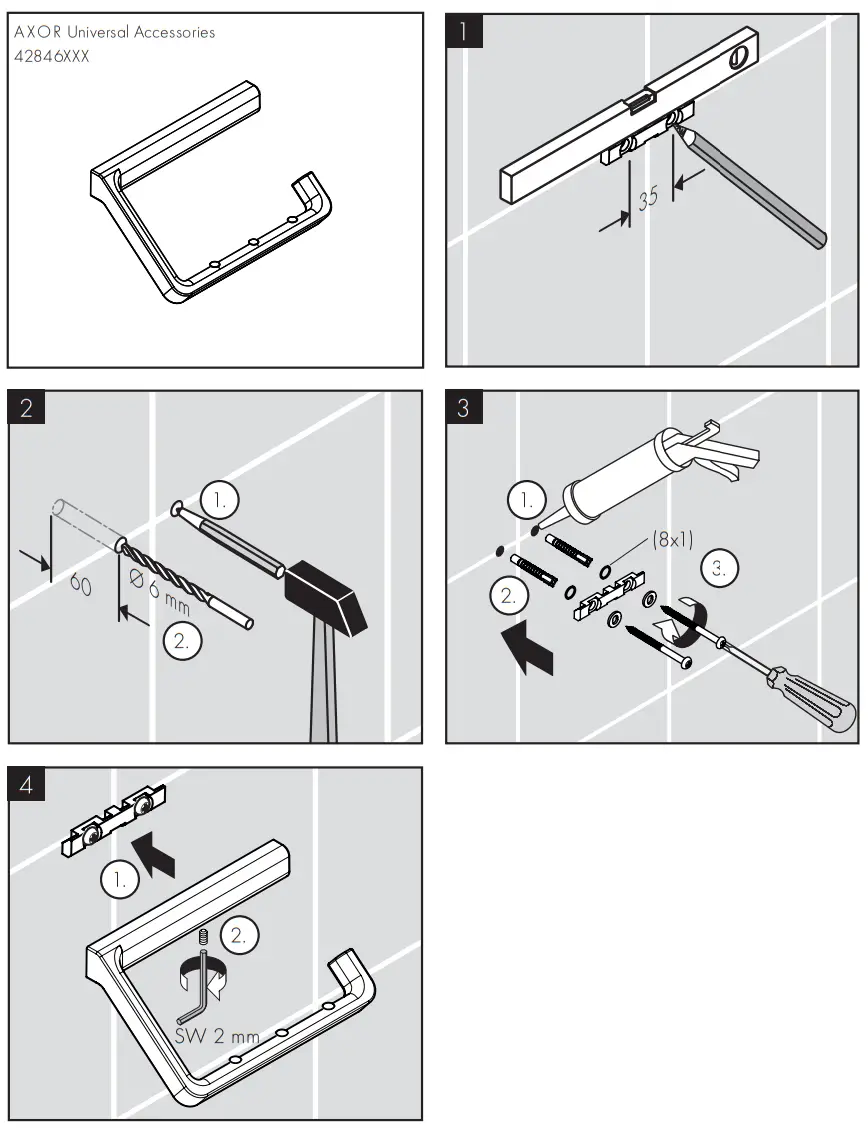

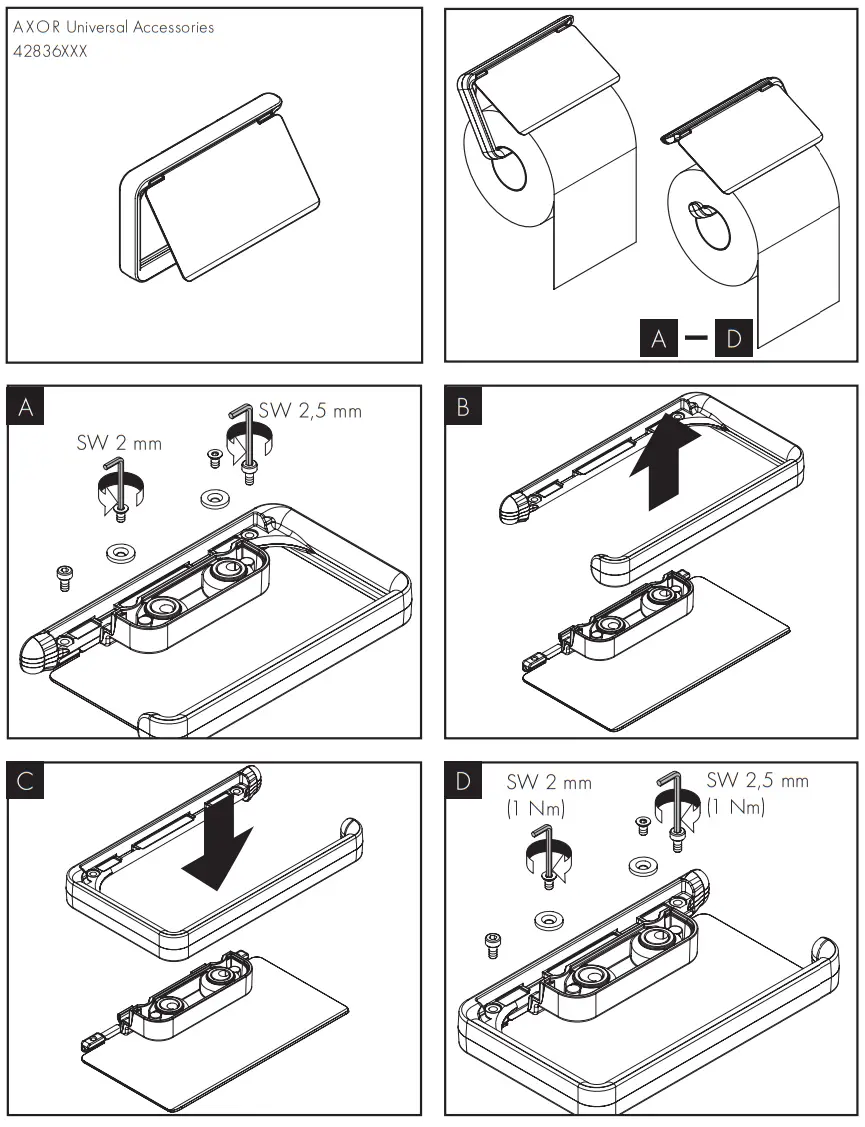

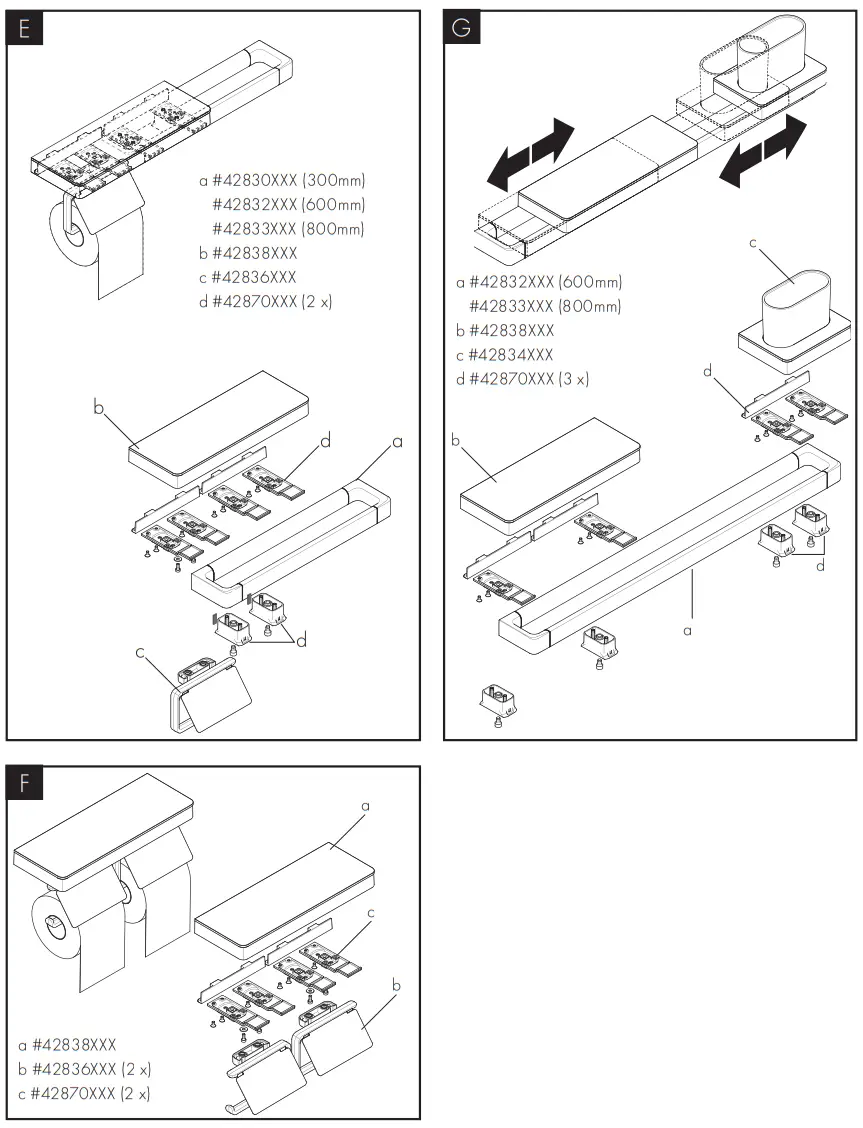

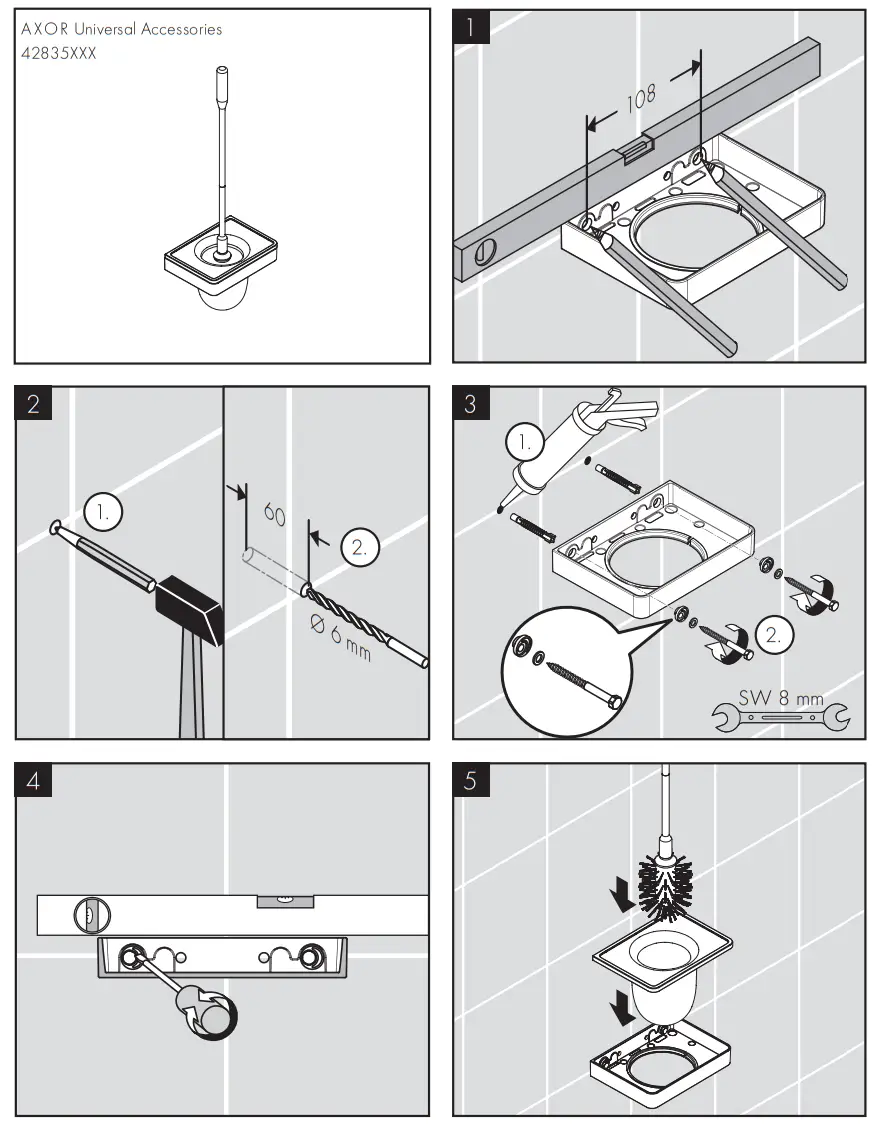

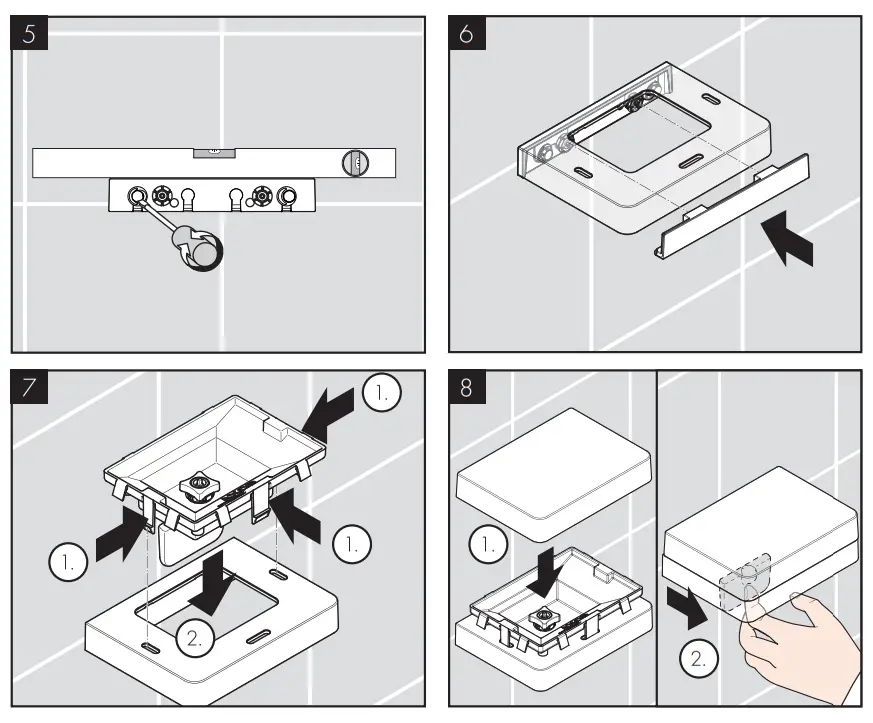

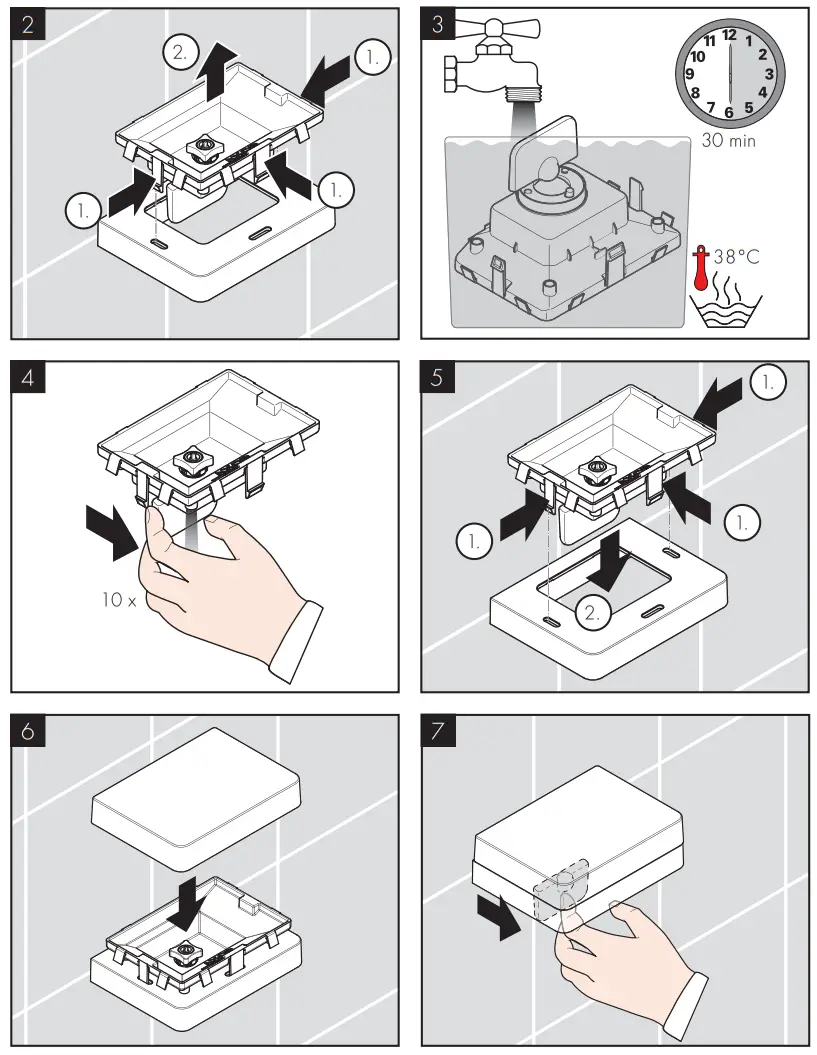

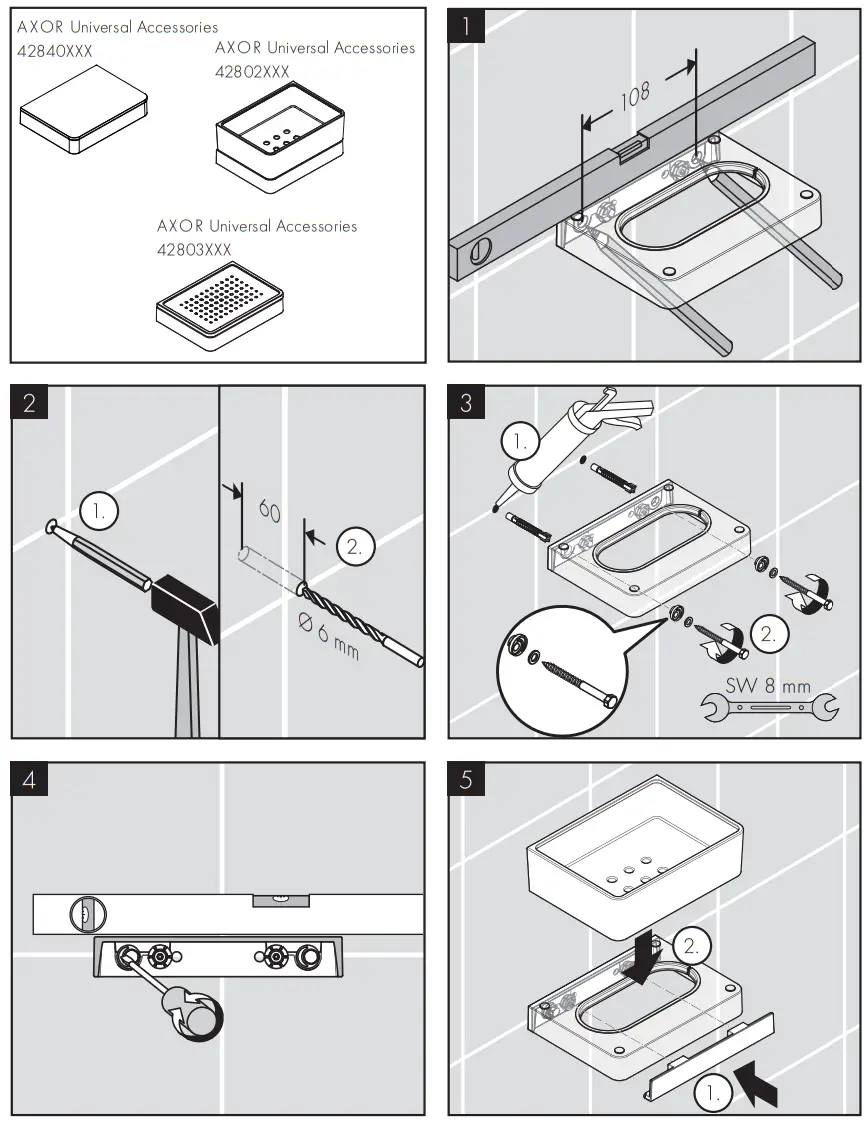

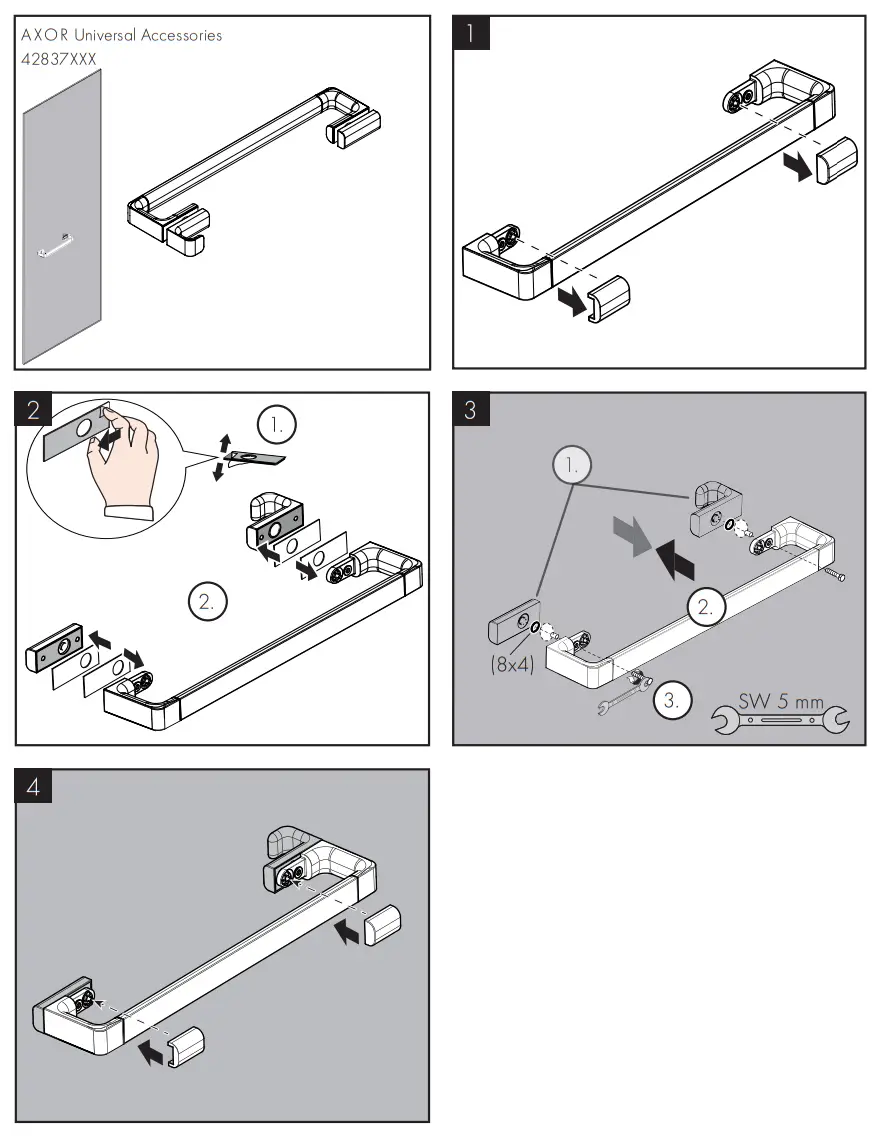

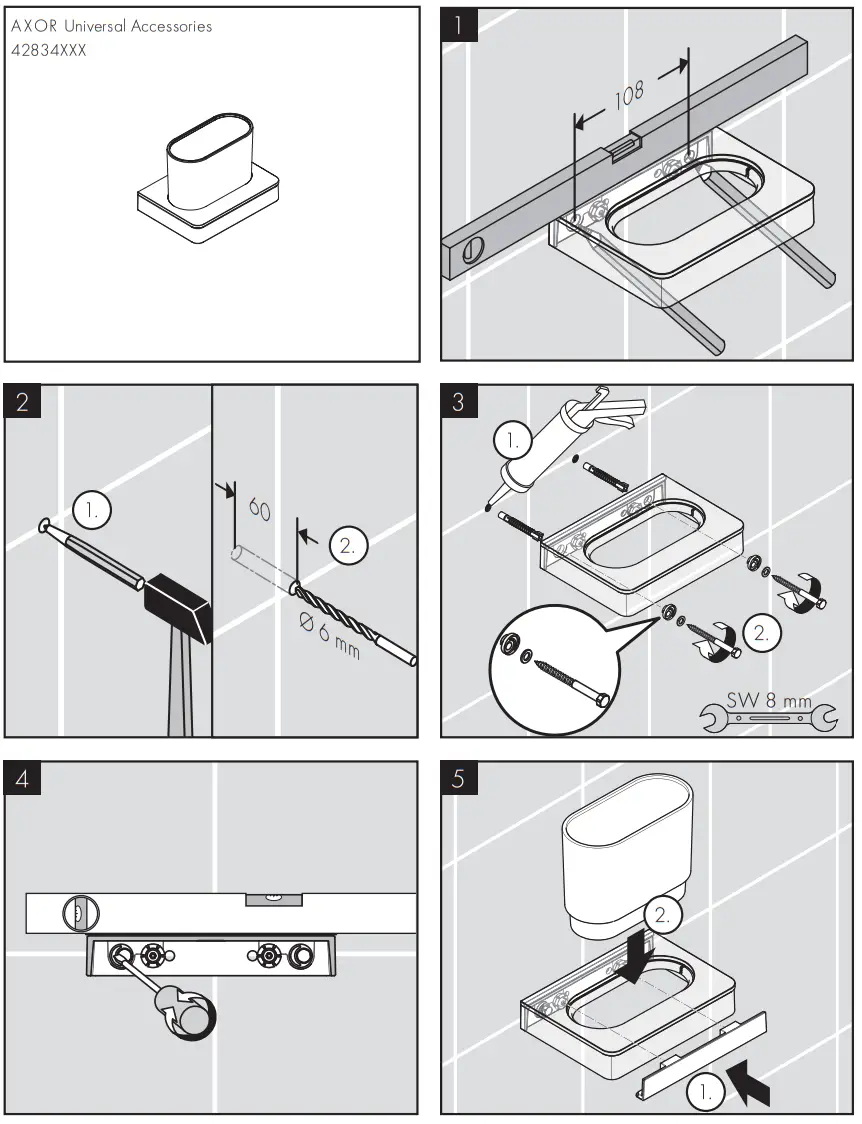

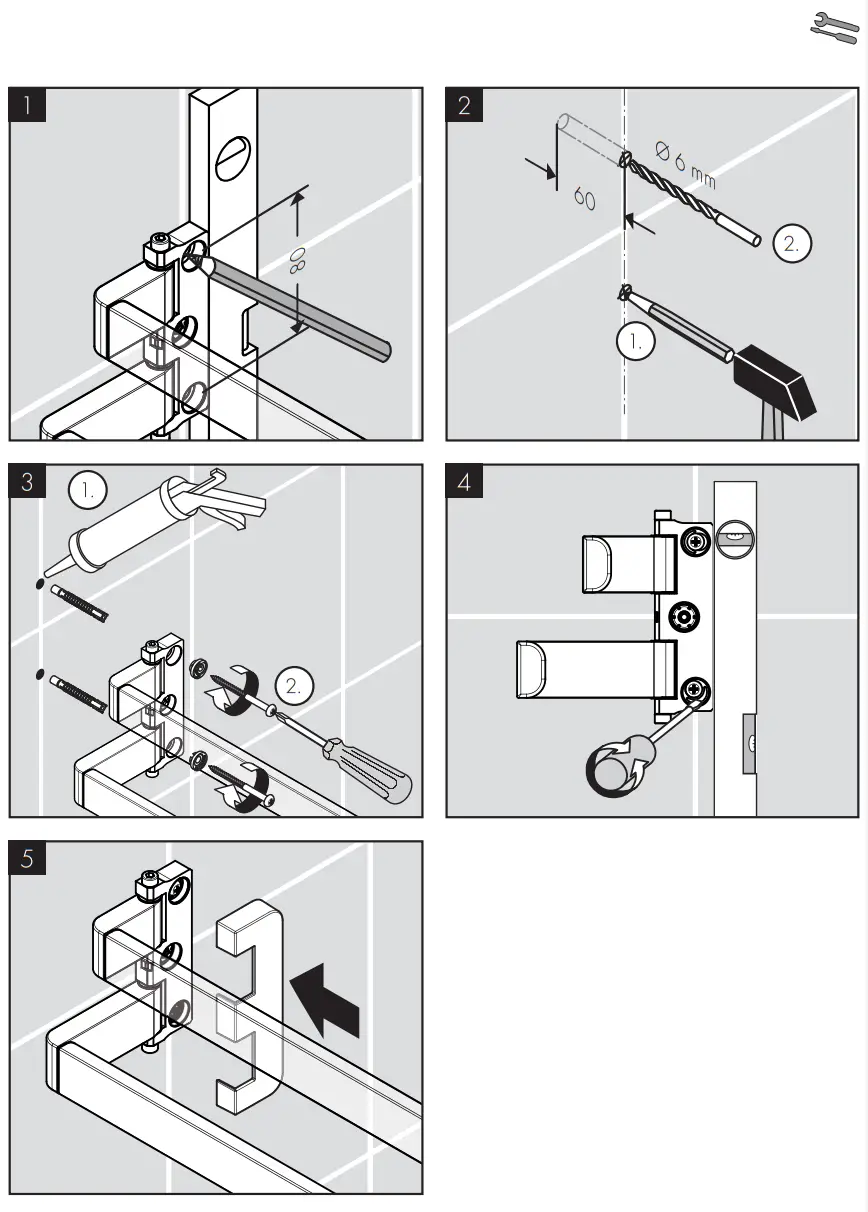

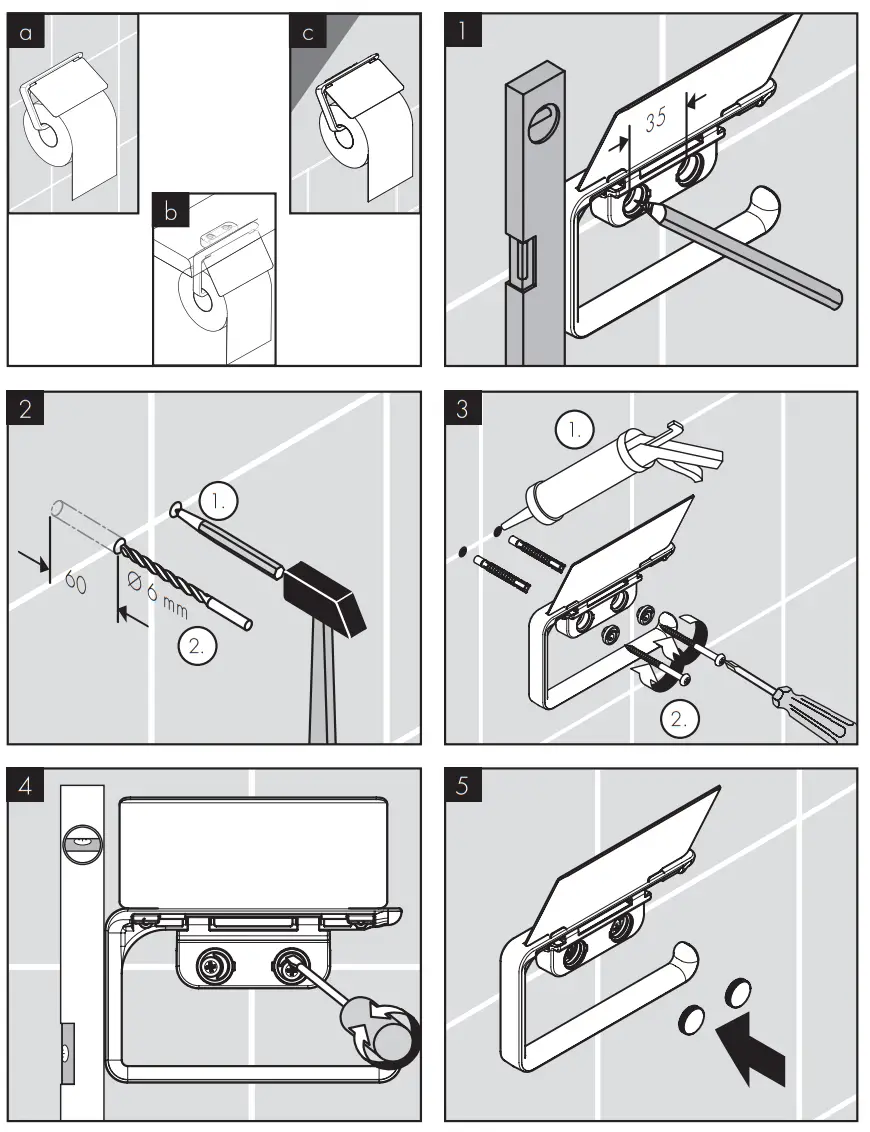

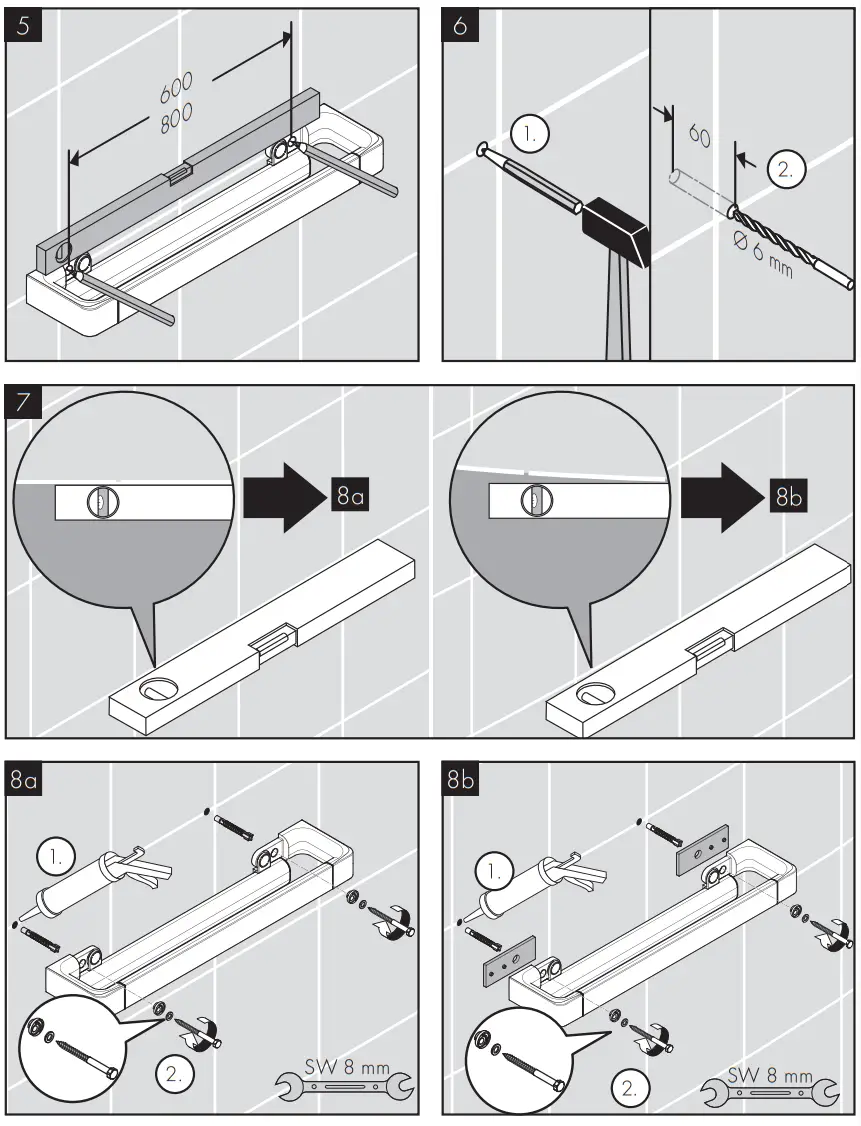

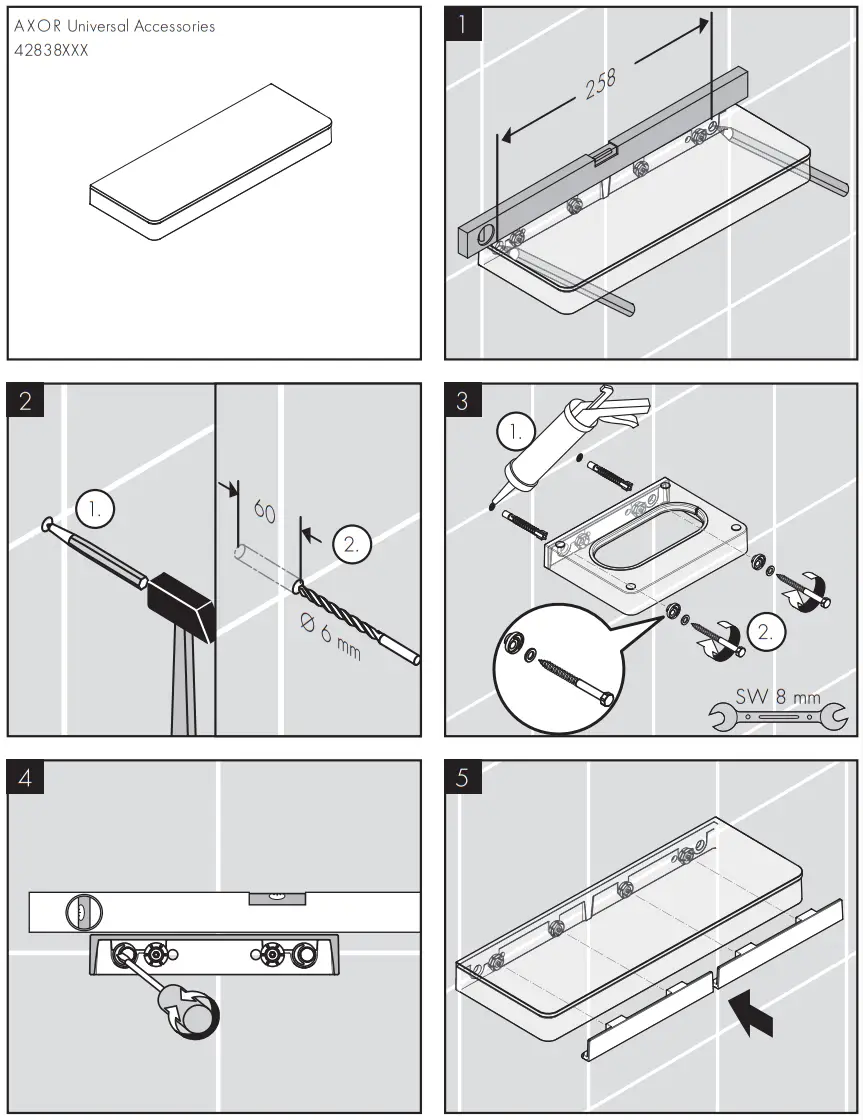

ASSEMBLY
ASSEMBLY

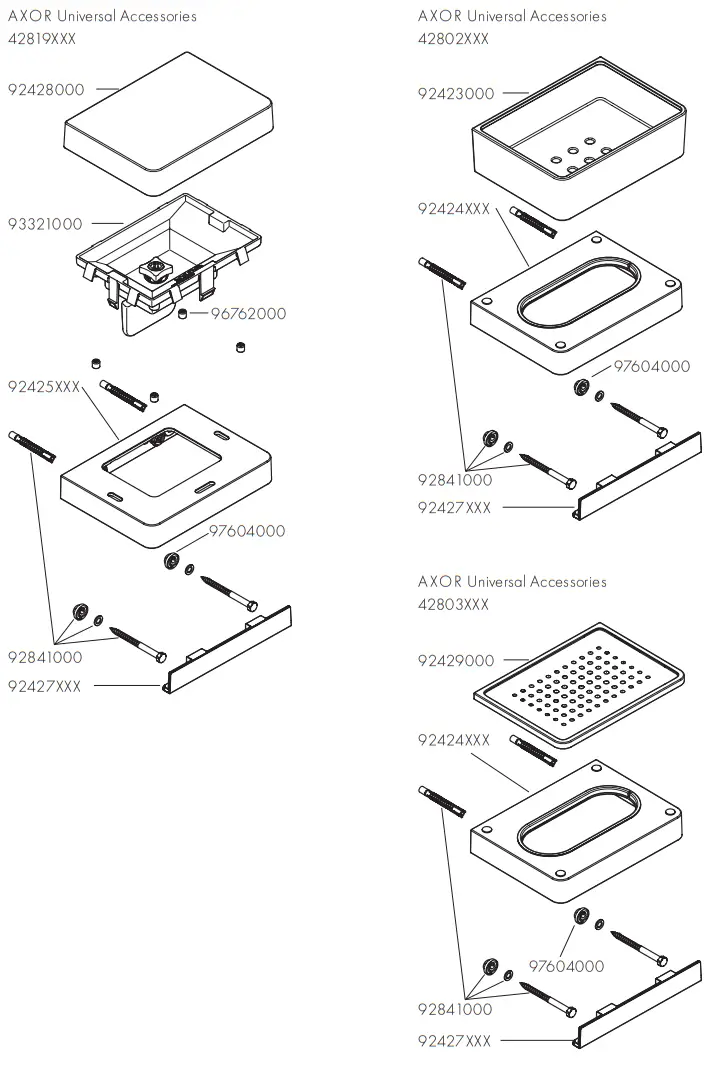

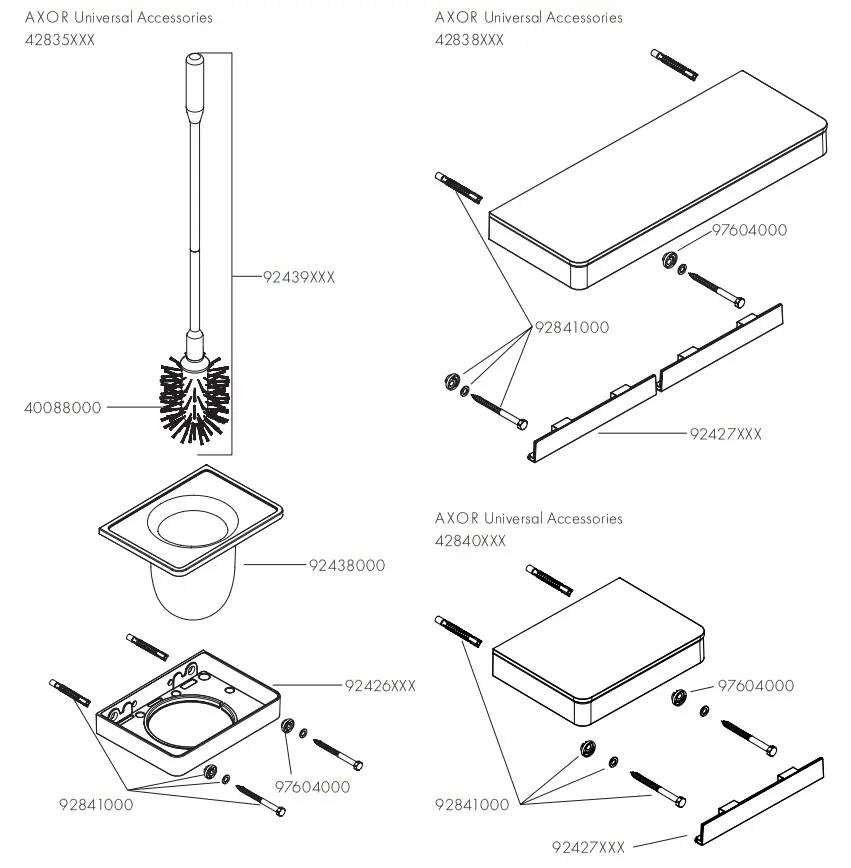

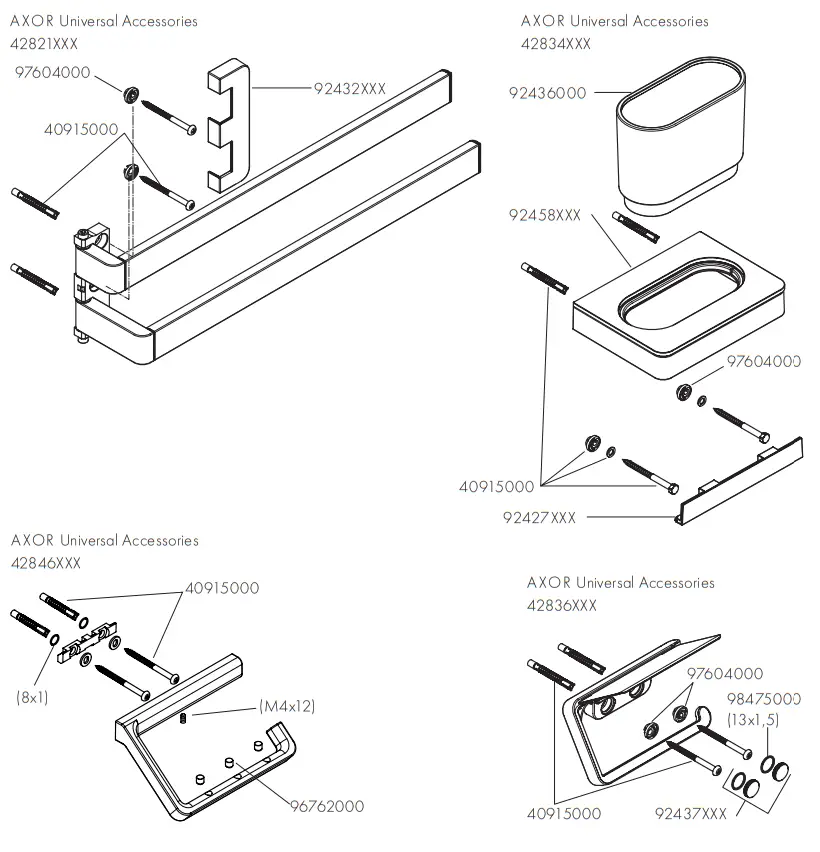

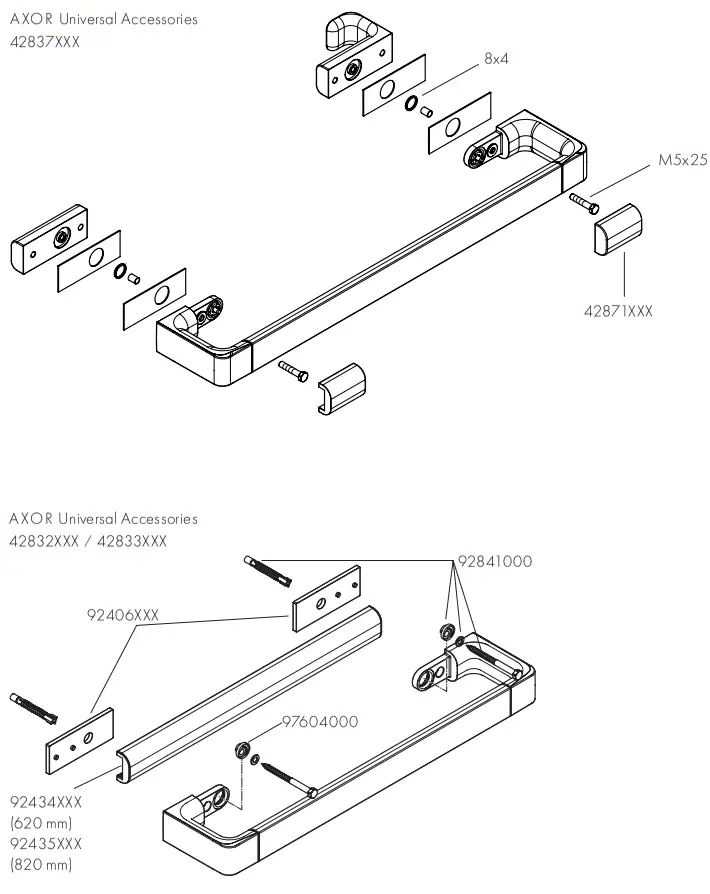

SPARE PARTS
SPARE PARTSXXX = Colors
| 000 = Chrome 020 = Polished Chrome 130 = Polished Bronze 140 = Brushed Bronze 250 = Brushed Gold-Optic | 260 = Brushed Chrome 300 = Polished Redgold 310 = Brushed Redgold 330 = Polished Black Chrome | 340 = Brushed Black Chrome 670 = Matt Black 800 = Stainless Steel Optic 820 = Brushed Nickel | 830 = Polished Nickel 930 = Polished Brass 950 = Brushed Brass 990 = Polished Gold-Optic |
SPECIAL ACCESSORIES

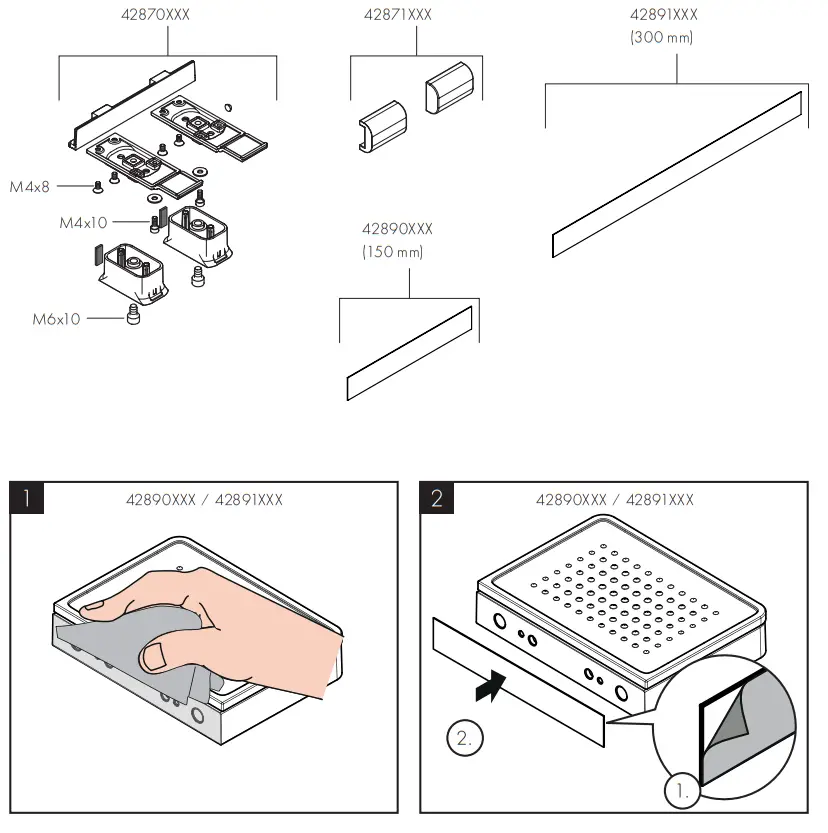

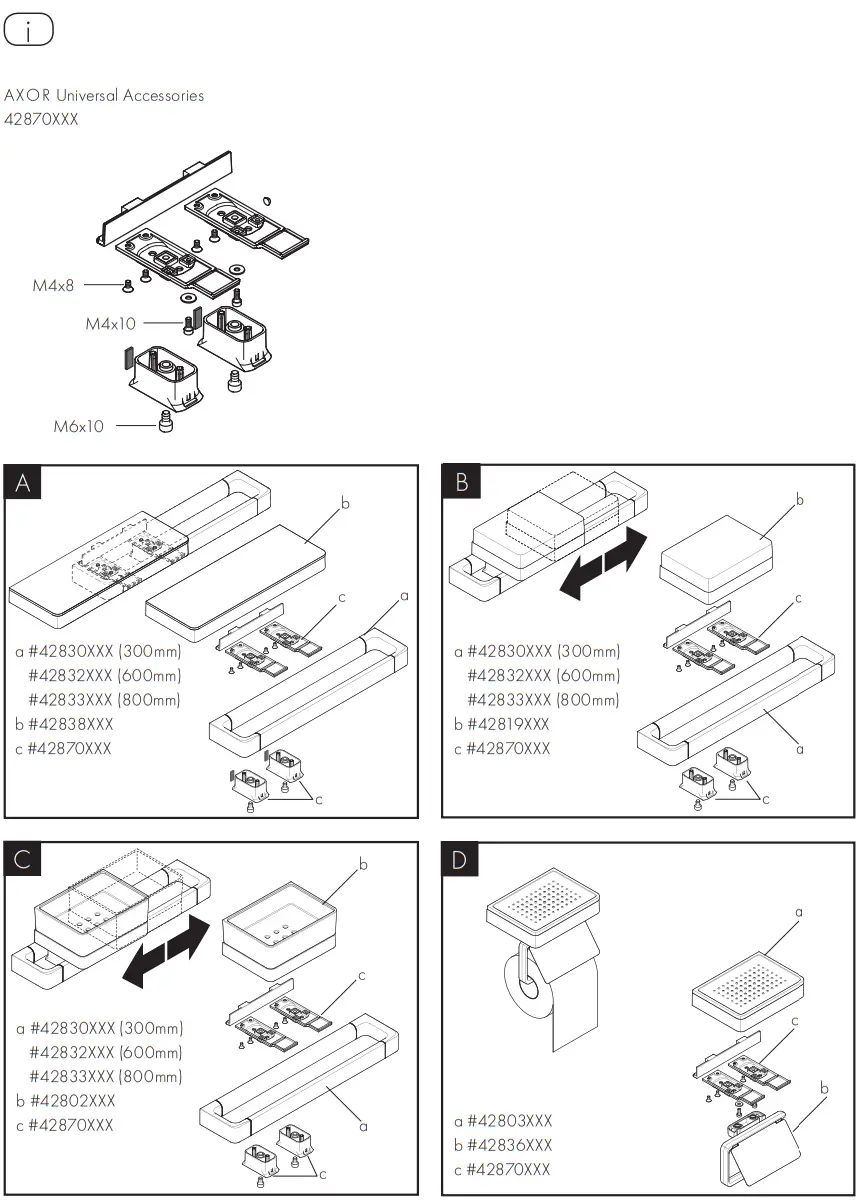

SPECIAL ACCESSORIES⁄ Adapter #42870XXX
⁄ cover cap set #42871XXX
⁄ mounting kit #42841000
⁄ cover (150 mm) #42890XXX
⁄ cover (300 mm) #42891XXX
XXX = Colors
| 000 = Chrome 020 = Polished Chrome 130 = Polished Bronze 140 = Brushed Bronze 250 = Brushed Gold-Optic | 260 = Brushed Chrome 300 = Polished Redgold 310 = Brushed Redgold 330 = Polished Black Chrome | 340 = Brushed Black Chrome 670 = Matt Black 800 = Stainless Steel Optic 820 = Brushed Nickel | 830 = Polished Nickel 930 = Polished Brass 950 = Brushed Brass 990 = Polished Gold-Optic |
CLEANING
CLEANING
www.axor-design.com/cleaning-recommendation
Cleaning recommendation ⁄ Warranty ⁄ Contact
With the excentric washer it is possible to equalize tolerance of the drilling.
TEST CERTIFICATE
TEST CERTIFICATE
| 42802XXX | X |
| 42803XXX | |
| 42819XXX | |
| 42821XXX | |
| 42832XXX | |
| 42833XXX | |
| 42834XXX | |
| 42835XXX | |
| 42836XXX | |
| 42837XXX | |
| 42838XXX | X |
| 42840XXX | X |
| 42846XXX |
